Name: Tamiya MF-01X Ford Escort MK.II RC Rally Car Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58687
Price: 296.45 AUD
Availability: OutOfStock
Rating: 5 (1 reviews)

Overview

This R/C model assembly kit recreates the classic Ford Escort Mk.II in rally racing form. It was a RAC Rally Champion from 1975 to 1979. The pre-painted body sits on top of the Tamiya MF-01X chassis that is capable both on asphalt and flat dirt surfaces.

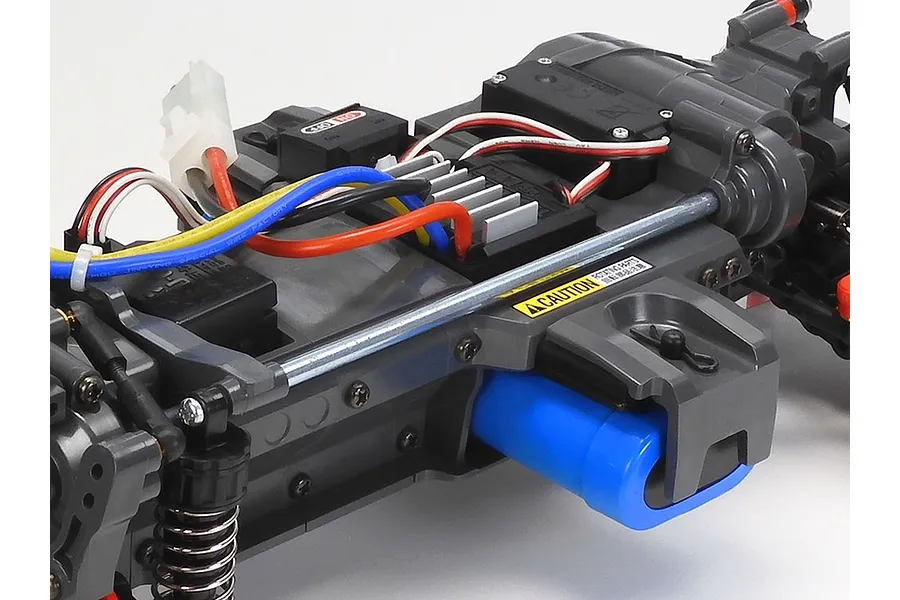

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers.

Features

1/10 scale R/C model assembly kit. Length: 414mm, wheelbase: 239mm (L)
Polycarbonate body pre-painted in White

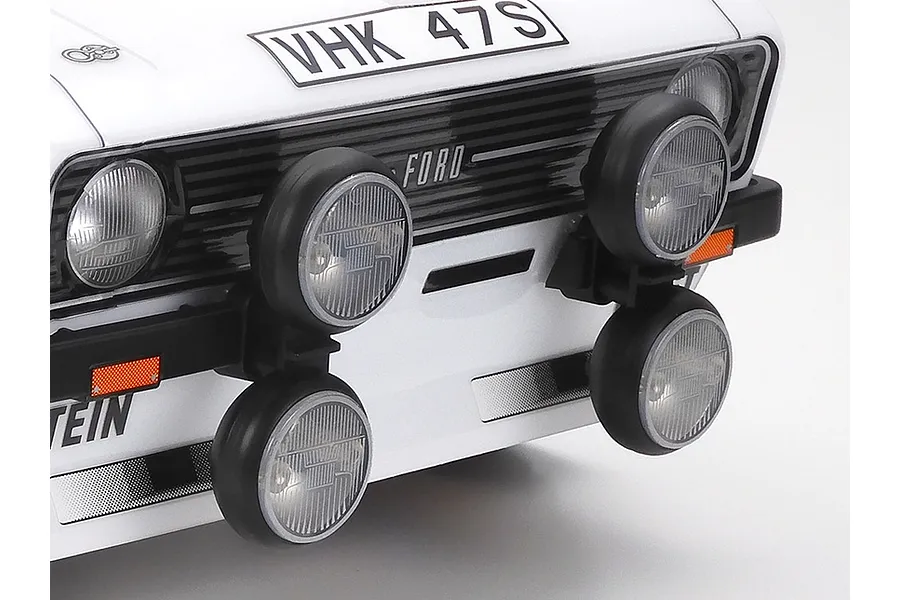

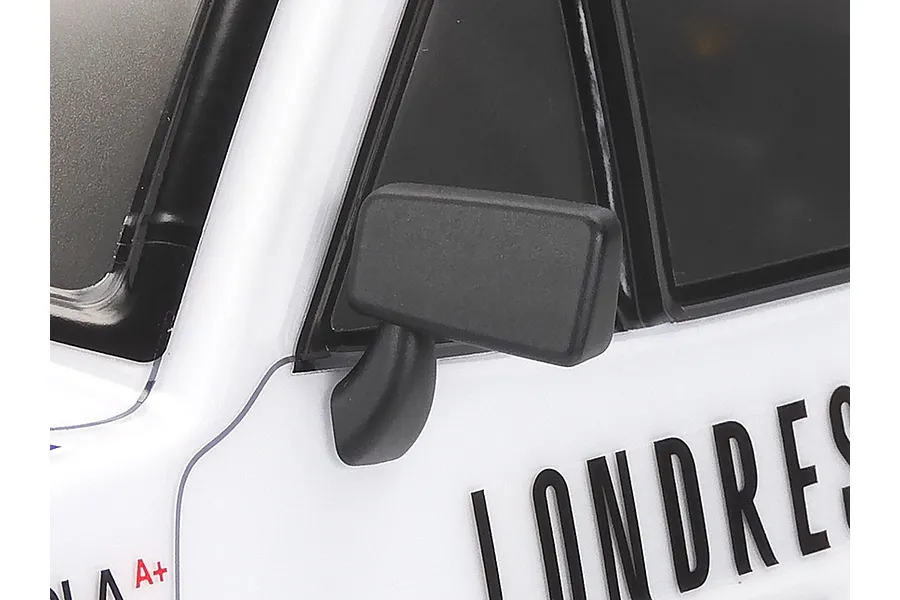

Separately moulded plastic components are included to recreate bumper, side mirrors and fog lamps

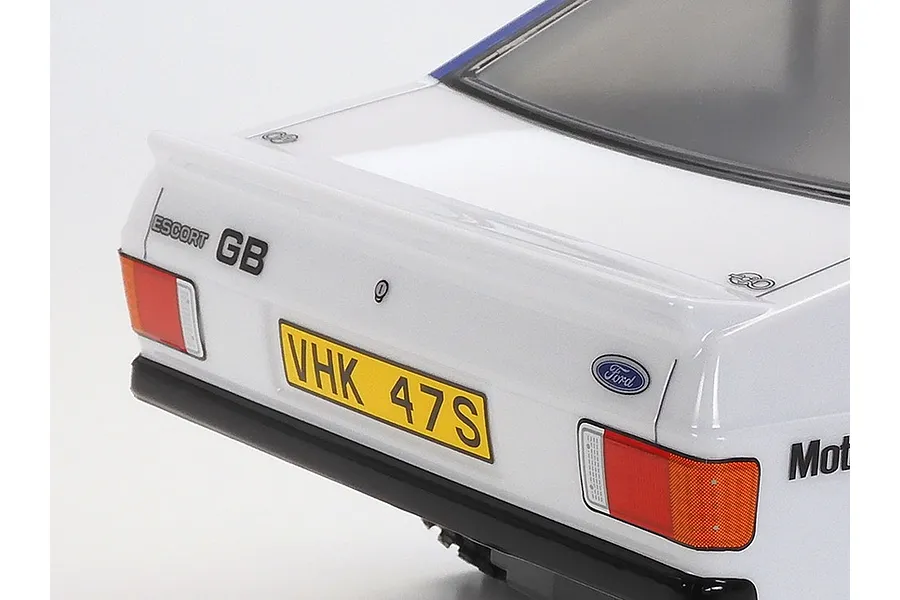

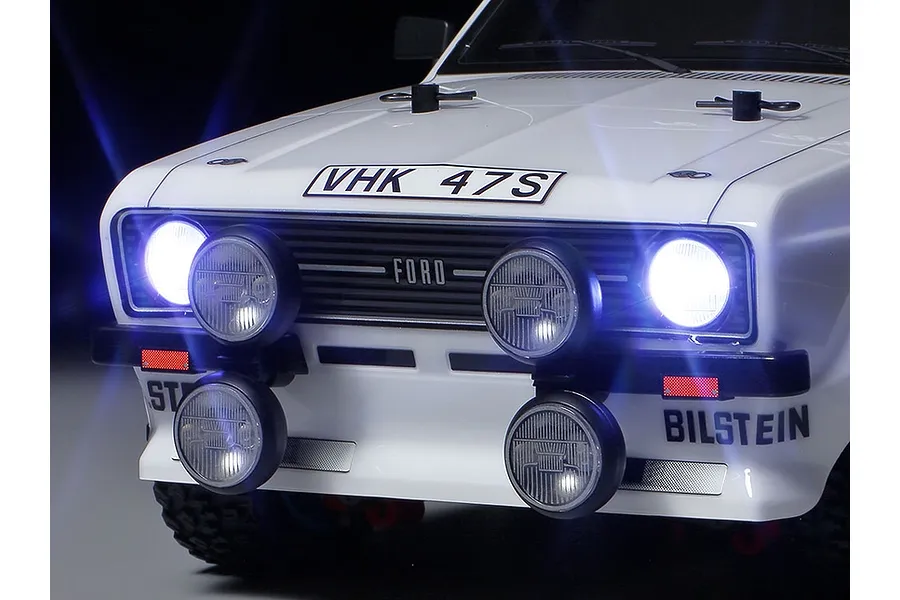

Polycarbonate front and rear light cases are compatible with separately sold Tamiya 5mm LEDs
Stickers are included to recreate blue livery sections, sponsor logos and more
The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension
Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front. The chassis can be converted to S and M wheelbases with separately sold propeller shafts
A host of Hop-Up Option parts are available to tune the MF-01X chassis
Tamiya Torque Tuned Motor included
Includes Tamiya TBLE-02S ESC capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit) (23 Turn brushed motor limit)

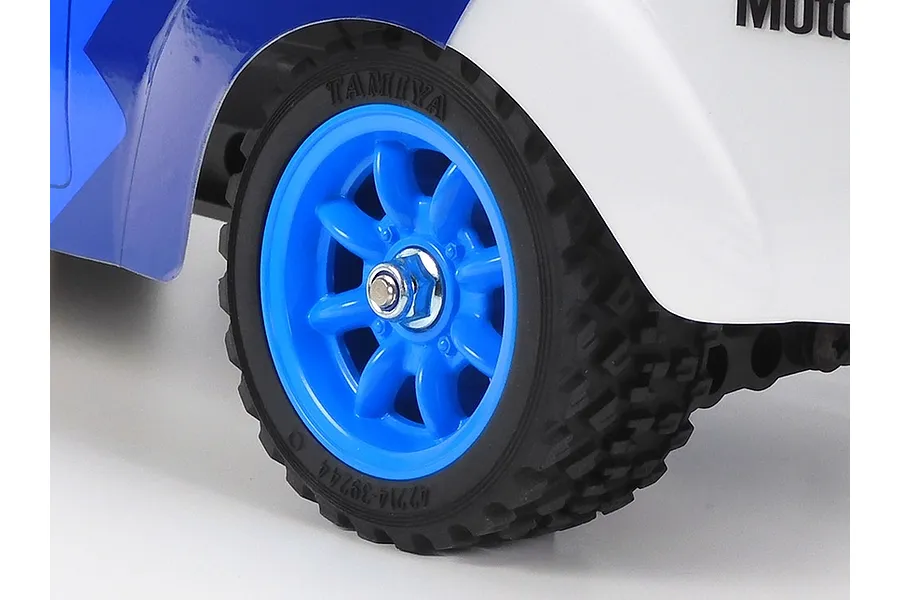

Rally Block tyres with width/diameter of 27/69mm are included

You'll need

2-channel radio
Steering servo
7.2V battery and compatible charger
Paint
Tools

Highlights

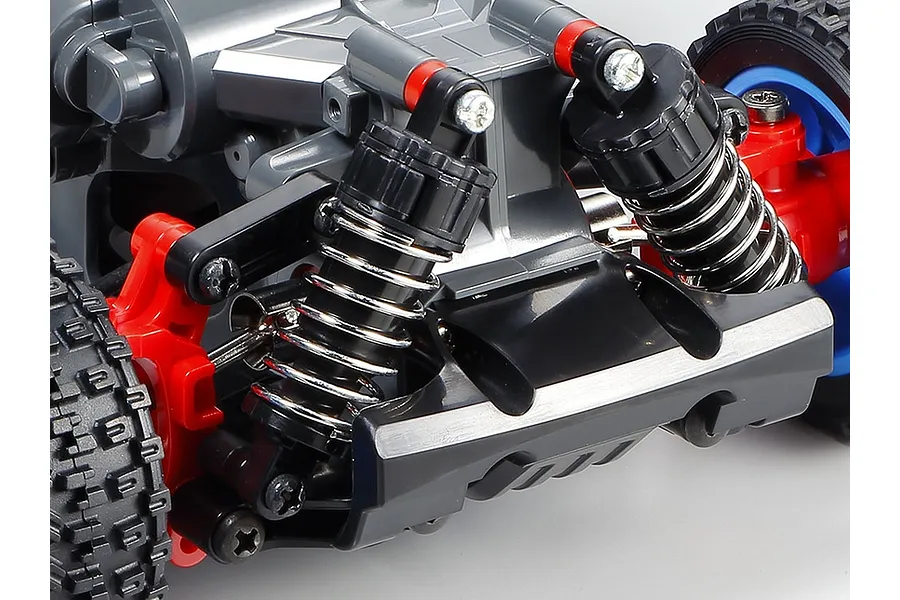

4 Wheel Independent Double Wishbone Suspension

The double wishbone suspension, both front and rear, delivers fantastic handling and off-road performance. The tough uprights and hub carriers on the front ensure durability, while friction shock absorbers on the rear provide effective damping action.

Adjustable Wheelbase

The versatile monocoque frame allows you to adjust the wheelbase to suit your driving preferences. By changing the central spacer block and installing a separately sold prop shaft, you can choose between short (210mm), medium (225mm), or long (239mm) wheelbase configurations.

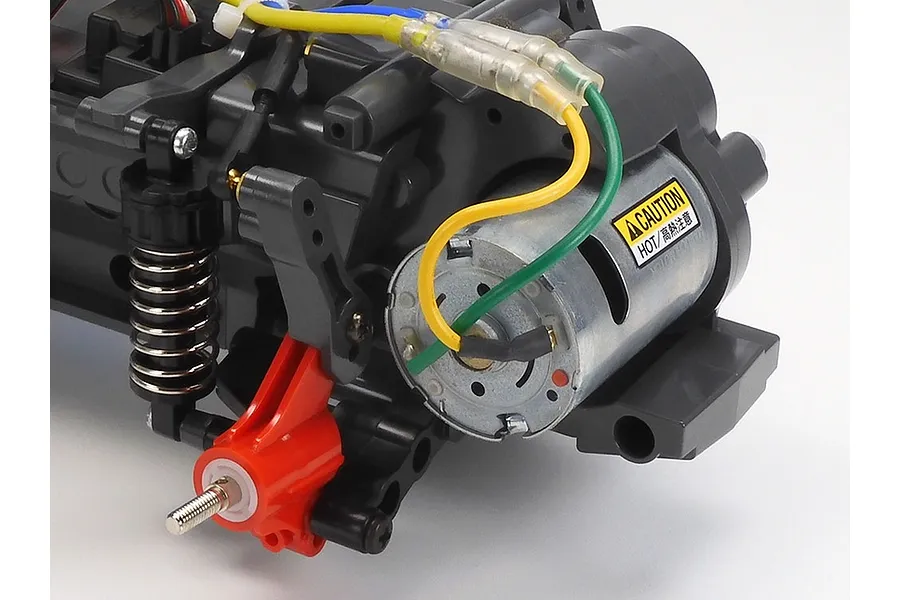

Rear Mounted Motor

The motor is strategically mounted at the rear of the monocoque frame, providing direct power to the rear wheels via gears. A propeller shaft extends to the front wheels, creating an efficient 4WD system for better traction and control.

Specifications

Length	414mm (16.30")
Width	172mm (6.77")
Height	135mm (5.31")
Wheelbase	239mm (9.41")
Chassis	MF-01X Monocoque Frame
Suspension	Independent Double Wishbone Arms With Friction Shock Absorbers
Drivetrain	4WD
Motor	Tamiya Torque Tuned 540 Brushed Motor
ESC	Tamiya TBLE-02S Brushed/Brushless ESC

RC Car

Scale	1/10
Max LiPo Power	2S (7.4v)
Completion	Kit
Skill Level	Intermediate, Beginner, Experienced
Power Source	Electric Brushed
Chassis Type	Car
On/Off Road	Off Road
Drivetrain	4WD
