Tamiya TT-01E Volkswagen Scirocco GT RC Touring Car Electric 4WD 1/10 Scale Kit - Black

  • 1/10
  • 4WD
  • Kit
  • Brushed

Part no. 47452

DiscontinuedWrite a review
1 / 9
1 / 9

Videos

Videos

Overview

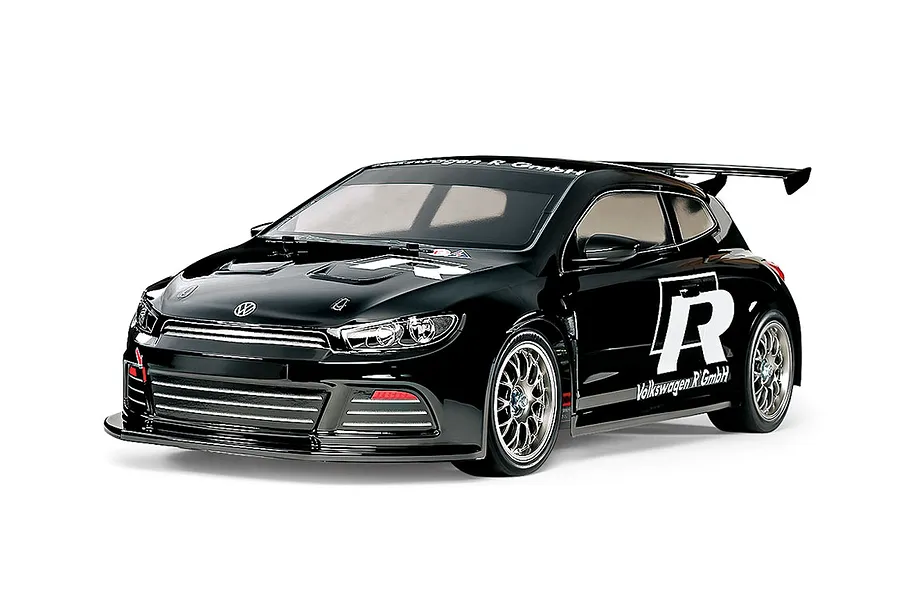

This radio control car kit recreates the VW Scirocco GT. Tamiya has faithfully recreated the Scirocco for radio control enthusiasts with a polycarbonate body that comes pre-painted in black with the windows tinted in Tamiya PS-31 Smoke. The aggressive looking body sits on top the easy to build and drive TT-01E chassis.

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing a smoother steering action. The low center of gravity, great balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to produce excellent operating ability. 70mm-diameter radial tires are paired with wheels developed just for this model; the high sidewalls make for forgiving turns.

Features

  • Volkswagen Scirocco GT coupe is recreated in polycarbonate, painted in black and with windows painted in Smoke (PS-31)
  • Separately molded components are included for rear wing and side mirrors
  • Stickers are included to recreate markings. Must be applied
  • Plated spoke design wheels are paired with racing slick tyres
  • The TT-01 Type-E chassis features shaft-driven 4WD for easy handling, and great customizability
  • A wide range of Hop-Up Option parts is available to tune the chassis
  • Includes 540-type motor
  • Includes Tamiya TBLE-02S ESC capable of running sensor brushless motors and brushed motors alike

In the box

  • 1x 1/10 TT-01E Volkswagen Scirocco GT Electric On-Road RC Car Kit — Black w/ ESC & Motor
  • 1x Decal Sheet Set

You'll need

  • 2Ch+ Transmitter & Receiver
  • Standard Servo
  • 7.2V Battery Pack w/ Tamiya Plug & Compatible Charger
  • Tools

Highlights

Pre-Painted Polycarbonate Body

Pre-Painted Polycarbonate Body

Tamiya has faithfully recreated the Scirocco for radio control enthusiasts with a polycarbonate body that comes pre-painted in black with the windows tinted in Tamiya PS-31 Smoke.

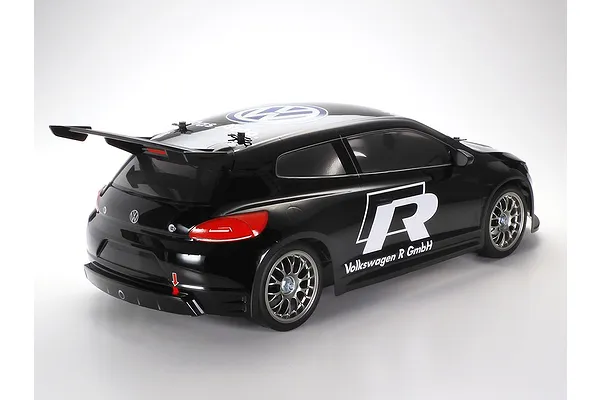

VW Scirocco GT — rear view detail

VW Scirocco GT — rear view detail

This rear view shows just how the model depicts the bulging fenders, central exhaust, rear diffuser and more.

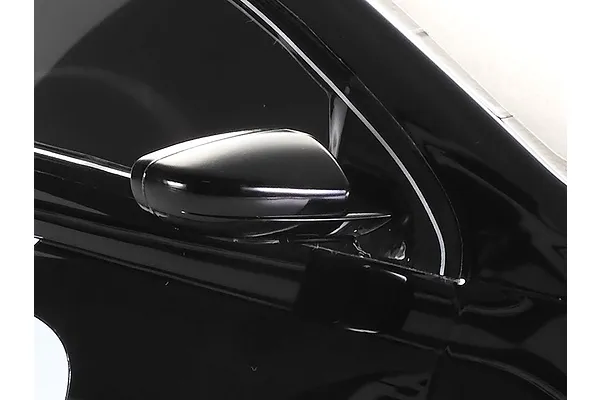

VW Scirocco GT — side mirrors detail

VW Scirocco GT — side mirrors detail

Separate side mirrors were designed specifically for our Scirocco models.

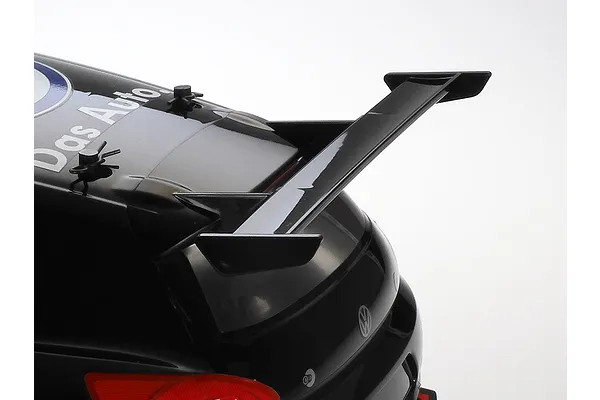

VW Scirocco GT — rear wing close-up

VW Scirocco GT — rear wing close-up

This image gives a much closer look at the sporty rear wing, which is recreated by a separately molded part.

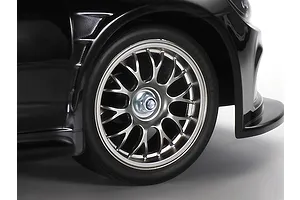

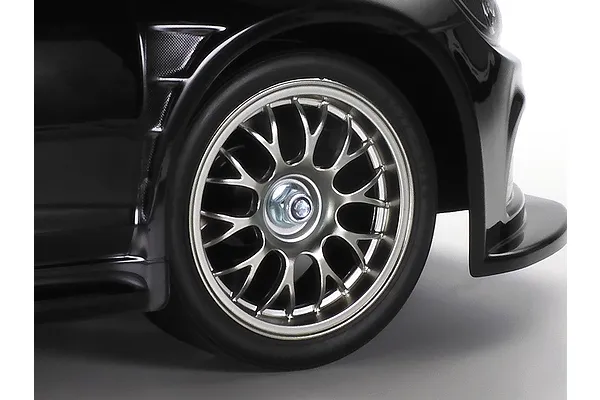

VW Scirocco GT — metal-plated mesh wheels

VW Scirocco GT — metal-plated mesh wheels

Matte finish metal-plated mesh type wheels give the model an understated yet classy finish.

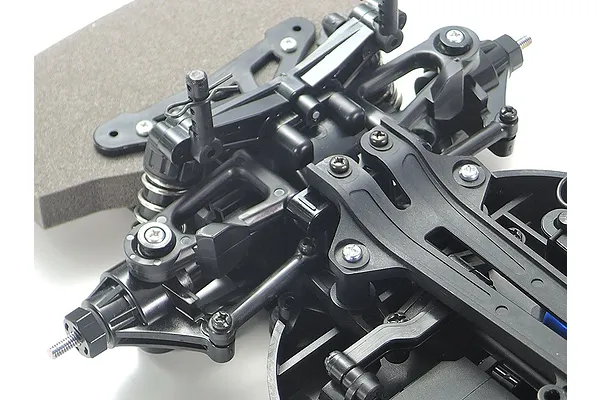

TT-01E chassis — steering tie rod

TT-01E chassis — steering tie rod

A three-piece steering tie rod setup employs aluminum pipes for superior parts fit and smooth steering motion.

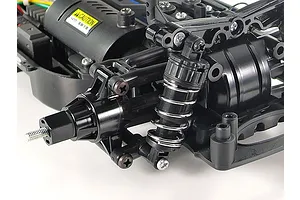

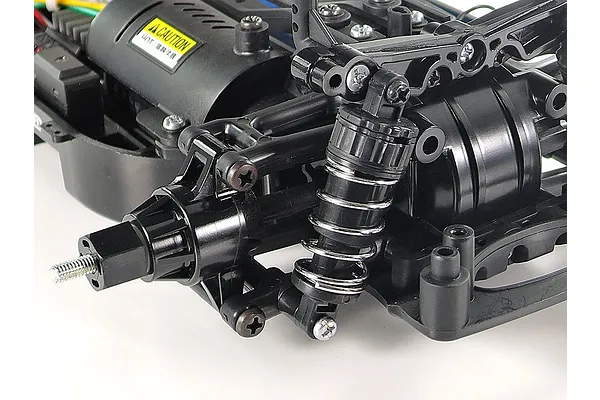

TT-01E chassis — damper stay and gear cover

TT-01E chassis — damper stay and gear cover

Damper stay and gear cover are separate parts; the stay features two different damper attachment holes to choose from.

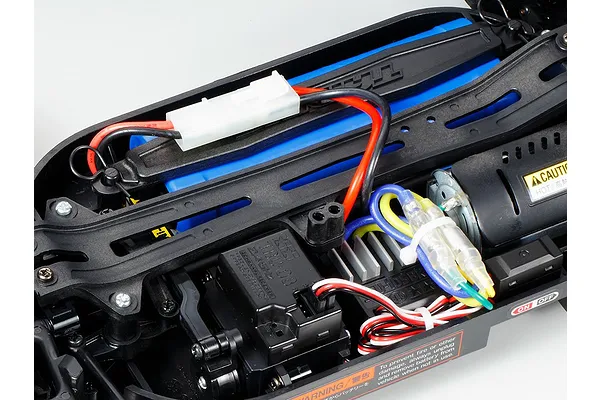

TT-01E chassis — battery and R/C equipment layout

TT-01E chassis — battery and R/C equipment layout

With the battery pack on the right of the bathtub frame and the R/C equipment on the left, the chassis has great balance.

Specifications

Length443mm (17.4")
Width188mm (7.37")
Height137mm (5.39")
Wheelbase257mm (10.1")
Tyre Width27mm (1.06") Front & Rear
Tyre Diameter67mm (2.63") Front & Rear
Engine MountLongitudinally-Mounted Motor
Wheel DriveShaft-Driven Full-Time 4WD
Differential3-Piece Bevel Gear
Gear Ratio8.35:1
Steering3-Piece Tie-Rod
DampersFriction Dampers Front & Rear
Suspension4-Wheel Independent Double-Wishbone
Steering Linkage3-Piece

RC Car

Scale1/10
CompletionKit
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD
