Tamiya MF-01X Volkswagen Golf MK2 GTI RC Rally Car Electric 4WD 1/10 Scale Kit (No ESC)

Tamiya MF-01X Volkswagen Golf MK2 GTI RC Rally Car Electric 4WD 1/10 Scale Kit (No ESC)

Tamiya MF-01X Volkswagen Golf MK2 GTI RC Rally Car Electric 4WD 1/10 Scale Kit (No ESC)

Brand: Tamiya | SKU: 58714A
discontinued
Description
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

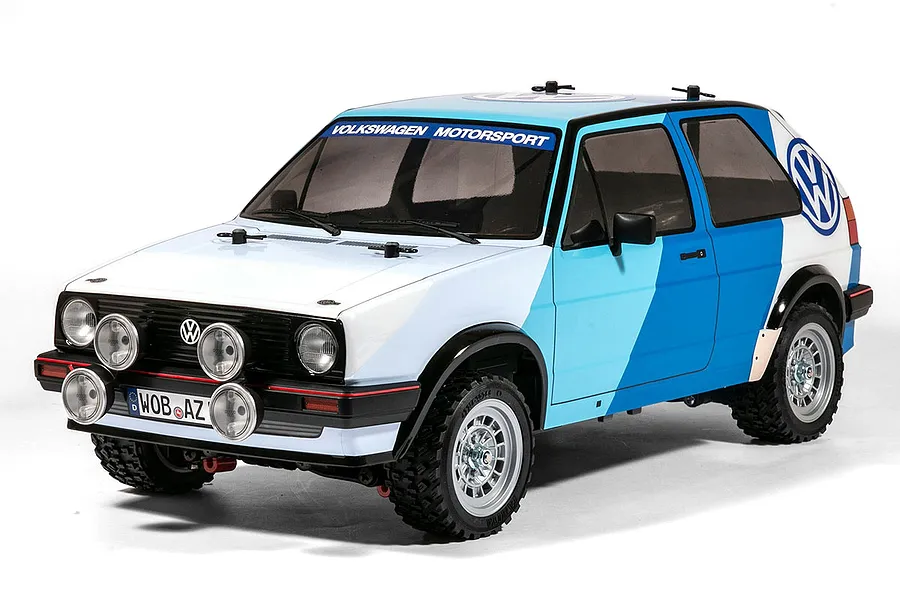

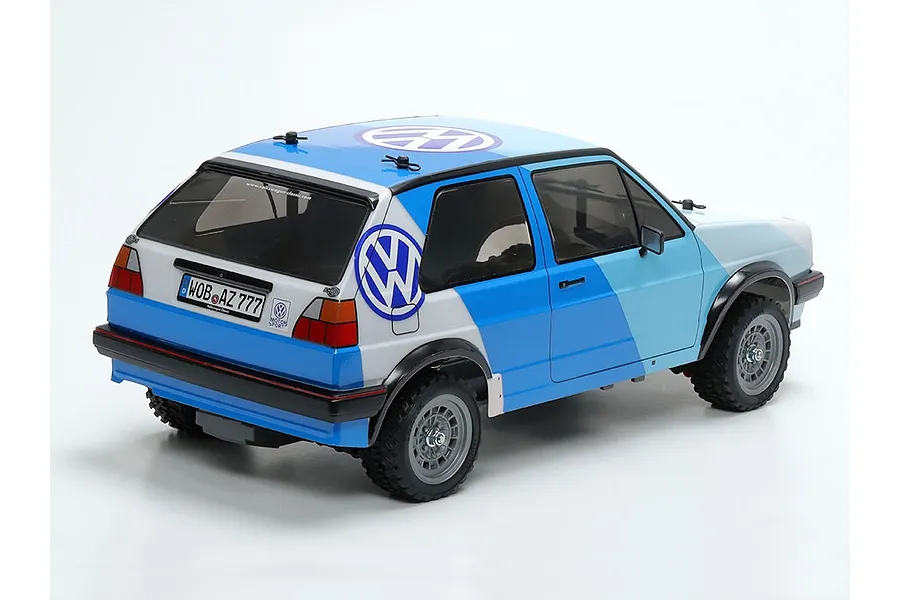

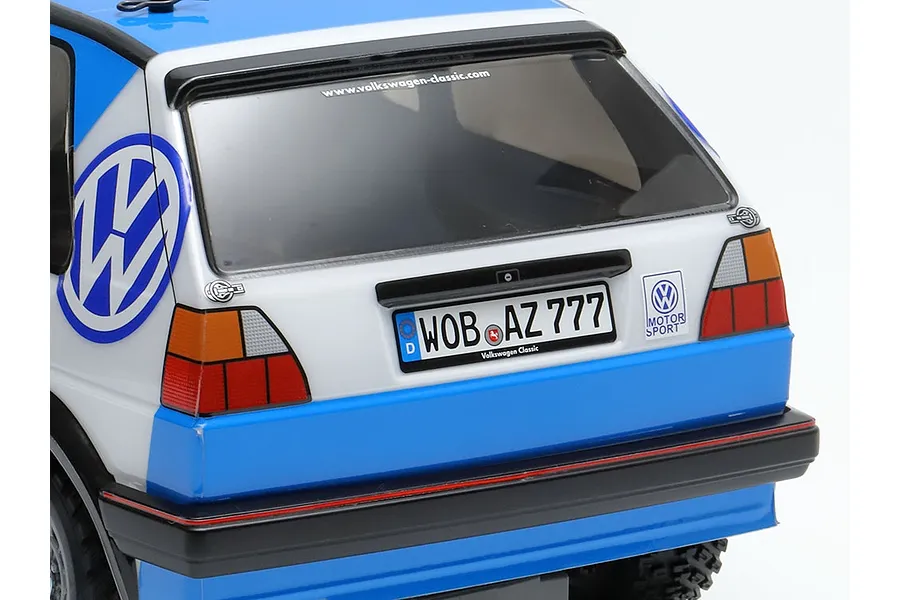

The Tamiya Volkswagen MK2 GTI 16V is a 1/10 scale RC replica of the popular 1980s hot hatchback, now reimagined as a rally car ready for A7 class competition. This model faithfully captures the iconic design of the MK2 GTI 16V, bringing a classic hot hatch to life in a fun and exciting way. The detailed polycarbonate body is paired with the versatile MF-01X chassis, which is equally capable on asphalt and flat dirt terrain. The MF-01X features a durable monocoque frame with integrated gearboxes, a rear-mounted motor, and 4-wheel independent double wishbone suspension for responsive handling and control. Whether you're tackling rally stages or cruising the streets, the Tamiya Volkswagen MK2 GTI 16V delivers a thrilling RC experience.

Adjustable Wheelbase
Adjustable Wheelbase

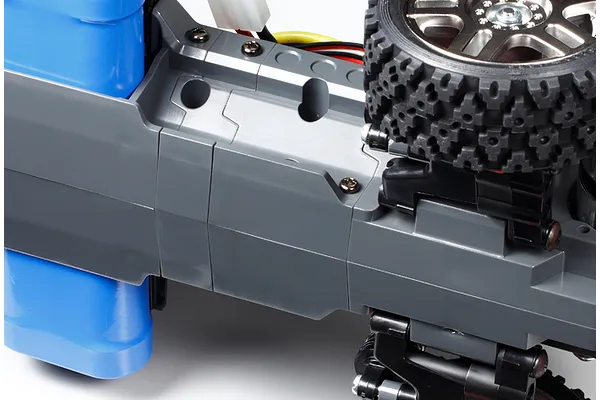

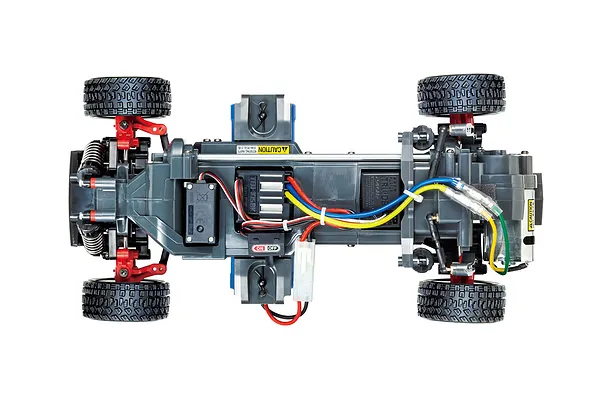

The versatile monocoque frame allows you to adjust the wheelbase to suit your driving preferences. By changing the central spacer block and installing a separately sold prop shaft, you can choose between short (210mm), medium (225mm), or long (239mm) wheelbase configurations.

4 Wheel Independent Double Wishbone Suspension
4 Wheel Independent Double Wishbone Suspension

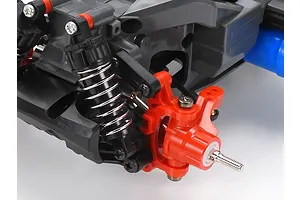

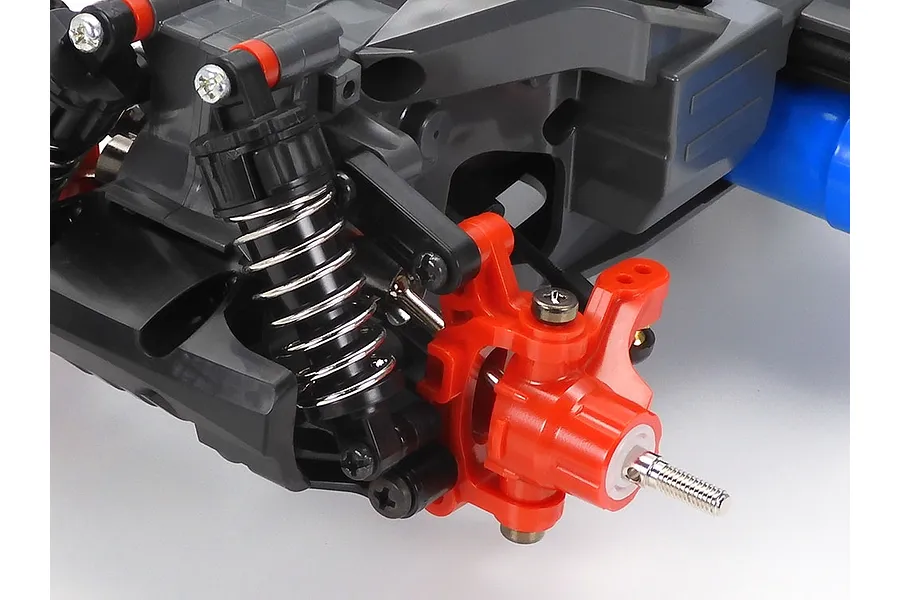

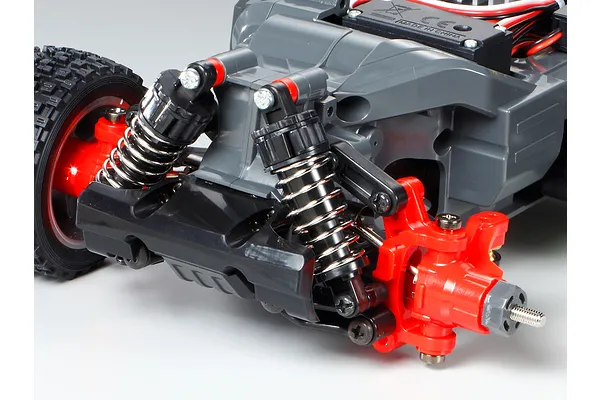

The double wishbone suspension, both front and rear, delivers fantastic handling and off-road performance. The tough uprights and hub carriers on the front ensure durability, while friction shock absorbers on the rear provide effective damping action.

Rear Mounted Motor
Rear Mounted Motor

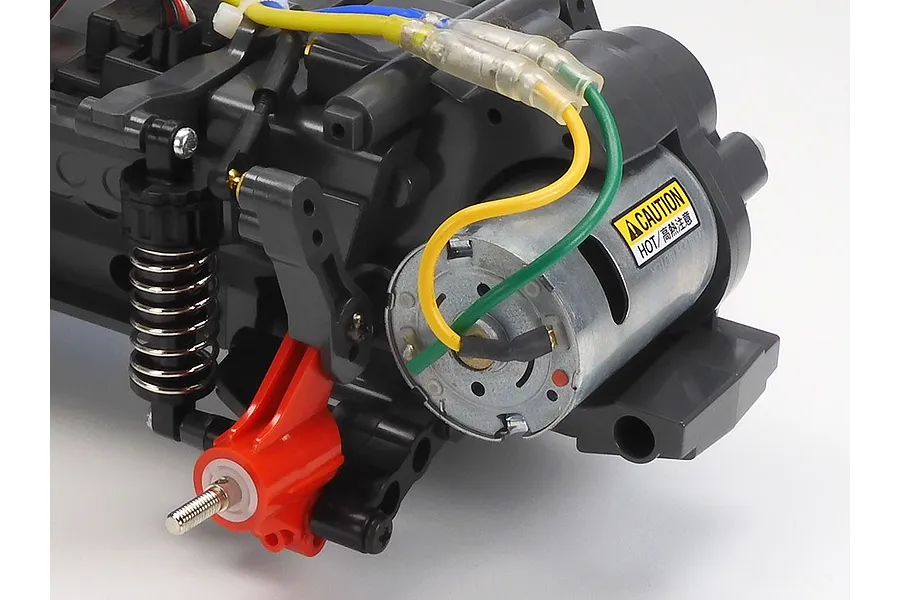

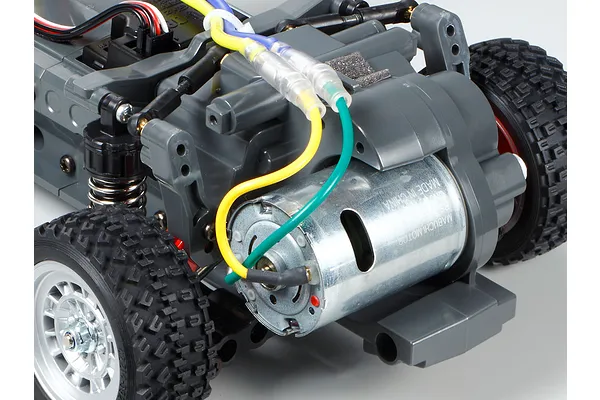

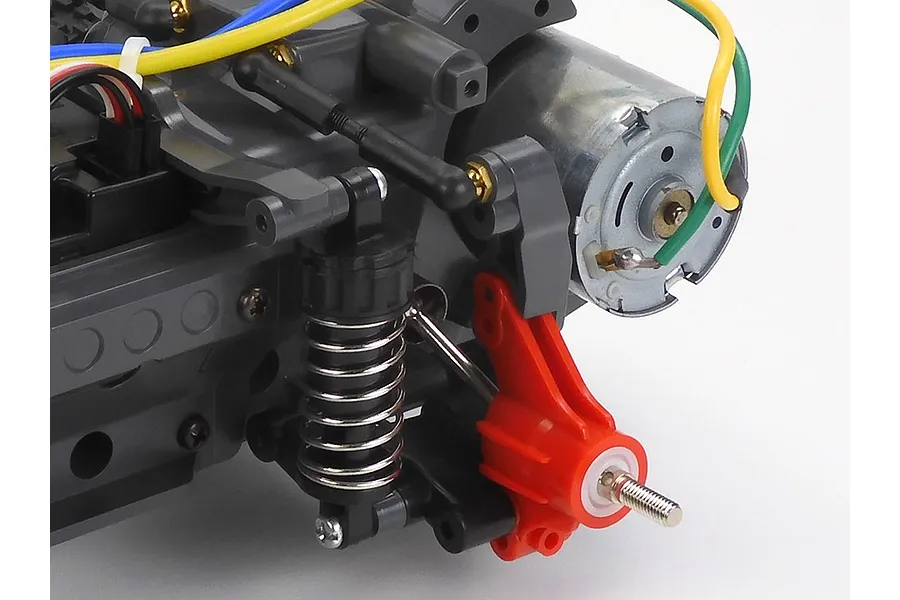

The motor is strategically mounted at the rear of the monocoque frame, providing direct power to the rear wheels via gears. A propeller shaft extends to the front wheels, creating an efficient 4WD system for better traction and control.

Features
  • Durable monocoque frame with integrated gearboxes

  • Rear-mounted motor, gear-driven rear wheels, and propeller shaft for both flat dirt surfaces and roads

  • Front and rear gearboxes with differential gears

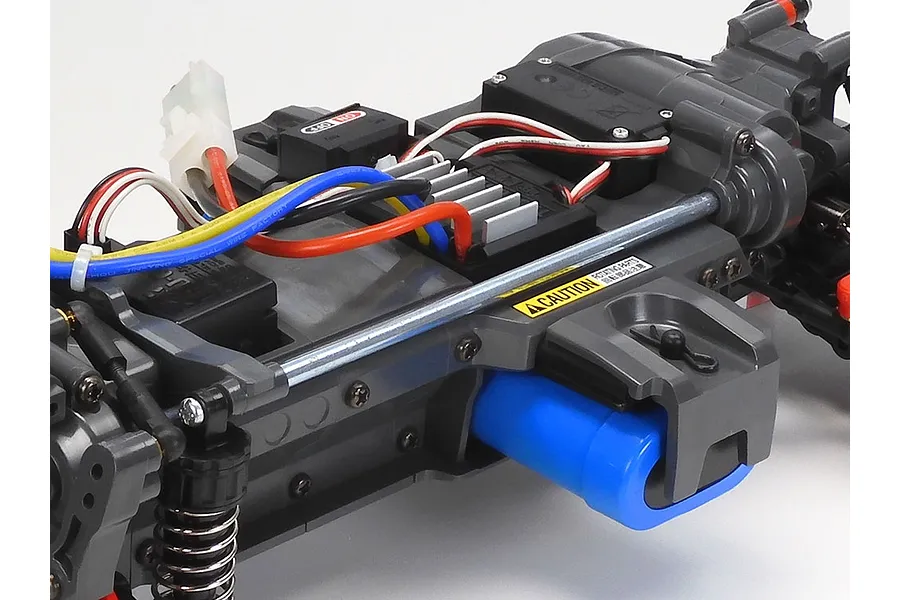

  • Centrally located battery pack for excellent balance

  • 4-wheel independent double wishbone suspension with friction dampers and off-road capable M-05Ra chassis uprights and hub carriers

  • Light-weight polycarbonate body

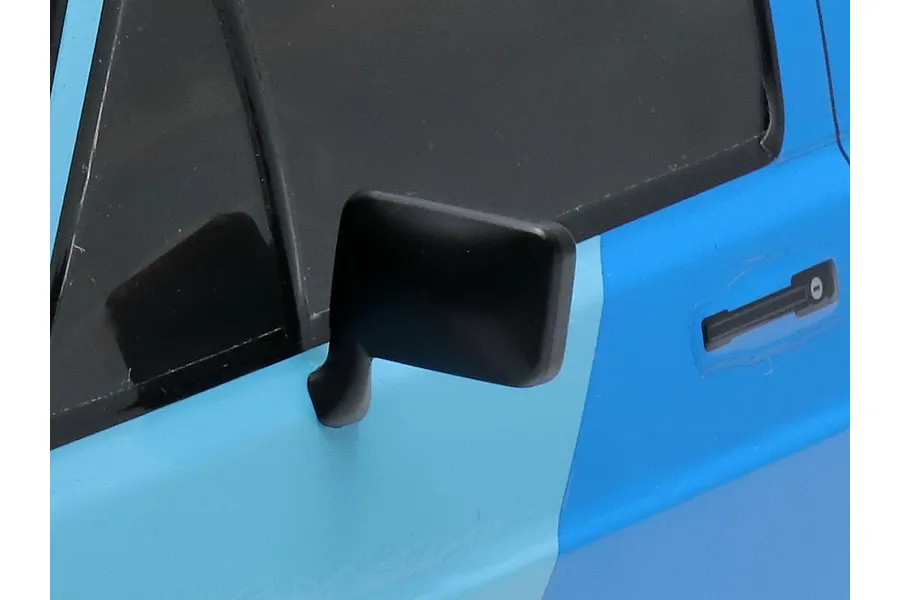

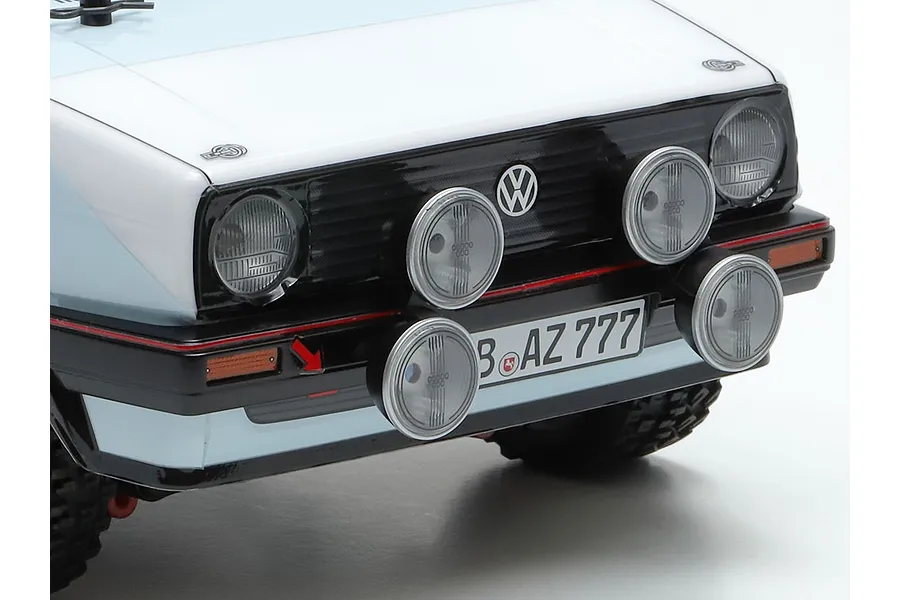

  • Separately moulded plastic components recreate light cases, bumper, and side mirrors

  • MF-01X chassis is at home on-road or off-road

  • Polycarbonate light cases are compatible with separately sold 5mm LEDs

  • Stickers are included to recreate body details+

  • Fully licensed VW Golf body shell

  • Genuine Tamiya Product

Specifications
  • Length: 397mm (15.6")

  • Width: 170mm (6.7")

  • Height: 142mm (5.6")

  • Wheelbase: 239mm (9.4")

  • Weight: Varies

  • Chassis: Monocoque Frame Chassis (Rally)

  • Drivetrain: 4WD

  • Suspension: Coil Over Shock Absorber

  • Motor: 540 Sized Brushed Motor

  • ESC: Not Included

Included Items
  • 1x 1/10 MF-01X Volkswagen Golf MK2 GTI Electric RC Rally Car Kit

  • 1x Tamiya 540 Sized Brushed Motor

  • 1x 1/10 VW Golf Unpainted Body Shell

Required Items
  • 1x Compatible 7.4V LiPo or 7.2V NiMH Battery

  • 1x Compatible Charger

  • 1x Compatible Servo

  • 1x Compatible ESC

  • 1x 2+ Channel Transmitter & Receiver

  • Polycarbonate Safe Paint

  • AA Batteries For Transmitter

Specifications
RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate
Power Source
Electric Brushed
Chassis Type
Car
On/Off Road
On Road, Off Road
Drivetrain
4WD
Factory Specs
Max LiPo Power
2S (7.4v)
Battery Connector
Not Included
Wheel Hex Size
12mm
