Tamiya M-06 1973 Alpine A110 RC Car Electric 2WD 1/10 Scale Kit (No ESC)

Tamiya M-06 1973 Alpine A110 RC Car Electric 2WD 1/10 Scale Kit (No ESC)

Videos

Tamiya M-06 1973 Alpine A110 RC Car Electric 2WD 1/10 Scale Kit (No ESC)

Brand: Tamiya | SKU: 58708A
discontinued
Description
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

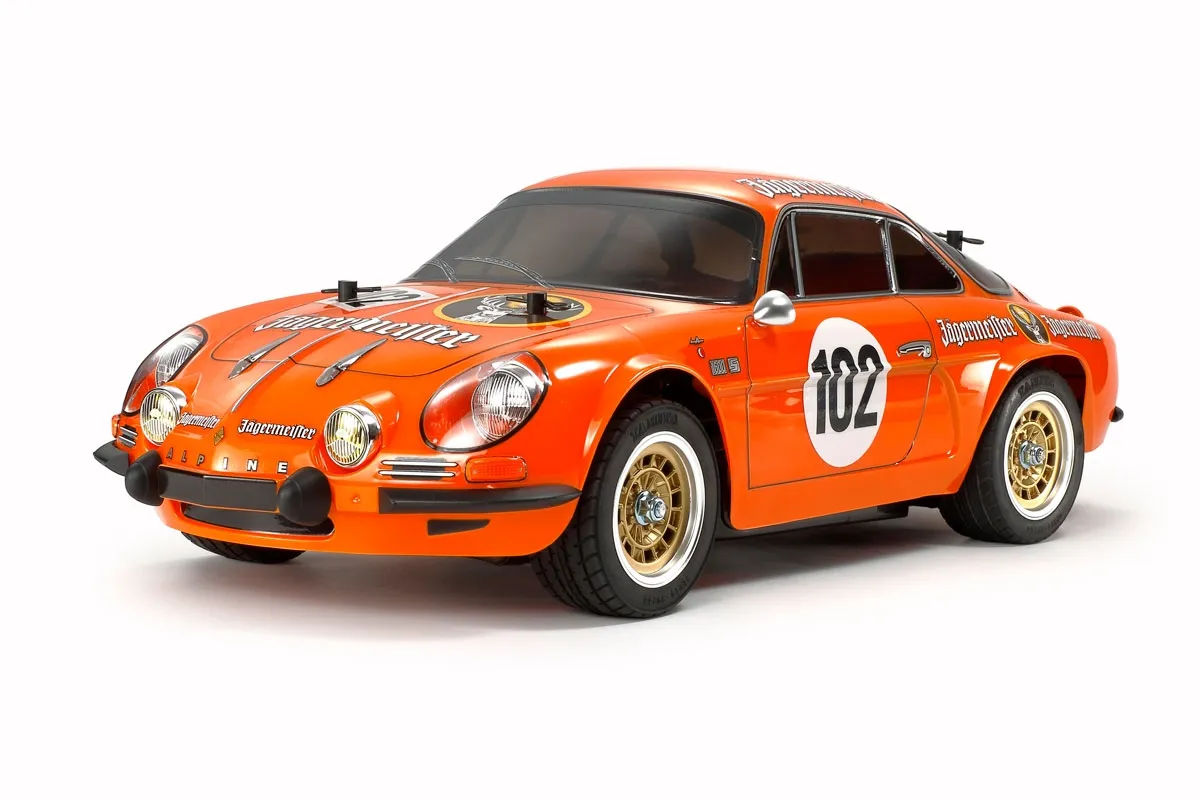

This R/C kit recreates the Alpine A110 with an orange Jägermeister livery on top of the proven and fun-to-drive M-06 chassis. The Alpine A110 was a French compact coupe featuring a lightweight FRP body based upon a steel backbone, rear-wheel drive chassis with the rear-mounted inline-4 engine positioned longitudinally. Production continued from its debut year 1963 until 1977, and the A110 attained fame after victory in the 1971 rally in Monte Carlo. In 1973, this car became the first World Rally champion and its Jägermeister orange livery version achieved a class victory in German circuit races.

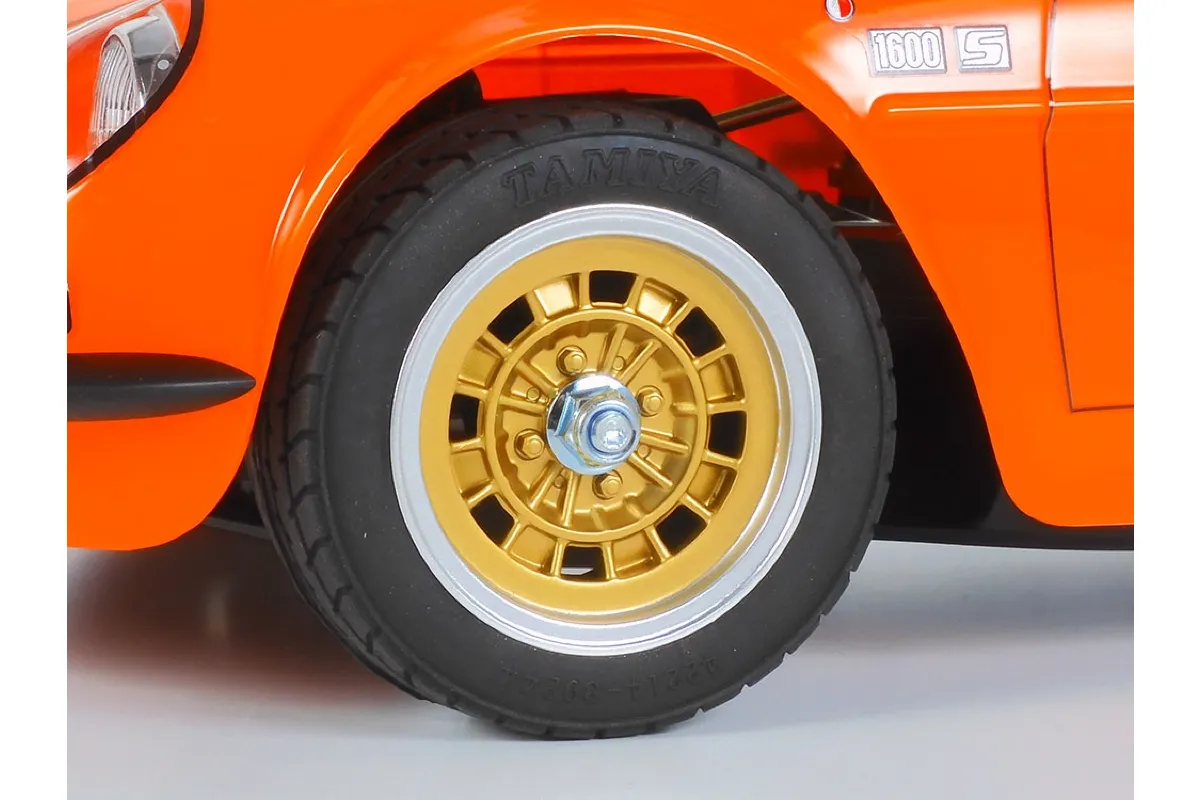

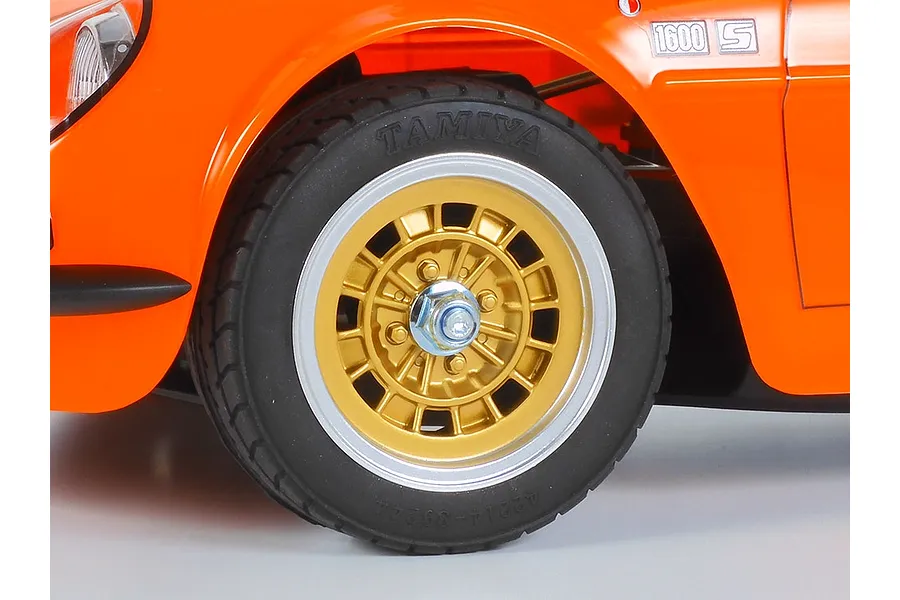

The M-06 chassis features a rear-mounted motor, rear-drive setup and has a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low centre of gravity. 4-wheel double wishbone suspension uses dish design wheels, equipped with 60D radial tyres at the front and 60D super radial (hard) tyres at the rear. In addition, a 3-piece steering linkage offers nimble handling response.

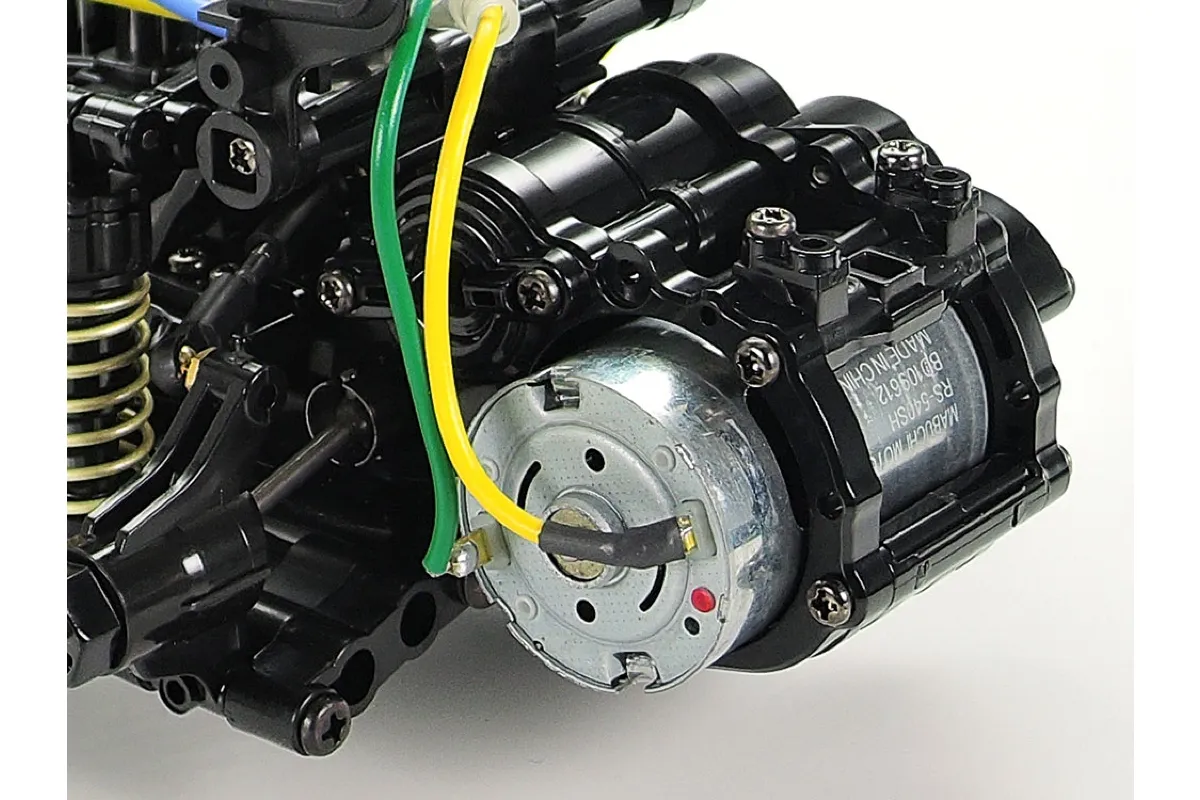

Rear Motor Placement

The M-06 places the motor at the rear and powers the rear wheels. This creates a unique, snappy handling experience, rewarding precision and encouraging playful drifts.

Adjustable Wheelbase

The M-06 offers multiple wheelbase options (210mm, 225mm, 239mm). This allows you to fine-tune the chassis to match the body shell you choose, enhancing both scale realism and handling characteristics. This version comes with the 225 mm chassis instructions.

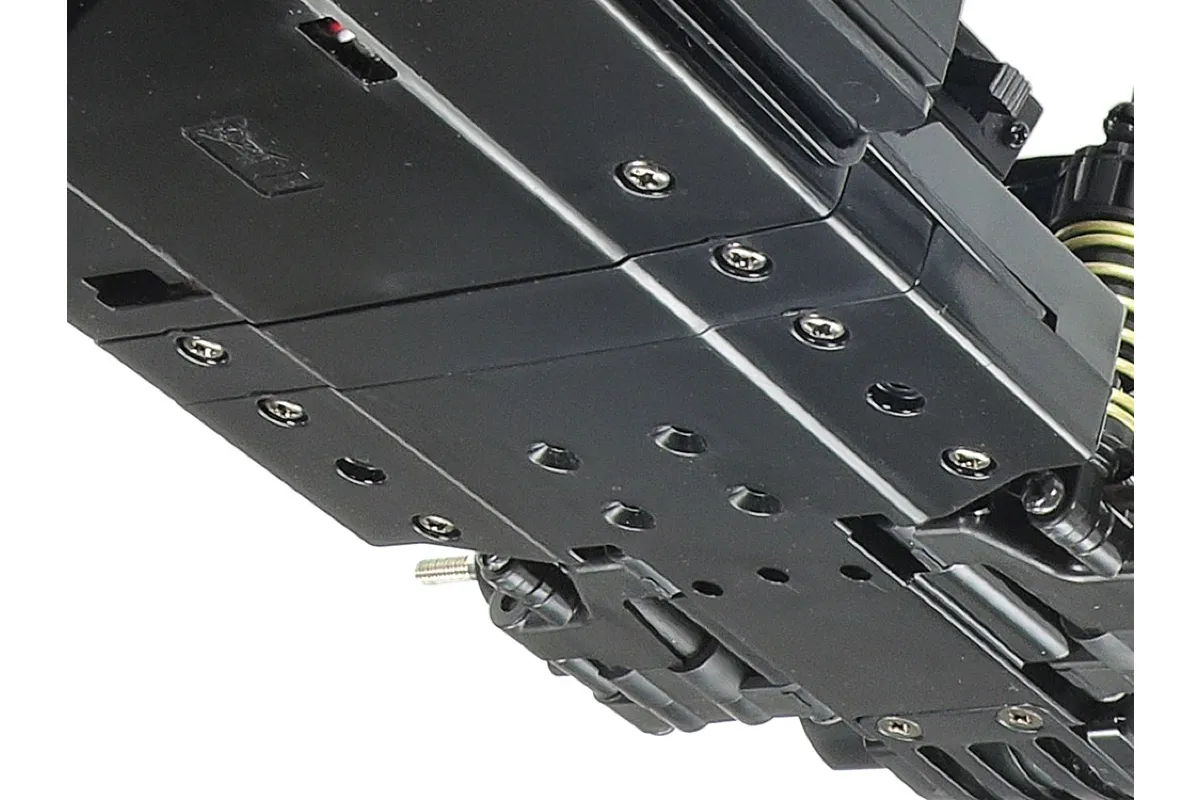

Lengthwise Mounted Battery Tray

The battery sits lengthwise in the centre of the chassis. This promotes excellent balance, weight distribution, and a low centre of gravity, giving the car a planted feel when throwing it around corners.

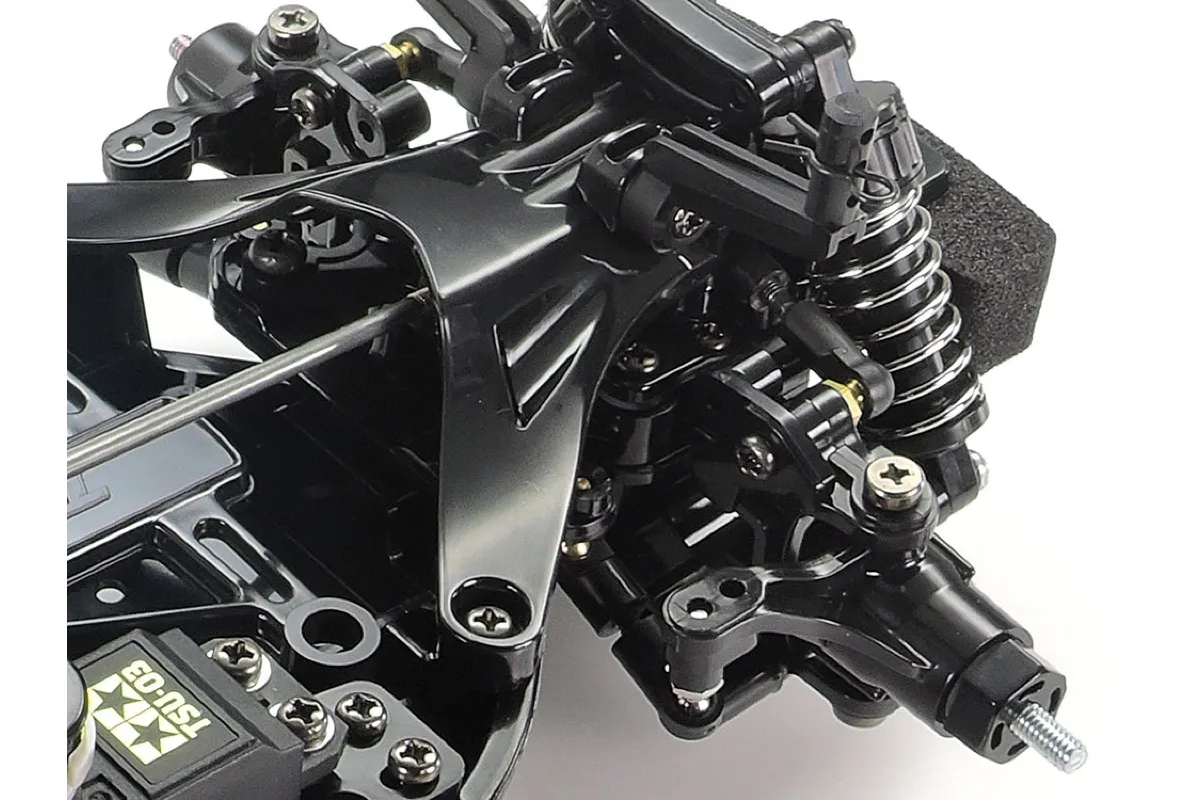

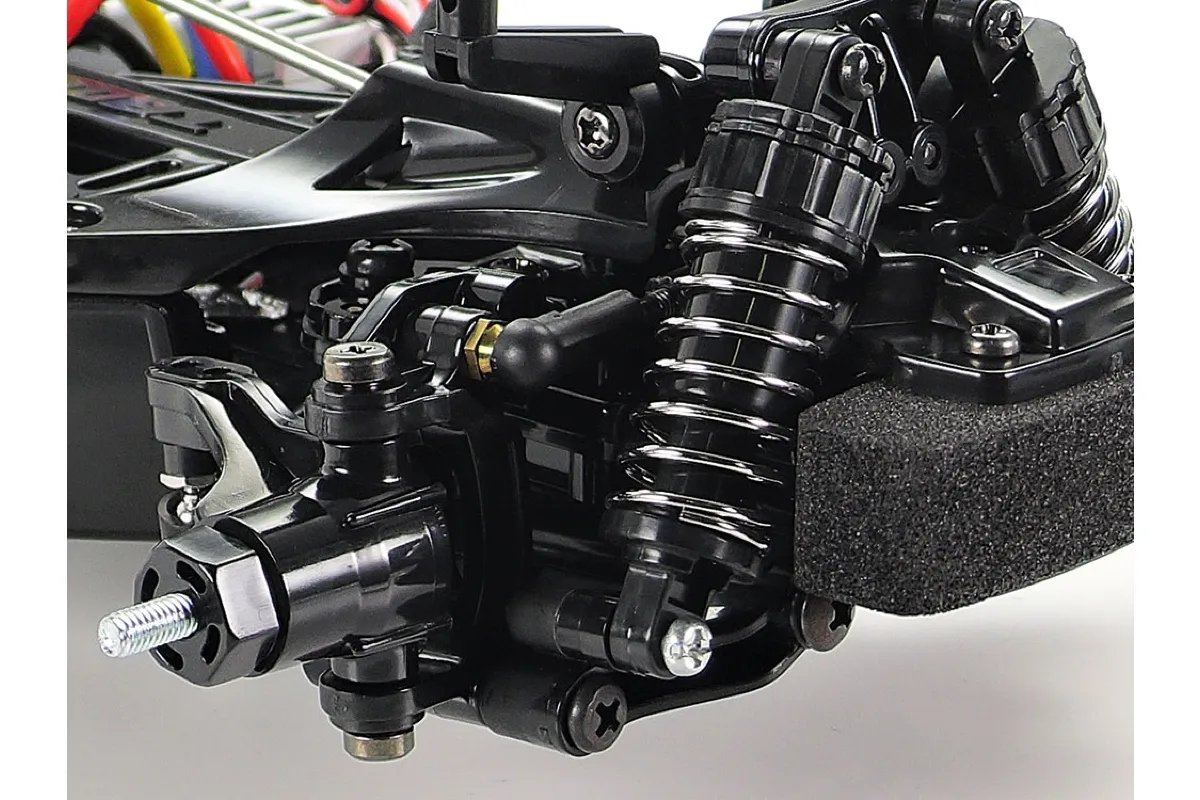

Double Wishbone Suspension

All four wheels feature independent double-wishbone suspension with oil-filled shocks. This system soaks up bumps for smooth handling on various surfaces.

Compact and Durable Design

The M-06 chassis is small in footprint, making it perfect for tight spaces or indoor tracks. Yet, its construction prioritises toughness for worry-free bashing.

Aftermarket & OEM support

Tamiya as well as a range of aftermarket companies offer a vast range of hop-up parts and bodies for the M-06. This lets you personalise everything from performance to looks, making your M-06 truly yours.

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

Features
  • Rear-motor, rear-wheel-drive layout for snappy handling
  • Multiple wheelbase options (210mm, 225mm, 239mm) for compatibility with various body shells
  • Centralised battery pack for optimal balance and a low centre of gravity
  • Independent double-wishbone suspension with oil-filled shocks for smooth performance
  • Compact and durable design suitable for tight spaces and indoor tracks
  • Extensive customisation options with hop-up parts and bodies
  • Ideal for both beginners and experienced hobbyists
  • Offers a unique and engaging driving experience
  • Fully Licensed Alpine body shell
  • Genuine Tamiya Product
Specifications
  • Length: 395mm (15.55")
  • Width: 168mm (6.61")
  • Height: 121mm (4.76")
  • Wheelbase: 210mm (8.27")
  • Weight: Varies
  • Chassis: On Road
  • Drivetrain: 2WD
  • Suspension: Coil Over Shock Absorber
  • Motor: 540 Sized Brushed Motor
  • ESC: Not Included
Included Items
  • 1x Tamiya 1/10 M-06 Chassis Kit
  • 1x 540 Sized Brushed Motor
  • 1x 1/10 Alpine A110 Unpainted Body Shell


Required Items
  • 1x Compatible 7.4V LiPo or 7.2V NiMH Battery
  • 1x Compatible Charger
  • 1x Compatible 1/10 Scale ESC
  • 1x Compatible 1/10 Scale Servo
  • 1x 2+ Channel Transmitter & Receiver
  • Polycarbonate Compatible Paint
  • AA Batteries For Transmitter
Videos
Specifications
Factory Specs
Pinion Gear
20T
Max LiPo Power
2S (7.4v)
Battery Connector
Not Included
Wheel Hex Size
12mm
RC Car
Drivetrain
RWD
Completion
Kit
On/Off Road
On Road
Chassis Type
Car
Power Source
Electric Brushed
Skill Level
Intermediate
Scale
1/10
