Name: Tamiya M-06 Volkswagen Type 2 T1 RC Van Electric 2WD 1/10 Scale Kit (No ESC)
Brand: Tamiya
SKU: TAM-58668A
Price: 235.91 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

This Tamiya R/C model assembly kit depicts the 1st-generation (T1) variant of the Volkswagen Type 2 van, introduced in 1950 and also known to its many fans as the Volkswagen Bus. Production of the actual van continued through until 1967. The iconic body is paired with the rear-wheel-drive M-06 chassis for realistic fun driving, just like the real rear-engine, rear-wheel-drive Type 2 T1.

The M-06 chassis features a rear-mounted motor and rear-drive setup with a longitudinally-mounted battery pack, with R/C radio gear positioned on either side for optimum balance and low centre of gravity. 4-wheel double wishbone suspension is equipped with 60D radial tyres at the front and 60D super grip tyres at the rear. A 3-piece steering linkage offers nimble handling response. Three different wheelbase lengths are accessible by switching the position of rear section parts.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

Polycarbonate body with separately moulded plastic parts for bumper, light cases and side mirrors
Rear-motor, RWD setup mirrors the real vehicle's layout
Longitudinal battery mount for optimum balance and low centre of gravity
Metal-plated dish-type wheels
Adjustable wheelbase — three lengths accessible by switching rear section parts
3-piece steering tie-rod system
4-wheel double wishbone suspension with front/rear friction dampers
Separate turn signal parts for enhanced realism
Round side mirrors and slimline stalks as separate parts
Headlight cases provided; compatible with separately sold LEDs

In the box

1x Tamiya 1/10 M-06 Volkswagen Type 2 (T1) Electric RC Car Kit

You'll need

7.2V NiMH Battery & Compatible Charger
4 x AA Batteries (for transmitter)
Standard Sized Servo
Electronic Speed Controller (ESC)
2-Channel Transmitter & Receiver
Tamiya PS Polycarbonate Paint

Highlights

Rear Motor Placement

The M-06 places the motor at the rear and powers the rear wheels. This creates a unique, snappy handling experience, rewarding precision and encouraging playful drifts.

Adjustable Wheelbase

The M-06 offers multiple wheelbase options (210mm, 225mm, 239mm). This allows you to fine-tune the chassis to match the body shell you choose, enhancing both scale realism and handling characteristics. This version comes with the 225 mm chassis instructions.

Lengthwise Mounted Battery Tray

The battery sits lengthwise in the centre of the chassis. This promotes excellent balance, weight distribution, and a low centre of gravity, giving the car a planted feel when throwing it around corners.

Double Wishbone Suspension

All four wheels feature independent double-wishbone suspension with oil-filled shocks. This system soaks up bumps for smooth handling on various surfaces.

Compact and Durable Design

The M-06 chassis is small in footprint, making it perfect for tight spaces or indoor tracks. Yet, its construction prioritises toughness for worry-free bashing.

Aftermarket & OEM support

Tamiya as well as a range of aftermarket companies offer a vast range of hop-up parts and bodies for the M-06. This lets you personalise everything from performance to looks, making your M-06 truly yours.

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

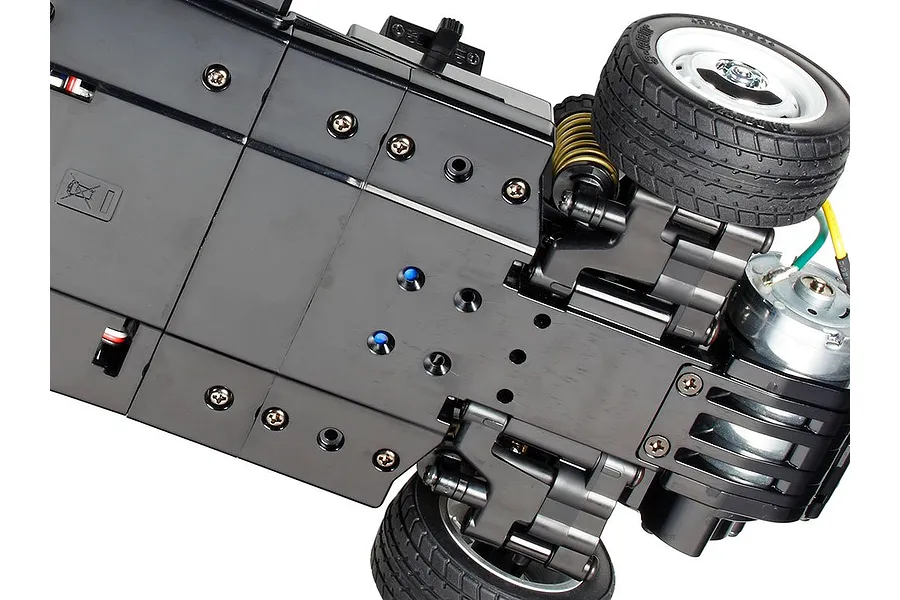

M-06 chassis overview

The rear-mounted motor, rear-wheel drive setup provides the model with exceptional traction at the rear.

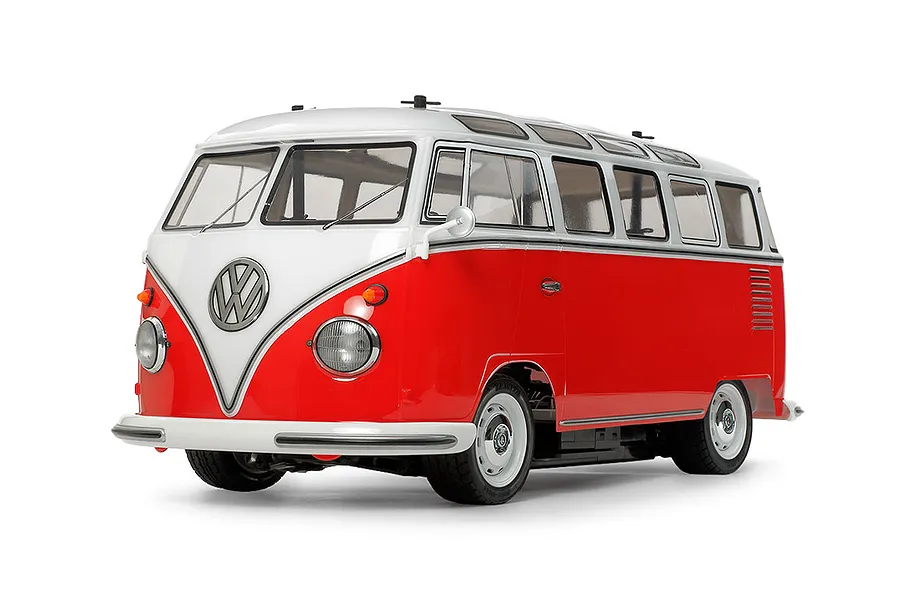

VW Type 2 T1 body — side profile

The iconic body is paired with the rear-wheel drive M-06 chassis for realistic fun driving, just like the real RR Type 2 T1.

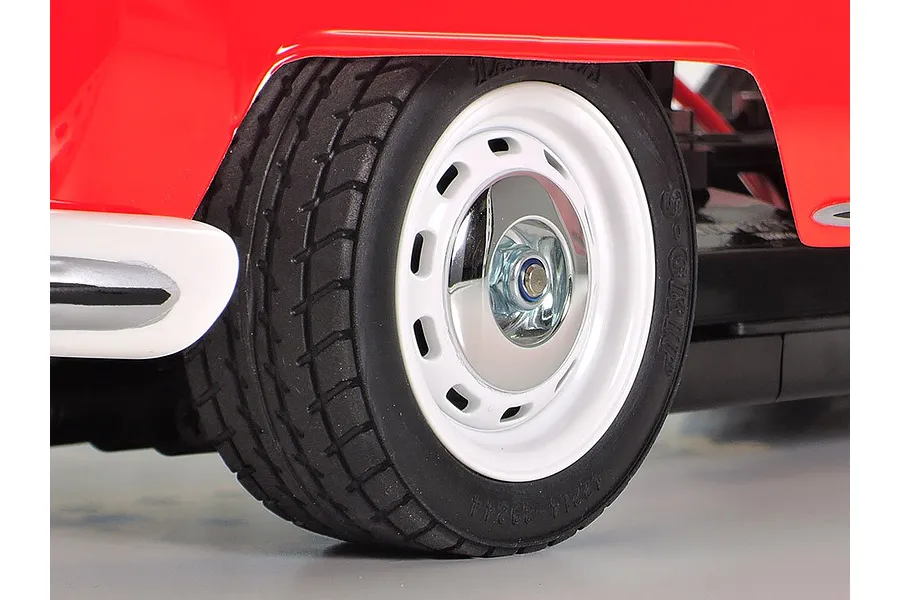

Plated dish wheels and tyres

Dish wheels feature gleaming plated components. Paint the rim sections with TS-26 Pure white to finish.

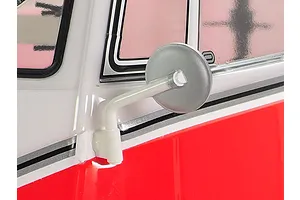

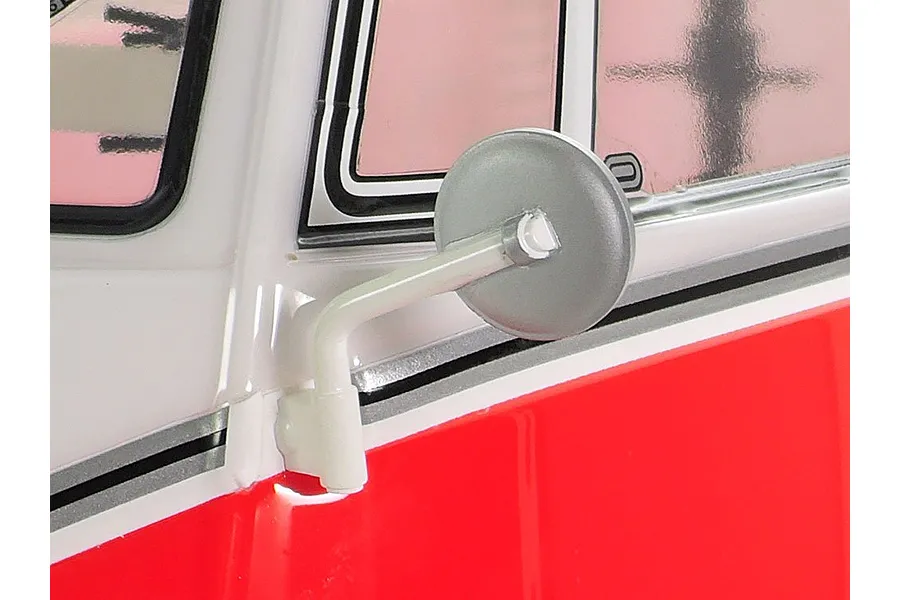

Separate turn signals and side mirrors

Separate parts are also employed to depict the distinctive round side mirrors and their slimline stalks.

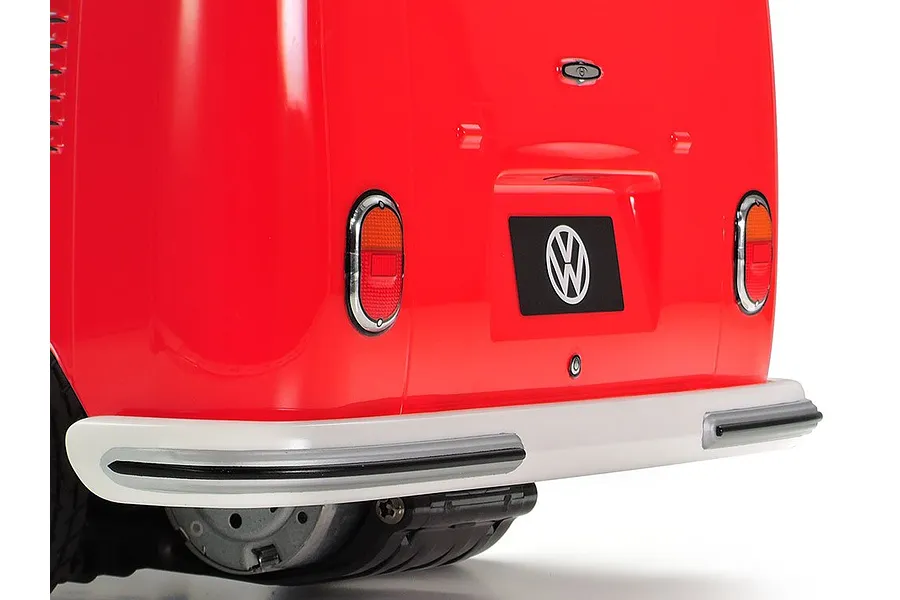

Rear bumper and detail

The rear of the model also shows off excellent attention to detail, including a separate bumper part.

4-wheel double wishbone suspension

4-wheel double wishbone suspension is equipped with 60D radial tyres at the front and 60D super grip tyres at the rear.

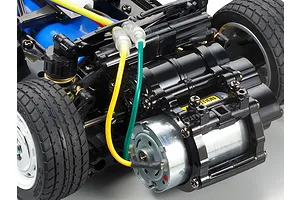

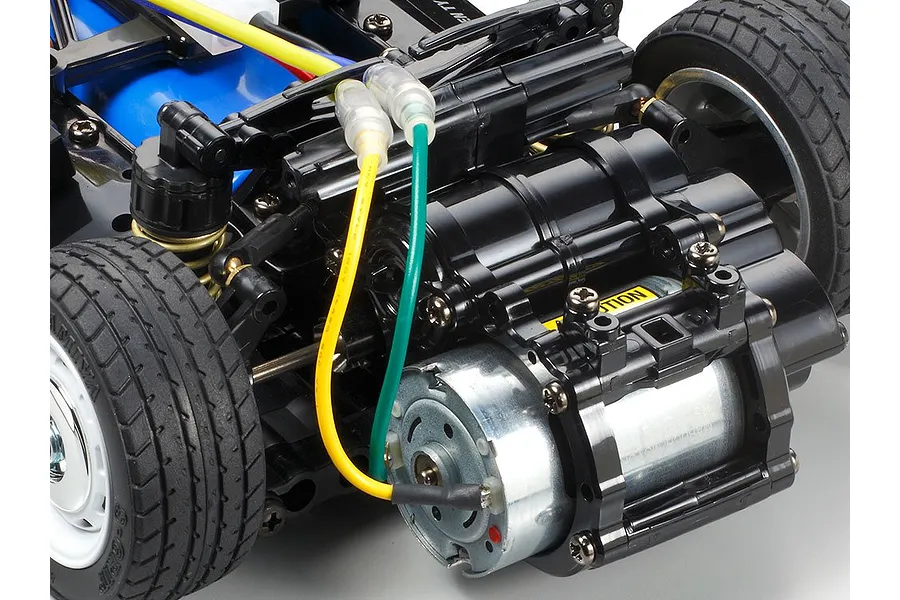

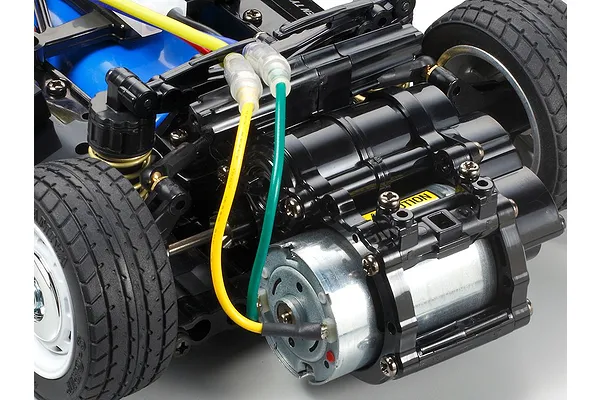

Rear-mounted motor installation

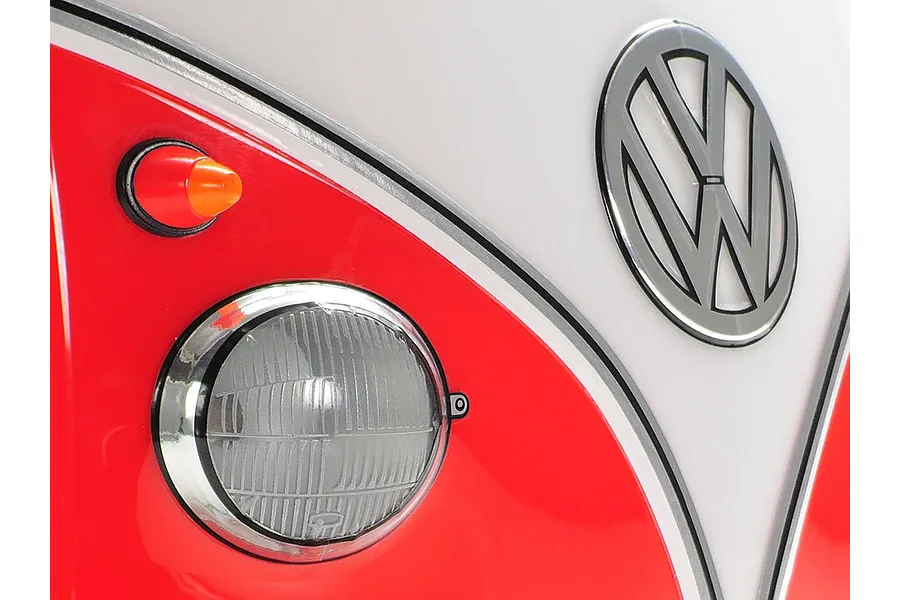

Install separately sold LED's in the front and rear lights for super realism! Turn signals are separate parts.

Specifications

Length	453mm (17.8")
Width	189mm (7.44")
Height	119mm (4.68")
Wheelbase	239mm (9.40")
Body Shell	Clear Polycarbonate
Chassis Type	M-06
Construction Type	Assembly Kit
Motor	Type 540 Brushed
Motor Mount	Rear
Wheel Drive	2WD
Gear Ratio	5.8:1
Suspension	4-Wheel Independent Double-Wishbone with Front/Rear Friction Dampers
Terrain Use	On-Road
ESC	Not Included
