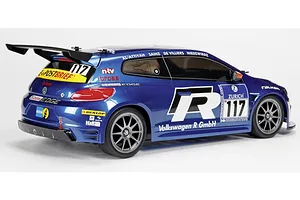

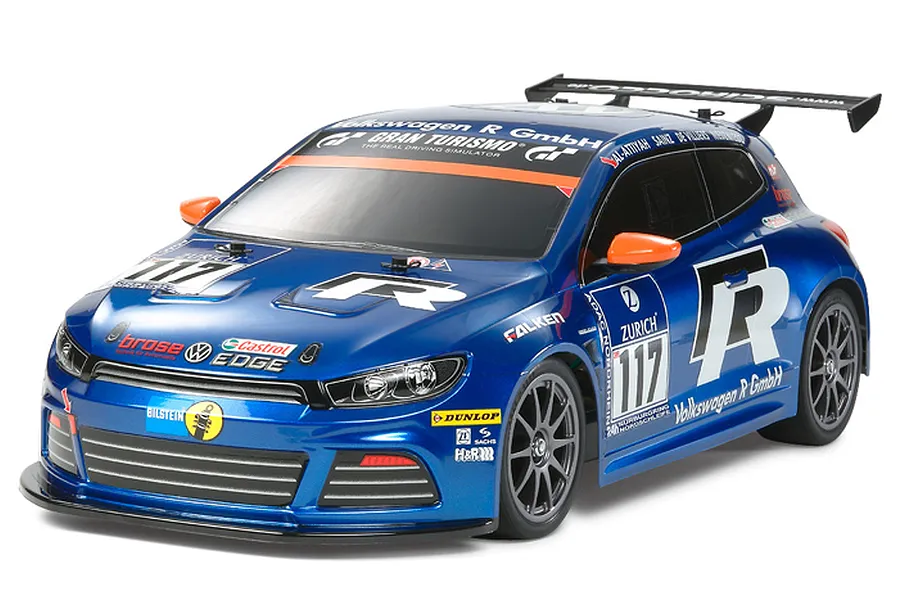

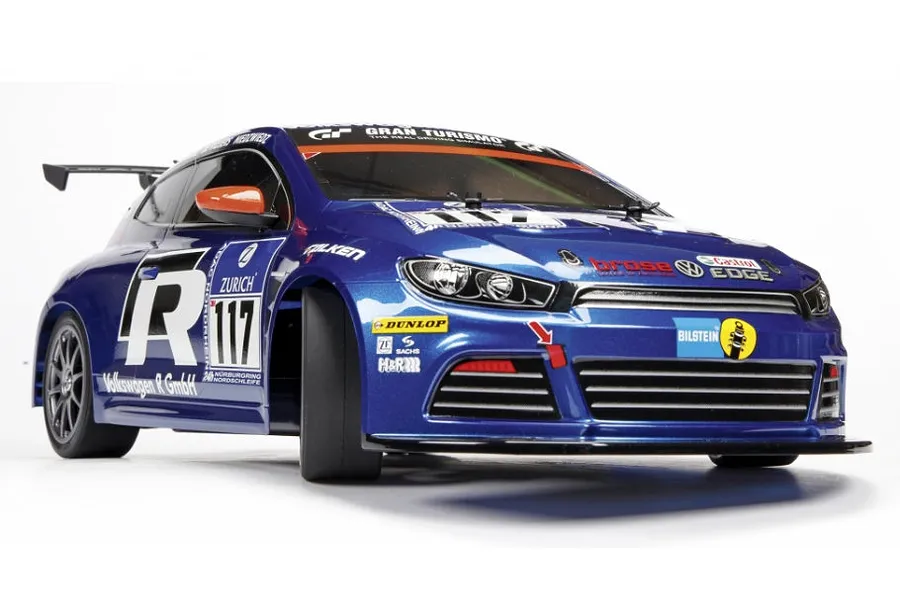

VW Scirocco GT24 R-Line

This radio control car kit recreates the VW Scirocco GT24 R-Line. Tamiya has faithfully recreated the Scirocco for radio control enthusiasts with a polycarbonate body. The aggressive looking body sits on top the easy to build and drive TT-01E chassis.

TT-01 E Chassis

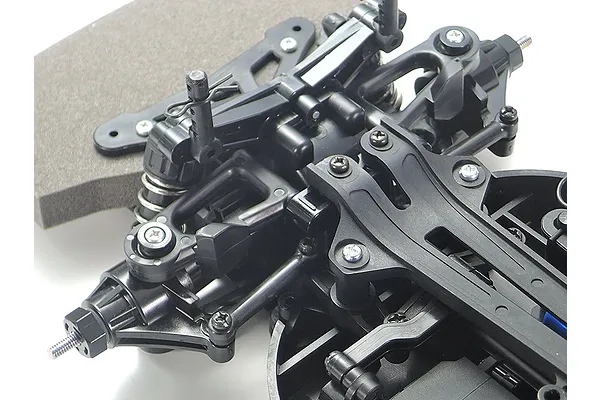

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing a smoother steering action. The low center of gravity, great balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to produce excellent operating ability. 70mm-diameter radial tires are paired with wheels developed just for this model; the high sidewalls make for forgiving turns.

A three-piece steering tie rod setup employs aluminum pipes for superior parts fit and smooth steering motion.

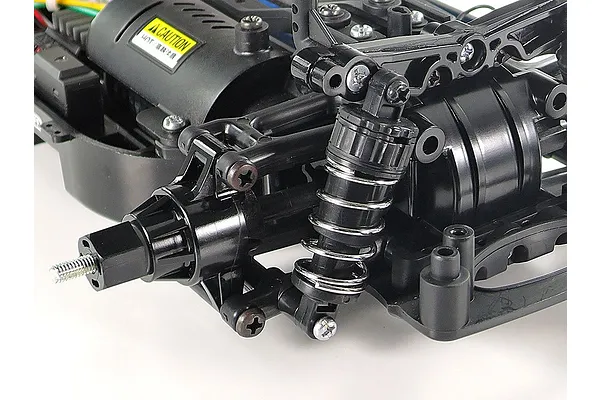

Damper stay and gear cover are separate parts; the stay features two different damper attachment holes to choose from.

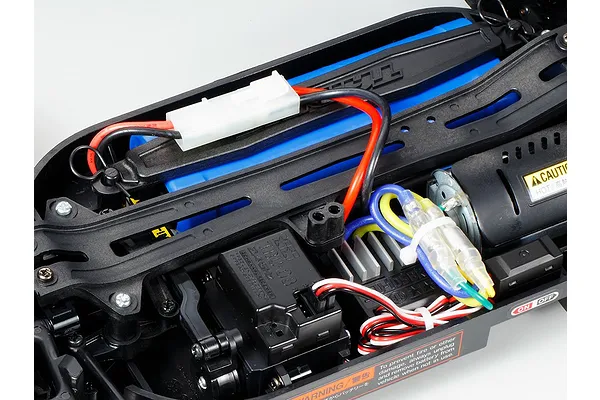

With the battery pack on the right of the bathtub frame and the R/C equipment on the left, the chassis has great balance.

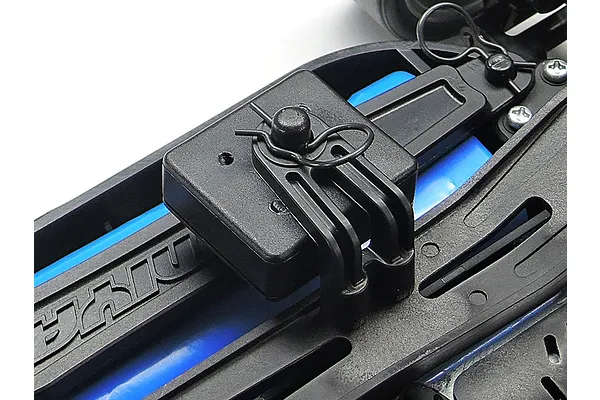

This image shows an example of how drivers in R/C races can use the included transponder stay when setting up their car.

---

Features

• Volkswagen Scirocco GT24 R-Line coupe is recreated in clear polycarbonate. Require paint (PS-16 & PS-5)

• Separately molded components are included for rear wing and side mirrors

• Stickers are included to recreate markings. Must be applied

• The TT-01 Type-E chassis features shaft-driven 4WD for easy handling, and great customizability

• A wide range of Hop-Up Option parts is available to tune the chassis

• Includes 540-type motor

---

Specifications

• Dimensions

• Length: 443mm (17.4")

• Width: 188mm (7.37")

• Height: 138mm (5.39")

• Wheelbase: 257mm (10.1")

• Tyres

• Width: 27mm (1.06") Front & Rear

• Diametre: 67mm (2.63") Front & Rear

• Engine

• Engine Mount: Longitudinally-Mounted Motor

• Wheel Drive: Shaft-Driven Full-Time 4WD

• Differential

• 3-Piece Bevel Gear

• Gear Ratio: 8.35:1

• Steering & Suspension

• 3-Piece Tie-Rod

• Friction Dampers: Front & Rear

• 4-Wheel Independent Double-Wishbone Suspension

• 3-Piece Steering Linkage

• 3-Piece Steering Tie-Rod

---

Included items

Description	QTY
1/10 TT-01E Volkswagen Scirocco GT24 R-Line Electric On Ro ad RC Car Kit	1
Decal Sheet Set	1

---

Required Items

• 2Ch+ Transmitter & Receiver

• Standard Servo

• 7.2V Battery Pack w/ Tamiya Plug & Compatible Charger

• Tools

• Tamiya PS Paint


Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. To view the entire range of polycarbonate safe paints, please CLICK HERE
