Tamiya TT-02 Ford Mustang GT4 RC Touring Car Electric 4WD 1/10 Scale Kit (No ESC)
$187.86
Tamiya TT-02 Ford Mustang GT4: Build Your Own Racing Legend
- Perfect for all skill levels
- 4WD Shaft-Driven for superior control
- Compatible with a wide range of upgrade parts
- Highly customisable
- Adjustable chassis length
This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.
Inspired by the Ford Shelby GT350R-C, the Ford Mustang GT4 has been designed and engineered jointly by Ford Performance and Multimatic Motorsports to compete in sports car championship racing series globally, including the IMSA Continental Tire SportsCar Challenge, Pirelli World Challenge GTS/GT4, and GT4 European Series.
The Tamiya Ford GT4 faithfully captures this sleek racing car as a 1/10 scale radio control replica. The highly-detailed polycarbonate body sits atop the easy-to-build Tamiya TT-02 chassis that you can customise for added performance!
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal colour 10-spoke rims and slick tyres make for a racy finish.
- Highly Detailed 1/10 Ford Mustang GT4 Clear Body
- Stickers are included to create an original livery, as are masking stickers for use when painting
- Wheel arches are pre-cut out for a simpler body assembly experience
- The beginner-friendly, highly adaptable TT-02 is a versatile and easy to maintain shaft-driven 4WD chassis
- Super Tough Bathtub Type Chassis
- Balanced Longitudinal Chassis Layout
- Adjustable Wheelbase
- Shaft-Driven 4WD System
- Front/Rear 4 Bevel Resin Differentials
- 3-Piece Steering Tie-Rod System for Superior Handling
- 4-Wheel Double Wishbone Suspension
- Front/Rear Friction Shocks
- Powerful Brushed 540 motor
- Genuine Tamiya Product
The steering linkage joints feature resin ball links for smooth, precise control.
The wheel hubs feature a stylish brake disc design, adding a touch of realism.
The motor cover is equipped with a removable cooling duct for improved motor performance (cover not shown).
The TT-02 chassis incorporates a rear double-wishbone suspension system, equipped with friction dampers for improved handling and stability.
The TT-02 is equipped with front and rear 4-bevel type planetary gears that ensure a smooth and consistent delivery of power to all four wheels.

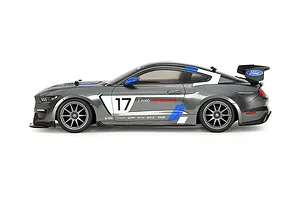

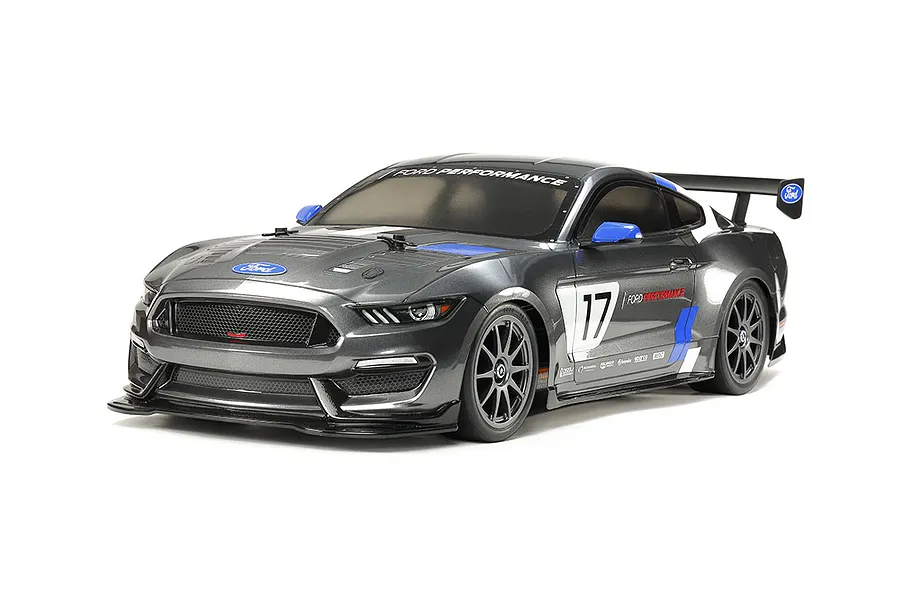

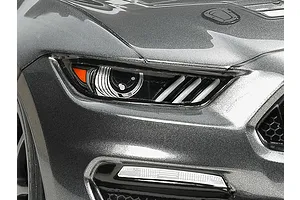

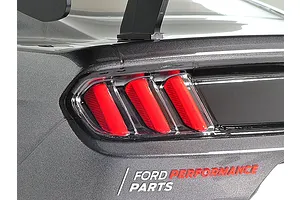

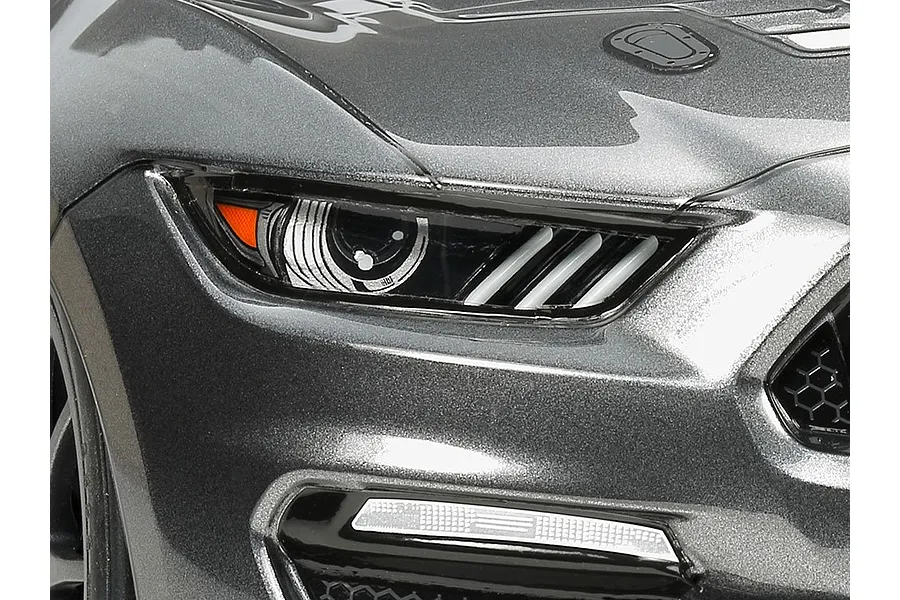

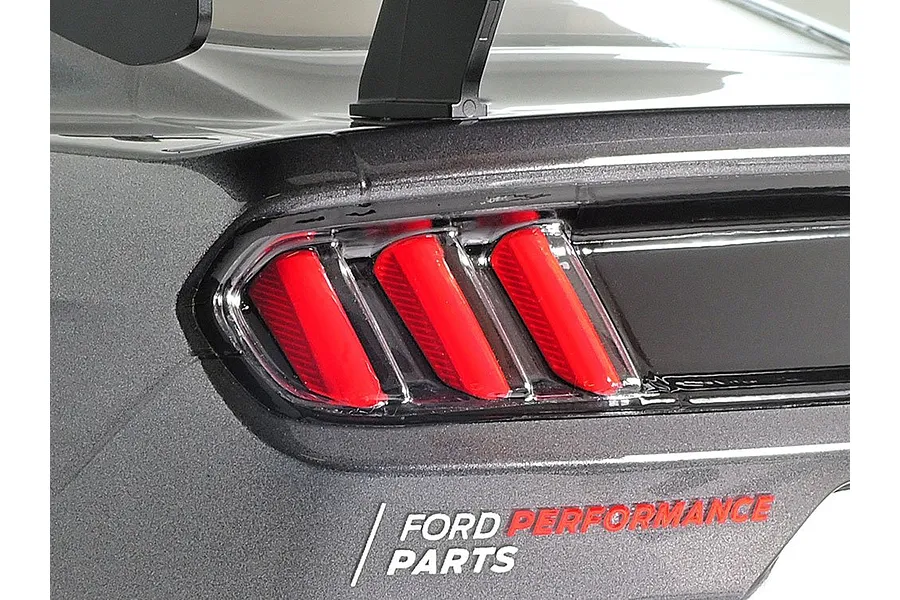

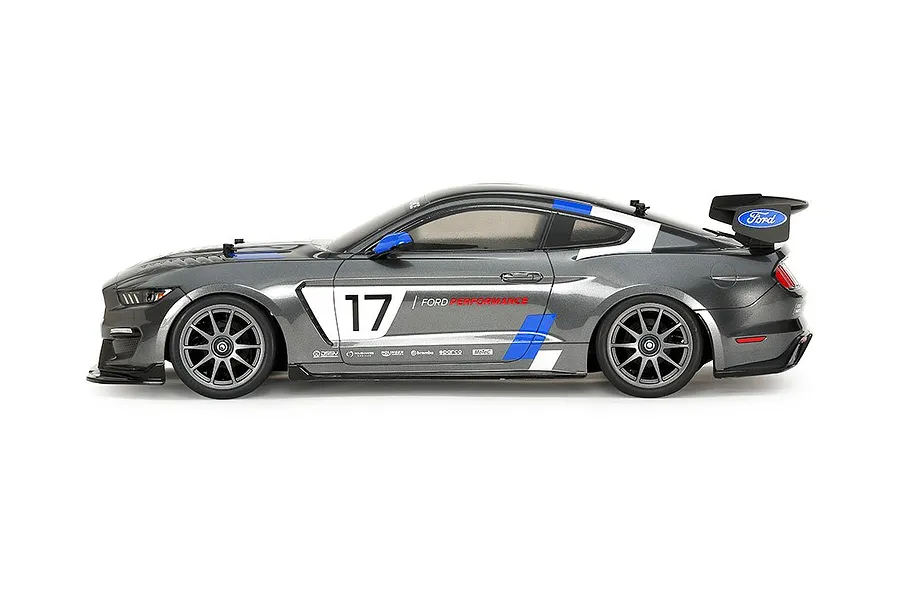

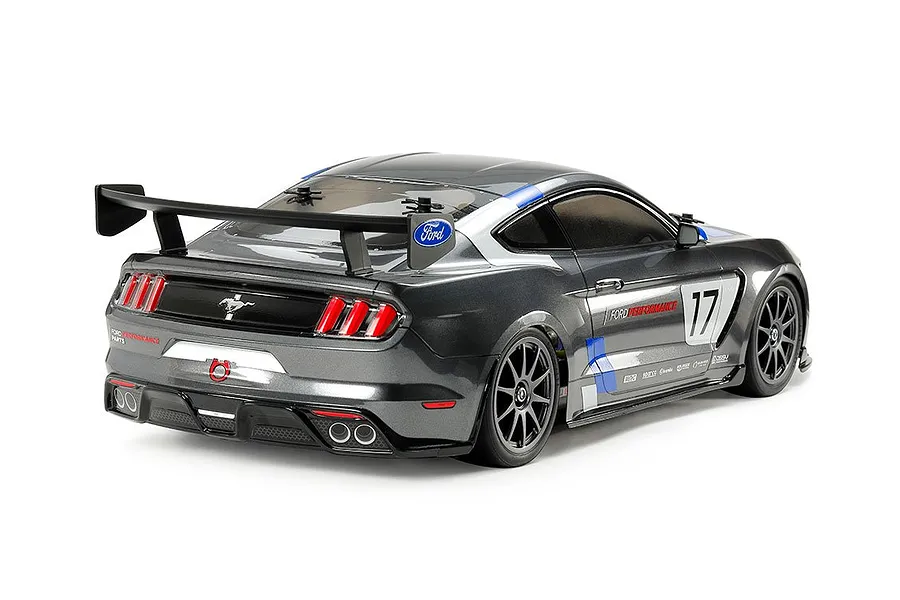

The Ford Mustang GT4 has been carefully recreated in 1/10 scale. Featuring a giant rear wing, Front and rear LED light buckets and other scale details, this is a TT-02 you don't want to miss.
- Length: 459mm (18.0")
- Width: 188mm (7.40")
- Height: 130mm (5.11")
- Wheelbase: 257mm (10.1")
- Weight: Varies
- Chassis: On-Road Car (TT-02)
- Drivetrain: 4WD
- Suspension: Coil Over Shock Absorbers
- Motor: Type 540 Brushed Motor
- ESC: Not Included
- 1x Tamiya TT-02 Ford Mustang GT4 RC Touring Car Electric 4WD 1/10 Scale Kit w/o ESC
- 1x 540 Sized Brushed Motor
- 1x Compatible 7.4V LiPo or 7.2V NiMH Battery
- 1x Compatible Charger
- 1x Compatible 1/10 Scale ESC
- 1x Compatible 1/10 Scale Servo
- 1x 2+ Channel Transmitter & Receiver
- Polycarbonate Compatible Paint
- AA Batteries For Transmitter
| RC Car | |
|---|---|
| Max LiPo Power: | 3S (11.1v) |
| Completion: | Kit |
| Scale: | 1/10 |
| Skill Level: | Beginner |
| Power Source: | Electric |
| Chassis Type: | Car |
| On/Off Road: | On Road |
| Drivetrain: | 4WD |
| Factory specs | |
|---|---|
| Battery connector: | Not Included |
| Max LiPo power: | 3S (11.1v) |
| Pinion gear: | 22T |
| Spur gear: | 70T |
| Wheel hex size: | 12 |
