Name: Tamiya TT-02 Toyota Celica GT-Four ST205 RC Car Electric 4WD 1/10 Scale Kit (No ESC)
Brand: Tamiya
SKU: TAM-58743A

Overview

Note: This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

This R/C model assembly kit recreates the Toyota Celica GT-Four (ST165) with a stunning and highly detailed pre-painted polycarbonate body. The kit is based on the beginner-friendly and highly customisable TT-02 chassis, which is highly capable on asphalt and flat dirt for fun rally action. The TT-02 chassis is a shaft-driven 4WD platform that offers great stability with its longitudinal layout of the battery and motor. It is also easy to assemble and maintain, thanks to its symmetrical suspension arms and uprights, and simple gearboxes. You can customise the chassis with 2 options for wheelbase, ground clearance and tread, as well as 10 possible gear ratios. Wheel hubs are designed to resemble brake discs, and sleek front bumper supports complete the look.

Note

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

Features

Fully licensed by Toyota
Uses the Tamiya TT-02 chassis which is easily assembled
Massive factory and aftermarket parts support
High quality polycarbonate body shell is pre-painted in factory
Super scale rims and tyres are included
The TT-02 chassis is perfect for beginners and experienced builders
High detail decal sheet included
Genuine Tamiya Product

In the box

1x Tamiya 1/10 TT-02 Toyota Celica GT-Four ST205 Electric RC Car Kit w/o ESC

You'll need

Compatible 7.4V LiPo Battery or 7.2V NiMH
Compatible Charger
Compatible 1/10 Scale ESC
Compatible 1/10 Scale Servo
2+ Channel Transmitter & Receiver
PS Series Polycarbonate Paint
AA Batteries for Transmitter

Highlights

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

Easy-to-remove gearbox cover

Simply loosen the screws on the frame to access the gearbox.

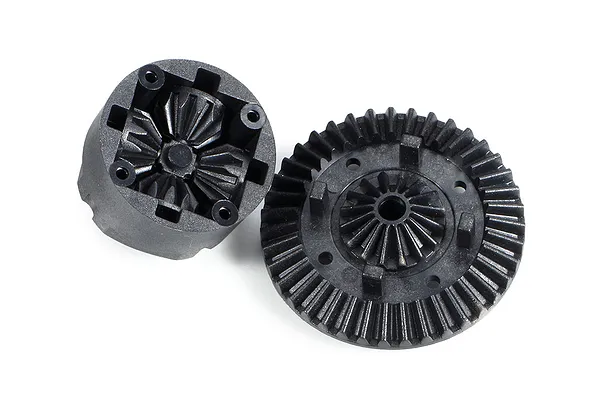

Smooth and stable differential gears

The 4-bevel gears are moulded for optimal performance and cornering.

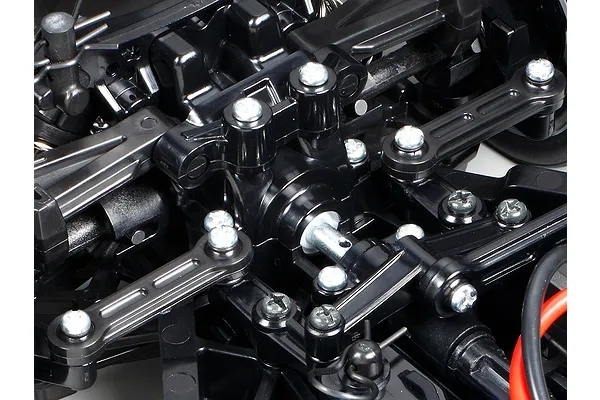

Flexible and comfortable steering linkage

The resin ball links allow for smooth motion and easy adjustment.

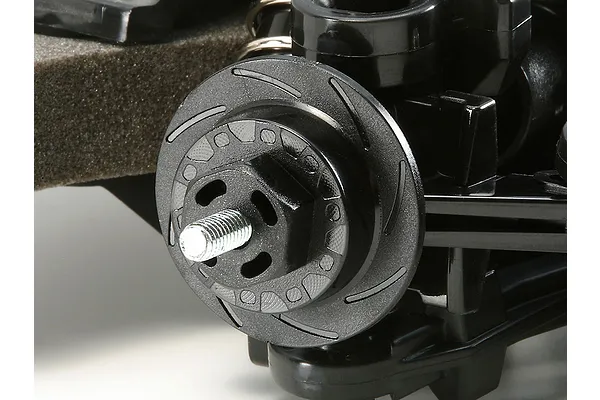

Realistic and stylish wheel hubs

The hubs are designed to resemble brake discs for a cool look.

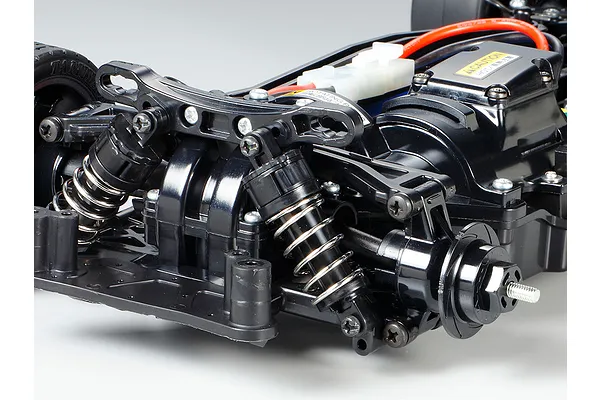

Controllable and adjustable suspension

The 4-wheel double wishbone suspension uses friction dampers for a smooth ride.

Dust and dirt-proof receiver case

To make sure the receiver keeps free of dust and dirt, the TT-02 is equipped with a cover that keeps it all out and ensures your receiver lasts longer.

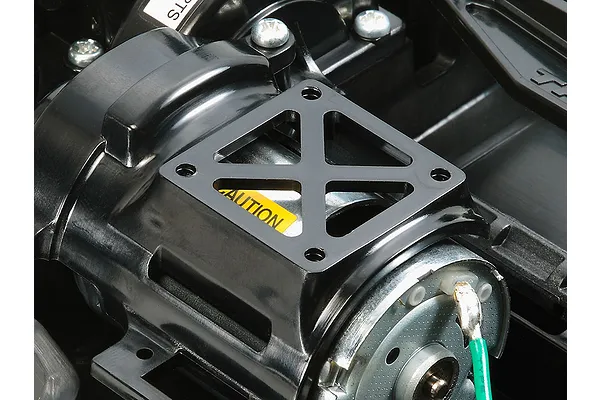

Removable and optional cooling duct

The motor cover has a cooling duct that can be removed if not needed. (not attached in above image)

Specifications

Length	451mm (17.75 in)
Width	186mm (7.32 in)
Height	134mm (5.28 in)
Wheelbase	257mm (10.12 in)
Weight	N/A
Tyre Diameter	N/A
Chassis	TT-02 On Road Chassis
Drivetrain	4WD
Gear Ratio	8.27:1
Suspension	Coil Over Shock Absorbers
Motor	Tamiya 540 Sized Brushed Motor
ESC	Not Included
