Tamiya TT-02 ST165 Toyota Celica GT-Four RC Rally Car Electric 4WD 1/10 Scale Kit - White

Tamiya TT-02 ST165 Toyota Celica GT-Four RC Rally Car Electric 4WD 1/10 Scale Kit - White

Tamiya TT-02 ST165 Toyota Celica GT-Four RC Rally Car Electric 4WD 1/10 Scale Kit - White

Brand: Tamiya | SKU: 47491A
discontinued
Description
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, Motor or Transmitter and will come with a painted body that may require cutting, and drilling.

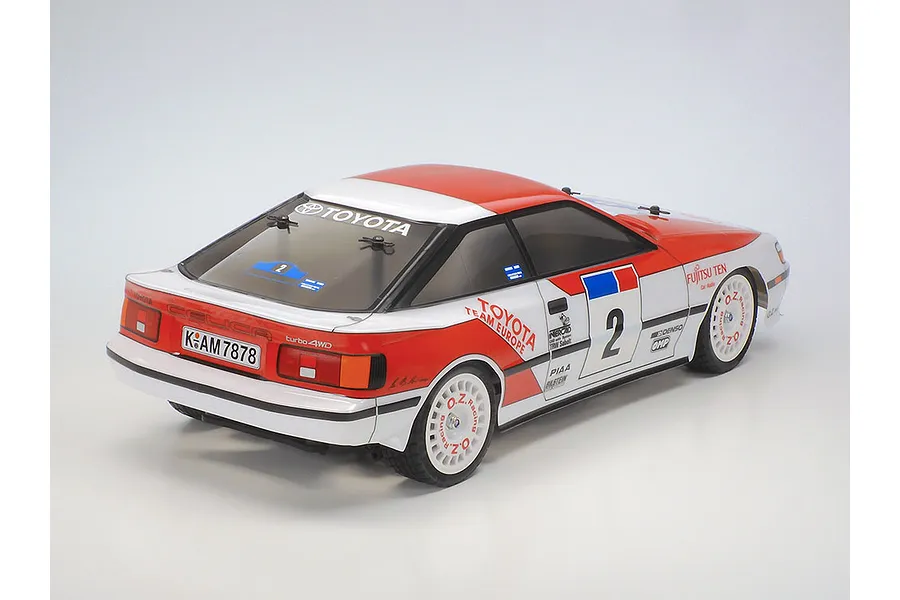

This R/C model assembly kit recreates the Toyota Celica GT-Four (ST165) with a highly detailed pre-painted polycarbonate body. The kit is based on the beginner-friendly and highly customizable TT-02 chassis, which is highly capable on asphalt and flat dirt for fun rally action. The TT-02 chassis is a shaft-driven 4WD platform that offers great stability with its longitudinal layout of the battery and motor. It is also easy to assemble and maintain, thanks to its symmetrical suspension arms and uprights, and simple gearboxes. You can customise the chassis to suit your preferences, as it has 2 options for wheelbase, ground clearance and tread, as well as 10 possible gear ratios. The chassis also features wheel hubs that look like brake discs and sleek front bumper supports.

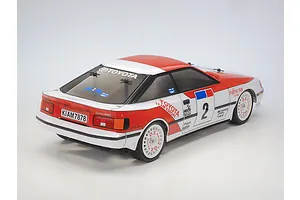

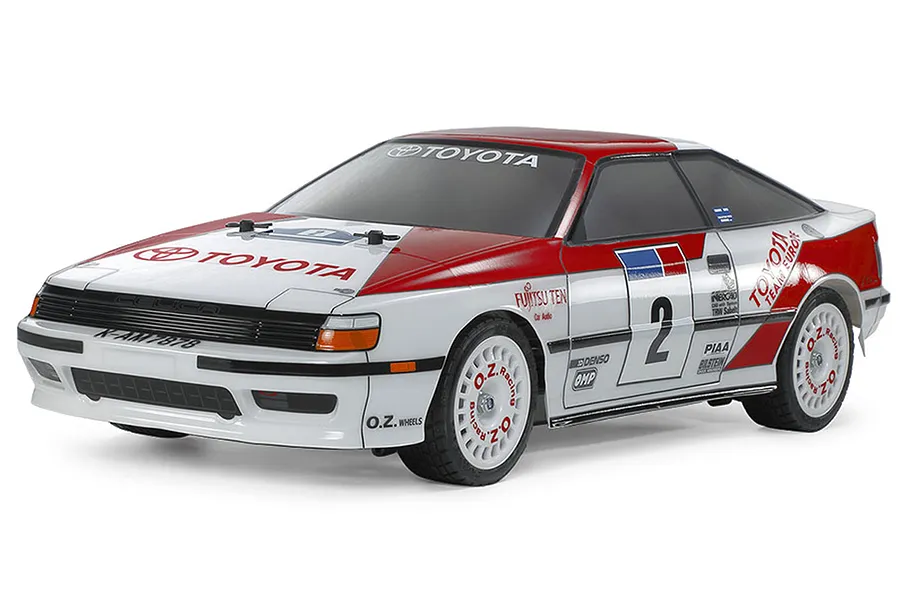

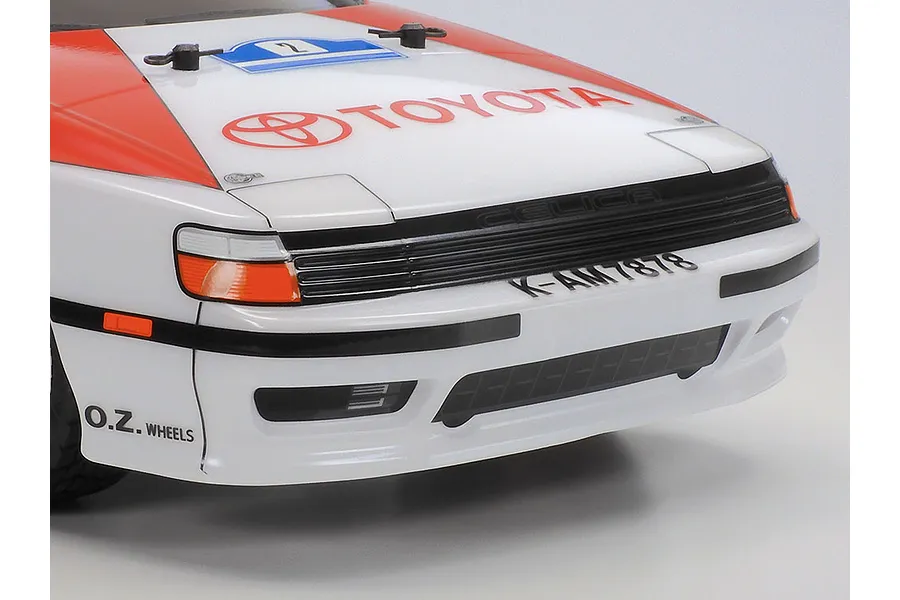

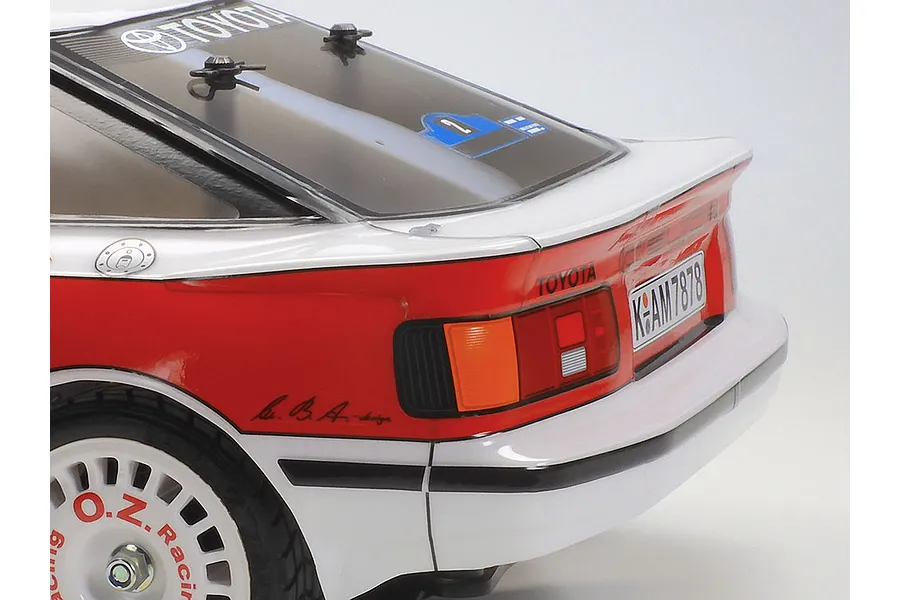

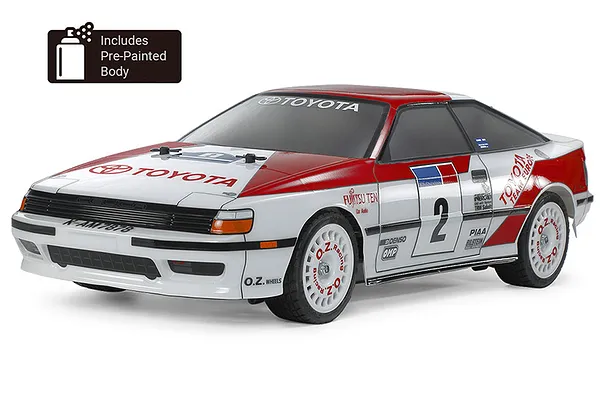

Factory Painted Shell
Factory Painted Shell

This TT-023 comes with an exquisite factory painted Toyota Celica shell. Featuring incredible scale details, this TT-02 is a must-have for Tamiya collectors and Toyota enthusiasts.

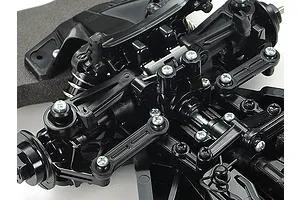

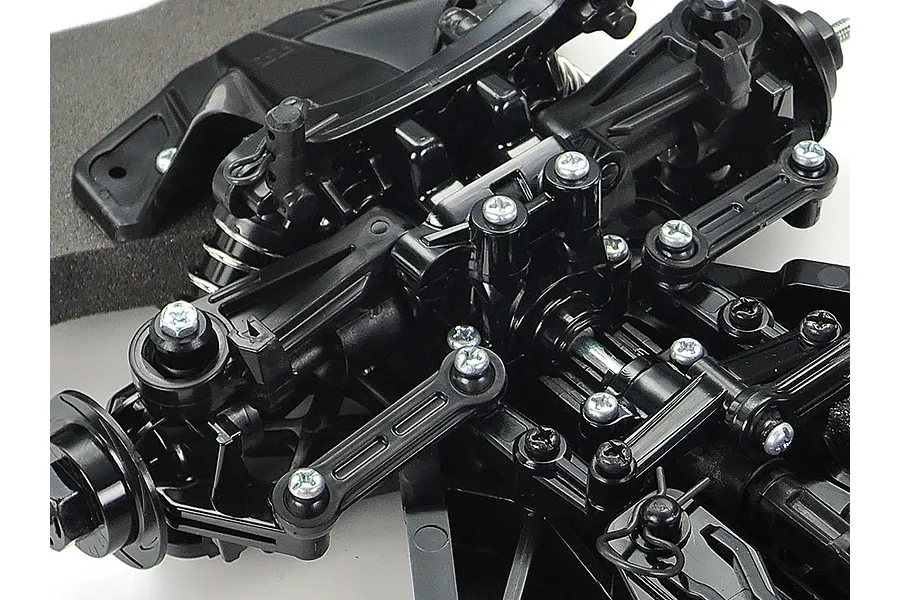

Smooth Precision Steering Linkages
Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

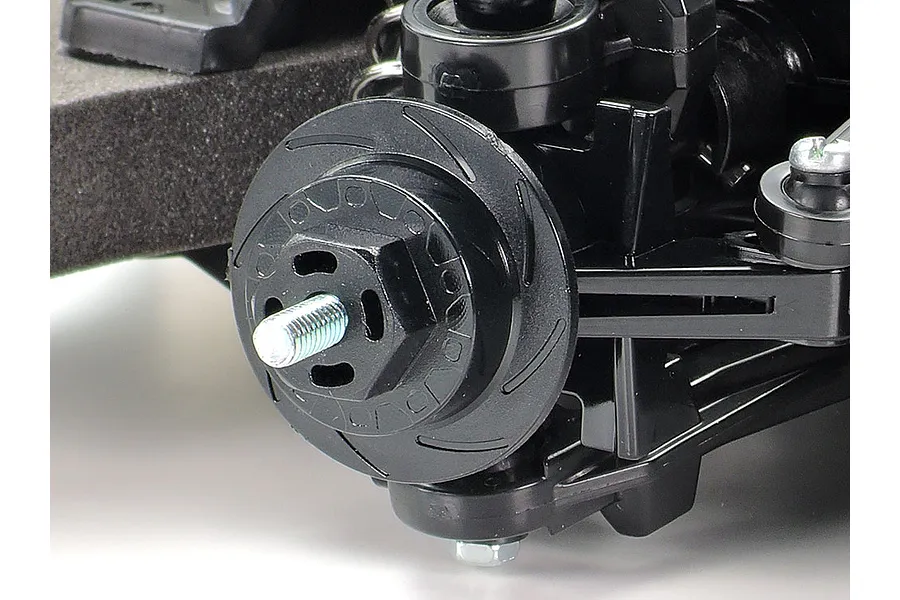

Stylish Brake Disc Wheel Hubs
Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

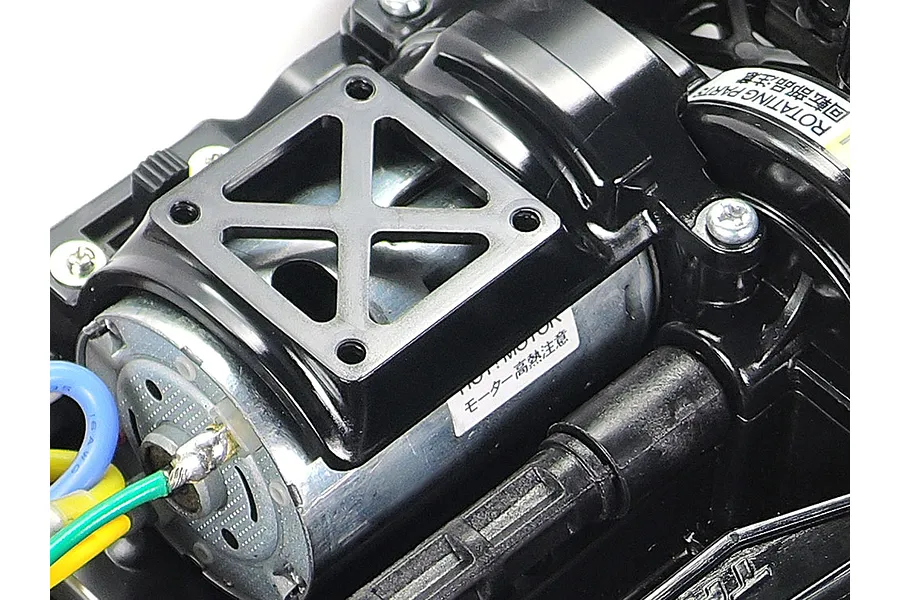

Efficient Motor Cooling Cover
Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

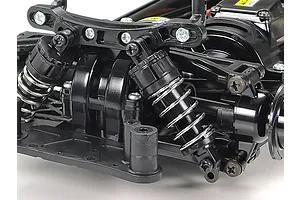

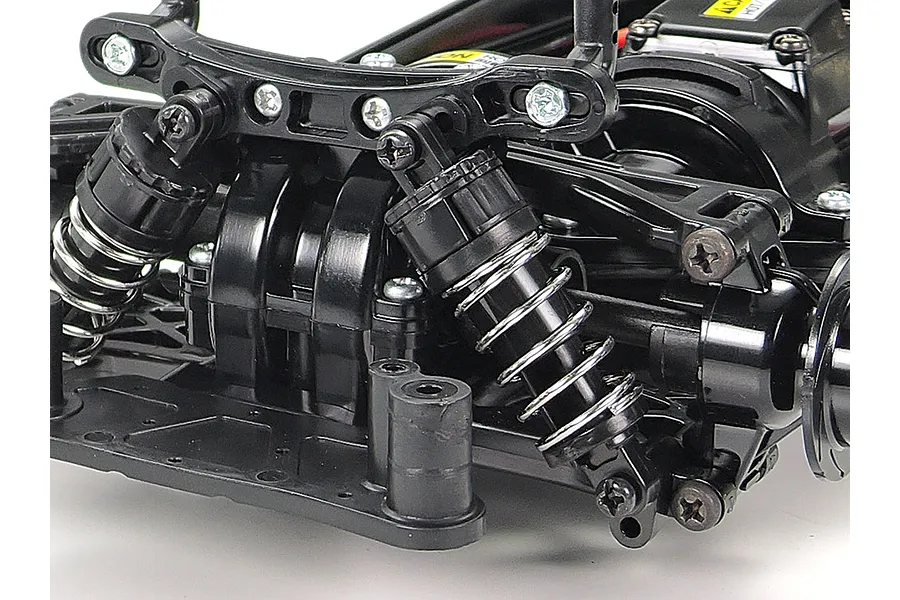

Rear Double-Wishbone Suspension
Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Smooth Planetary Gear Diffs
Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Designed for Easy Maintenance
Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Features
  • Fully licensed by Toyota
  • Uses the Tamiya TT-02 chassis which is easily assembled
  • Massive factory and aftermarket parts support
  • High quality polycarbonate body shell is pre-painted in factory

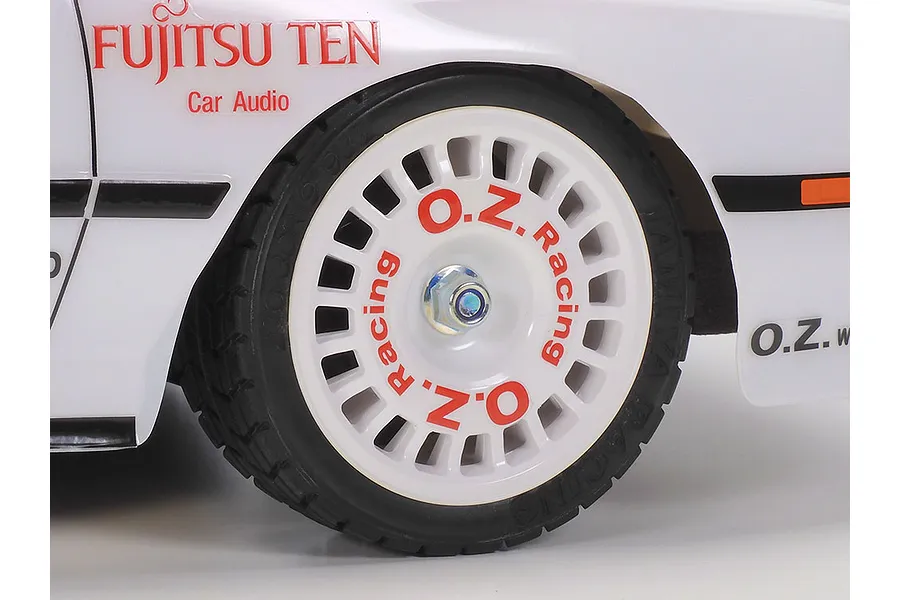

  • Super scale rims and tyres included
  • The TT-02 chassis is perfect for beginners and experienced builders
  • High detail decal sheet included
  • Genuine Tamiya Product
Specifications
  • Length: 450mm (17.72")
  • Width: 185mm (7.28")
  • Height: 130mm (5.12")
  • Wheelbase: 257mm (10.12")
  • Weight: N/A
  • Tyre Diameter: 67mm (2.64")
  • Chassis: TT-02 On Road
  • Drivetrain: 4WD
  • Gear Ratio: 8.27:1
  • Suspension: Coil Over Shock Absorbers
  • Motor: Tamiya 540 Sized Brushed Motor
  • ESC: Not Included
Included Items
  • 1x Tamiya 1/10 TT-02 Toyota Celica GT-Four ST165 Electric On Road RC Car Kit
  • 1x 540 Sized Brushed Motor
  • 1x Polycarbonate Body Shell
Required Items
  • 1x Compatible 7.4V LiPo or 7.2V NiMH Battery
  • 1x Compatible Charger
  • 1x Compatible 1/10 Scale ESC
  • 1x Compatible 1/10 Scale Servo
  • 1x 2+ Channel Transmitter & Receiver
  • PS Series Polycarbonate Paint
  • AA Batteries For Transmitter
Note

This kit does not include an ESC, servo, battery, charger, or transmitter. The polycarbonate body shell may require cutting, painting, and drilling.

Specifications
RC Car
Scale
1/10
Max LiPo Power
3S (11.1v)
Completion
Kit
Skill Level
Beginner
Power Source
Electric
Chassis Type
Car
On/Off Road
On Road
Drivetrain
4WD
Factory Specs
Max LiPo Power
3S (11.1v)
Battery Connector
Not Included
Pinion Gear
22T
Spur Gear
70T
Wheel Hex Size
12mm
