Name: Tamiya TT-02 Porsche 911 GT3 (992) RC Car Electric 4WD 1/10 Scale Kit (no ESC)
Brand: Tamiya
SKU: TAM-58712A
Price: 191.40 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

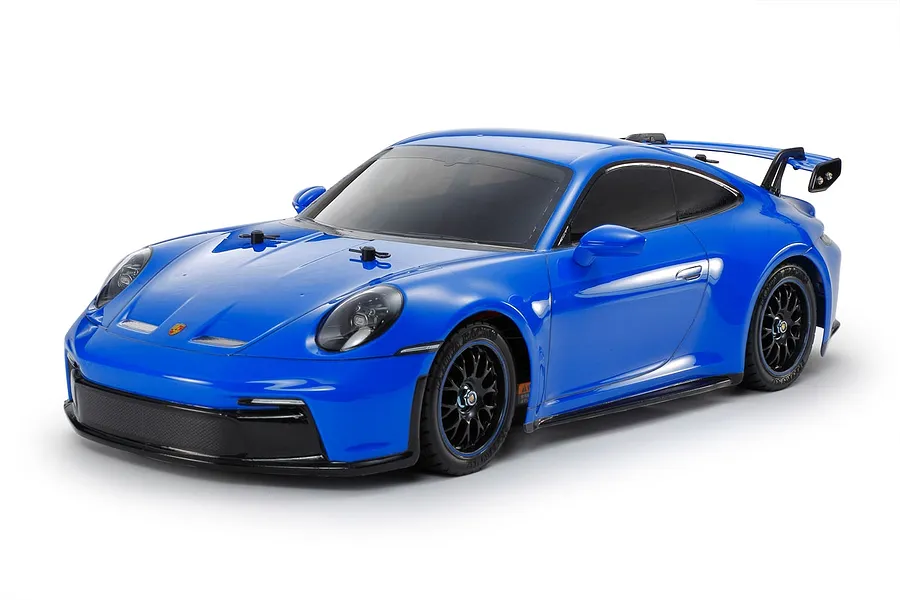

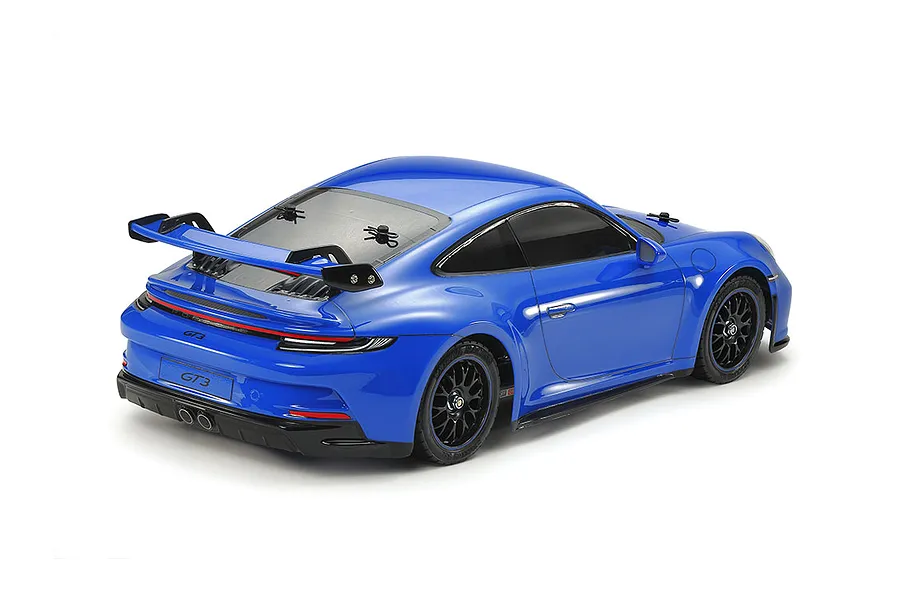

This R/C model assembly kit creates an impressive replica of the Porsche 911 GT3 (992), complete with a highly detailed polycarbonate body. Based on the highly customisable and beginner-friendly TT-02 chassis, the kit is easy to assemble.

The 7th generation Porsche 911 GT3 features a horizontally opposed 6-cylinder engine and double-wishbone front suspension. The carbon fibre reinforced plastic front hood is employed for the first time in production vehicles, making it lightweight. The hanging type wing stay provides greater downforce and lower drag.

The TT-02 chassis is a shaft-driven 4WD platform that offers great stability with its longitudinal layout of the battery and motor. Its symmetrical suspension arms and uprights and simple gearboxes make it easy to assemble and maintain. The chassis has 2 options for wheelbase, ground clearance and tread, as well as 10 possible gear ratios.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series; standard paints will not adhere and/or may cause damage to the body shell's surface.

This kit does not include an Electronic Speed Controller (ESC).

Features

The RC assembly kit creates the Porsche 911 GT3 (992)
Dark gunmetal colour spoke wheels paired with racing radial tyres
Shaft-driven 4WD TT-02 chassis offering 2 wheelbases, 2 ground clearance settings, and 2 tread set-ups
Comes with stickers and window masking tape for use in the paint job
Identical left and right suspension arms and uprights for easy assembly; gearboxes are easy to maintain
10 possible gear ratios

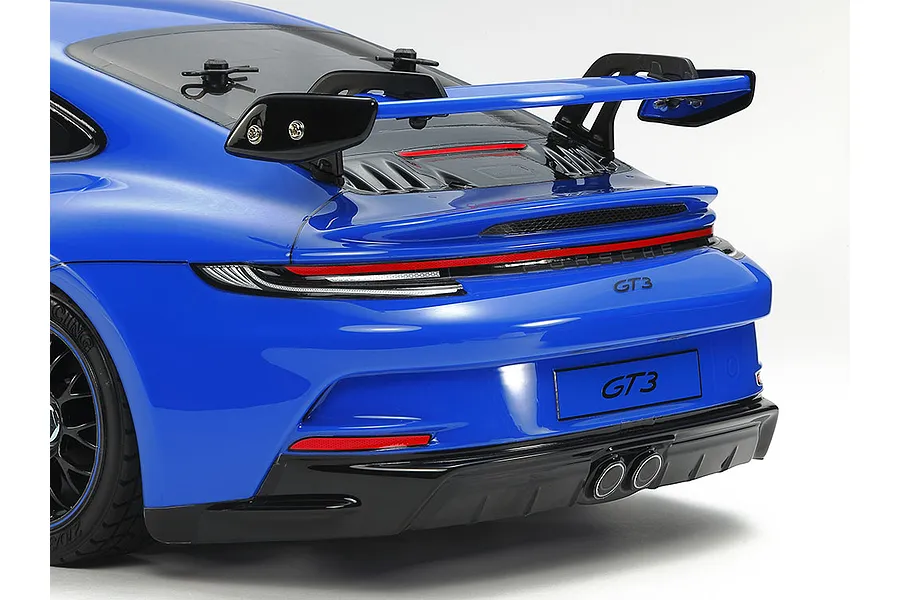

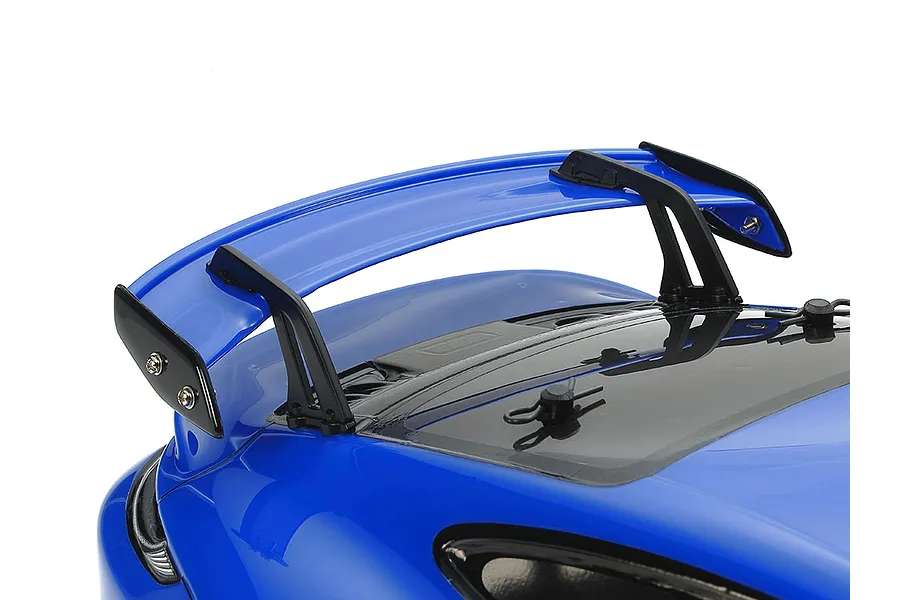

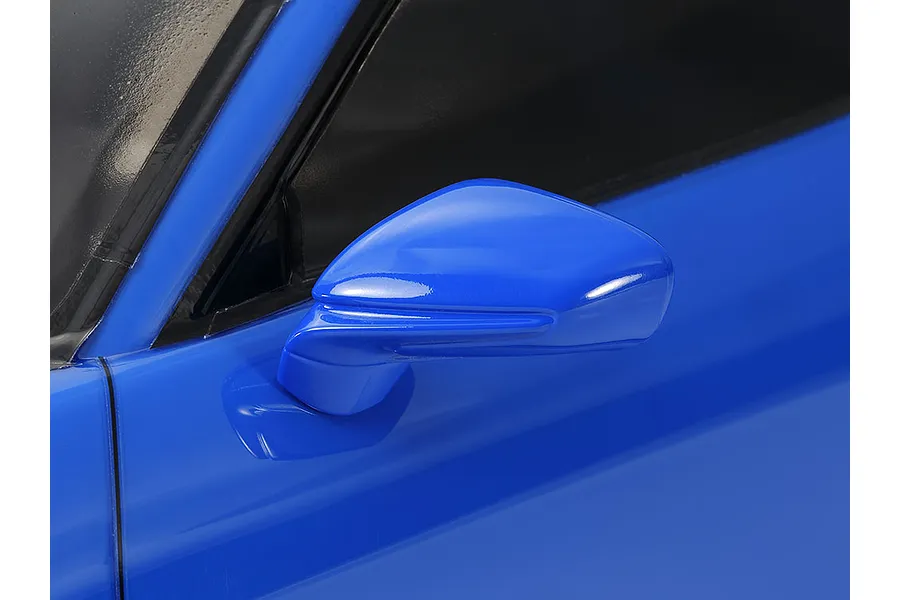

Separate parts realistically depict side mirrors and rear wing
Resin ball links in the steering linkage joints provide smooth and comfortable motion
Stylish wheel hubs designed to look like brake discs
Rear double-wishbone design suspension with friction dampers
Easy-to-remove gearbox cover — loosen screws on the frame to access the gearbox
Dust-proof and dirt-proof receiver case
Motor cover has a removable cooling duct

In the box

1x 1/10 TT-02 Porsche 911 GT3 (992) Electric RC Touring Car Kit

You'll need

7.2V NiMH Battery & Compatible Charger
Standard Sized Servo
Electronic Speed Controller (ESC)
2-Channel Transmitter & Receiver
Tamiya PS Paint

Highlights

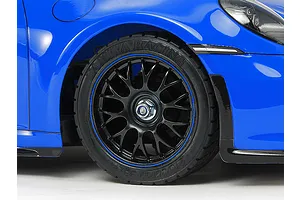

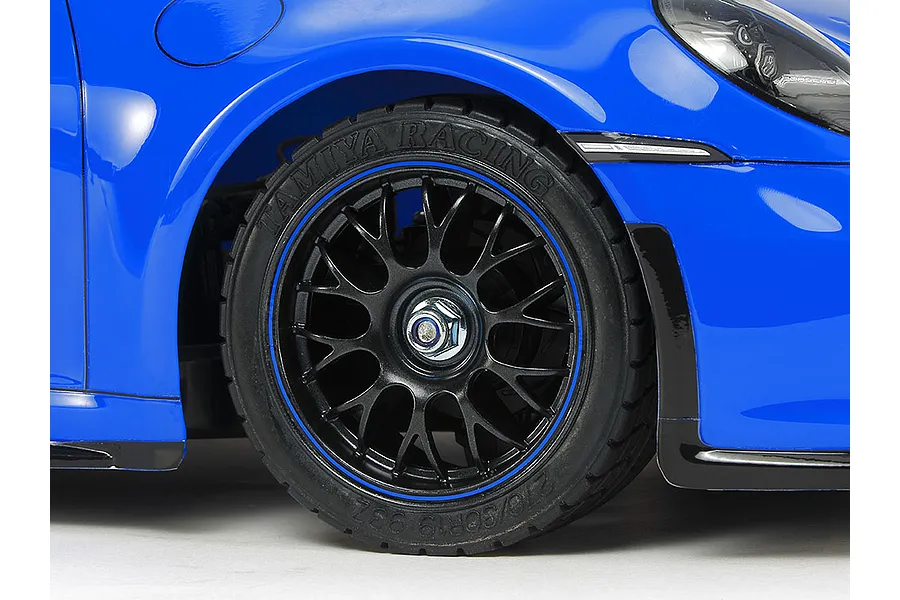

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

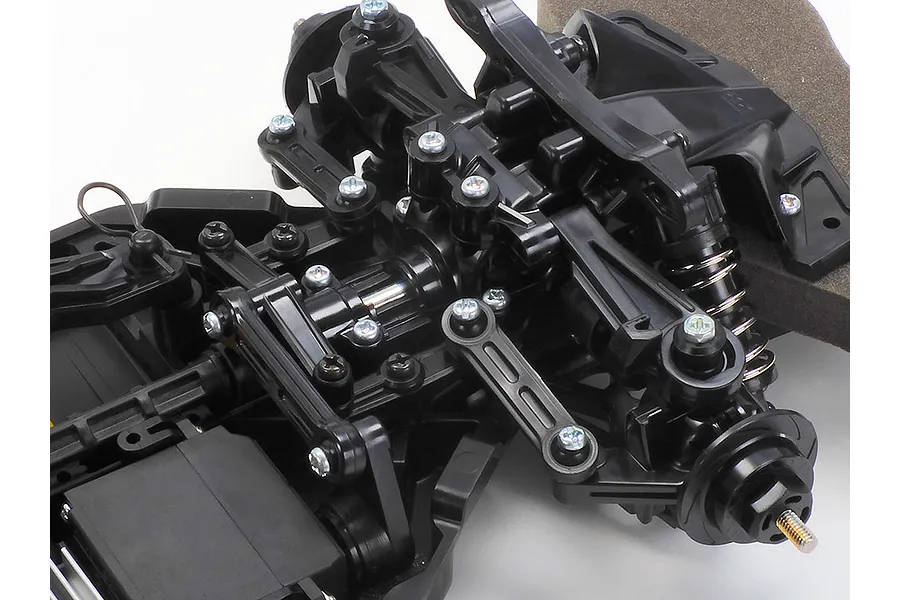

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

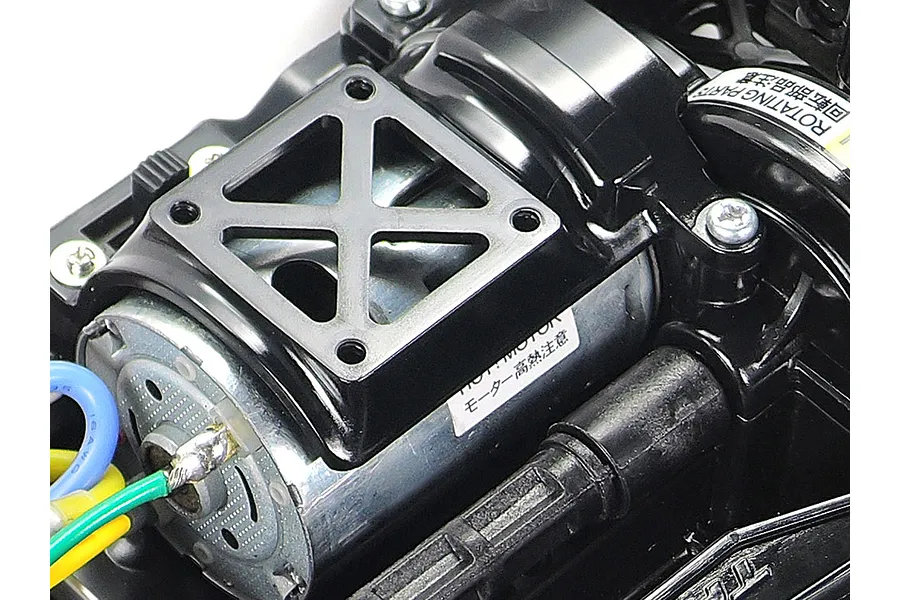

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

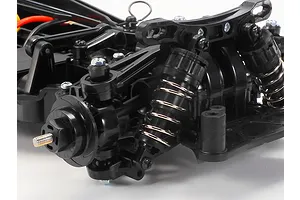

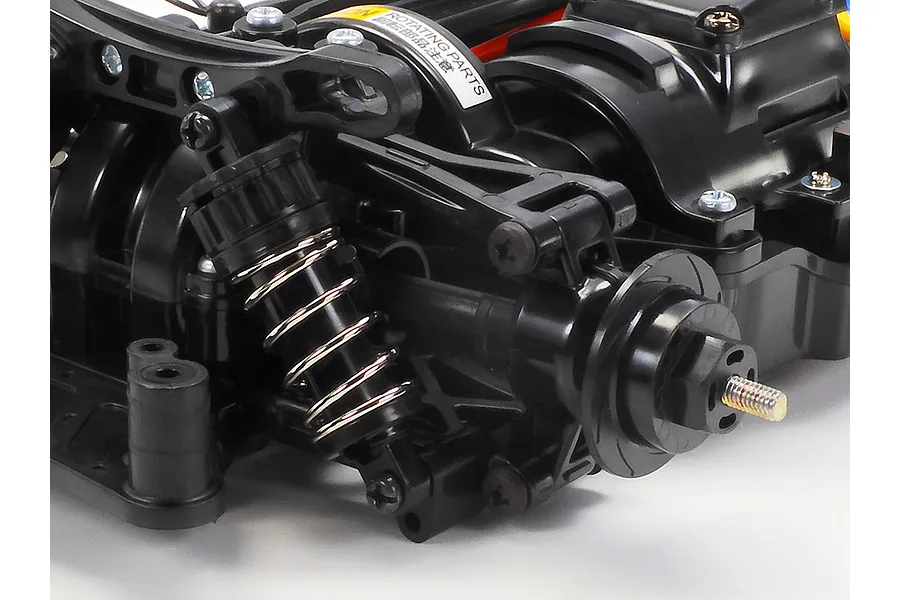

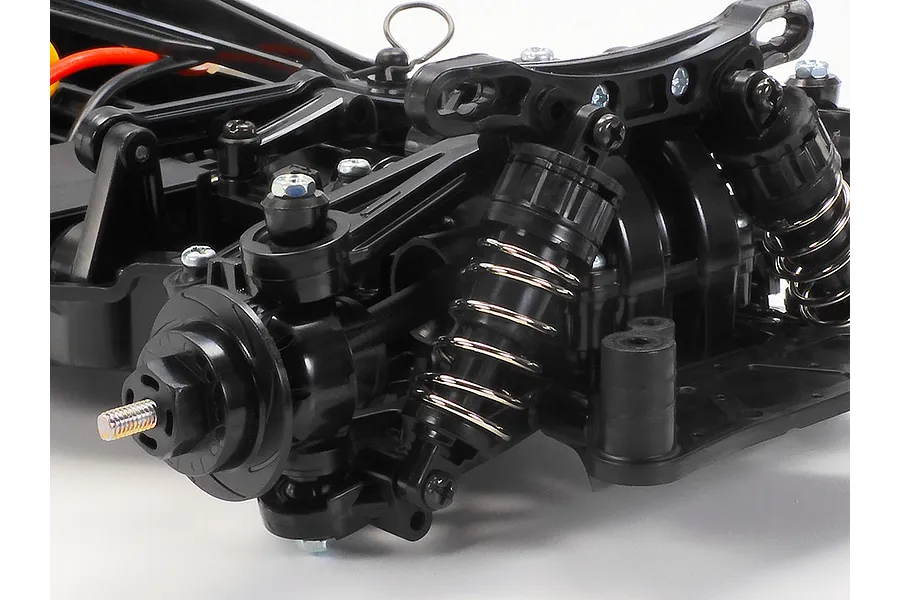

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Specifications

Length	467mm (18.35")
Width	188mm (7.40")
Height	131mm (5.15")
Wheelbase	251mm (9.88")
Chassis	ABS TT-02
Drivetrain	4WD
Suspension	Fully Independent Double Wishbone
Gear Ratio	Adjustable
Motor	540 Brushed type
