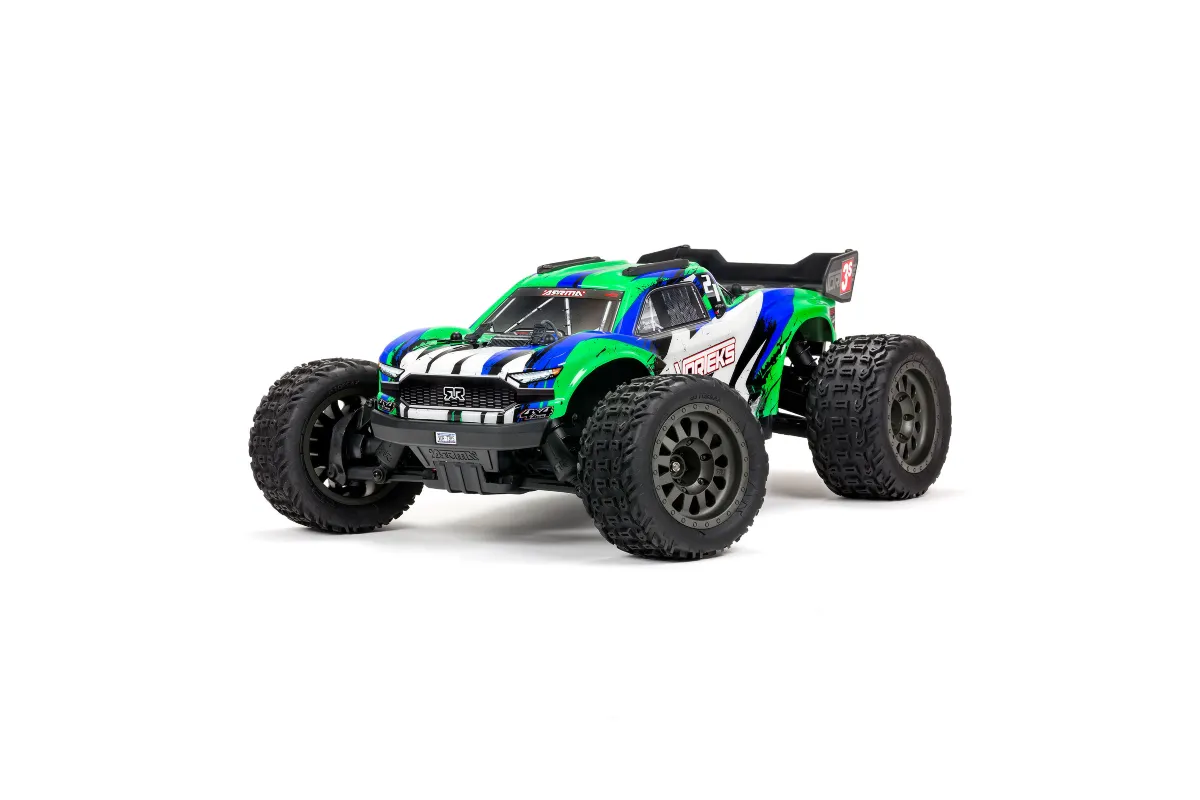

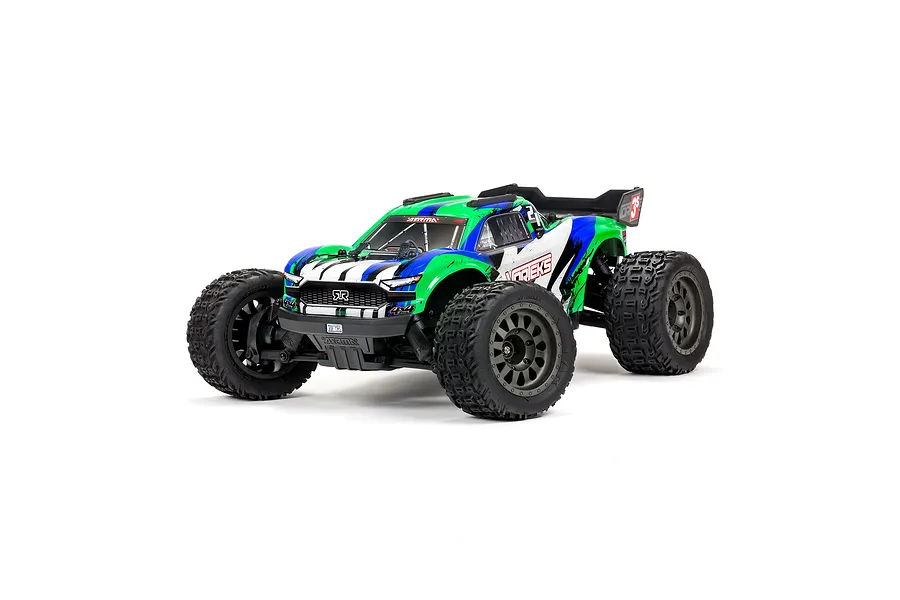

ARRMA VORTEKS 4x4 3S BLX RC Stadium Truck Electric Brushless 4WD 1/10 Scale RTR - Green

  • 1/10
  • 4WD
  • RTR
  • Brushless

Part no. ARA4305V3BT3

DiscontinuedWrite a review
1 / 16
1 / 16

Videos

Select Option: Green

No longer made. Replaced by:

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

ARRMA has taken its 4X4 3S BLX speed bashing platform to the next level with the VORTEKS Stadium Truck. This is the fastest and most technically advanced 1/10 scale 4X4 vehicle in the ARRMA lineup, and it is engineered to deliver astonishing speed, control and durability at an incredibly affordable price.

Note

For details on waterproof standards, please see the product instruction manuals.

Features

  • Extremely durable — DESIGNED FAST, DESIGNED TOUGH!
  • Stadium truck body with tough, injection-moulded wing and protective roof skids
  • Adjustable body mounts
  • High-traction, vented dBoots Katar multi-terrain tyres mounted to tough, gun-metal colour wheels
  • Spektrum 3660 3200Kv brushless motor with ARRMA heatsink and cooling fan and Safe D pinion
  • Spektrum Firma 100A Smart ESC
  • Spektrum 2.4GHz DX3 transmitter and SR6200A receiver Smart radio system with AVC (Active Vehicle Control)
  • Spektrum SPMS651 metal-geared servo
  • Strong composite chassis with extended height dirt defenders
  • Easy-access modular design
  • Adjustable turnbuckles

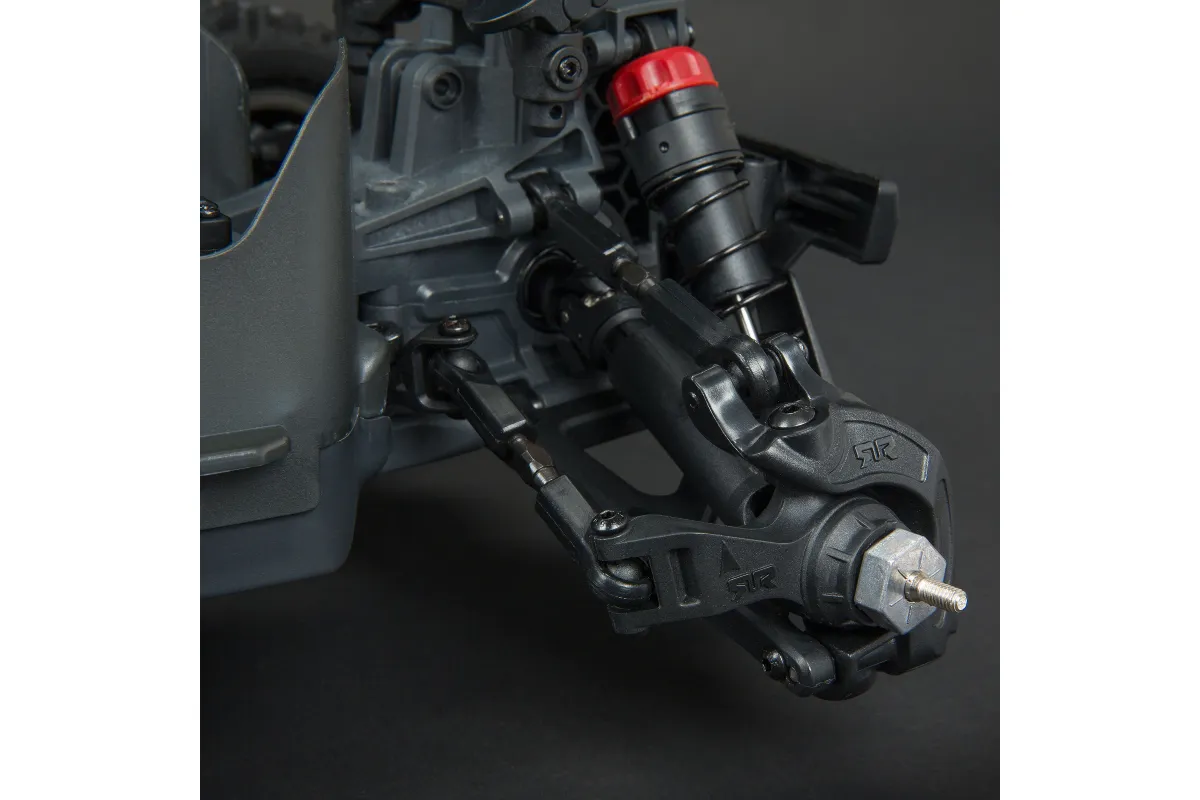

  • Steering system with stone clearance
  • Adjustable ride height
  • Wheelie bar
  • Rubber shielded bearings throughout
  • Durable 37T 1.35 module metal differential gears and silicone O-rings
  • Castellated slipper pad and sliding gear mesh
  • Plastic locknut for slipper
  • 2-Year limited warranty

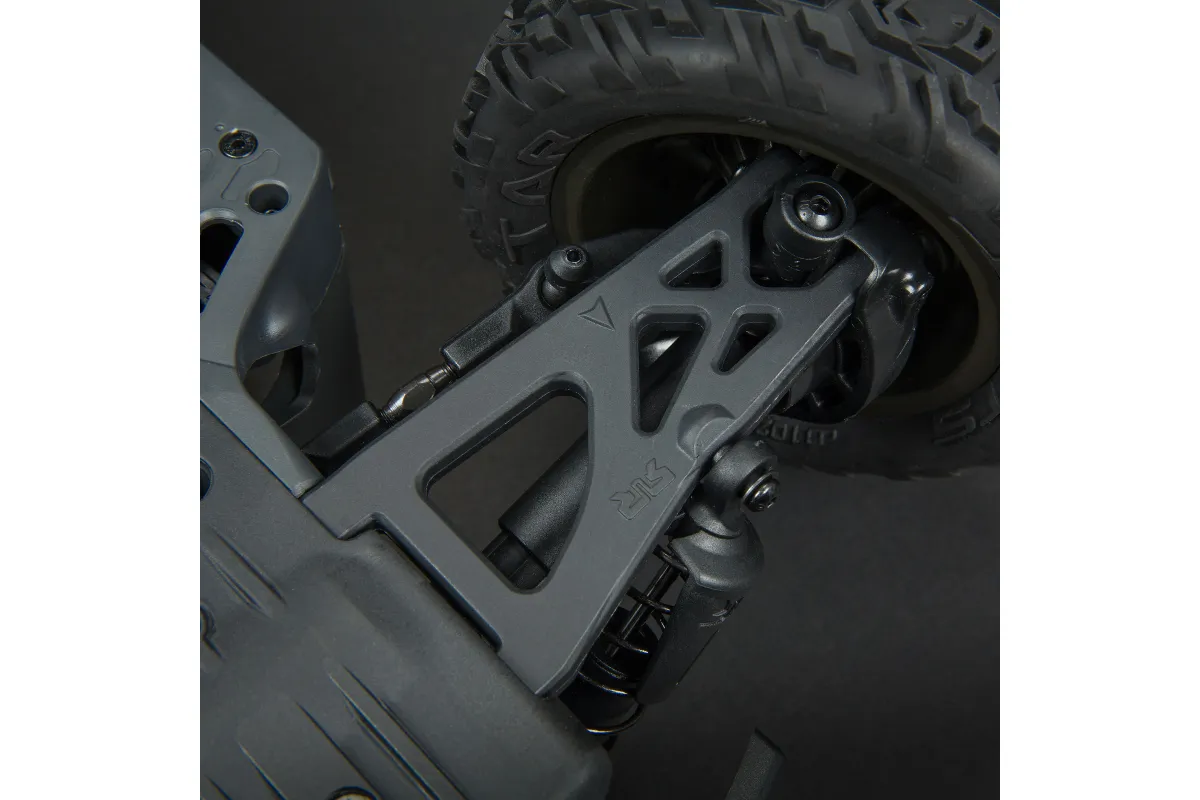

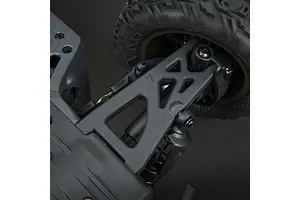

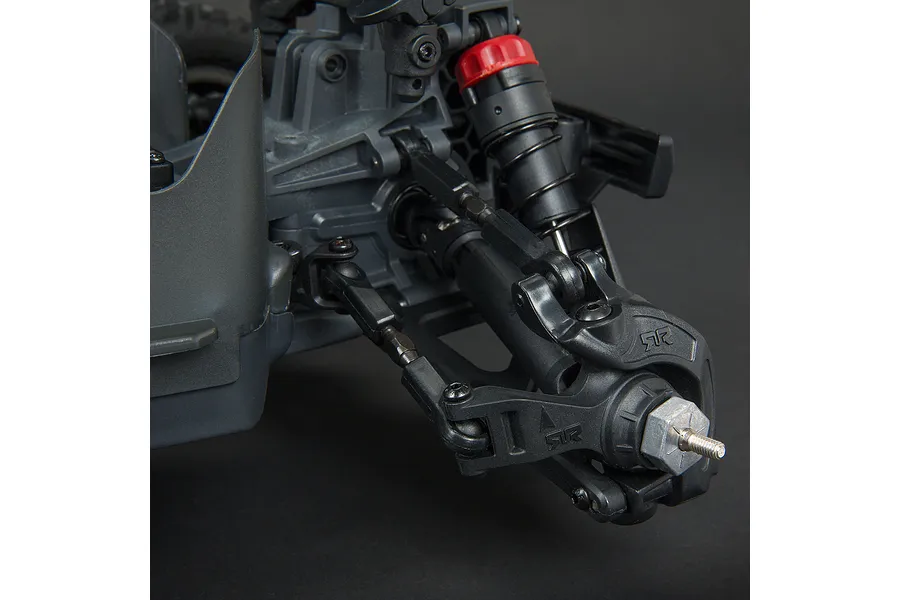

  • Double wishbone suspension front and rear

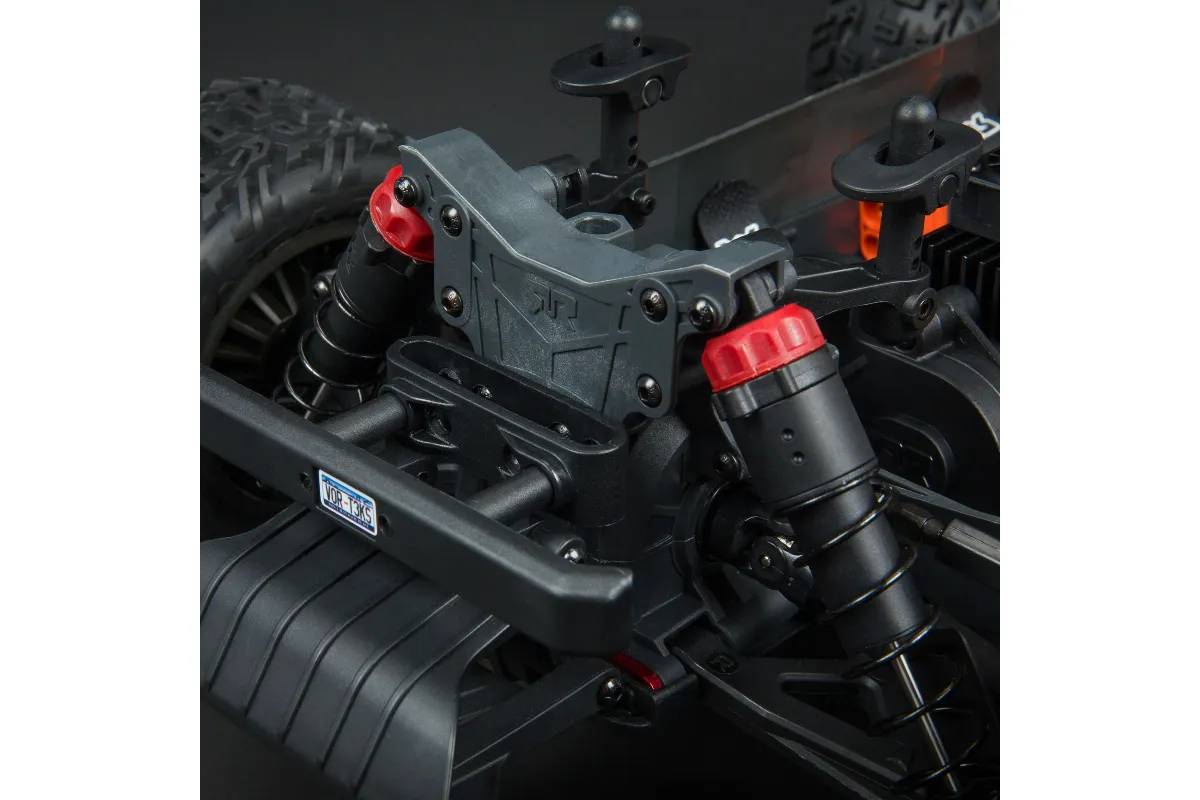

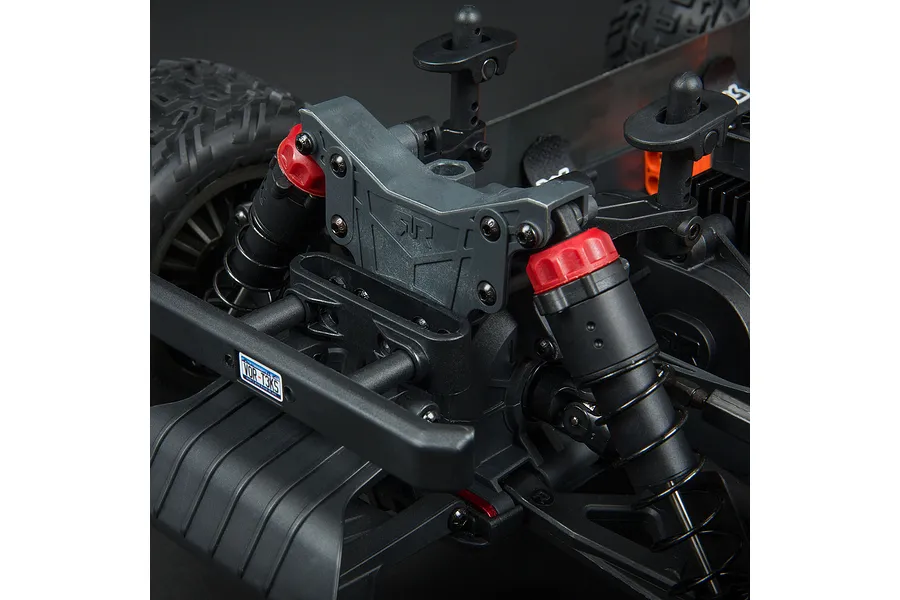

  • Oil-filled shocks with silicone O-rings

In the box

  • 1x ARRMA VORTEKS 4X4 3S BLX 1/10 Scale 4WD Electric Stadium Truck RTR
  • 1x Spektrum Firma 100A Smart Waterproof ESC
  • 1x Spektrum Firma 3660 3200Kv Brushless Motor
  • 1x Spektrum 2.4GHz DX3 Smart DSMR 3-Channel Transmitter
  • 1x Spektrum SR6200A AVC Receiver
  • 1x Spektrum SPMS651 7kg Waterproof Metal-Geared Digital Servo
  • 1x 23T Spline Servo Saver
  • 1x Product Manual

You'll need

  • 7.2–11.1v Battery
  • Charger
  • 4x AA Batteries

Highlights

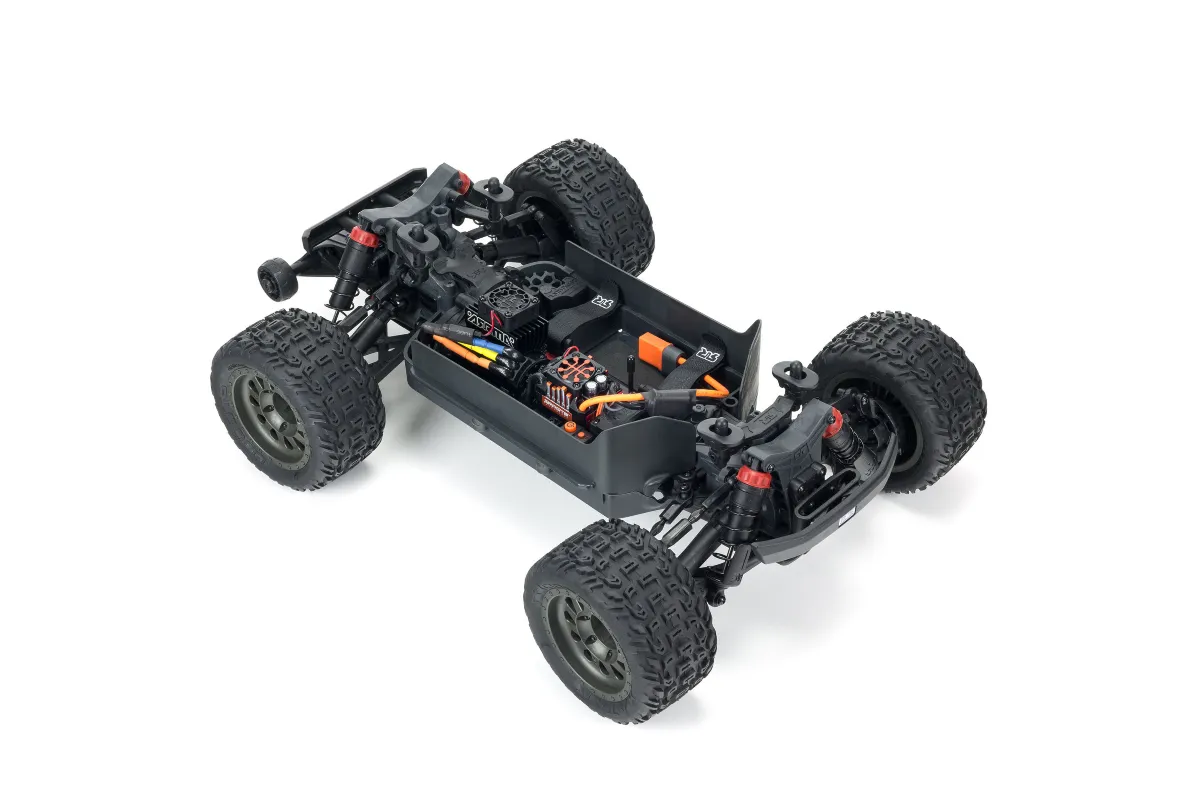

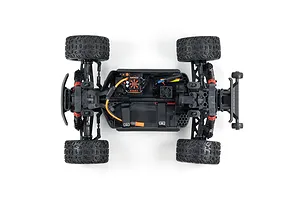

Strong Composite Chassis for Unstoppable Performance

Strong Composite Chassis for Unstoppable Performance

The ARRMA® VORTEKS™ 4X4 3S BLX stadium truck features a robust composite chassis designed for extreme durability and performance. Enhanced features include stronger hinge pin plates, increased steering clearance for debris, castellated slipper pads, sliding gear mesh, and rubber-shielded bearings throughout. Extended-height dirt defenders minimise debris buildup in the chassis tub, while front and rear bumpers provide impact protection. This truck is built to withstand the punishment of aggressive bashing and keep you in the action.

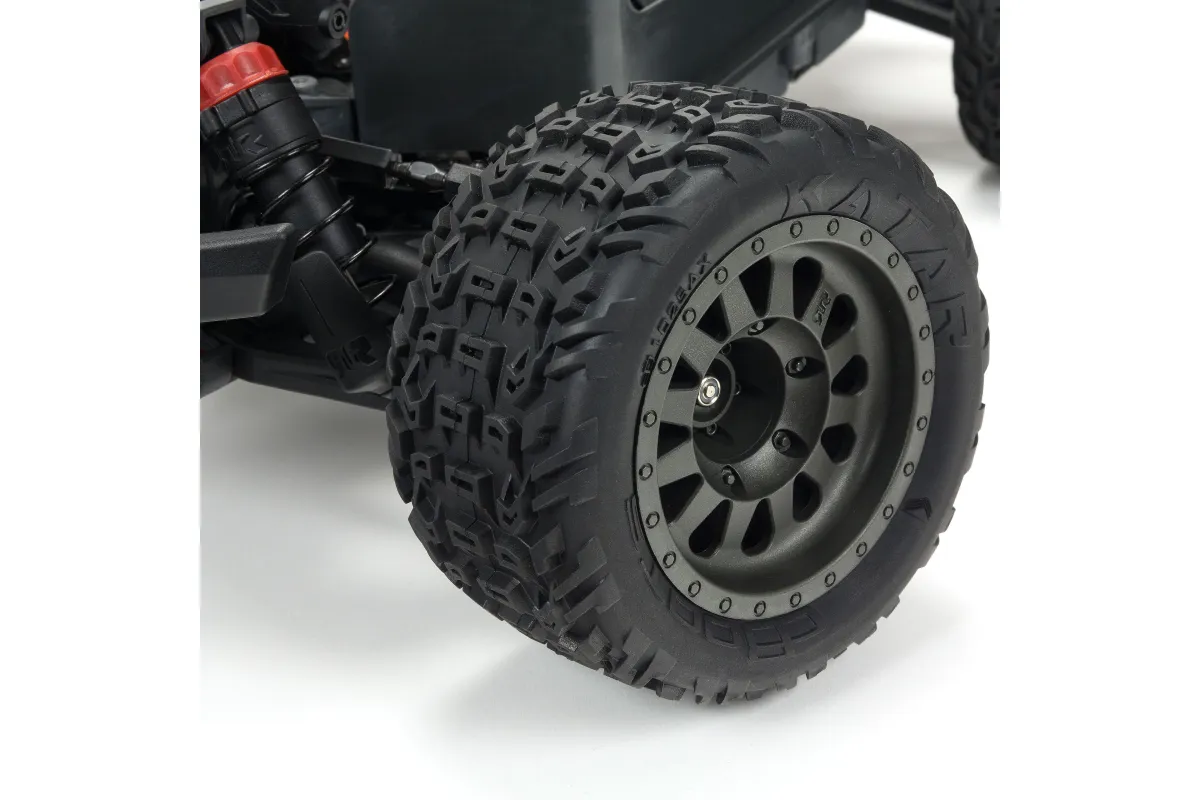

dBoots® Katar™ Tyres Deliver All-Terrain Performance

dBoots® Katar™ Tyres Deliver All-Terrain Performance

The ARRMA® VORTEKS™ 4X4 3S BLX stadium truck is equipped with multi-surface dBoots® Katar™ tyres, providing aggressive grip and predictable handling on a variety of terrains. Mounted on tough, gunmetal-coloured nylon wheels, these high-quality rubber tyres are designed for long-lasting durability and all-around performance.

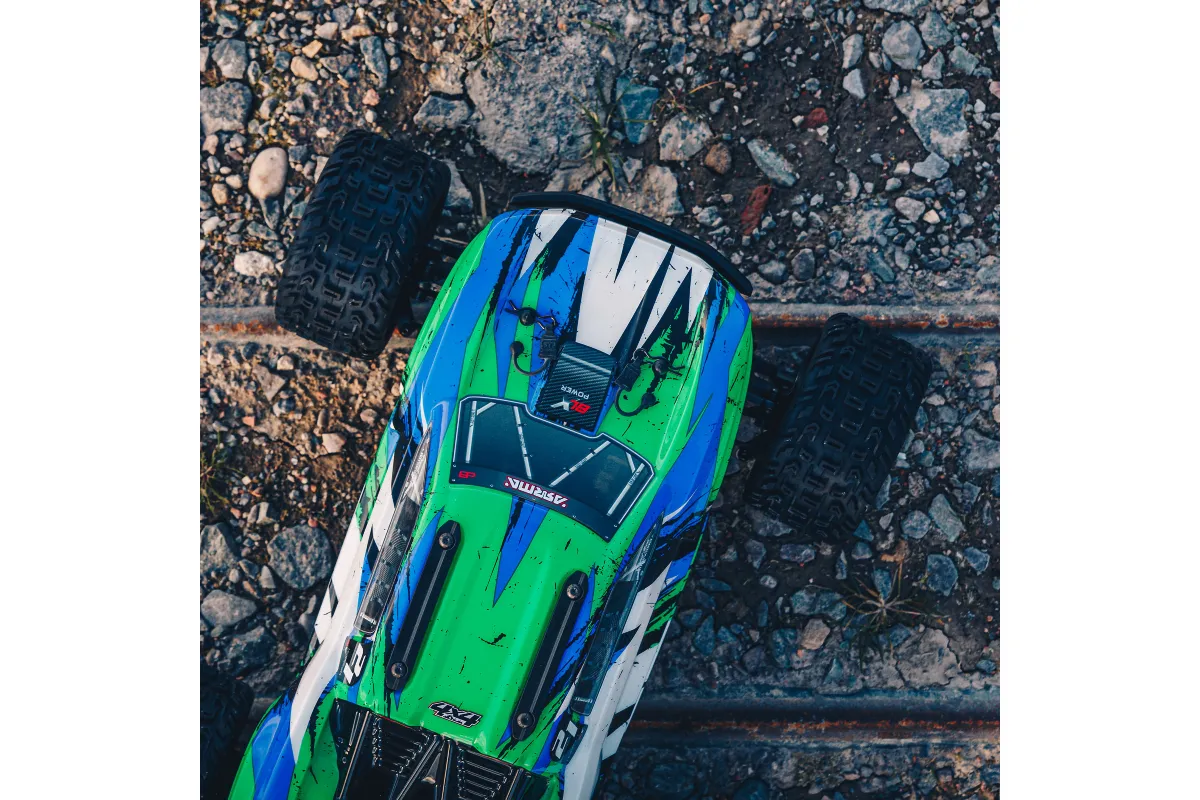

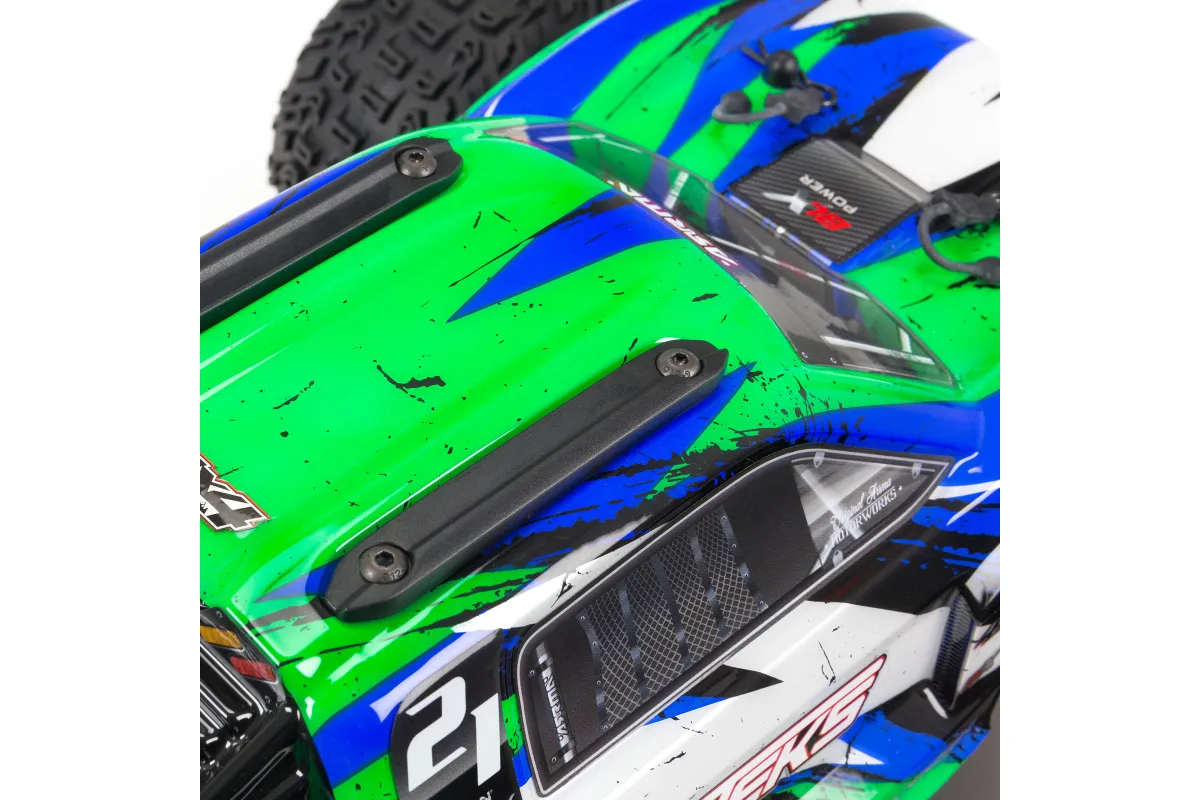

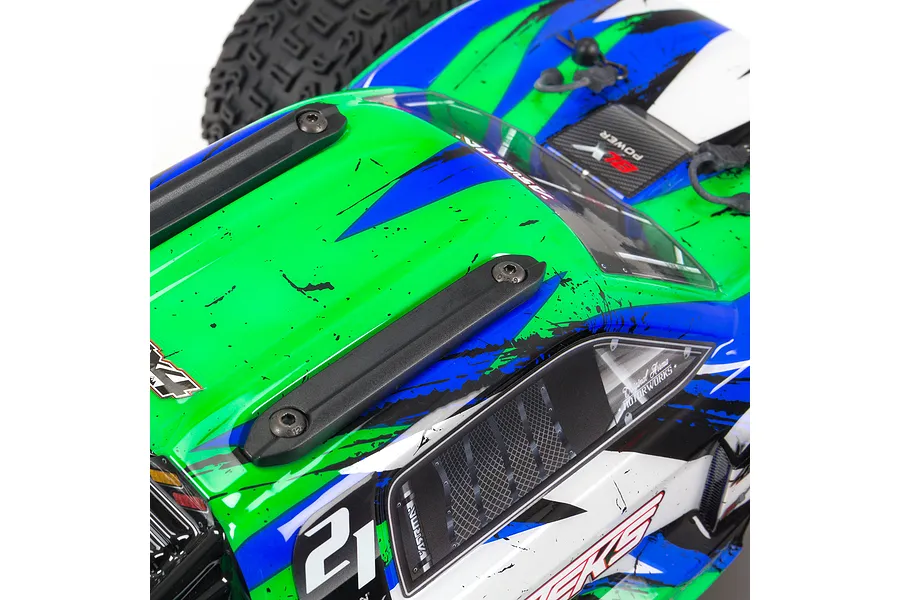

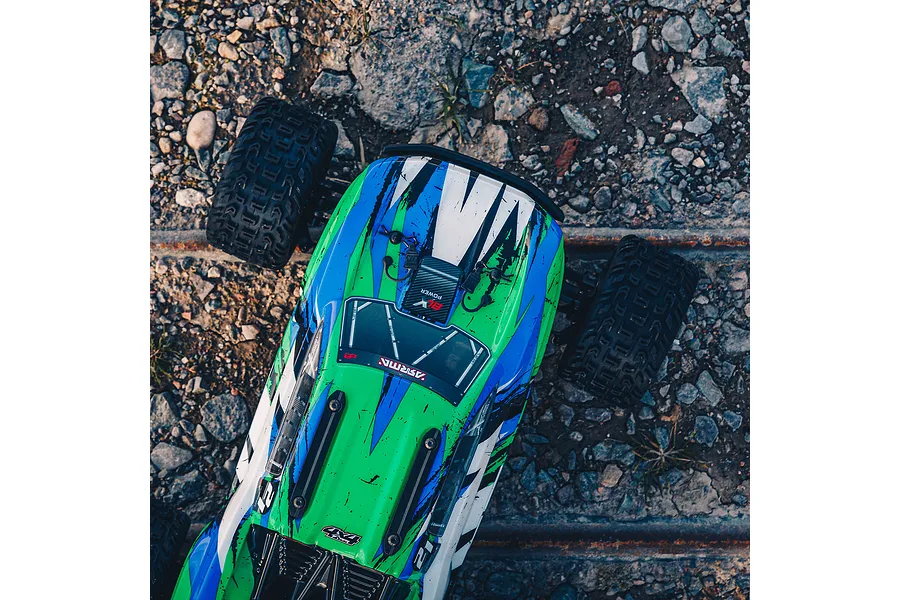

Sleek Stadium Truck Body with Impact Protection

Sleek Stadium Truck Body with Impact Protection

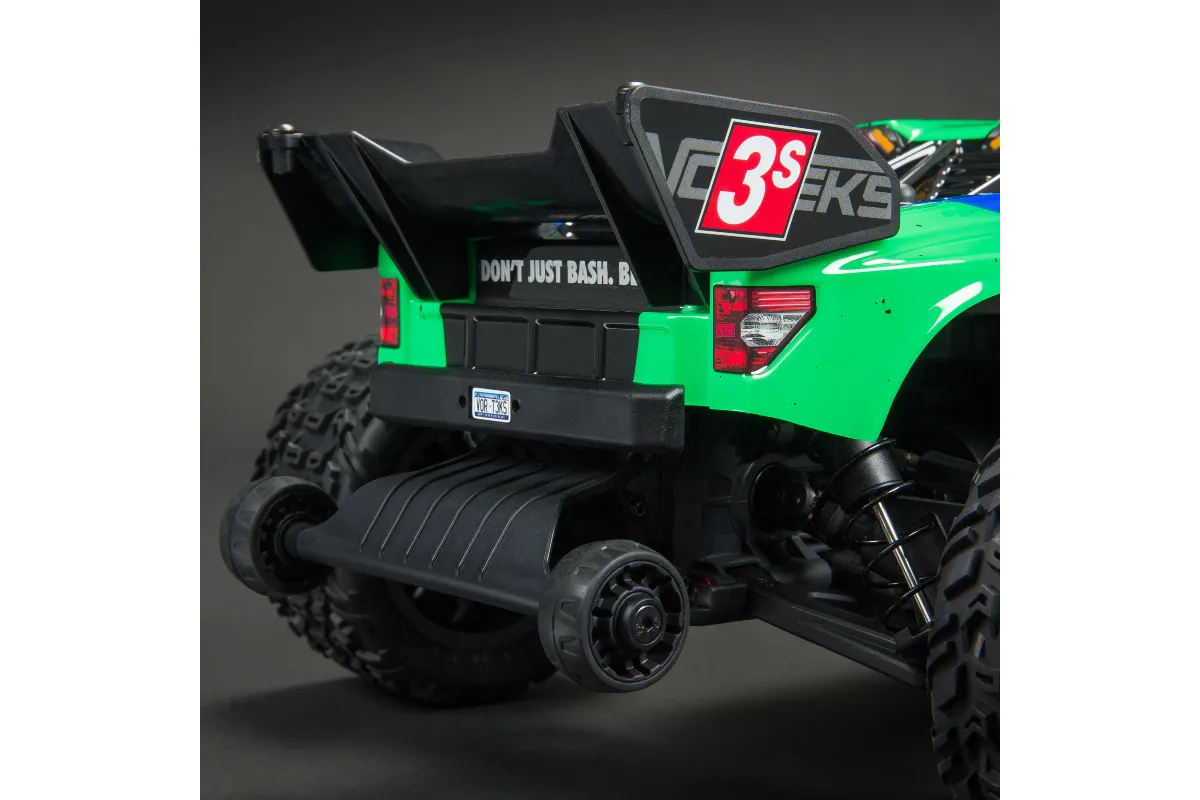

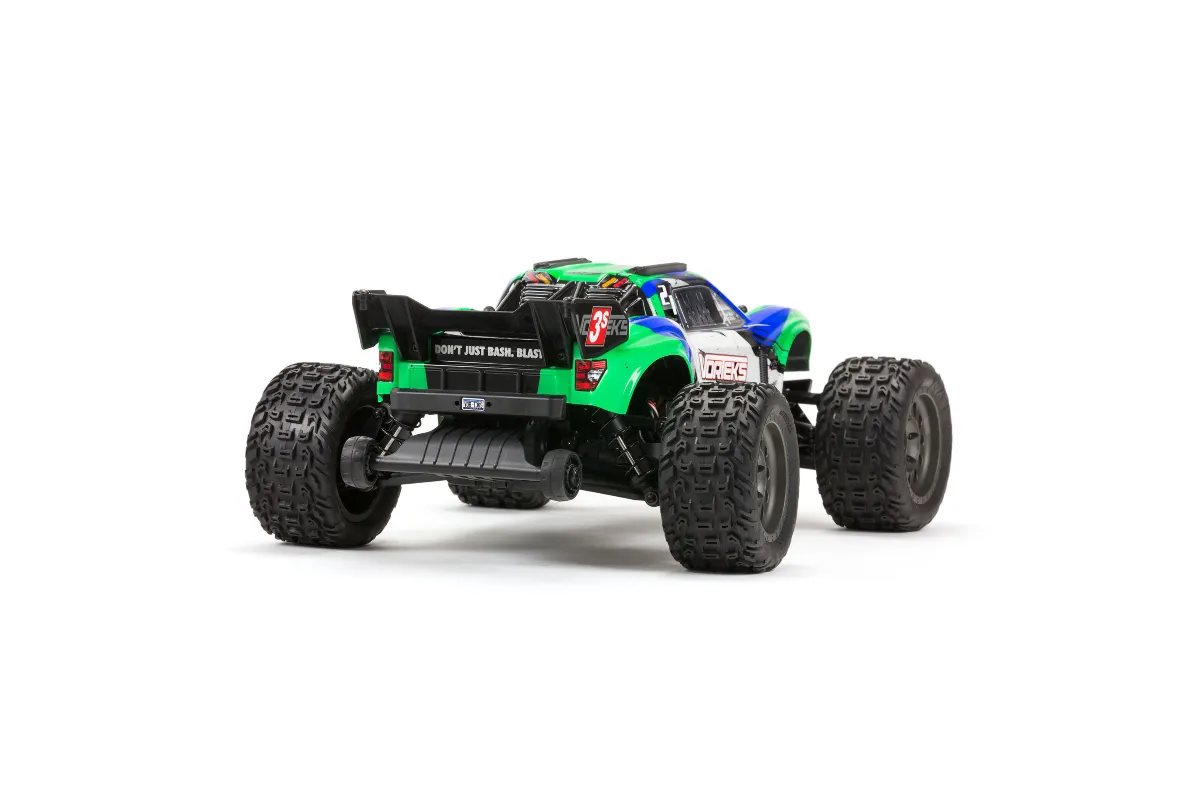

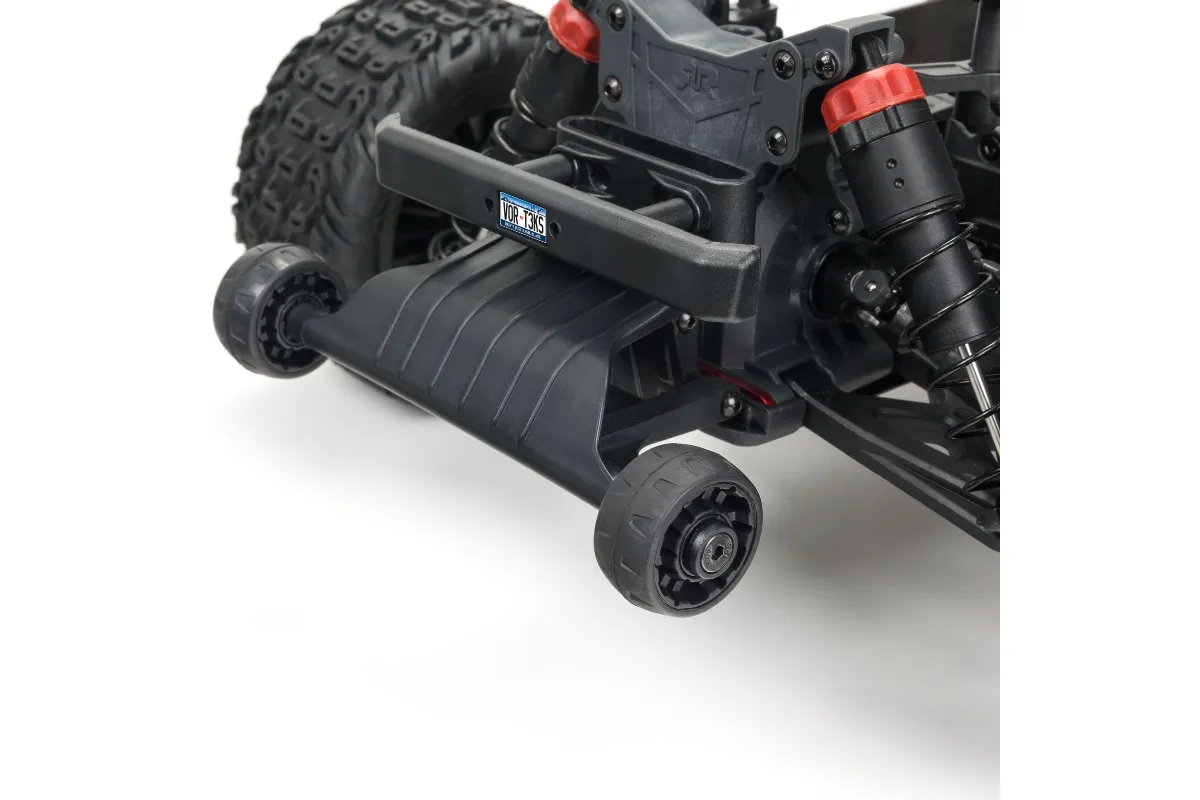

The ARRMA® VORTEKS™ 4X4 3S BLX stadium truck features a stylish and aerodynamic body with a tough, injection-moulded rear wing and protective roof skids. Available in three exciting colour combinations, the body is designed for durability and performance. Front and rear bumpers provide impact protection, while a wheelie bar adds to the stunt potential, allowing you to perform impressive wheelies with ease.

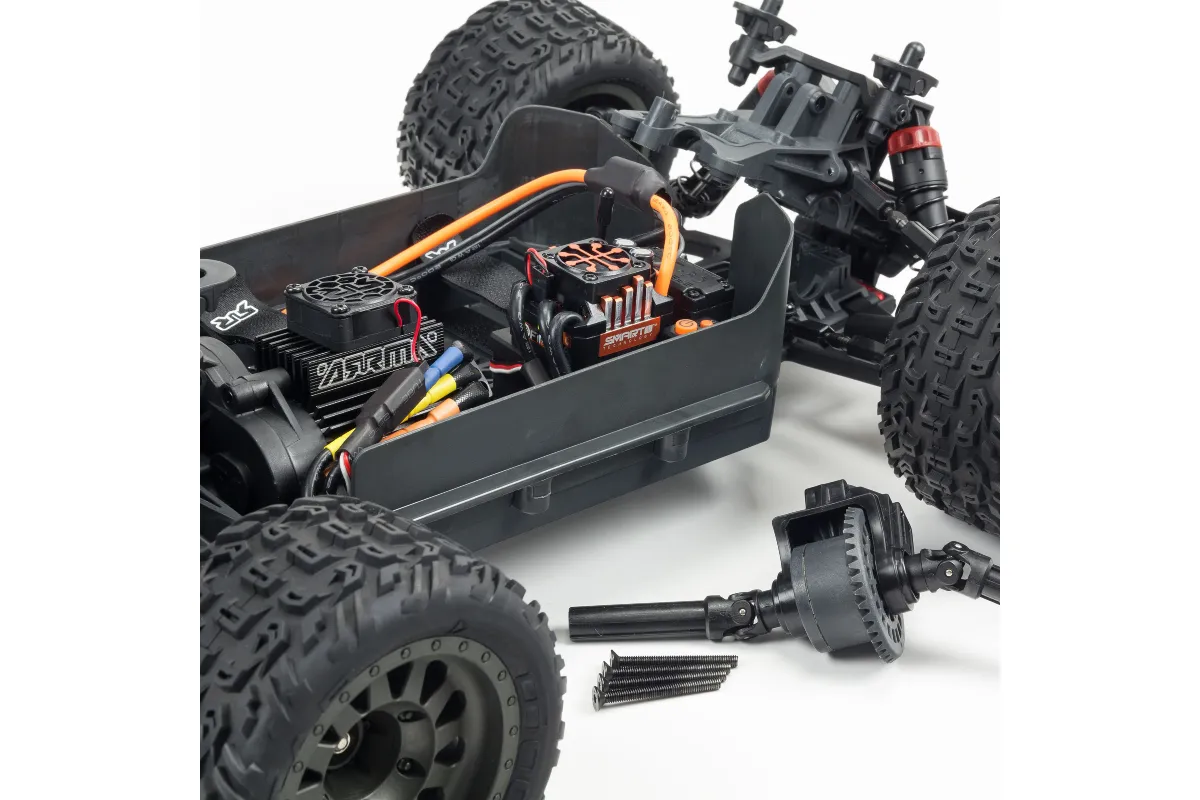

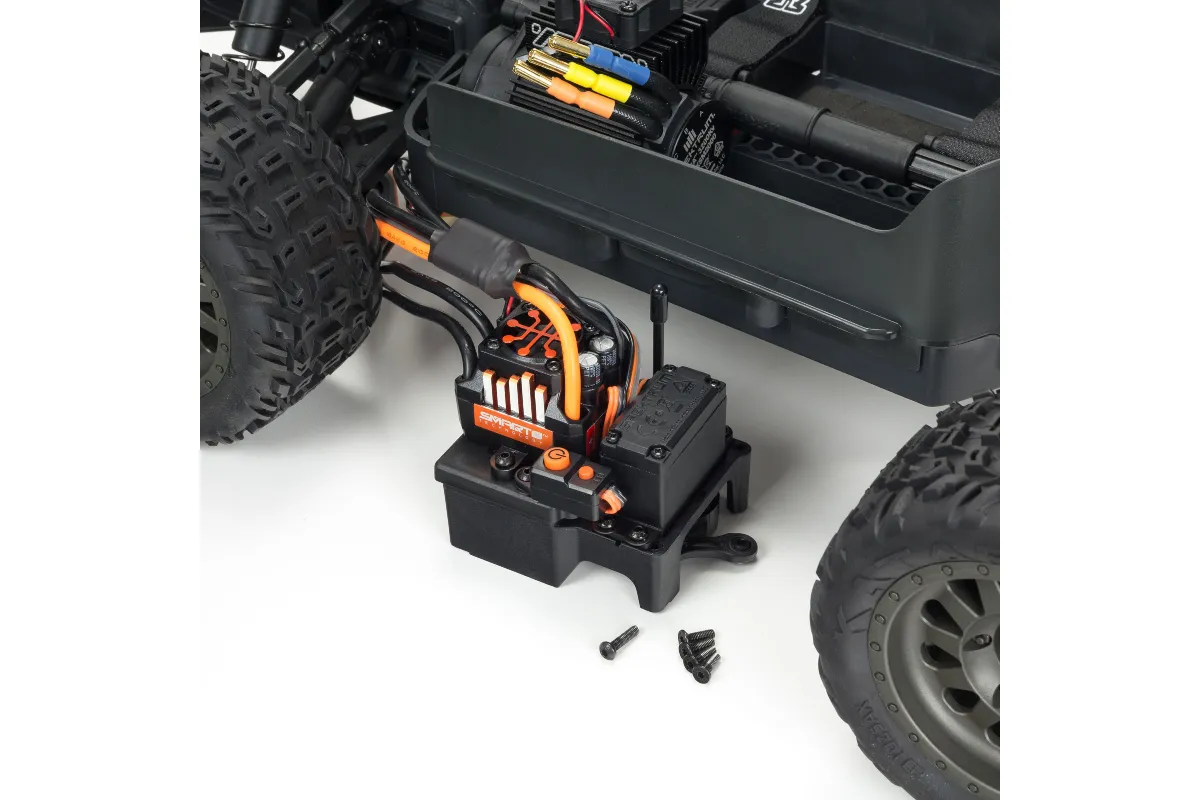

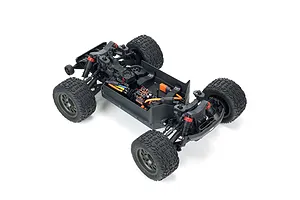

Convenient Modular Design for Easy Maintenance

Convenient Modular Design for Easy Maintenance

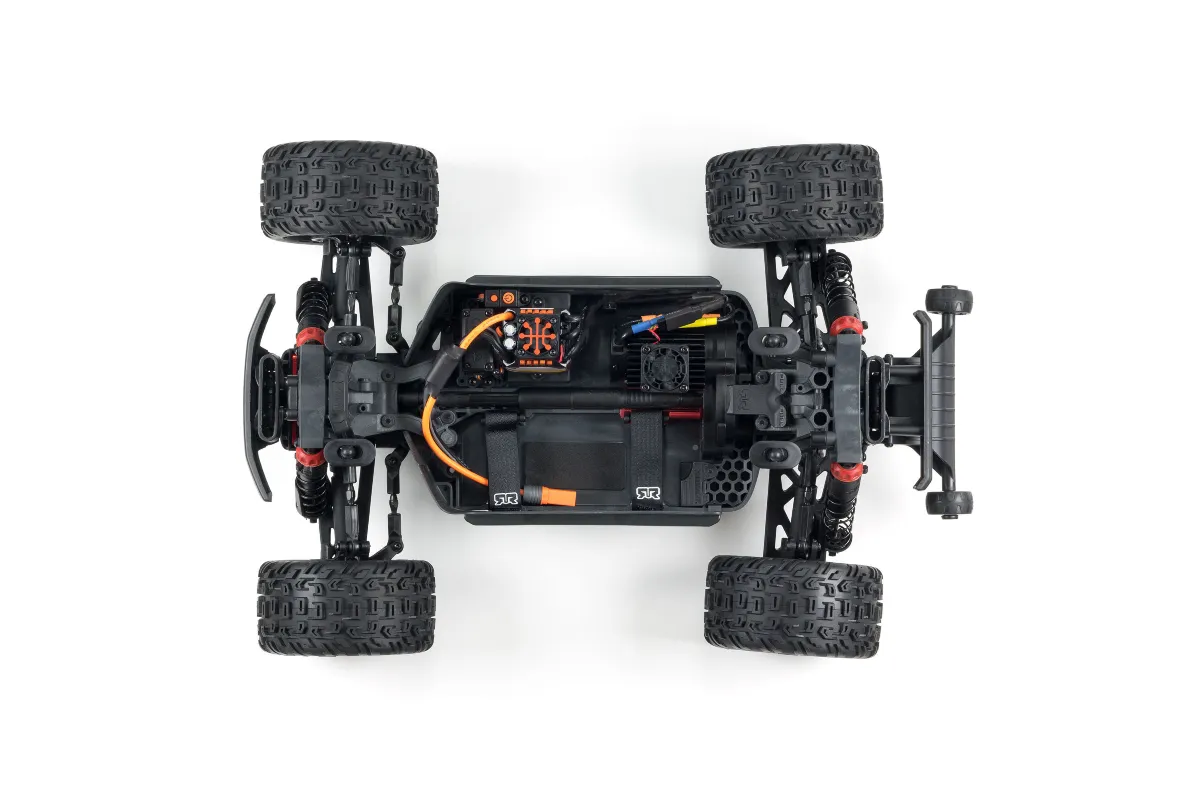

The ARRMA® VORTEKS™ 4X4 3S BLX stadium truck features a convenient modular design that makes routine maintenance quick and easy. Separate, easily removable chassis modules provide access to the power system, electronics, and differential components. The power module detaches with just one screw, and the slipper clutch can be accessed by removing three screws from the gear cover. This design simplifies maintenance and allows for quick repairs or upgrades.

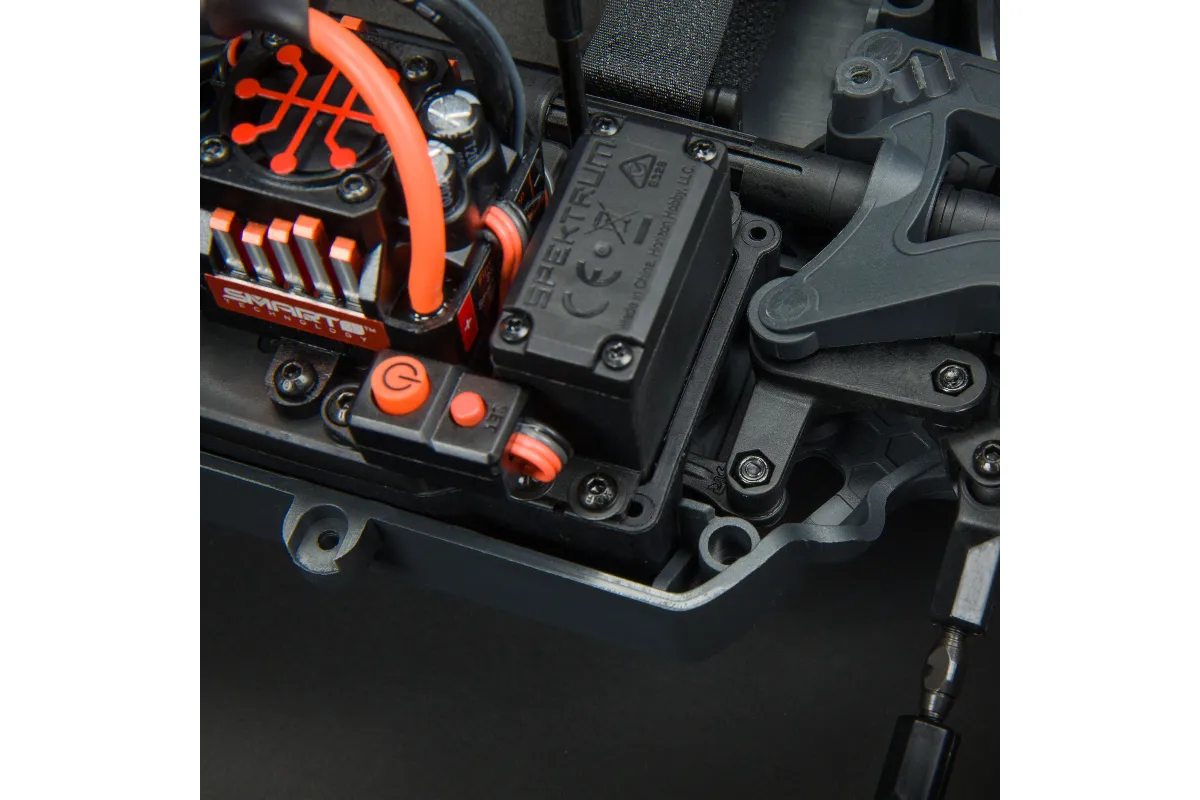

Spektrum™ Smart Technology Enhances Performance and Control

Spektrum™ Smart Technology Enhances Performance and Control

The ARRMA® VORTEKS™ 4X4 3S BLX stadium truck is equipped with Spektrum™ radio equipment and telemetry-capable Smart Technology. This advanced system provides real-time data like battery voltage, motor temperature, and speed, allowing you to monitor performance and make adjustments on the fly. The included SR6200A AVC® receiver offers on-demand traction control for increased stability and control when navigating challenging terrain.

Specifications

Length470mm (18.5")
Width338mm (13.31")
Height163mm (6.42")
Weight2.95kg (6.49 lbs) without battery
Wheelbase287mm (11.3")
Ground Clearance47mm (1.85")
Drivetrain4WD

RC Car

Scale1/10
Max LiPo Power3S (11.1v)
CompletionReady to Run
Skill LevelIntermediate, Experienced
Power SourceElectric Brushless
Chassis TypeStadium Truck
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorEC5, IC5
Rear Shock Oil500cSt
Front Differential Oil10000cSt
Rear Differential Oil10000cSt
Pinion Gear18T 32dp/0.8Mod
Spur Gear57T 32dp/0.8Mod
Wheel Hex Size14mm
