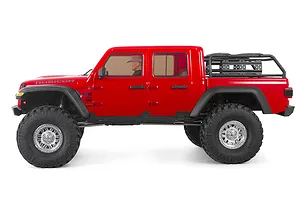

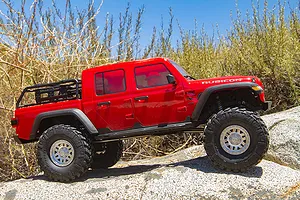

Name: Axial SCX10 III Jeep JT Gladiator RC Rock Crawler Electric 4WD 1/10 Scale RTR - Red
Brand: Axial
SKU: AXI-AXI03006BT2
Price: 871.96 AUD
Availability: Discontinued

Overview

Axial® climbs to the peak of scale rock crawling with the ready-to-run SCX10™ III Jeep® JT Gladiator. The upgraded chassis offers a third-channel DIG function plus 14-inch wheelbase that allows Axial® to include a larger, more realistic 2-piece body.

The SCX10™ III chassis increases realism with details that include a replica V8 engine to house the front-mounted 540 brushed motor, mated to a realistic transmission housing and transfer case. The Spektrum™ DX3™ 3-channel 2.4GHz DSMR® transmitter and Firma™ 40A ESC/receiver are ready to give you the advantages of innovative Spektrum™ Smart technology.

The SCX10™ III uses AR45™ portal axles to improve performance by increasing ground clearance and reducing torque twist. The motor is located at the front of the chassis for forward weight. The standard battery tray is positioned near the vehicle's center for improved balance and accepts full-size LiPo or NiMH packs. There are also locations in the side pods for drivers who prefer smaller shorty LiPo packs.

Note

Refer to the vehicle's manual for the manufacturer's waterproof specifications and guidelines.

Features

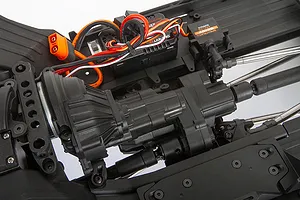

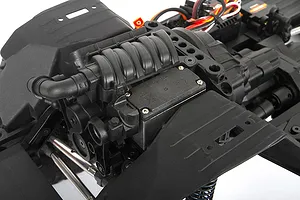

Replica V8 engine cover, transmission housing and transfer case cover and protect the motor while improving scale appearance and adding forward-mounted weight
DIG function transmission option lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius
Two-speed transmission option allows you to increase vehicle speed by approximately 40%
Drivers can choose between DIG and 2-speed transmission options or run both with a 4-channel receiver and two servos (not included)
AR45 Portal Axles feature an offset front housing for realistic looks
Axle housings also use portal gears for increased ground clearance and a universal that provides 45 degrees of steering
Differential locker features Hypoid gears, allowing for smaller size gears, improved gear reduction and reduced torque twist

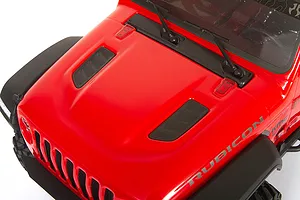

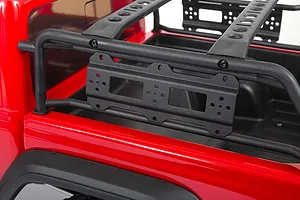

Authentic Jeep® JT Gladiator body includes over 20 injection-molded parts including bed rack, door handles, mirrors, hood vents and more

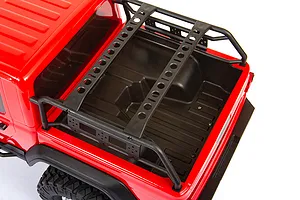

Three-piece body provides a more realistic deep bed
New centered battery position improves chassis balance with front-mounted motor
Chassis side pods offer mounting locations for smaller LiPo batteries, if desired

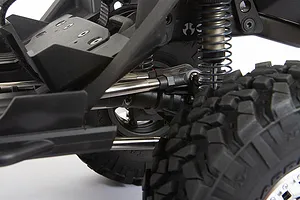

Oil-filled shocks feature new O-ring material for an improved seal and cap with bleed screw for easier rebuilds
All drive train components in the transmission, portals and axle gears are metal for extreme durability — with pinion gear included, the vehicle has 23 metal gears in total
Improved materials increase durability and stiffness while holding tighter tolerances to eliminate most slop
Metal stainless steel pivot balls at all suspension points increase durability and wear life for consistent handling
Improved suspension geometry further reduces torque twist while allowing chassis fine-tuning
Extended 14-inch wheelbase with longer frame rails and chassis supports a more realistic version of the Jeep® JT Gladiator body
Detailed interior with molded driver adds to the vehicle's realistic scale looks
New rear body mounts simplify body removal

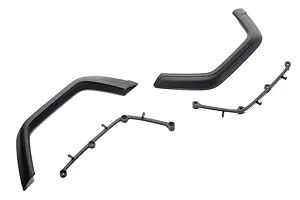

Injection-molded inner fenders hide internal components usually visible from the side of the chassis
Spektrum™ DX3™ DSMR® radio is fully compatible with the Smart telemetry potential of the installed Firma™ Smart 40A ESC/receiver
Included Spektrum™ 15kg metal gear servo and all electronics are protected by a waterproof design for confident driving in any weather and trail conditions

In the box

1x Axial® SCX10™ III Jeep® JT Gladiator 4WD
1x Spektrum Firma™ Smart 40A ESC/Receiver
1x Spektrum 15kg Servo (installed)
1x Spektrum™ DX3™ DSMR® Radio
1x 1/10 SCX10III Jeep JT Gladiator Manual

You'll need

Battery
Charger
AA Batteries

Highlights

Rigid SCX10 III Steel Chassis

The SCX10 III range has a chassis that is built on a foundation of strength with sturdy steel C-channel frame rails. This rigid design minimises flex, resulting in more precise suspension movement and improved handling on challenging terrain.

AR45 Portal Axles

The SCX10 III features AR45 portal axles that increase ground clearance at the differentials, allowing for greater off-road capability. This means you can tackle larger obstacles and navigate challenging terrain with ease.

LCXU Transmission

The SCX10 III features a robust LCXU 4-wheel drive transmission built for lasting performance. With a full set of ball bearings and all-metal internal gears, this transmission is engineered for strength and durability, whether you're running standard or portal axles.

Aluminium Adjustable Coil-Over Shocks

The SCX10 III features oil-filled shocks with aluminium threaded bodies and a single coil over spring. These shocks are tunable, allowing you to fine-tune the damping rate and achieve optimal performance on various terrains.

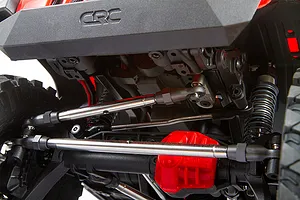

Durable Metal Links & Pivot Balls

The SCX10 III is built for long-lasting performance with durable metal links and pivot balls throughout the suspension system. These robust components ensure smooth articulation and precise handling, even under the stress of challenging off-road driving.

Optimised Suspension Geometry

The front suspension geometry reduces bump steer, while the rear 4-link minimises torque twist. The oil-filled shocks have aluminium threaded bodies with a single coil-over spring, tunable for achieving the best damping rate.

Sealed Receiver Box

This robust receiver box makes sure that the receiver is kept free from dirt and debris, ensuring it withstands the elements for reliable performance.

All Metal Gears

This SCX10™ III is built for extreme durability with an all-metal drivetrain. Every gear in the transmission, portals, and axles is crafted from metal, ensuring long-lasting performance and the ability to handle serious abuse.

Strong Servo

The Spektrum™ SX107 15kg metal gear servo delivers reliable and responsive steering, while its waterproof design ensures consistent performance, even in wet and muddy conditions.

Spektrum DX3™ DSMR® Radio System

The included Spektrum™ DX3™ radio system provides superior range, response, and interference resistance with exclusive DSMR® technology. It's also fully compatible with Smart telemetry, allowing you to monitor your vehicle's performance in real-time. Plus, the included thumb steering attachment adds versatility to your driving experience.

Specifications

Length	565mm (22.25")
Width	234mm (9.25")
Height	241mm (9.5")
Weight	3.17kg (7 lbs)
Wheelbase	356mm (14")
Ground Clearance	76.2mm (3")
Drivetrain	4WD

RC Car

Scale	1/10
Max LiPo Power	3S (11.1v)
Completion	Ready to Run
Skill Level	Intermediate
Power Source	Electric Brushed
Chassis Type	Rock Crawler
On/Off Road	Off Road
Drivetrain	4WD
