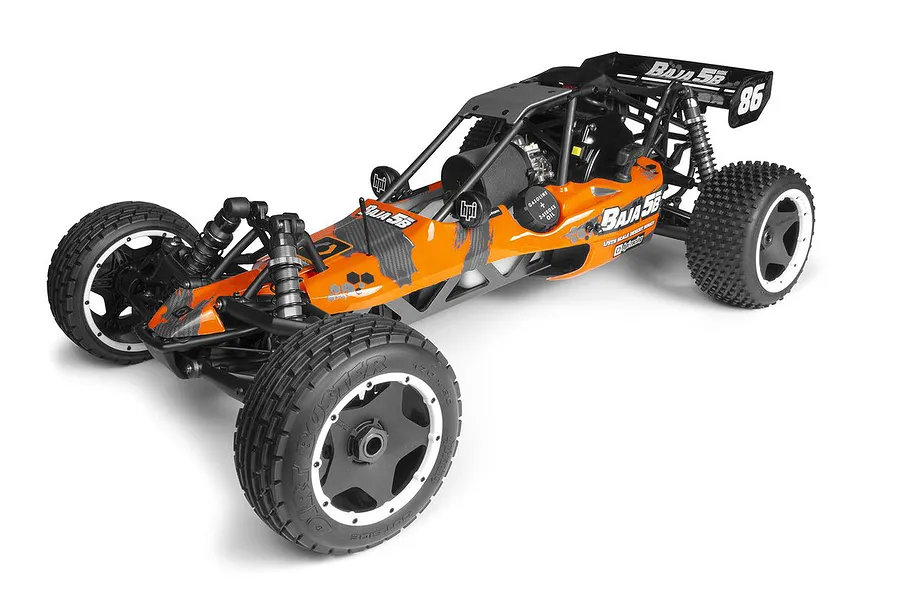

HPI Baja 5B RC Buggy: The Original 1/5 Scale Buggy Returns as a Build-It-Yourself Kit!
Perfect for experienced kit builders
Build this legendary Petrol buggy to your chosen spec
Compatible with a wide range of OEM and Aftermarket upgrade parts
Massive 1/5 Scale lets you bash almost anywhere
Super tough design
This kit comes without a Motor, Servo, Steering Servo, Receiver, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.
The HPI Baja 5B Self Build Kit (SBK) is your chance to own and build a legendary 1/5 scale RC buggy. This kit brings back the original HPI Baja 5B, a machine that revolutionised large-scale RC with its durable design and accessible price point. Now, you can experience the thrill of building this iconic buggy from the ground up, customising it to your preferences and unleashing its full potential.
The Baja 5B SBK features an extra-tough drivetrain, including a viscous torque differential, a super-durable composite spur gear, and an all-metal drivetrain, ready to handle the power of your 23-32cc 2-stroke engine. With its massive size and powerful engine, the Baja 5B delivers an adrenaline-pumping experience that's unlike anything else in the RC world.
The Baja 5B SBK also boasts extra-large and super-tough suspension components, including long-travel adjustable HD shocks and massive high-impact nylon 3-piece beadlock wheels. The 4mm thick 6061 aluminium monocoque chassis provides exceptional strength and durability, while the precise steering system ensures responsive handling. The kit includes the classic Baja desert racer clear polycarbonate body, ready for your custom paint scheme. Whether you're a seasoned RC enthusiast or new to the world of large-scale RC, the HPI Baja 5B SBK is an exciting and rewarding project that will deliver hours of off-road fun.

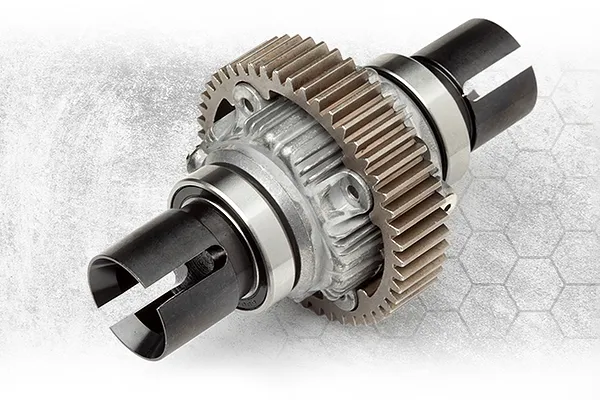

The legendary HPI Baja 5B Viscous Torque Control differential delivers the power to the rear wheels with smoothness and precision. The differential can be easily tuned by using differential oils of various thicknesses. The metal alloy diff case is finned for extra heat dissipation and to keep the internal gears firmly in place. The diff outdrives or cups are machined from hardened metal for reliable performance in all conditions. The internal gears are also made from hardened metal to handle 8S power, big-air jumps and huge top speeds!

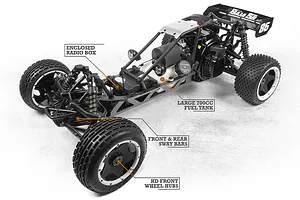

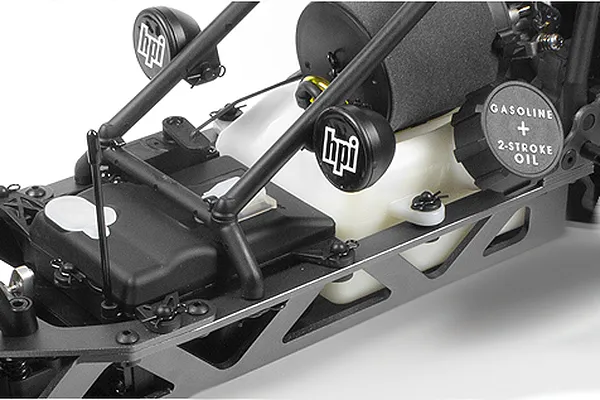

The HPI Baja 5B SBK is built for long-lasting fun, thanks to its massive 700cc fuel tank. This high-capacity tank allows for extended run times, while its central location ensures consistent handling characteristics, even as fuel levels decrease.

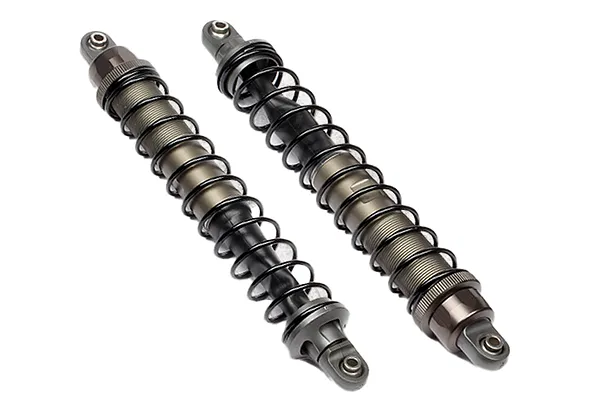

The HPI Baja 5B SBK's Big Bore shocks are designed for maximum performance and durability. These long-stroke shocks feature heavy-duty construction, dual-rate springs, and threaded bodies for precise tuning and consistent control on any terrain.

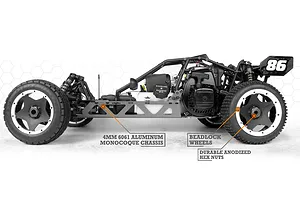

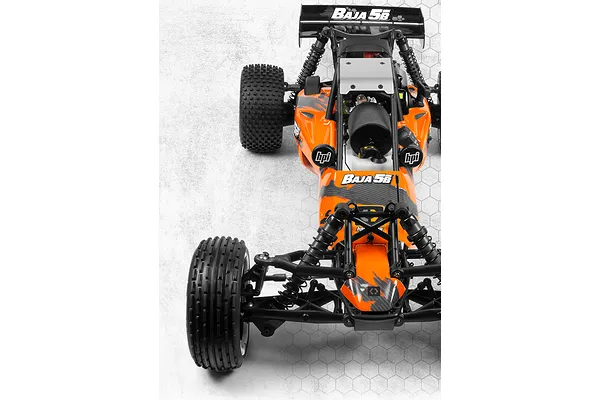

The narrow channel chassis made from rigid 4mm 6061 aircraft aluminum and gives the HPI Baja 5B FLUX a classic desert racing buggy look and extreme stiffness and durability. The U-shaped chassis is protected at the rear with a thick plastic skid plate for extra protection to the motor and drivetrain.

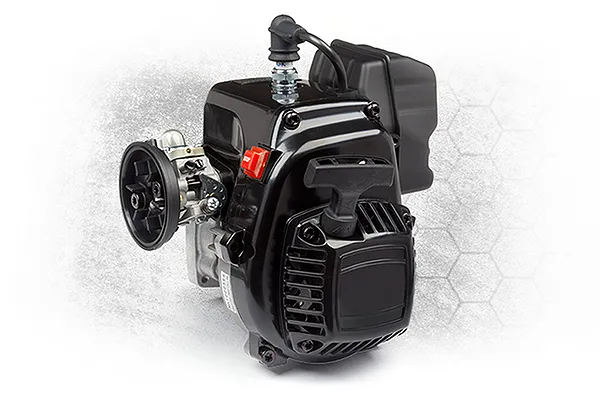

Building an HPI SBK (Self Build Kit) not only gives you the joy of assembling your own custom vehicle - you'll also be able to install an engine and your own electronics package as you go! Whether you buy all-new components or use an engine or electronics that you already have on hand, the HPI Baja 5B is ready and waiting for you to go wild!

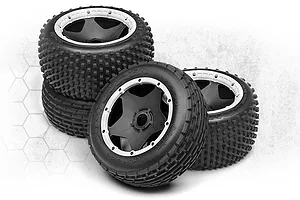

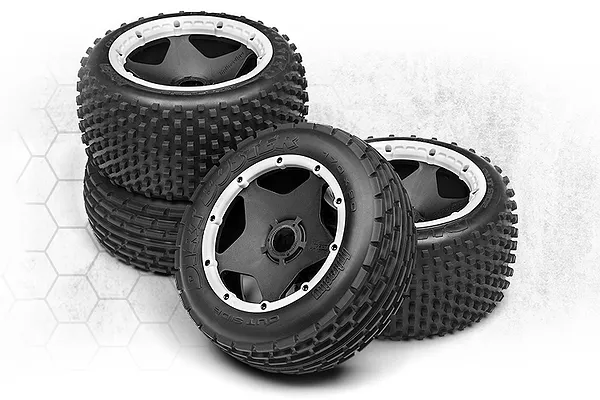

Specially constructed high-impact nylon 3-piece bead lock wheels are included, featuring NEW inset heavy-duty metal hex hub inserts for massively increased wheel durability. The contrasting beadlock ring is bolted onto the wheel with 20 screws to securely hold the tire in place. No glue is used to mount the tires, which makes changing the tires quick and easy and the wheels can be used again with brand new tires.
Unassembled 1/5th scale off-road buggy, ready for your petrol engine and electronics
Enclosed radio box and classic Baja desert racing body design
Adjustable HD shock absorbers and monocoque chassis for durability and performance
Low CG design, long travel suspension, and viscous torque oil-filled gear differential
All-terrain tires and beadlock wheels with metal insert hubs for off-road traction
Aluminium rear shock tower and hard plastic skid plates for added protection
Adjustable rear wing and quick access to critical maintenance points
Dual bellcrank steering and cam type servo saver for precise control
Race-spec hex socket hardware and gunmetal anodising for a high-quality finish
Full set of rubber-sealed ball bearings for smooth operation
Genuine HPI Racing Product
Length: 817mm (32.17")
Width: 480mm (18.90")
Height: 255mm (10.04")
Wheelbase: 562mm (22.13")
Weight: Varies
Chassis: Aluminum Monocoque Chassis (Buggy)
Drivetrain: RWD
Suspension: Oil Filled Coil Over Shock Absorbers
Motor: Not included (Requires Petrol)
1x HPI Racing Baja 5B RC Buggy Petrol 2WD 1/5 Scale Kit
2Ch+ Transmitter & Receiver
Large Scale Steering Servo
Standard Size Throttle Servo

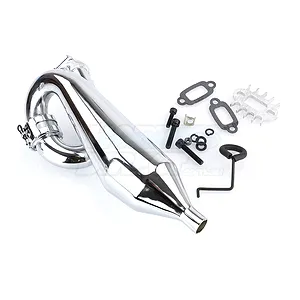

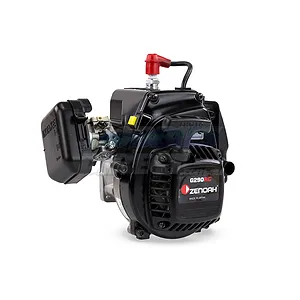

23-32cc RC Engine w/ Muffler or Tune Pipe

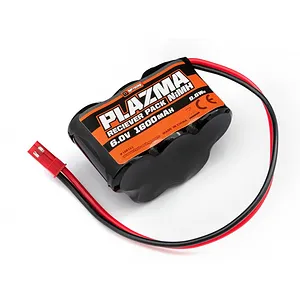

Hump 6v Style Receiver Battery w/ Tamiya plug
On/Off Switch
Suitable Charger w/ Tamiya plug
Paint
Tools
-
Max LiPo Power
- 2S (7.4v)
-
Pinion Gear
- 17T 1.5Mod
-
Spur Gear
- 57T 1.5Mod
-
Rear Differential Oil
- 1,000cSt
-
Wheel Hex Size
- 24mm
-
Front Shock Oil
- 40wt
-
Rear Shock Oil
- 40wt
-
Battery Connector
- Not Included
-
Drivetrain
- 2WD
-
On/Off Road
- Off Road
-
Chassis Type
- Buggy
-
Power Source
- Petrol
-
Skill Level
- Expert
-
Scale
- 1/5
