Name: Kyosho KB10L 2021 Toyota Tacoma TRD Pro RC Truck Electric Brushless 4WD 1/10 Scale RTR - Lunar Rock
Brand: Kyosho
SKU: KYO-34703T1
Price: 769.46 AUD
Availability: OutOfStock
Rating: 5 (1 reviews)

Recommended products

Sold out
Team Powers LiPo Safe/Protection Bag
$19.95
Discontinued
SkyRC E680 AC/DC Smart Charger
3 reviews
$86.85
View
Discontinued
Gens Ace 5000mAh 11.1V 60C 3S1P Short-Size LiPo Battery Pack w/ XT60 Plug
$127.51
View

Overview

With rugged tires and a reinforced undercarriage designed to tackle rough terrains, pickup trucks are in high demand across the world. Many popular pickup truck models have been faithfully recreated as remote-controlled (R/C) models. Toyota's development of the Tacoma primarily targeted the North American market, and since its debut in 1995, it has consistently maintained strong sales. This R/C model is based on the third-generation Tacoma, which garnered significant acclaim in 2016 for its aggressive design and practicality.

The top-tier Tacoma TRD Pro variant has been meticulously replicated by Kyosho, featuring a durable 1/10 scale chassis in a Readyset package. Kyosho's precision moulding craftsmanship faithfully reproduces the TRD Pro's body using lightweight yet robust polycarbonate resin, ensuring it can withstand the rigours of off-road driving. Built on the off-road KB10 chassis, the KB10L chassis boasts an ideal combination of a long wheelbase and short tread, perfectly complementing the body's proportions. The shaft-driven 4WD system efficiently channels the formidable power generated by the TORX10L brushless motor, achieving impressive speeds of approximately 75km/h, all managed by the ESC and a compatible 3S (11.1V) LiPo battery. This convenient Readyset package delivers the thrill of controlling an ultra-scale pickup truck on a dynamic off-road chassis, with a level of finishing quality akin to premium display models.

Note

Consult the manual for detailed information about maintenance and waterproof standards.

Features

Pre-painted officially licensed Toyota Tacoma TRD Pro ultra-scale body
Full ball bearings pre-installed
Fully sealed differentials
Under-mount body clips improve the scale look of the licensed body shell
LED light buckets pre-installed, ready for the separately sold LED light kit
Shaft drive 4WD set up
Fully sealed receiver box
Under-shell body mounts — front and rear body mounts securely hold the body in place from beneath the chassis, keeping scale appearance intact without body pins exposed on the exterior
Reworked chassis — derived from the 1/10 scale Mad Wagon off-road chassis, the KB10L features an extended wheelbase and shortened suspension arms while retaining shaft-type 4WD stability
Oil-filled shocks — pre-mounted and pre-filled, with spring rate fine-tuned for the KB10L chassis
Reworked turnbuckles and driveshafts — turnbuckle rods provide adjustability for camber and toe angle; extendable resin universal shafts on lower suspension arms are interchangeable front and rear
New centre differential — enhances power distribution between front and rear wheels during cornering for smooth turning; optional IF245 steel spur gear (for Inferno NEO series) can be added (one BRG005 bearing required separately)
New scale wheels and tyres — exceptional grip on and off road, faithfully replicating the tyre pattern and wheel design of the actual vehicle
Genuine Kyosho Product

In the box

1x Kyosho 1/10 KB10 2021 Toyota Tacoma TRD Pro Electric RTR RC Truck — Lunar Rock
1x Pre-cut & Painted Body Complete with Decals Applied

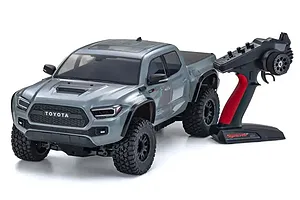

1x 2.4GHz Syncro KT-231P+ Transmitter
1x 1.5mm/2.0mm/2.5mm L-Shaped Hex Wrench
1x Cross Wrench
1x 4/5/5.5/7/10mm Integrated Spanner

You'll need

Compatible 7.4V LiPo or 11.1V LiPo Battery
Compatible Charger
AA Batteries for Transmitter

Highlights

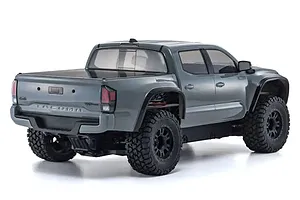

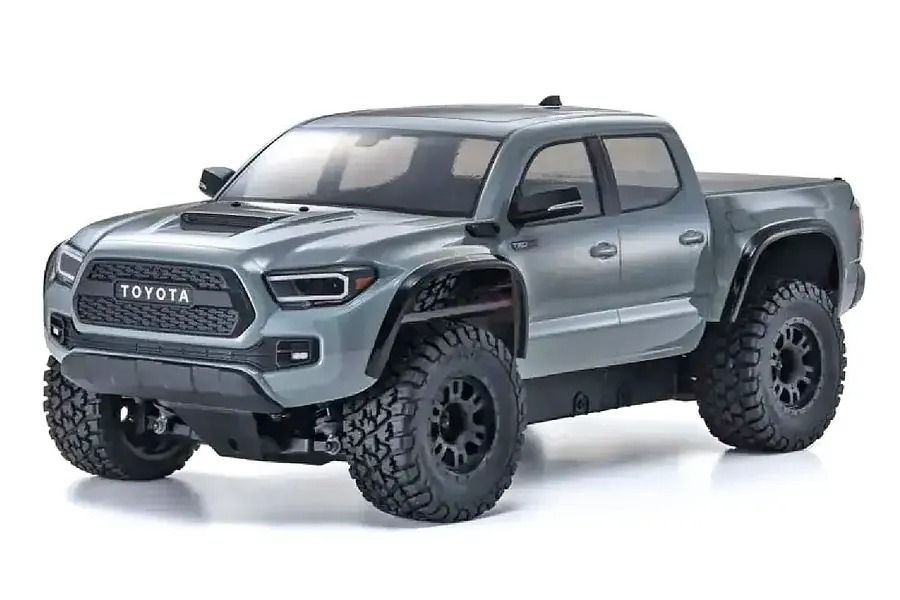

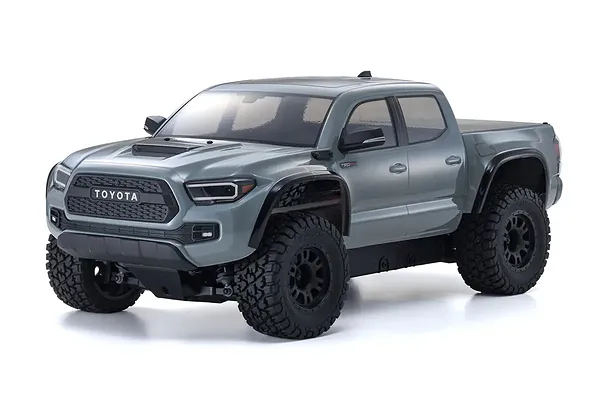

Ultra-Scale Body with Realistic Details

The Tacoma TRD Pro features a precisely recreated polycarbonate body with a low and wide stance, capturing the unique details of the TRD Pro grille and light buckets. This durable 1.5mm body enhances the truck's scale realism and visual appeal.

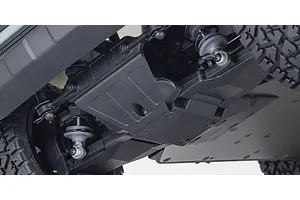

Concealed Body Mounts for a Clean Look

Body mounts on the front and rear secure the body from underneath the chassis, maintaining a clean and scale appearance without visible body posts or pins.

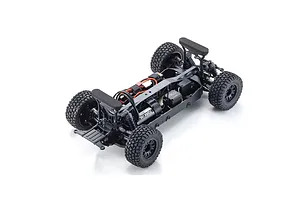

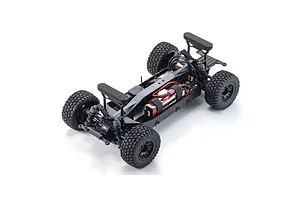

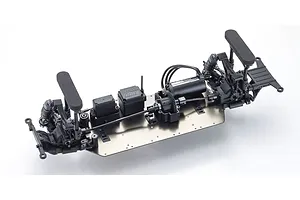

Extended Wheelbase Chassis

Based on the 1/10 scale Mad Wagon chassis, the Tacoma TRD Pro features an extended wheelbase and shortened suspension arms for improved stability and handling. The shaft-type 4WD system ensures reliable power delivery and off-road capability.

Shaft-Driven 4WD with Optimised Power Transfer

The shaft-type 4WD system incorporates a gearbox with a centre differential, optimising power distribution to the front and rear wheels. The new long aluminium chassis enhances traction, even on low-grip surfaces.

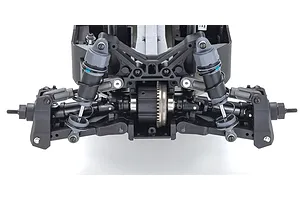

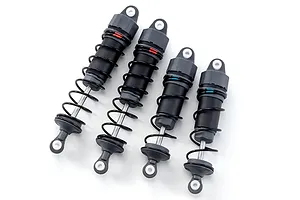

Oil Shocks for Smooth Damping

Oil shocks provide consistent damping and stabilise the chassis during off-road driving. The pre-mounted shocks are pre-filled with oil and feature optimised spring rates for the Tacoma TRD Pro chassis.

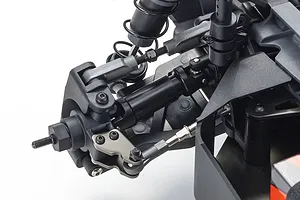

Adjustable Turnbuckle Rods and Telescoping Shafts

Turnbuckle rods on the suspension and steering allow for easy adjustment of camber and toe angles. Telescoping resin universal shafts are interchangeable between the front and rear, streamlining maintenance and spare parts utilisation.

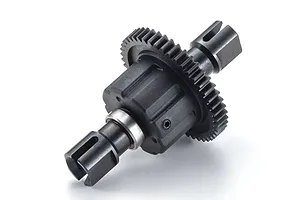

Newly Adopted Centre Differential

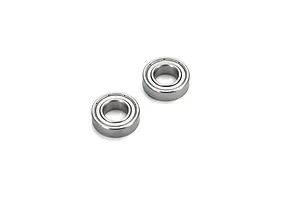

The newly incorporated centre differential optimises power distribution for smoother cornering performance. An optional IF245 steel spur gear from the Inferno NEO series can be installed for enhanced durability (requires one BRG005 bearing, sold separately).

Durable 4-Bevel Differential Gears

The front and rear differentials are equipped with durable 4-bevel gears, capable of handling high-power brushless motors. For even greater performance, an optional IS117 hard bevel gear from the Inferno NEO ST 3.0 can be installed (requires BRG005 bearing, sold separately).

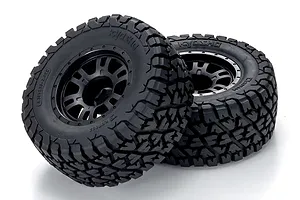

Newly Designed Wheels and Tyres

The Tacoma TRD Pro features newly designed wheels and tyres that provide superior grip both on and off-road. The tyre pattern and wheel design replicate the full-size vehicle for enhanced scale realism.

Specifications

Length	572mm (22.51 in)
Width	274mm (10.78 in)
Height	214mm (8.42 in)
Wheelbase	340mm (13.38 in)
Weight	3.41kg approx. (7.51 lbs)
Tyre Diameter	110mm (4.33 in)
Chassis	Short Course truck
Drivetrain	4WD
Gear Ratio	10.41:1
Suspension	Oil Filled Coil Over Shock Absorbers
Motor	Kyosho TORX10L 2850kV Brushless Motor
ESC	Kyosho BrainZ 10+ 80A Brushless ESC

RC Car

Scale	1/10
Max LiPo Power	3S (11.1v)
Completion	Ready to Run
Skill Level	Intermediate
Power Source	Electric Brushless
Chassis Type	Short Course
On/Off Road	Off Road
Drivetrain	4WD

Factory Specs

Battery Connector	Deans
Front Shock Oil	300cSt
Rear Shock Oil	300cSt
Front Differential Oil	5000cSt
Centre Differential Oil	10000cSt
Rear Differential Oil	5000cSt
Pinion Gear	19T 1Mod
Spur Gear	46T 1Mod
Wheel Hex Size	12mm
