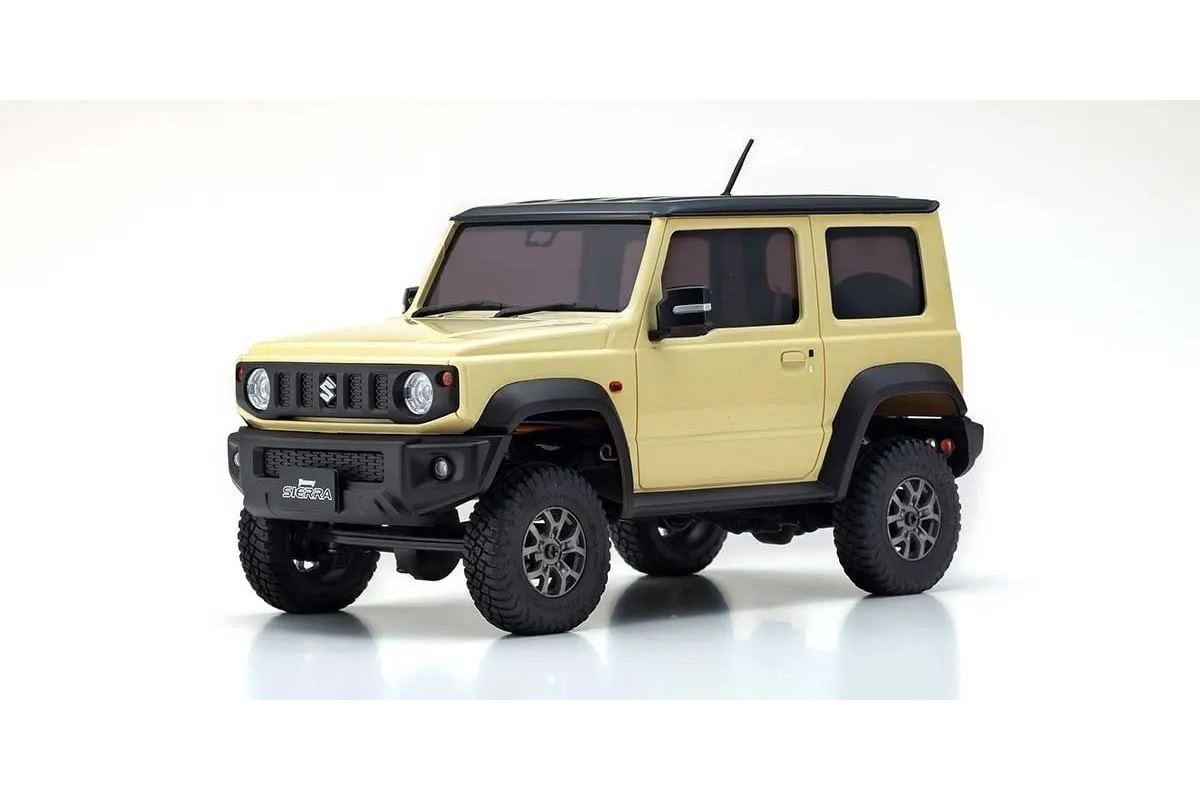

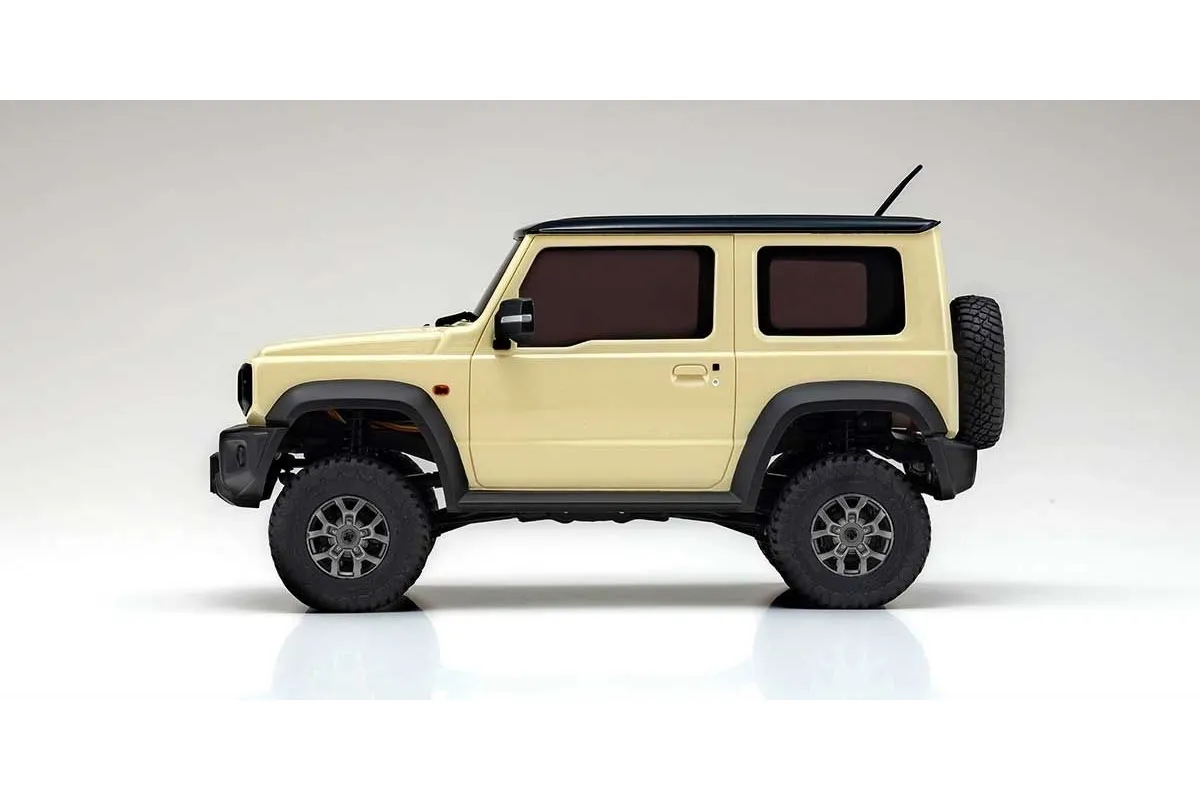

Kyosho Mini-Z Suzuki Jimny Sierra Chiffon 4x4 Electric RTR RC Rock Crawler - Ivory Metallic

Kyosho Mini-Z Suzuki Jimny Sierra Chiffon 4x4 Electric RTR RC Rock Crawler - Ivory Metallic

Kyosho Mini-Z Suzuki Jimny Sierra Chiffon 4x4 Electric RTR RC Rock Crawler - Ivory Metallic

Brand: Kyosho | MPN: 32523IV
discontinued
Shop replacement & upgrade parts for this model
Shop Parts
Description

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

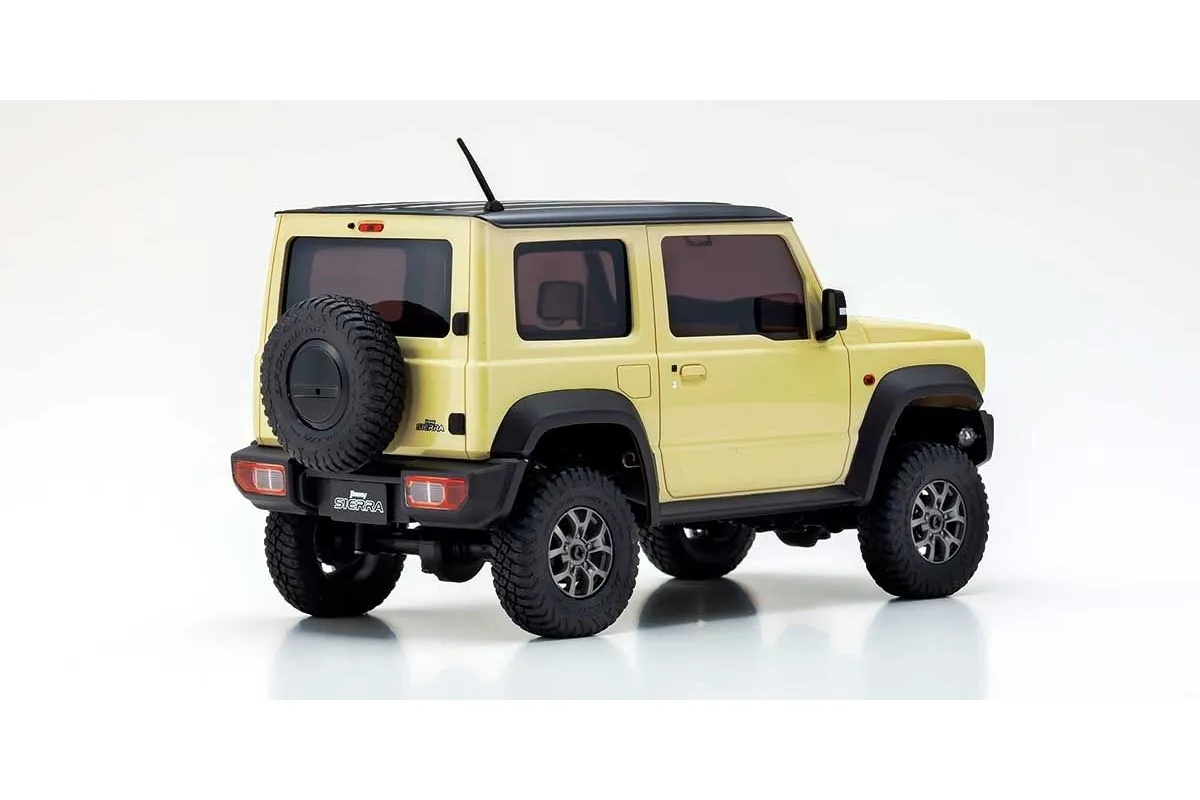

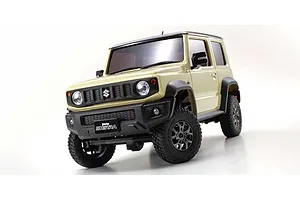

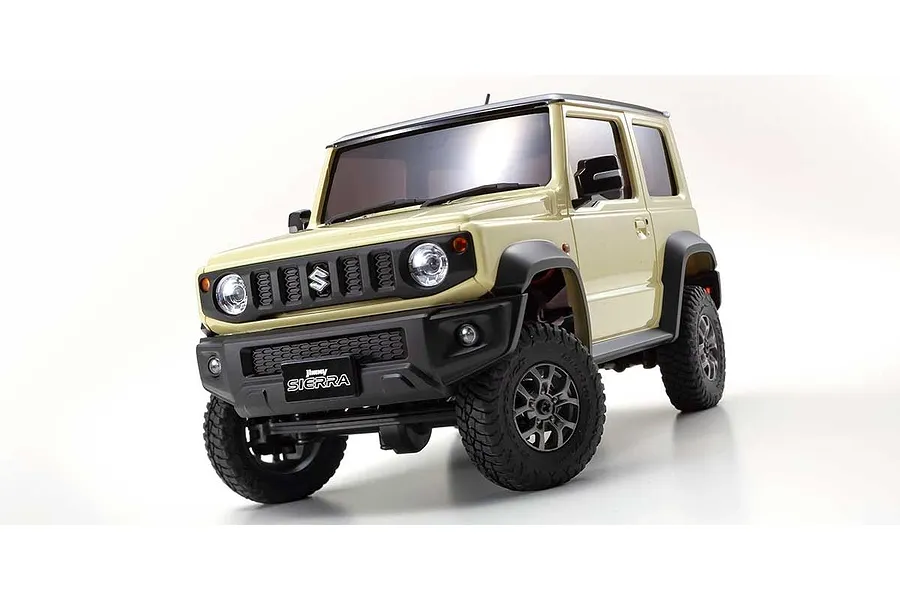

In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scaled realism in the hobby-grade RC category. The continuous pursuit of performance and evolution led to creating an entirely new MINI-Z 4x4 design that delivers an all-new driving experience for RC fans of all stripes, with the superior overall design, driving performance and high-quality injection-moulded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis on body detail and quality of finish, surpassing existing benchmarks set by the MINI-Z. The body is also moulded with thicker material to better resist crash damage from operation in rough terrain.

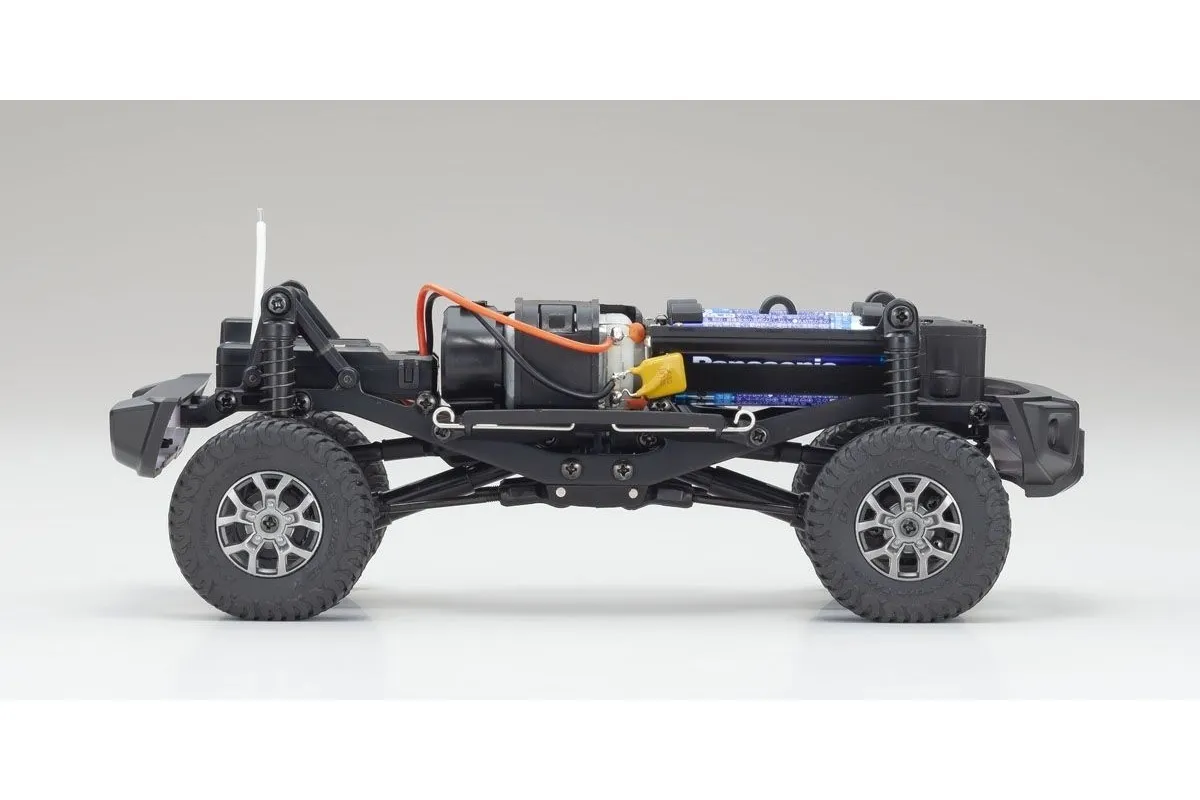

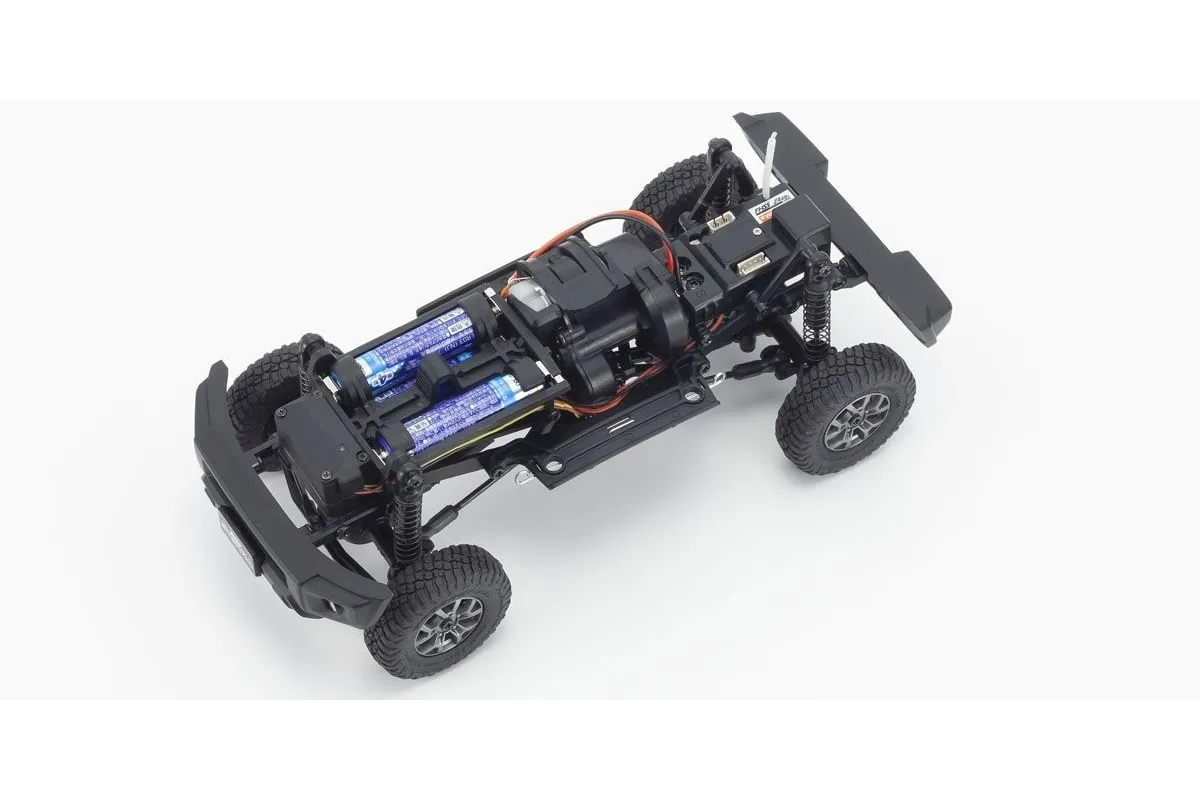

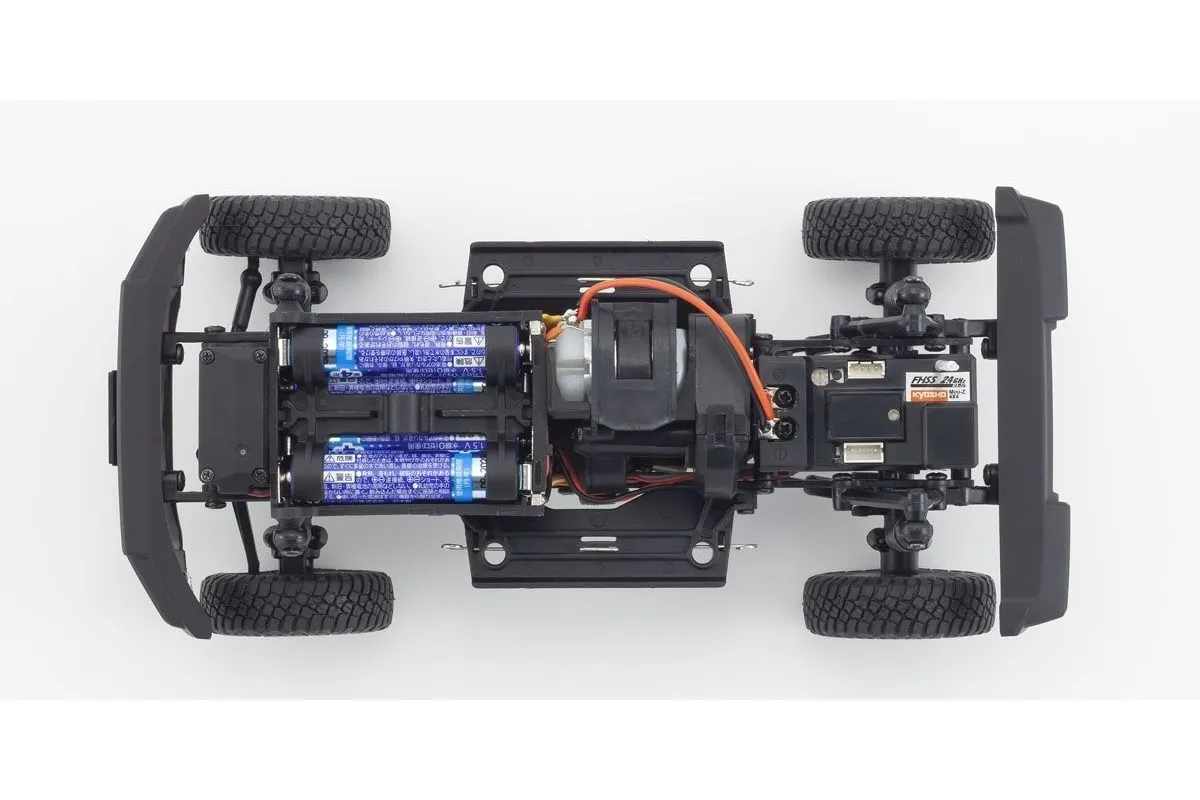

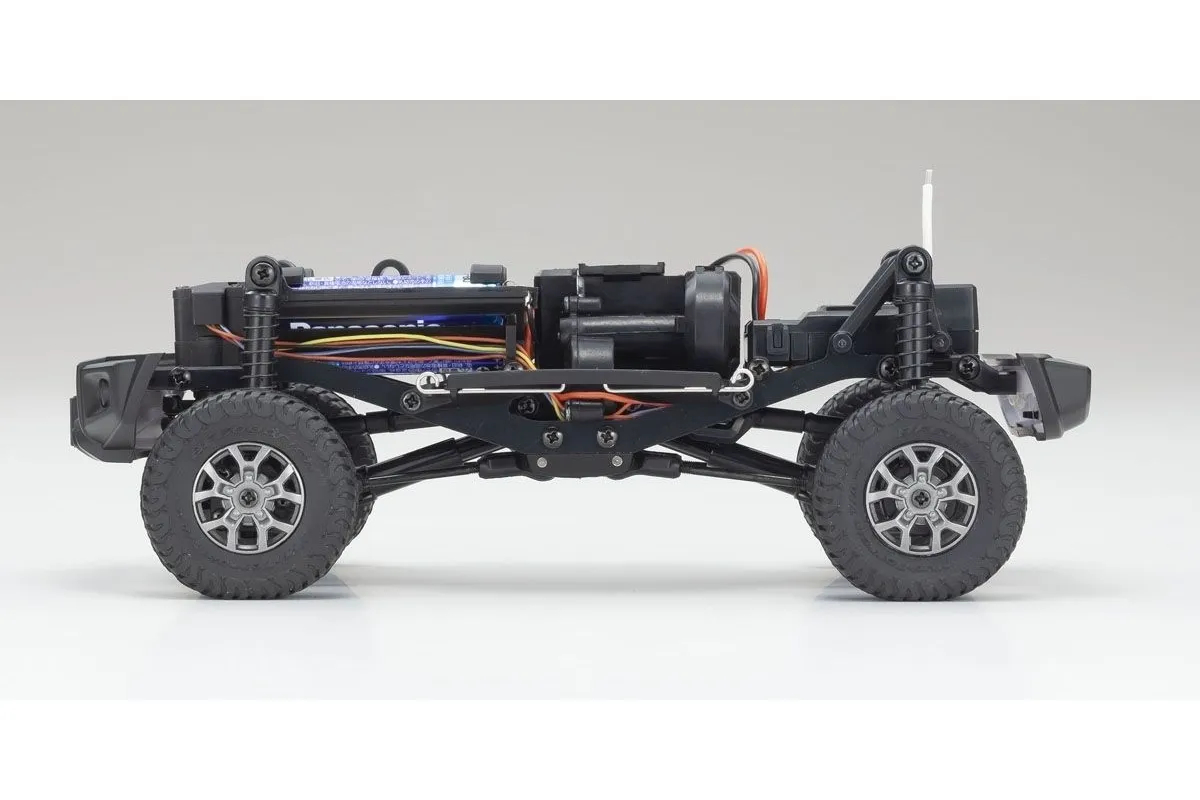

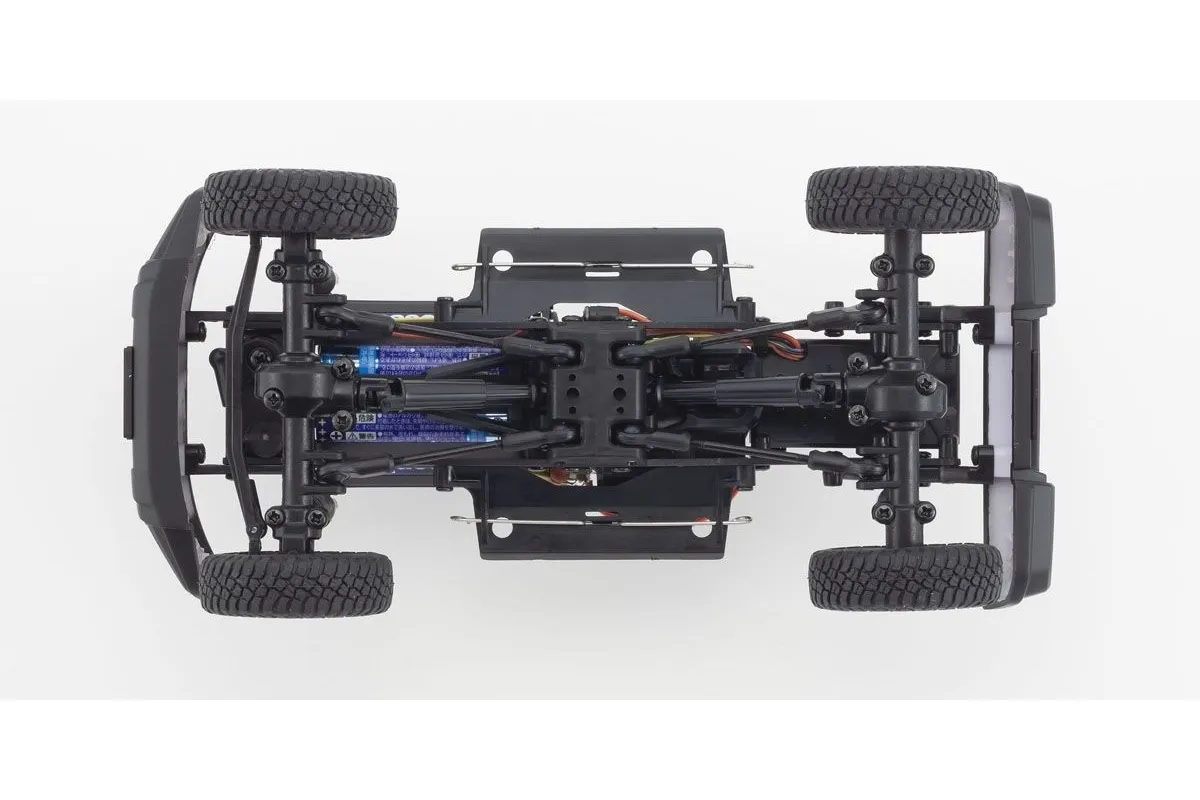

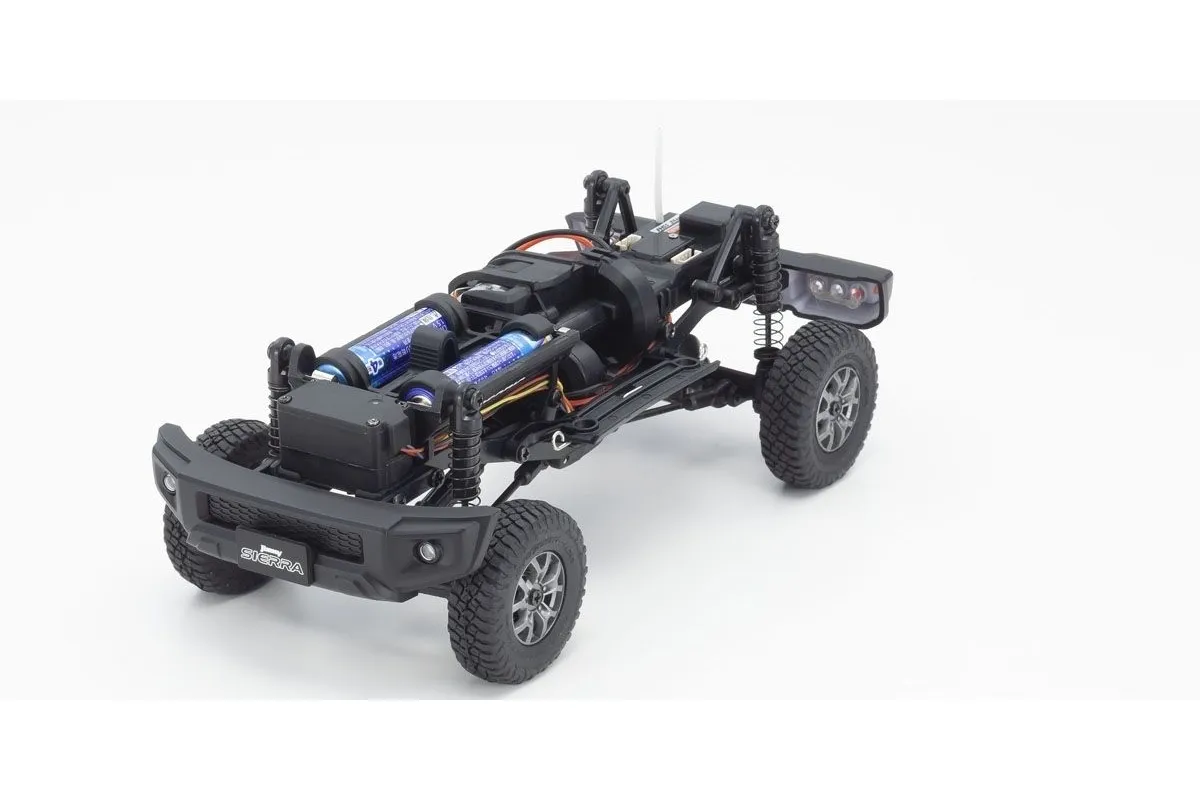

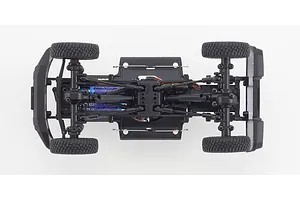

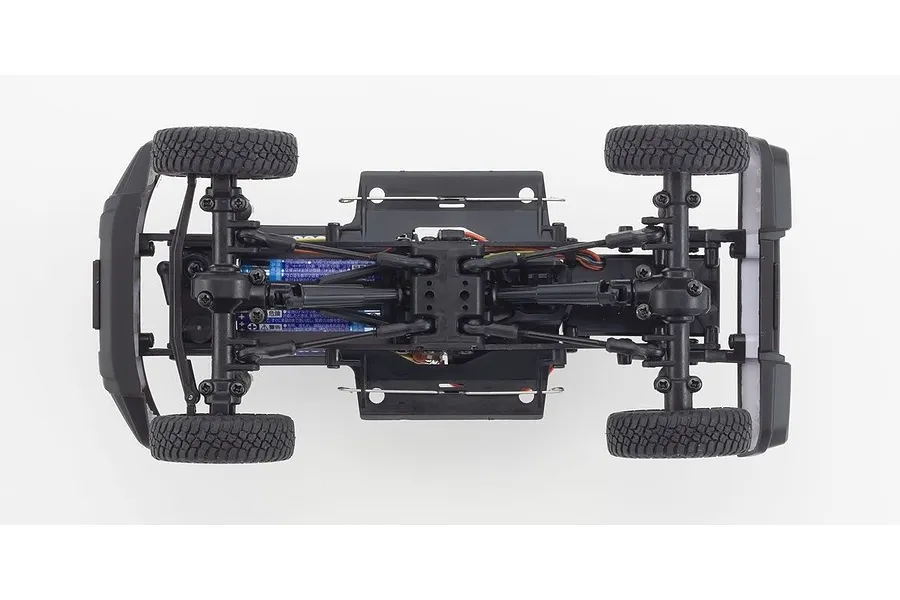

Incorporating the same ladder-style frame of actual 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would typically be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables excellent performance in the most challenging rock-crawler conditions. The high-torque 130-size motor is specially geared to run well in the low to medium speed ranges common in crawling.

All the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

Included Items
  • 1x Complete chassis with built-in electronics
  • 1x Factory-painted body complete with many fine details

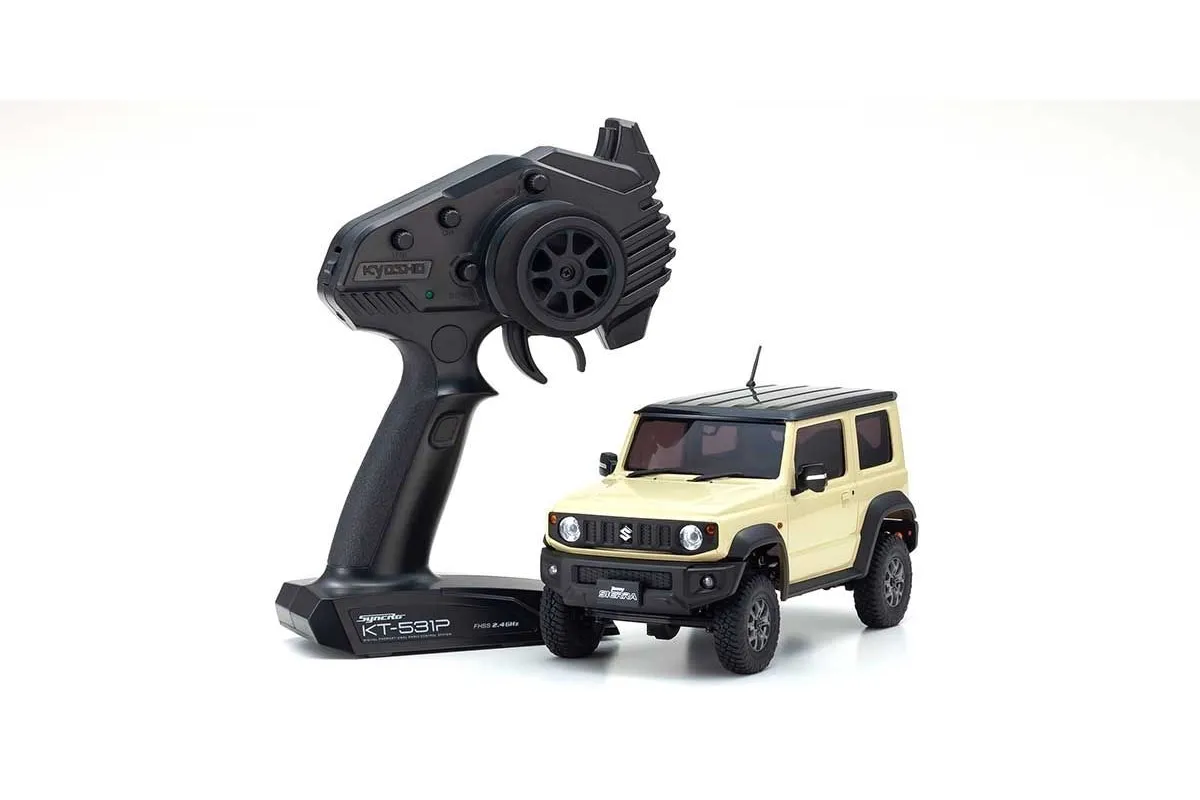

  • 1x KT-531P 2.4GHz transmitter
  • 1x Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
  • 1x 3 types of pinion gear spacers
Required Items
  • 4x AAA Batteries for Transmitter
  • 4x AAA Batteries for Chassis
Specifications
Length
193mm (7.59")
Width
84mm (3.30")
Height
90mm (3.54")
Chassis
Type MX-01
Wheelbase
120mm (4.72")
Tread F/R
72.7mm (2.86")
Weight
242g (0.533 lbs) excl. battery
Motor/Engine
130 Class
Gear Ratio
55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
Front Tyre Diameter
37mm (1.45")
Rear Tyre Diameter
37mm (1.45")
Front Tyre Width
12mm (0.472")
Rear Tyre Width
12mm (0.472")
Battery
4 x AAA alkaline
Transmitter
Syncro KT-531P
Speed
3.3 km/h – 6.6 km/h (Pinion gears 10T – 20T) approx.
Running Time
60 mins approx.

RC Car
Scale
1/18
Completion
Ready to Run
Skill Level
Beginner
Power Source
Electric Brushed
Chassis Type
Rock Crawler
On/Off Road
Off Road
Drivetrain
4WD
Factory Specs
