Kyosho Servo Perfex KS4031-06W w/ Hardware
Kyosho Servo Perfex KS4031-06W w/ Hardware
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

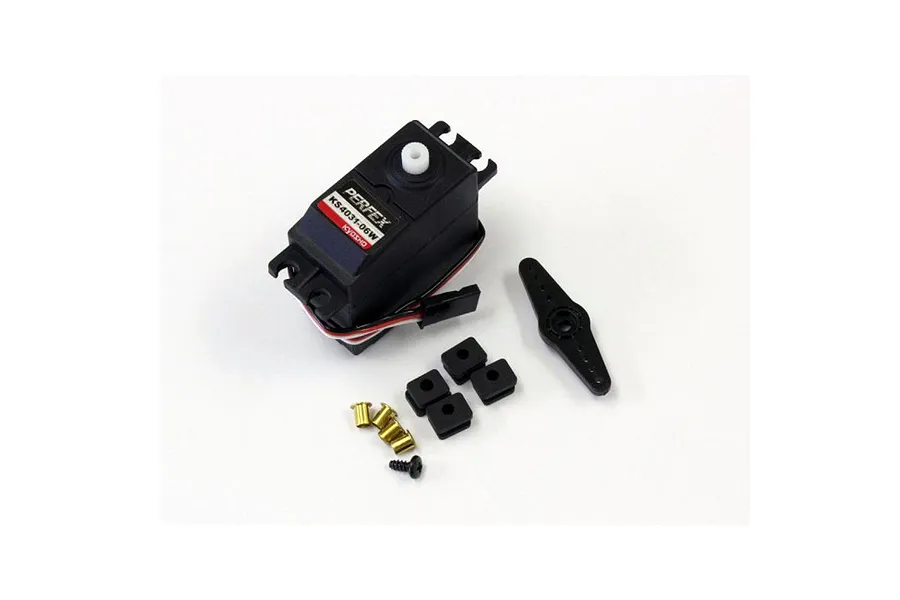

This is the Kyosho Perfex KS4031-06W Metal Gear Servo. This is the replacement steering servo for the Kyosho MP9 ReadySet and MadForce Krusier 2.0, but is a good low cost alternative for any application that could benefit from a plastic gear servo with 83oz-in of torque. Package includes one servo horn, rubber grommets and horn mounting hardware.
- Genuine Kyosho Part
- Suitable for RC cars 1/10 scale on/off road and drifting.
- Upper/middle/bottom: Plastic Case.
- Torque(6V): 6 kg-cm
- Speed: 0.15 sec (6V)
- Operating Voltage?4.8 ~ 6.0V DC Volts
- Weight: 44.8 g
- Gear Type?Plastic
- Mounting Hardware
Total Height (A) = 38.2mm
Body Width (B) = 20mm
Below Mount (C) = 27mm
Above Mount (D) = 8.8mm
Total Length (E) = 40mm
Total Width (F) = 20mm
-
Servo Spline Count
- 25Tooth
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.15
-
Case Material
- Plastic
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 6
-
Gear Material
- Plastic
-
Waterproof Casing
- No
-
SizeConventionally sized servo names
- Standard
