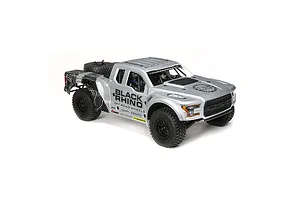

Losi Baja Rey Ford Raptor RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR - Black Rhino Edition image 118075

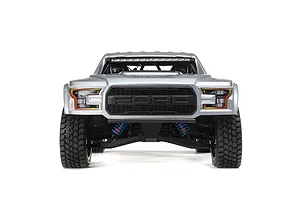

Losi Baja Rey Ford Raptor RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR - Black Rhino Edition image 118076

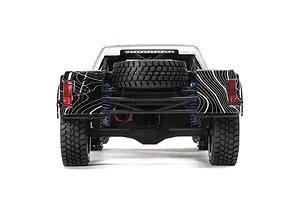

Losi Baja Rey Ford Raptor RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR - Black Rhino Edition image 118077

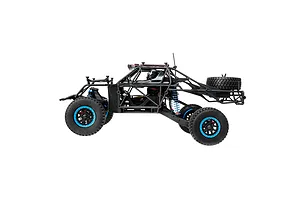

Losi Baja Rey Ford Raptor RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR - Black Rhino Edition image 118078

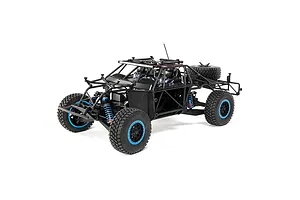

Losi Baja Rey Ford Raptor RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR - Black Rhino Edition image 118079

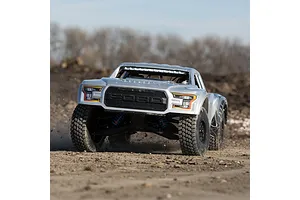

Losi Baja Rey Ford Raptor RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR - Black Rhino Edition image 118080

Losi Baja Rey Ford Raptor RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR - Black Rhino Edition

Brand: Losi | SKU: LOS03020V2T2

discontinued

write a review

Shop replacement & upgrade parts for this model

Shop Parts

The Losi® Ford Raptor Baja Rey® is the most authentic looking Desert Truck on the market with the performance and durability of a race vehicle.

Officially licensed, it comes equipped with a Spektrum™ 3800Kv brushless power system, as well as a solid rear axle, independent front suspension, and roll cage with upright shocks, so you can tear across all types of rocky off-road terrain. And you'll do so with the full-throttle freedom that only AVC® technology can provide. Just like the full-scale Ford Raptor, the onboard traction control allows you to fly across the desert at speeds in excess of 50mph all while in complete control and completely dialed in. You get an authentic off-road racing experience with injection molded details, light bars and two licensed trim schemes. The Ford Raptor Baja Rey has just raised the bar another level.

Features

Officially Licensed Ford Body Panels and Trim Schemes
Over the top scale details including custom body, 4-link suspension and more.
Spektrum™ 3800Kv Brushless Power System
Spektrum™ Smart Firma™ 130A ESC with IC5 Connector
SR6200 AVC Receiver
S614 Steel Gear Servo
Long Travel 4-link Live Rear Axle
Long Travel Independent A-Arm Front Suspension
Easy-Access Motor

Rear-Loading Battery
Sealed Metal-Gear Transmission and Diffs
Coil-over Oil-Filled Shocks
Waterproof Electronics
Bolt-On Body Panels and Detailed Interior
LED Light Bar (Front and Rear)
Aluminum Chassis
Full-Size Spare Tire
Spektrum™ DX3™ 3ch Transmitter with DSMR® and Smart Technology
AVC Traction Control

Specifications

Charger Sold Separately
Differential Sealed Bevel Front/Locked Rear
Receiver Included
Shock Type Oil-filled 4.8" (122mm) Rear, 3.9"(100mm) Front
Approximate Assembly Time No assembly required
Body Screen printed licensed 2018 Ford Raptor body
Brakes Integral with ESC
Pinion 13T
Scale 1/10
Battery Tray Dimensions 5.45 x 1.81 x 0.98" (138.5 x 46 x 25mm)
Front Track 11.6" (295mm)
Vehicle Size Standard
Product Width 12.6" (320 mm)
Radio Included
Technology Smart,AVC
Ground Clearance 2.2" (55mm)
Internal Gear Ratio 3.8:1
Product Length 21.6" (549 mm)
Battery Sold Separately
Spur Gear 40T

Suspension Independent Front/4-link Rear
Product Weight 6.1 lb. (2.8kg)
Vehicle Type Desert Truck
Water-Resistant Yes
Final Drive Ratio 10.99:1
Motor Type Brushless - Sensorless
Rear Track 11.6" (295mm)
Speed Control Included
Wheelbase 14.6" (371 mm)
Power Type Electric
Gear Pitch Mod 1
Servos Included
Ball Bearings Full set
Chassis 0.12" (3mm) aluminum
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Make FORD
Product Height 7.6" (193 mm)

Included items

Description	QTY
1/10 Ford Raptor Baja Rey 4WD Brushless RTR with SMART	1
SR6200 AVC Receiver	1
Spektrum™ DX3™ 3ch Transmitter with DSMR® and Smart Technology	1
Spektrum™ 3800Kv Brushless Power System	1
Spektrum™ Smart Firma™ 130A ESC with IC5 Connector	1
Product Manual	1

Required Items

2S-3S LiPo Battery with EC5™ or IC5™ connector
Compatible Battery Charger
AA batteries for Transmitter

Manual

Download Product Manual

Specifications

Factory Specs

Front Shock Oil
Max LiPo Power
Battery Connector

RC Car

Completion: Ready to Run
Drivetrain: 4WD
Max LiPo Power: 3S (11.1v)
On/Off Road: Off Road
Chassis Type: Short Course
Power Source: Electric Brushless
Skill Level: Expert
Scale: 1/10

Parts

Standard

Same as the original part from the manufacturer.

TLR 3x16mm Fine Thread Button Head Screws 10Pcs

0 reviews

$9.38

Standard

Same as the original part from the manufacturer.

Losi Centre Drive Shaft

0 reviews

$26.24

Standard

Same as the original part from the manufacturer.

TLR 3x12mm Fine Thread Button Head Screws 10Pcs

0 reviews

$13.13

Standard

Same as the original part from the manufacturer.

Losi Baja Rey 14T/40T Pinion & Ring Gear Set

1 review

$70.85

Standard

Same as the original part from the manufacturer.

Spektrum S614S Standard 15kg Steel Geared Waterproof Servo

0 reviews

$102.36

Standard

Same as the original part from the manufacturer.

Losi 4x4mm Fine Thread Grub Screws 10Pcs

0 reviews

$17.42

Standard

Same as the original part from the manufacturer.

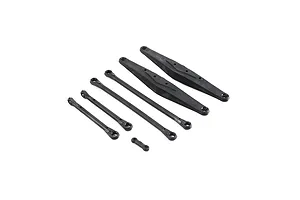

Losi Trailing Arm Steering Upper Drag Link Set

0 reviews

$26.33

Standard

Same as the original part from the manufacturer.

Spektrum Firma 130A 4S Brushless Smart ESC

0 reviews

$316.84

Shop parts

Standard

Same as the original part from the manufacturer.

Losi Silver Aluminium 2mm Nyloc Nuts 9Pcs

0 reviews

$15.57

Standard

Same as the original part from the manufacturer.

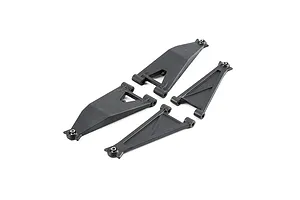

Losi Upper & Lower Front Suspension Arm Set

0 reviews

$23.39

Alternatives

Standard

Same as the original part from the manufacturer.

Spektrum DX3 2.4Ghz 3ch Smart DSMR Radio w/ SR315 Receiver

1 review

$180.96

Standard

Same as the original part from the manufacturer.

Losi Silver Aluminium 5mm Flanged Serrated Nyloc Nuts 10Pcs

0 reviews

$29.80

Standard

Same as the original part from the manufacturer.

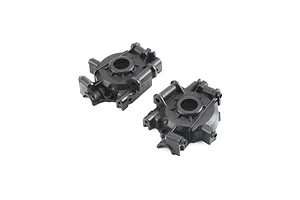

Losi Front Bulkhead / Gear Box Case

0 reviews

$18.63

Alternatives

Standard

Same as the original part from the manufacturer.

Losi 4x12mm Fine Thread Button Head Screws 10Pcs

0 reviews

$10.93

Standard

Same as the original part from the manufacturer.

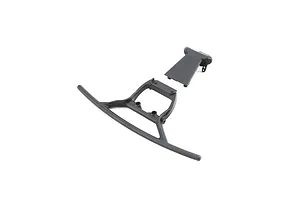

Losi 1/10 Baja Rey Front Bumper & Skid Plate Set

0 reviews

$18.70

Alternatives

Standard

Same as the original part from the manufacturer.

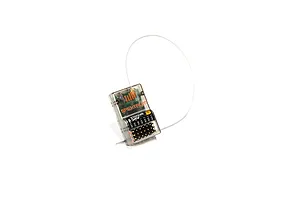

Spektrum SR6200A 2.4Ghz 6ch Receiver w/ AVC & Telemetry

0 reviews

$167.34

Standard

Same as the original part from the manufacturer.

Losi 10x15x4mm Rubber Shielded Ball Bearings 2pcs

0 reviews

$14.41

Standard

Same as the original part from the manufacturer.

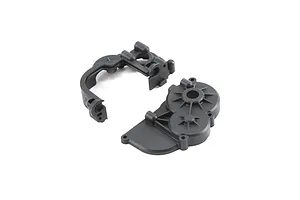

Losi Centre Transmission Gear Box Housing

0 reviews

$18.99

Standard

Same as the original part from the manufacturer.

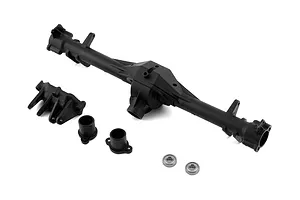

Losi Rear Axle Housing Set
