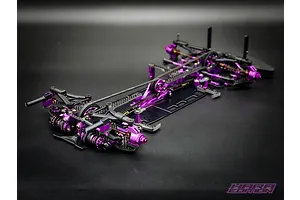

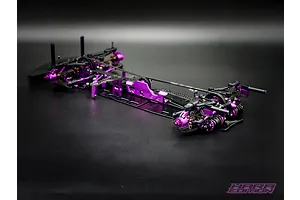

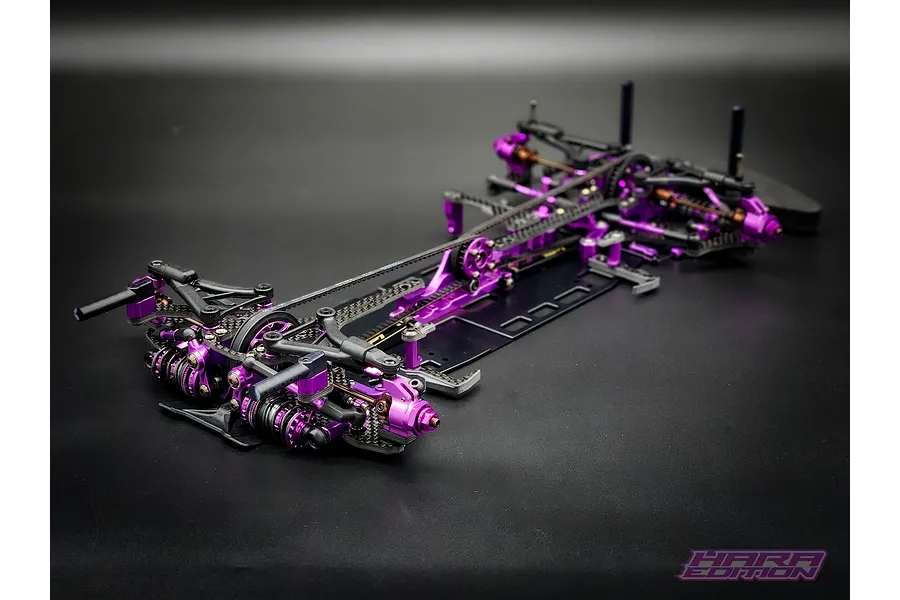

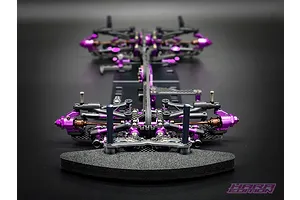

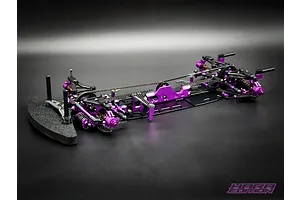

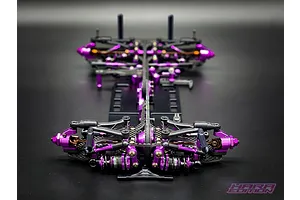

RC Maker SP1 Grand Touring RC Car Electric 4WD 1/10 Scale Carbon Fibre Kit - Hara Limited Edition
RC Maker SP1 Grand Touring RC Car Electric 4WD 1/10 Scale Carbon Fibre Kit - Hara Limited Edition

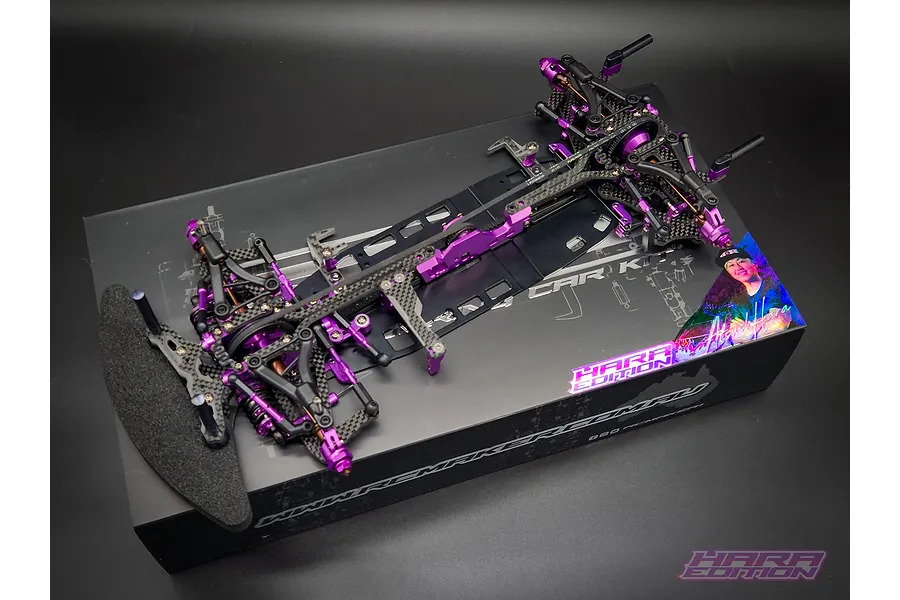

Capture a moment in history and celebrate the legacy of two-time World Champion Atsushi Hara with this extremely limited edition SP1 touring car kit. Born from a collaboration between RC Maker and the legendary driver, this kit is a tribute to one of the most talented and respected figures in RC racing. To honour this partnership, the SP1 is presented in Hara's signature purple, with all aluminium parts receiving the special anodised finish. Each carbon fibre chassis is laser-engraved with a unique number, certifying its authenticity as part of this very small production run. This is a rare opportunity to own a true collector's piece that represents the pinnacle of RC culture and performance.

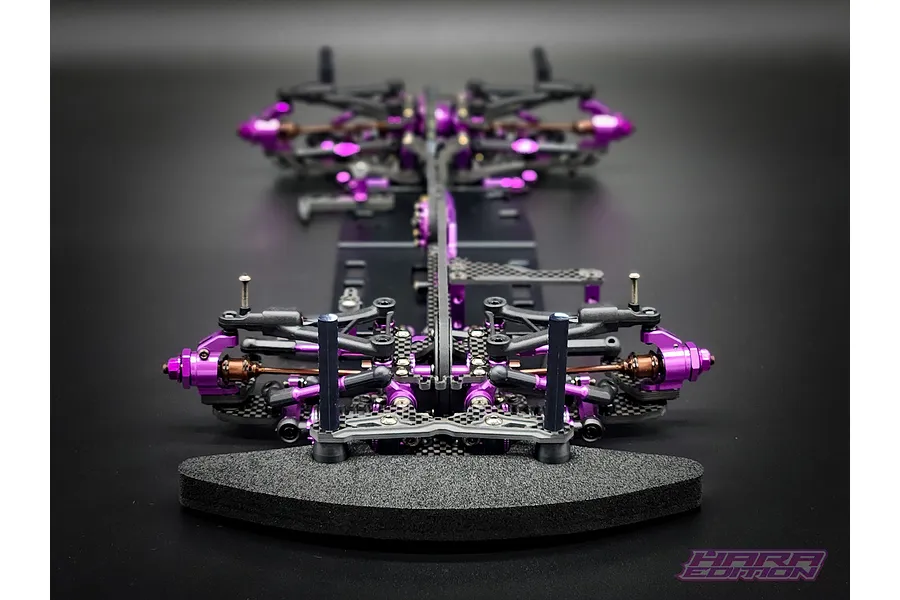

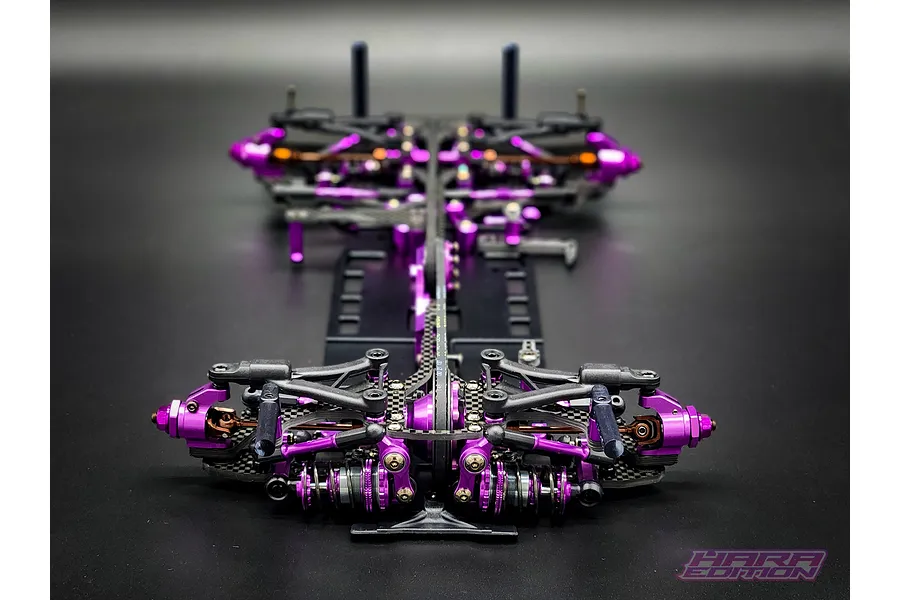

Beyond its status as a collectible, the SP1 Hara Edition is a formidable competition machine engineered with an obsessive focus on an ultra-low centre of gravity (CG). The entire design philosophy is built around centralising mass and lowering every possible component. This is most evident in the innovative lay-down push-rod shock absorbers, a 19mm high topdeck, and under-arm anti-roll bars. The result is a car that is more nimble, changes direction faster, and carries incredible speed through corners. This limited edition also arrives packed with valuable option parts, including complete sets of anti-roll bars and AXON-manufactured springs, making it a top-tier performer right out of the box for the serious racer.

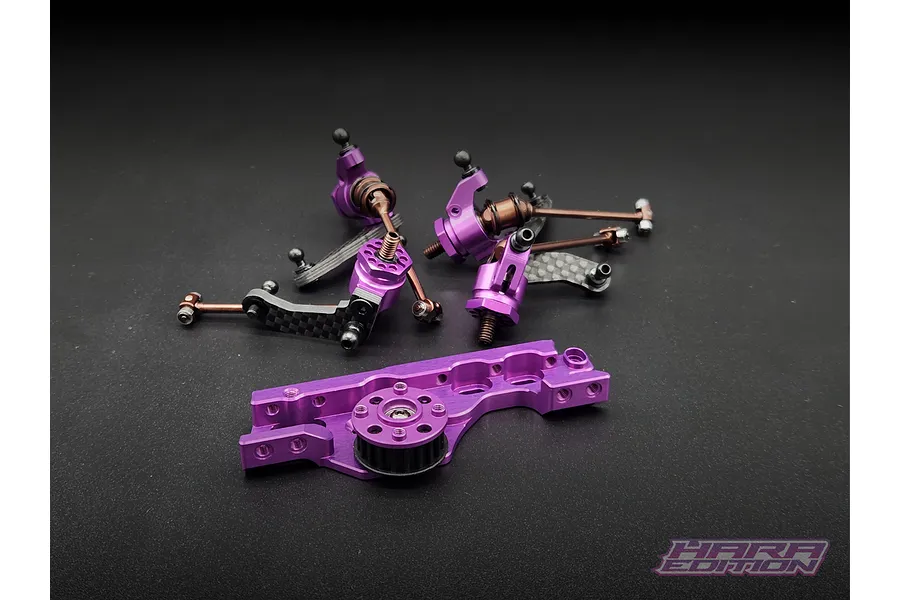

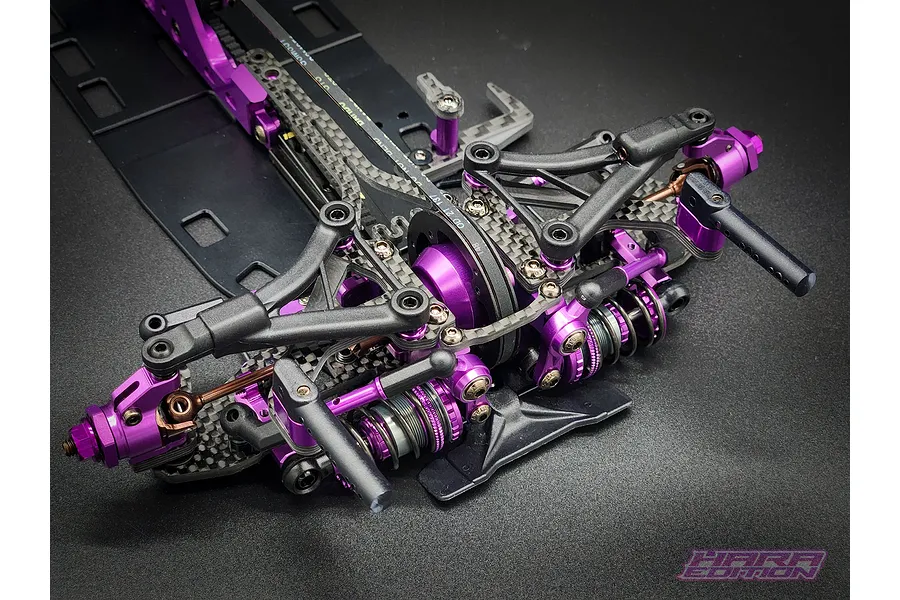

The SP1 features a lay-down push-rod shock design that significantly lowers the car's centre of gravity. The shock absorber is positioned horizontally and is compressed from both ends via a rocker system. This geometry is highly tuned to provide a progressive feel, similar to a traditional shock, but with much lower CG.

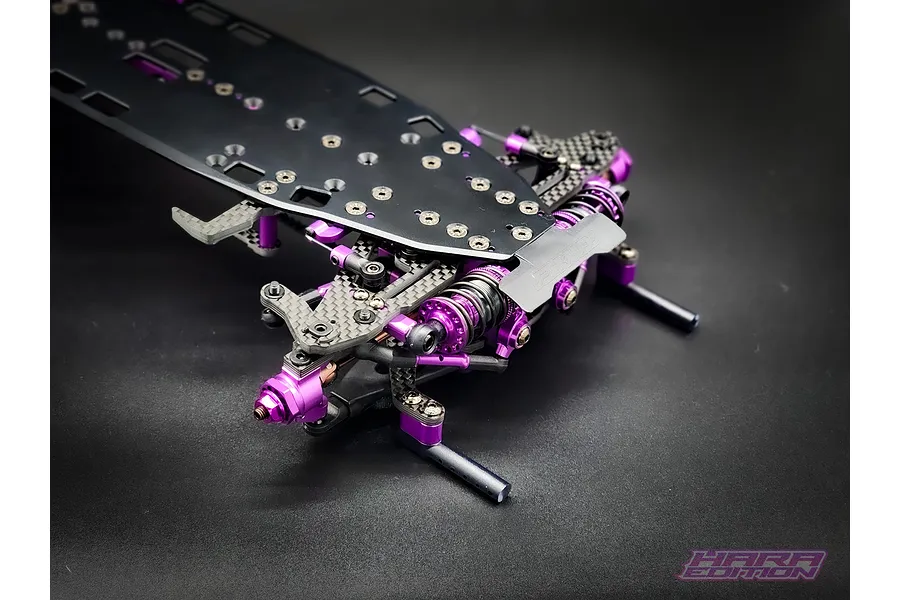

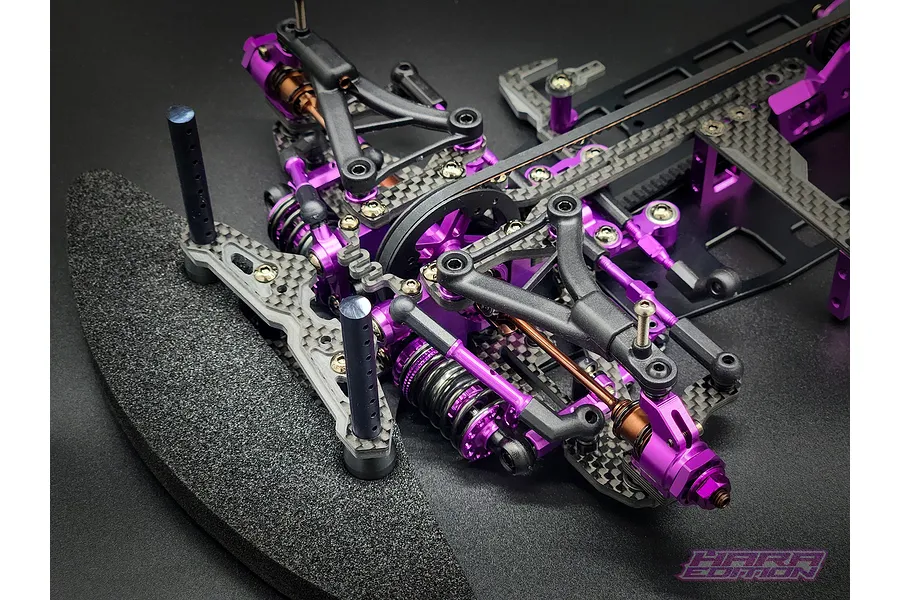

Continuing the low CG design philosophy, the anti-roll bars are mounted beneath the suspension arms. This system also makes adjustments easier than ever. Tweak can be fine-tuned via the ball cup, and the open-style holders allow for very fast changes between the three included anti-roll bar thicknesses.

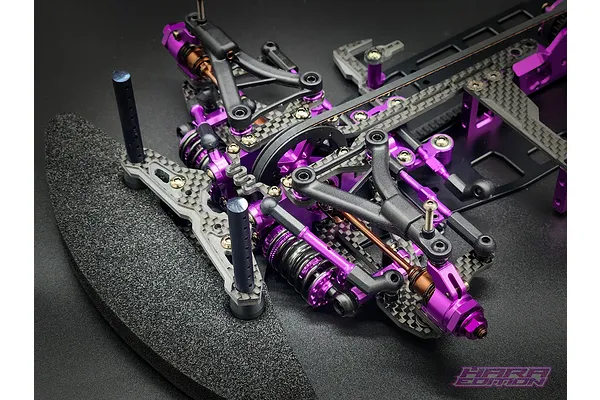

Fine-tune your car's drivetrain with the composite eccentric system. This allows for two different differential height settings and seven belt tension positions. The eccentrics can be easily rotated to your desired setting once the upper bulkheads are loosened, allowing for quick and simple adjustments to suit any track condition.

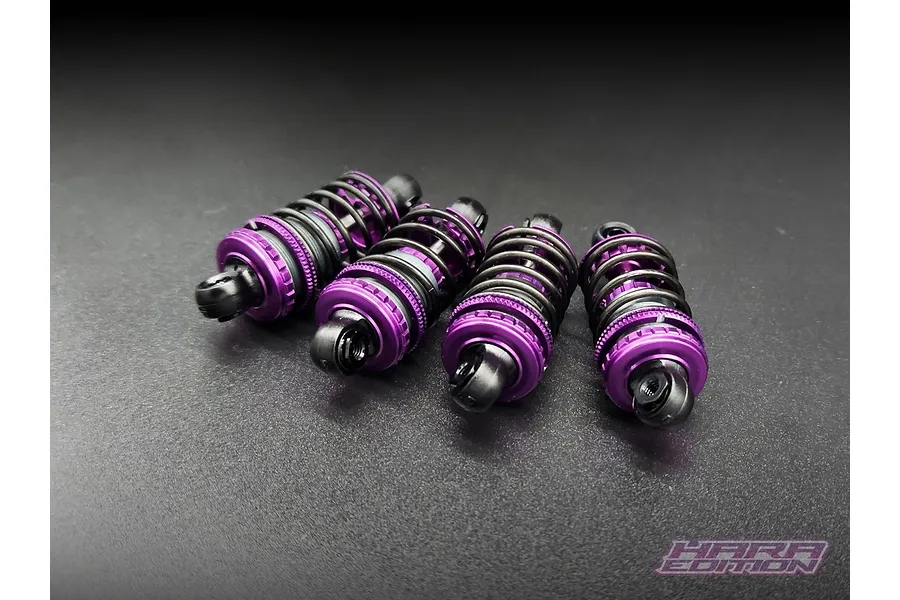

The SP1's shock absorbers are made from high-quality, low-friction components. The shock body features a diamond-like coating for smooth, consistent action even under heavy loads. The modern design integrates a soft AXON bladder for simple, air-free assembly. A full range of optional AXON springs are also available.

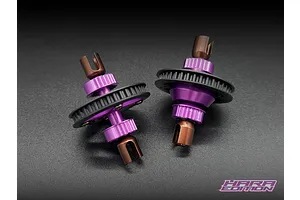

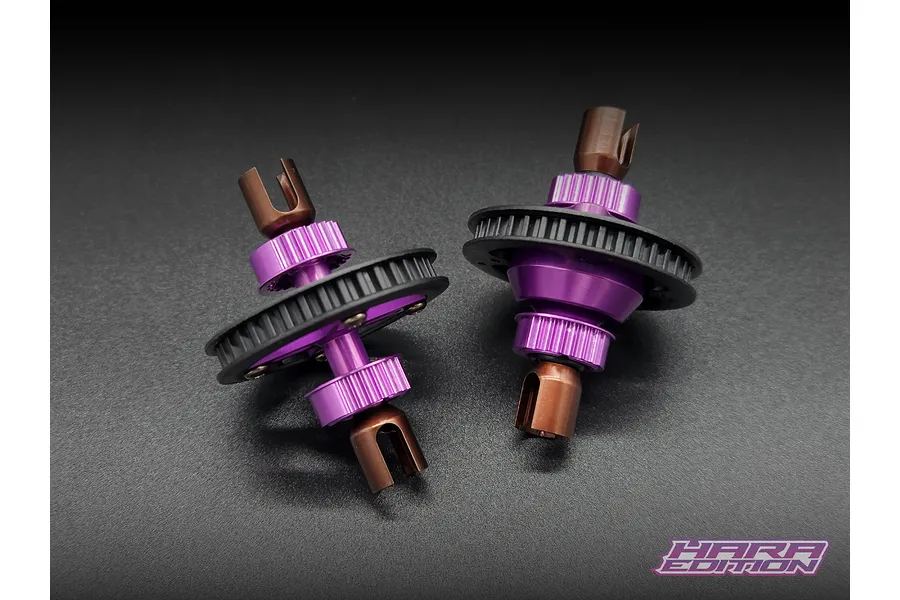

The spool and differential are machined from 7075 aluminium for a great balance of light weight and durability. The spider-gear diff features dual internal bearings for low friction, while the spool is a lightweight design. Both units use keyed pulleys to relieve stress from the screws and have hard-coated steel outdrives.

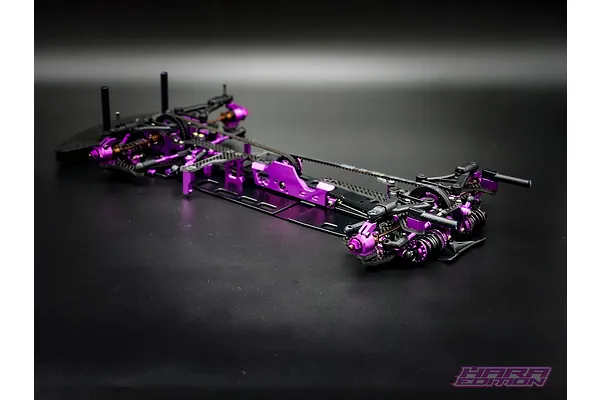

A key feature of the SP1 is its ultra-low 19mm top deck. Lowering the top deck also lowers the height of the bulkheads, motor mount, and hardware, which drastically reduces the car's overall centre of gravity. The 2.25mm thick carbon fibre provides the right amount of flex for this low-profile design.
Incredibly rare Hara Limited Edition with signature purple anodizing
Lay-down push-rod shock design for an ultra-low centre of gravity

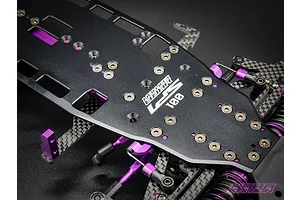

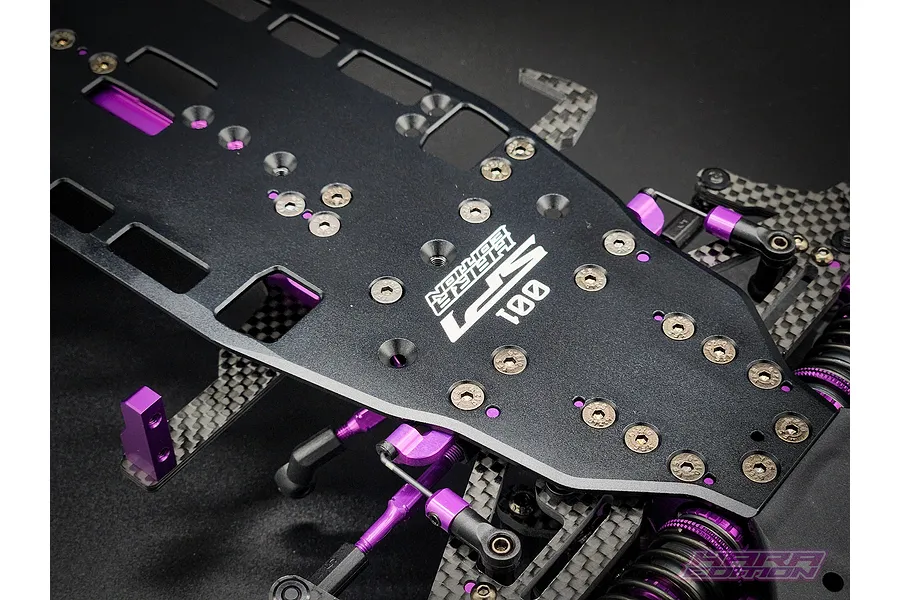

Carbon fibre chassis with laser-engraved authenticity number
19mm high topdeck and under-arm anti-roll bars further lower CG
Includes a complete set of anti-roll bars for trackside tuning
Includes a complete set of AXON linear and progressive springs
7075 Aluminium and Carbon Fibre used for all major components
Centrally located motor mount and suspension for balanced handling
Hard-coated steel drivetrain and high-grade metal-shield bearings
Genuine RC Maker Product
Length: N/A
Width: N/A
Height: N/A
Wheelbase: N/A
Weight: N/A
Chassis: Carbon Fibre with 7075 Aluminium Components
Suspension: Independent Push-Rod Suspension
Drivetrain: 4WD Belt-Driven
Motor: N/A (Requires 1/10 Brushless System)
ESC: N/A (Requires 1/10 Brushless System)
1x RC Maker SP1 - Hara Limited Edition Kit

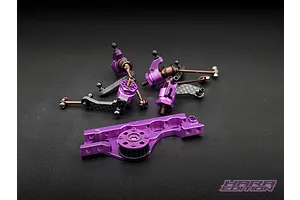

1x Signature Purple Anodised Aluminium Parts Set
1x Alu Diff Eccentric and Spring Retainers Set (Purple)
1x 2mm Wheelbase Set
1x Split Horizontal Rear Body Mount
1x Complete Anti-Roll Bar Set (1.0mm to 1.3mm)
1x Complete AXON Spring Set (Linear & Progressive)
2x Brass Centre Chassis Stiffener Weights (13g & 19g)
1x 2-Channel Radio System (Transmitter & Receiver)
1x Steering Servo
1x 1/10 Scale Brushless Motor & ESC Combo
1x 2S Shorty LiPo Battery
1x Compatible LiPo Battery Charger
1x Set of Wheels & Tyres
1x 1/10 Scale Touring Car Body
1x Can of Polycarbonate Paint
1x Pinion Gear
1x Set of Assembly Tools
This is a competition-level kit that requires full assembly, electronics, and setup.
Due to different materials and finishing processes, there may be subtle variations in the shade of purple between parts.
-
Wheel Hex Size
- mm
-
Pinion Gear
-
Front Differential Oil
-
Rear Differential Oil
-
Rear Shock Oil
-
Centre Differential Oil
-
Spur Gear
-
Battery Connector
-
Max LiPo Power
- 2S (7.4v)
-
Front Shock Oil
-
Skill Level
- Expert
-
Completion
- Kit
-
Drivetrain
- 4WD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- On Road
-
Chassis Type
- Car
-
Power Source
- Electric
-
Scale
- 1/10
-
Suited Motor/ESC Type
- Brushless
