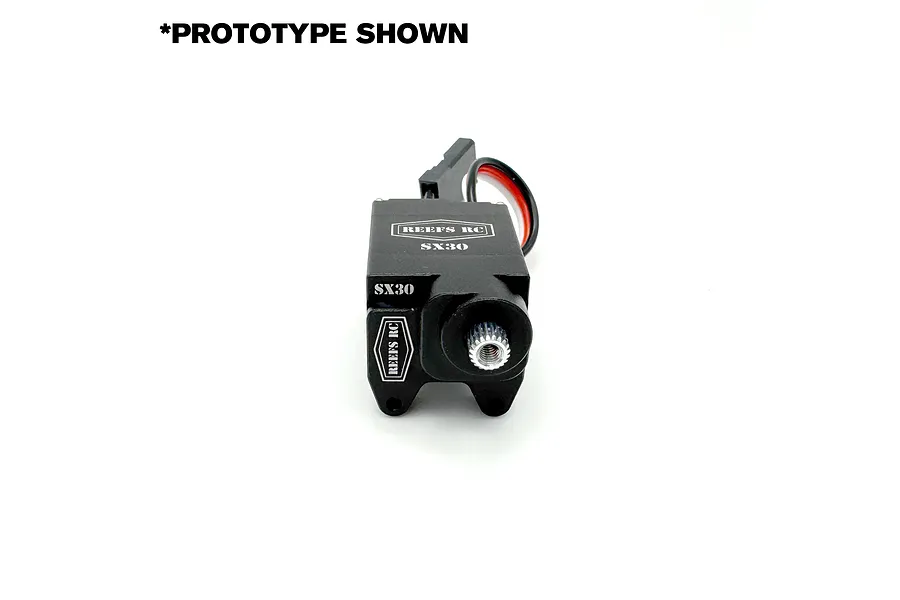

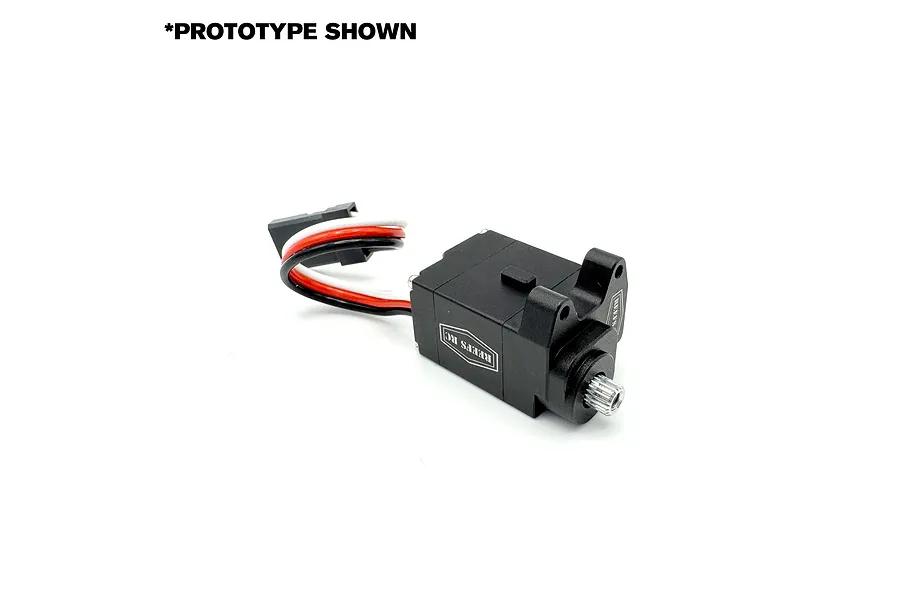

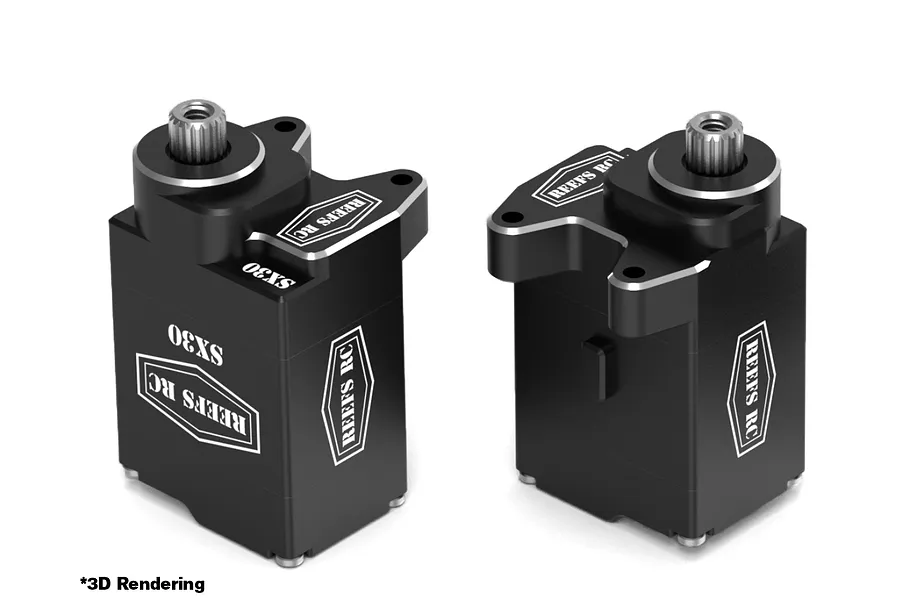

Reefs RC Aluminium SX30 Sub Micro 3kg 8.4V Brushless Servo

  • Brushless

Part no. REEFS285

Sold outNo reviews yet
1 / 3
1 / 3

$119.99

or 4 fortnightly payments of $30.00 with afterpay or PayPal, or zip

Specifications

Servo

Servo
SizeConventionally sized servo namesSub Micro
Gear MaterialMetal
Servo Spline Count20Tooth
Waterproof CasingYes
Input Voltage Range7.4V, 8.4V, 6V
Case MaterialAluminium
Height (A)11.1mm
Length (E)24.4mm
Width (F)15.2mm
Drive Motor TypeBrushless
Rotational Degrees180°
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline2.5
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.075
7.4V Torque kg/cm2.8
7.4V Sec/60 Degrees0.066
8.4V Torque kg/cm3.0
8.4V Sec/60 Degrees0.06
Signal TypeDigital
