Spektrum Avian 100A Brushless Smart ESC - Version A
- Brushless
Part no. SPMXAE1100A
Videos
Spektrum Avian 100A Brushless Smart ESC Provides Vital Operating Data For Confidence And Performance
- Smart all-in-one telemetry with a single-wire solution
- Fast and powerful 32-bit ARM M4 processor
- Compact, ready to install, and requires no soldering
- Adjustable high-power BEC with dual power connectors
1 in stock · Ships Monday · order by Monday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Videos
Overview
Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine plug-and-play simplicity with the ability to communicate directly with other Smart electronics, creating a seamless and high-performing RC system for your aircraft.
Avian Smart Air ESCs do much more than just regulate power. They function like a virtual engineer, providing a direct path to the vital operating data you need to reach peak performance. The ESC gives you an extra layer of confidence that all your electronics are operating at their best.
With an Avian Smart Air ESC, you're better connected to your aircraft than ever before without installing extra, independent components. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining crucial telemetry data such as current, voltage, cell balance, temperature, and RPM.
The ESCs gather the data and send it to your transmitter in real-time, allowing you to adjust settings to boost performance on the go. The single-wire telemetry solution has been tested for quality and performance by the best brands in RC, confirming that Smart technology is both simpler and superior.
Features
- Smart all-in-one telemetry with a fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming, including a Smart ESC Programming Box and throttle stick programming
- Multi-point protection for over-current, automatic LiPo low-voltage cutoff, thermal protection, and failsafe protection
- Developed and designed by Spektrum engineers in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications with a rugged plastic case
- Ready to install with no soldering required
- Adjustable high-power BEC with dual BEC power connectors
- Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
- High heat-resistant IC connectors that are backwards compatible with EC connectors
- Genuine Spektrum product
In the box
- 1x Spektrum Avian 100A Brushless Smart ESC, 3-6S Version A
- 1x Spektrum Smart sticker sheet
- 1x Product Manual
Specifications
| Length | 76mm (3.0") |
|---|---|
| Width | 36mm (1.4") |
| Height | 33mm (1.3") |
| Weight | 126g (4.4oz) |
| Continuous/Peak Current | 100A/120A |
| Waterproof | N/A |
| Motor Limit | N/A |
| BEC Voltage | 6V/7.4V/8.4V adjustable |
| Voltage Limit | 3S-6S LiPo |
| Programmable | Yes |
| Scale | N/A |
| Sensored | N/A |
ESC (Electronic Speed Controller)
| For Motor Type | Brushless |
|---|---|
| Max Voltage | 22.2V |
| Waterproof Design | No |
| Burst Amps | 120A |
| Continuous Amps | 100A |

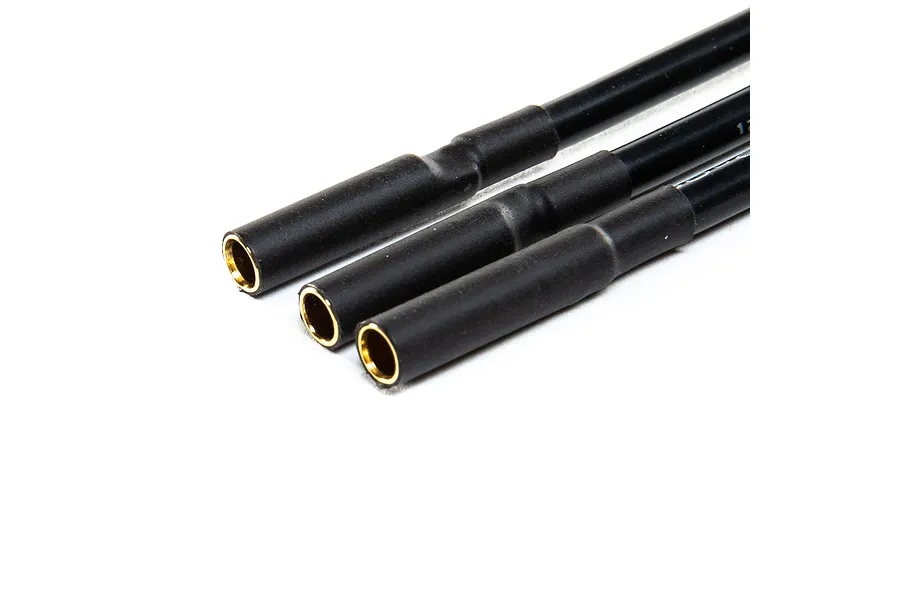

| Motor Connectors | 4.0mm Bullet |
| Battery Connector | IC3 |
| LVC | Yes |
| Programmable | Yes |
| Cooling Method | Air |
| Dual Motor | No |
