Hobbywing

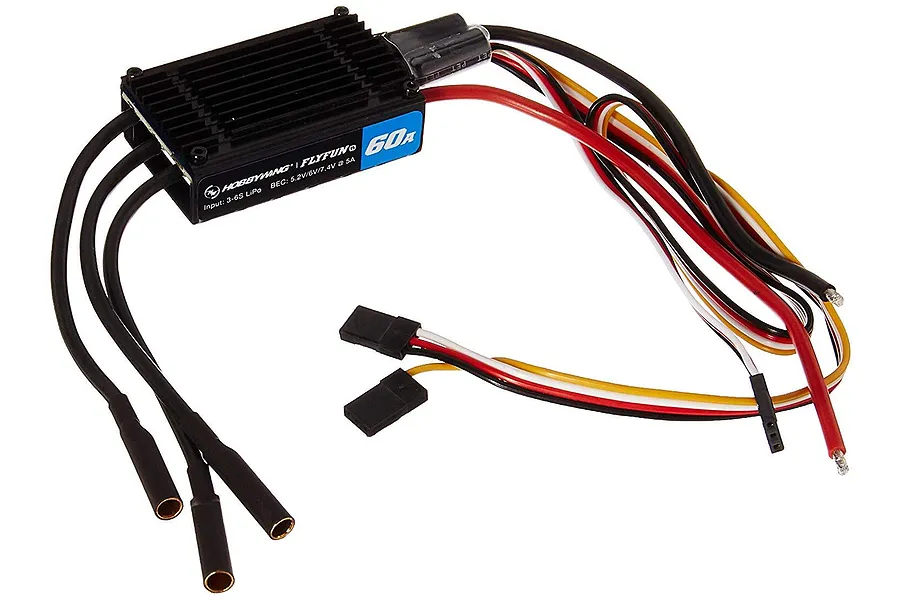

Hobbywing FlyFun 60A 6S Brushless ESC

  • Brushless

Part no. 30214101

DiscontinuedWrite a review

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Overview

The Hobbywing FlyFun 60A 6S Brushless ESC features DEO Technology (Driving Efficiency Optimisation) for improved throttle response, driving efficiency, and reliability, along with multiple programmable parameters and a high-power BEC.

Note

Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • DEO Technology / Active Freewheeling — Driving Efficiency Optimisation with multiple advantages:
  • Rapider and smoother throttle response, better stability and flexibility during flight
  • Higher driving efficiency, longer flight time
  • Lower ESC temperature, more reliable operation
  • Soft Start-ups & Reverse Brake
  • High-power BEC
  • Multiple Protections
  • New Design & Great performance
  • Multiple Programmable Parameters

Specifications

TypeBrushless
Cont./Peak Current60A/80A
Input3-6S LiPo
BEC OutputSwitch Mode: 5.2V/6V/7.4V, 8A/20A
Input WiresRed-14AWG-150mm x1, Black-14AWG-150mm x1
Output WiresBlack-14AWG-150mm x3
Input ConnectorsNo
Output Connectors4.0 Gold Connectors (Female)
TransmitterSupported
LED Program CardNot Supported
LED Program BoxSupported
LCD Program BoxNot Supported
Wi-Fi ModuleNot Supported
Program PortSeparate Program Wire
Firmware UpgradeNot Supported
Size68.8 x 34.6 x 18mm
Weight73.5g

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage22.2V
Waterproof DesignNo
Continuous Amps60A
Battery ConnectorN/A
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodAir
BEC Voltage5V
Dual MotorNo
