Spektrum

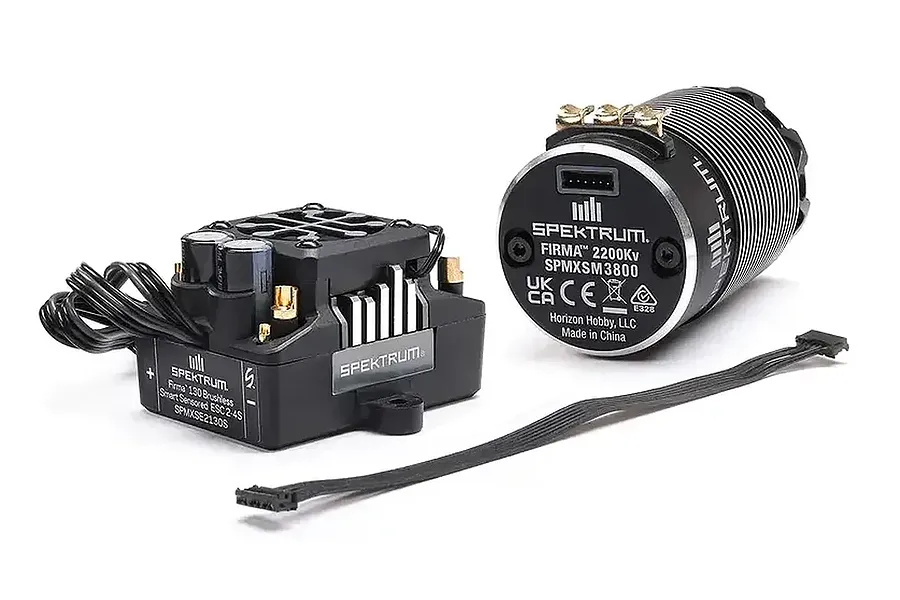

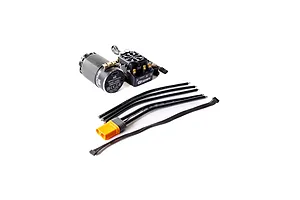

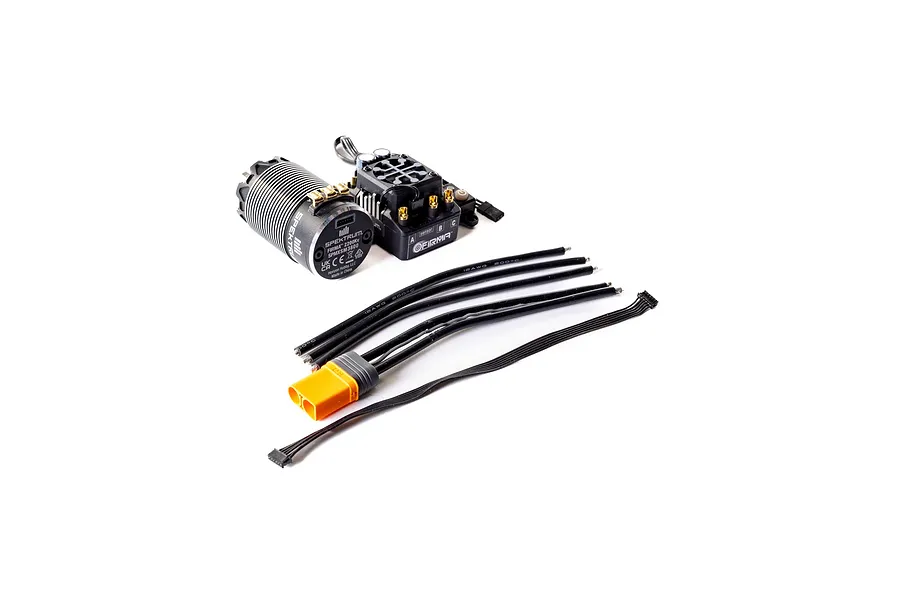

Spektrum Firma 2200Kv Brushless Sensored Motor & Smart 130A ESC Combo

  • Brushless

Part no. SPMXSEMC17

1 in stockWrite a review
1 / 2
1 / 2

$575.93

or 4 fortnightly payments of $143.98 with afterpay

Add it to My Garage
Select Motor & ESC Wires Soldered

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

Experience the precision, power, and speed of the Spektrum Firma 2200Kv Brushless Sensored Motor & Smart 130A ESC Combo. This pre-matched system delivers ultra-smooth control, real-time telemetry via Smart Technology, and the unmatched performance demanded by your 1/8th scale RC vehicle.

Note

Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Experience ultra-smooth control with sensored capability
  • Smart technology integration provides easy access to real-time data
  • Enjoy peak synergy and performance with pre-matched components
  • Run with confidence thanks to the waterproof ESC and robust motor design
  • The powerful 2200Kv motor is perfect for 1/8th scale vehicles
  • Customise your setup with adjustable programming
  • Efficient cooling maximises your runtime
  • Genuine Spektrum product

In the box

  • 1x Spektrum Firma Smart 130A Brushless ESC
  • 1x Spektrum Firma 2200Kv Brushless Sensored Motor

Specifications

Continuous/Peak Current130A/760A
WaterproofYes
BEC6V/7.4V
Voltage Limit7.4V–14.8V
ProgrammableYes
Scale1/8th
SensoredYes
Shaft5 mm (0.197 in)
Case MaterialAluminium
WaterproofYes
Motor TypeBrushless Sensored

Motor

TypeSensored
Shaft Diameter5mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage14.8V
Waterproof DesignYes
Burst Amps760A
Continuous Amps130A
Motor ConnectorsBare Wires
Battery ConnectorIC5
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V
Dual MotorNo
