Tamiya CC-02 Toyota Land Cruiser 300 RC Rock Crawler Electric 4WD 1/10 Scale Kit (No ESC)

Tamiya CC-02 Toyota Land Cruiser 300 RC Rock Crawler Electric 4WD 1/10 Scale Kit (No ESC)

Videos

Tamiya CC-02 Toyota Land Cruiser 300 RC Rock Crawler Electric 4WD 1/10 Scale Kit (No ESC)

Brand: Tamiya | SKU: 58688A
sold out
$354.41
Tamiya CC-02 Toyota Land Cruiser 300 RC Rock Crawler: Build Your Custom Off-Road Legend
  • Perfect for any skill level
  • Compatible with brushed or brushless electronics
  • 540 sized brushed motor included
  • High level of customisability
  • Super detailed body shell is ready to be customised by you
Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
Battery
Battery
ESC
ESC
Steering Servo
Steering Servo
Transmitter & Receiver
Transmitter & Receiver
Batteries for Controller
Batteries for Controller
Curved Scissors
Curved Scissors
Charger
Charger
Body Shell Reamers
Body Shell Reamers
LiPo Safe Charging Bag
LiPo Safe Charging Bag
Description
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

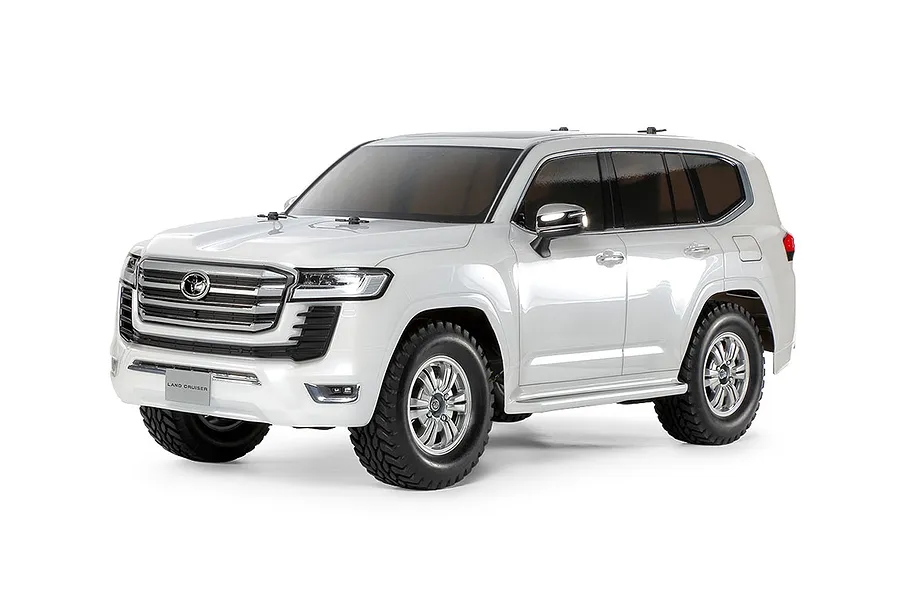

Embark on a journey of off-road adventure with the Tamiya CC-02 Toyota Land Cruiser 300. This meticulously detailed 1/10 scale RC car kit captures the essence of the iconic 4WD vehicle, renowned for its rugged capability and timeless design.

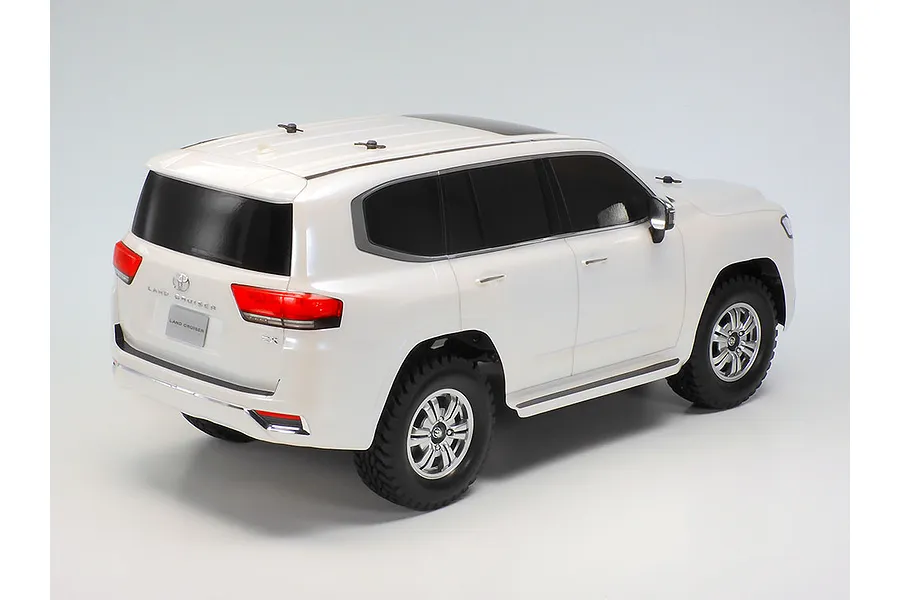

The included polycarbonate body has recreated the Land Cruiser's distinctive features, from the striking front grille with its horizontal fins and metal look sections to the sleek lines and powerful stance. Separate parts for the door handles and shark fin antenna add a touch of realism, while the silver 12-spoke wheels and block pattern tyres complete the scale look.

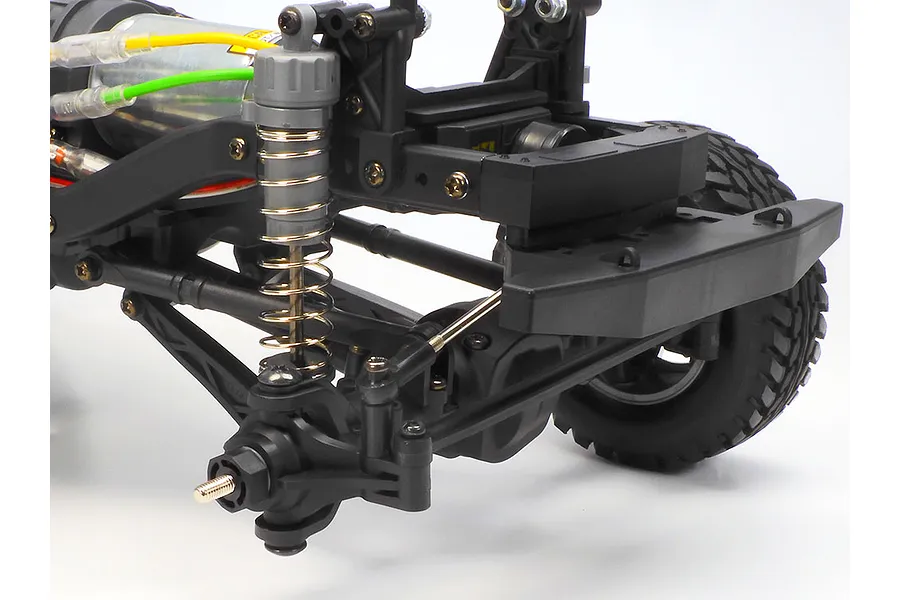

But the Land Cruiser 300 is more than just a pretty face. The CC-02 chassis, with its full-time 4WD system and long-stroke suspension, delivers exceptional off-road performance. The front double wishbone and rear 4-link rigid setup, equipped with four CVA oil dampers, ensure a smooth and controlled ride over any terrain.

Front Mount Mid Motor

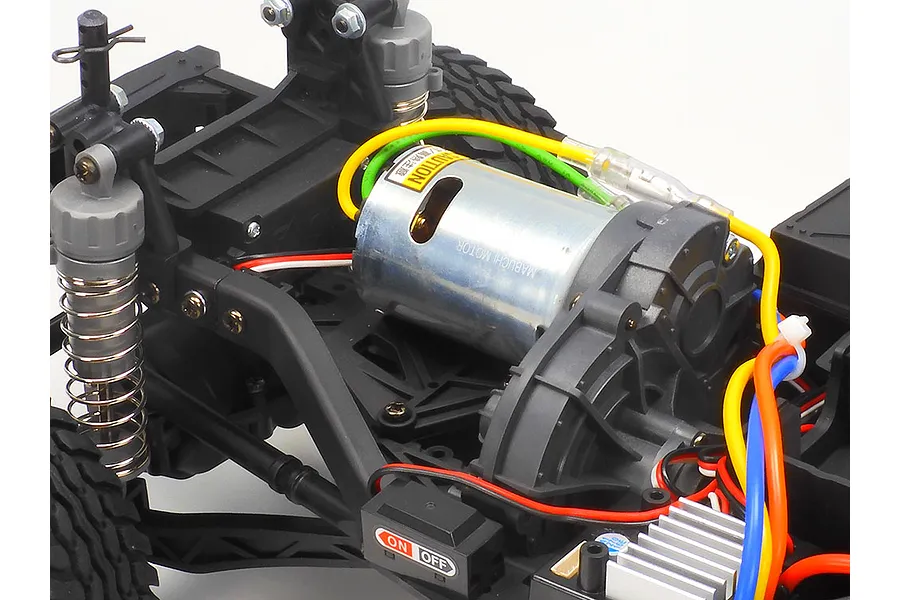

 The CC-02 delivers an authentic driving experience thanks to its scale drivetrain configuration. The motor is positioned in the front midsection, and power is transferred through a central gearbox and propeller shafts to both the front and rear axles, just like a real car.

Ladder Frame Chassis

The CC-02 chassis features a realistic ladder frame, inspired by full-size off-road vehicles, providing exceptional rigidity and durability for tackling challenging terrain.

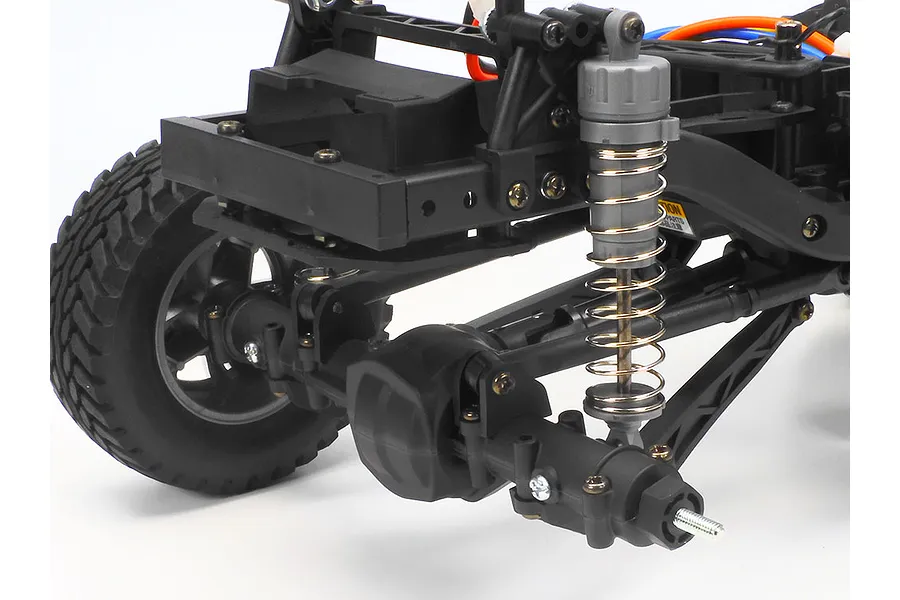

Four Link Suspension

The CC-02's four-link suspension delivers outstanding performance and scale realism. Robust link arms connect the axles, while oil shocks provide smooth damping action and exceptional articulation for conquering challenging obstacles.

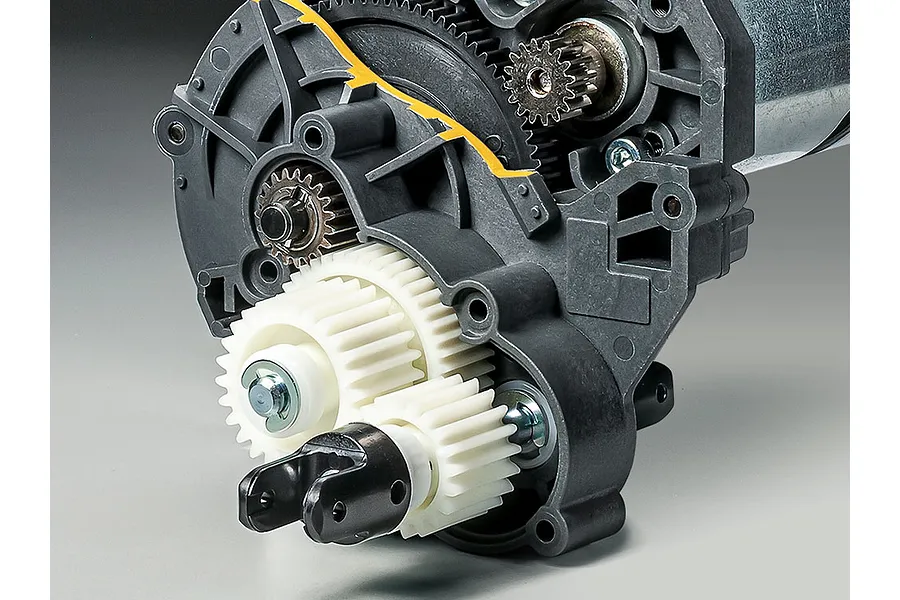

Adjustable Gear Ratio

Fine-tune the CC-02's performance to match your driving style and terrain with a wide range of gear ratios. Twenty different ratios, from 11.09 to 29.28:1, are achievable by adjusting the gear layout and utilising your choice of separately-sold pinions.

Durable Metal Chassis

The CC-02 chassis is designed for tough off-road action. Metal frame sections provide exceptional durability, while CVA oil shocks ensure smooth damping and maximum performance on challenging terrain.

Lockable Differentials

The CC-02 comes with robust axle housings that can handle extreme off-road conditions. Inside, 3-bevel differentials provide smooth operation, and they can be assembled in a locked position for increased traction when needed, ensuring you maintain control on any surface.

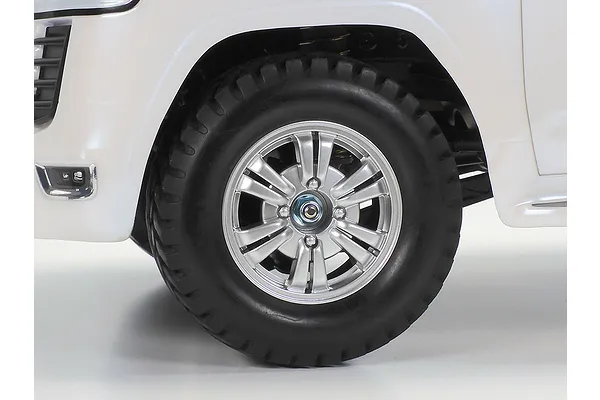

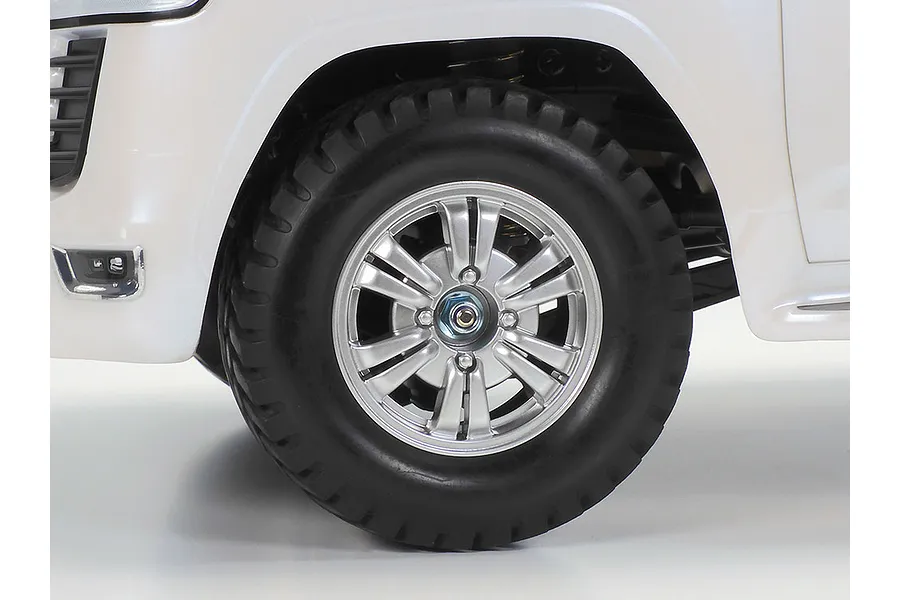

Scale Wheels

The lustrous silver 12-spoke wheels, meticulously replicated from the full-scale Toyota Land Cruiser, sit proudly wrapped with chunky block pattern tyres. These grippy companions deliver both authentic off-road aesthetics and superior performance, channelling the spirit of the Land Cruiser in every rotation.

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

Features
  • Toyota Land Cruiser is one of the most famous 4WD vehicles since 1951
  • The R/C model assembly kit recreates the Land Cruiser 300 series

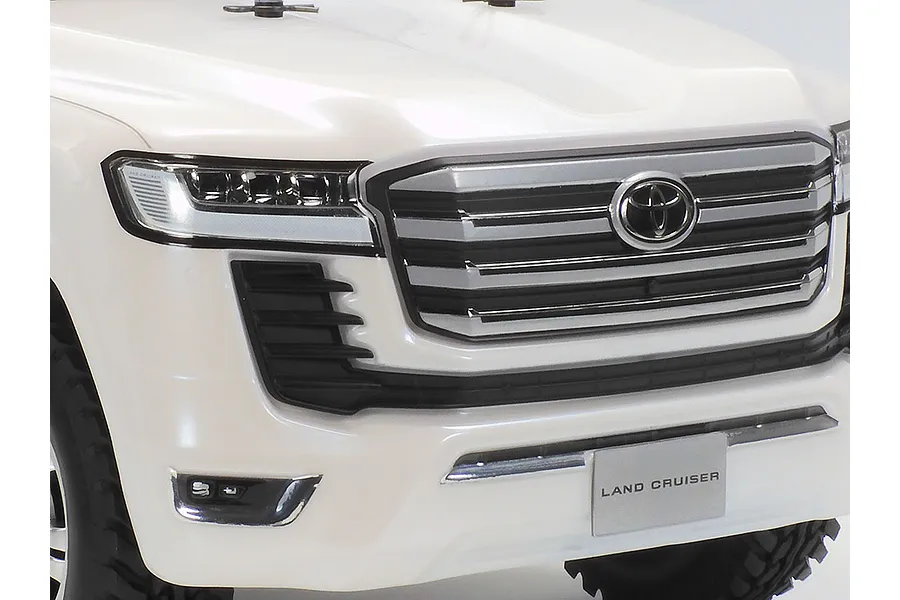

  • The polycarbonate body realistically depicts the iconic large front grille's horizontal fins and metal-plated sections

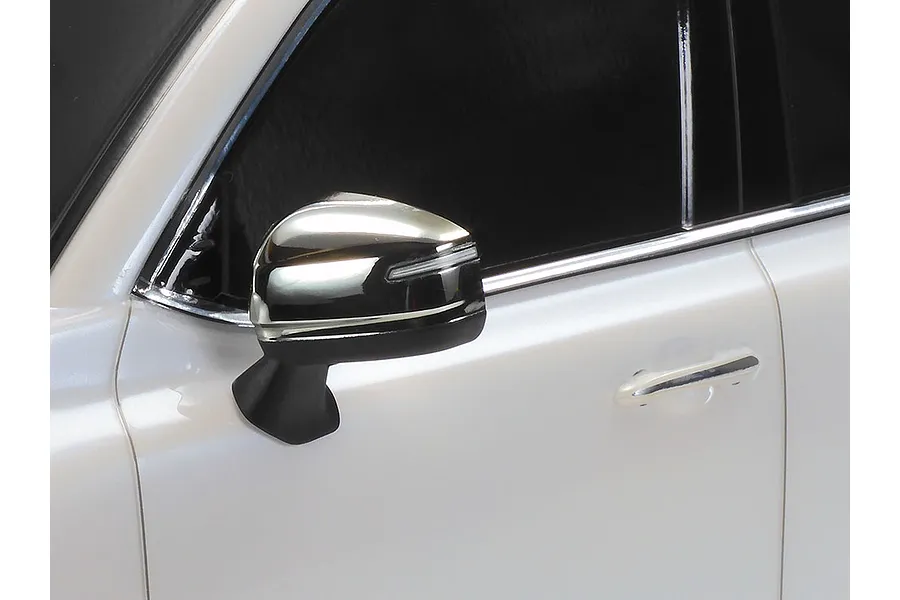

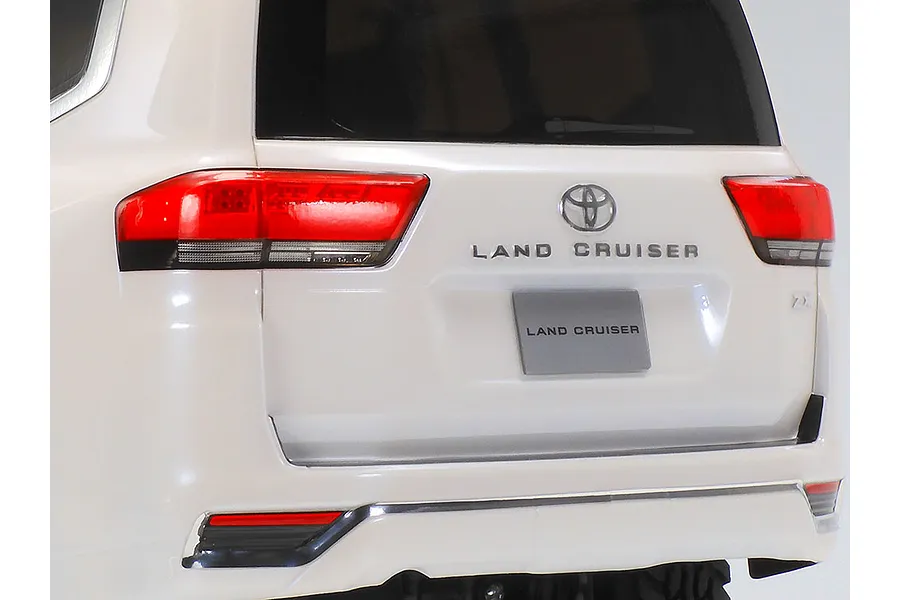

  • Metal-plated light case and door mirror components make it look super sharp
  • Silver 12-spoke wheels paired with block pattern tyres

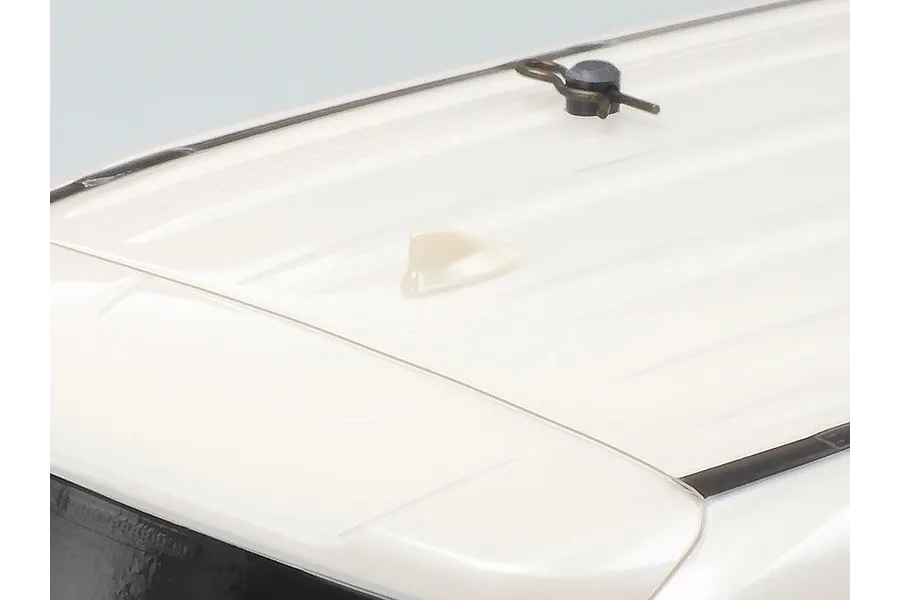

  • Separate parts used to create door handles and shark fin antenna give it even more realism
  • Perfect for collectors and enthusiasts
  • Fully Licensed Body Shell
  • Genuine Tamiya Product
Specifications
  • Length: 472mm (18.58")
  • Width: 200mm (7.87")
  • Height: 192mm (7.56")
  • Wheelbase: 267mm (10.51")
  • Weight: Varies
  • Chassis: Rock Crawler Rail Chassis (CC-02)
  • Drivetrain: 4WD
  • Suspension: Oil Filled Coil Over Shock Absorbers
  • Motor: 540 Sized Brushed Motor
  • ESC: Not Included
Included Items
  • 1x 1/10 CC-02 RC Rock Crawler Chassis Kit
  • 1x 540 Sized Brushed Motor
  • 1x 1/10 Unpainted Toyota Landcruiser 300 Series Body Shell
Required Items
  • 1x Compatible 7.4V LiPo Battery or 7.2V NiMH
  • 1x Compatible Charger
  • 1x Compatible 1/10 Scale ESC
  • 1x Compatible 1/10 Scale Servo
  • 1x 2+ Channel Transmitter & Receiver
  • Polycarbonate Safe Paint
  • AA Batteries For Transmitter
Videos
Specifications
Factory Specs
Spur Gear
83T
Rear Shock Oil
200cSt
Pinion Gear
16T
Front Shock Oil
200cSt
RC Car
Completion
Kit
Drivetrain
4WD
Max LiPo Power
2S (7.4v)
On/Off Road
Off Road
Chassis Type
Short Course
Power Source
Electric Brushed
Skill Level
Intermediate
Scale
1/10
