Tamiya TA-02 Opel Calibra V6 RC Touring Car Electric 4WD 1/10 Scale Kit

Tamiya TA-02 Opel Calibra V6 RC Touring Car Electric 4WD 1/10 Scale Kit

Tamiya TA-02 Opel Calibra V6 RC Touring Car Electric 4WD 1/10 Scale Kit

Brand: Tamiya | MPN: 47461
discontinued
Description

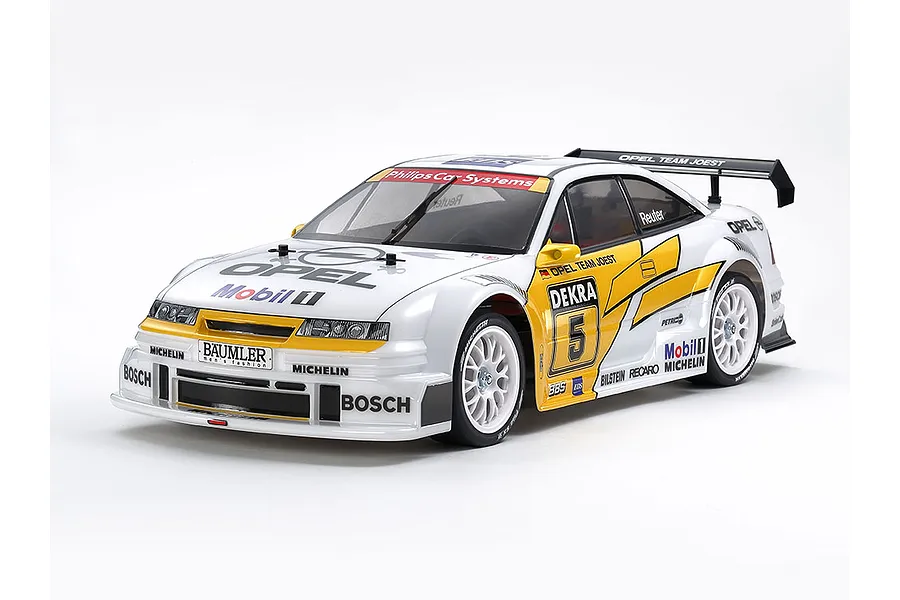

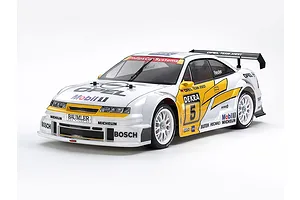

Get some 1990s touring car action with this welcome return for the Opel Calibra V6 to the Tamiya R/C model line-up! The 1994 model's stylish, bulky 2-door body is recreated in polycarbonate with separately moulded side mirrors, wiper arms and rear wing, and two big sticker sheets to decorate it.

This is a R/C recreation of the Opel Calibra V6 that took part in the 1994 running of the Deutsche Tourenwagen Meisterschaft (DTM) series. Entered by Joest Racing, the car was powered by a 2.5-litre V6 engine and piloted among others by former Formula One champion Keke Rosberg. The Limited-Edition kit is an exact re-release of the original as it appeared in the mid-1990s.

The TA-02 bathtub chassis provides shaft-driven 4WD, 4-wheel double wishbone suspension, front and rear gear cases with built-in differential gears, and a rear ball differential.

Tamiya Opel Calibra V6 TA-02 — sticker sheets / livery detail
Tamiya Opel Calibra V6 TA-02 — sticker sheets / livery detail

Two big sticker sheets recreate the various sponsors and other markings; masking stickers are also included.

1994 DTM Polycarbonate Body
1994 DTM Polycarbonate Body

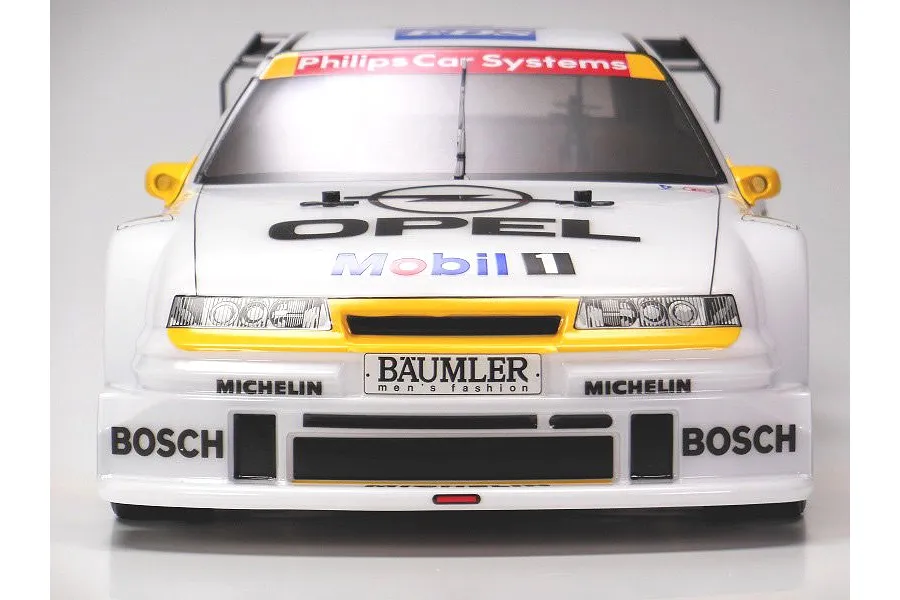

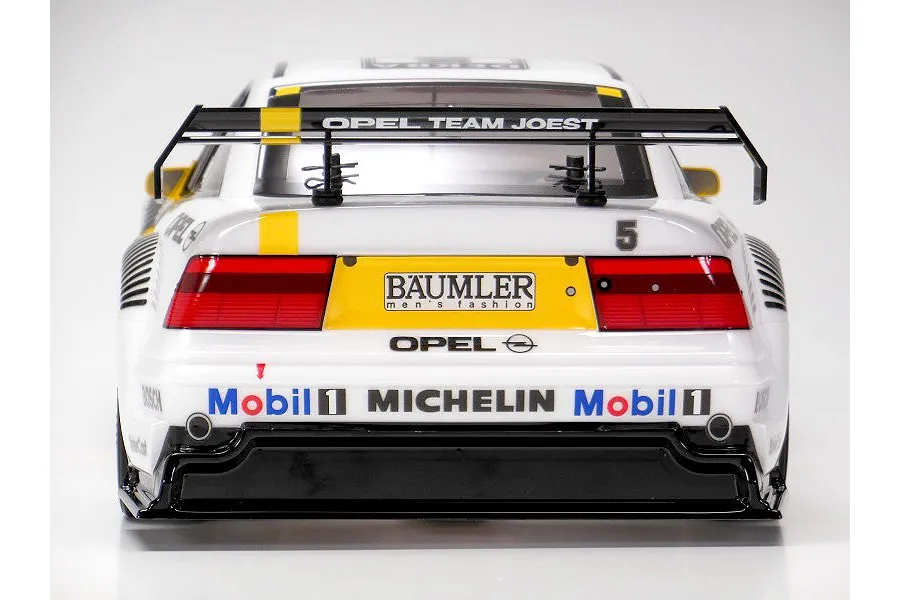

The polycarbonate body captures the bulky 2-door form of the 1994 DTM Opel Calibra V6 with separate parts recreating the side mirrors, wiper arms and rear wing.

Shaft-Driven 4WD Bathtub Chassis
Shaft-Driven 4WD Bathtub Chassis

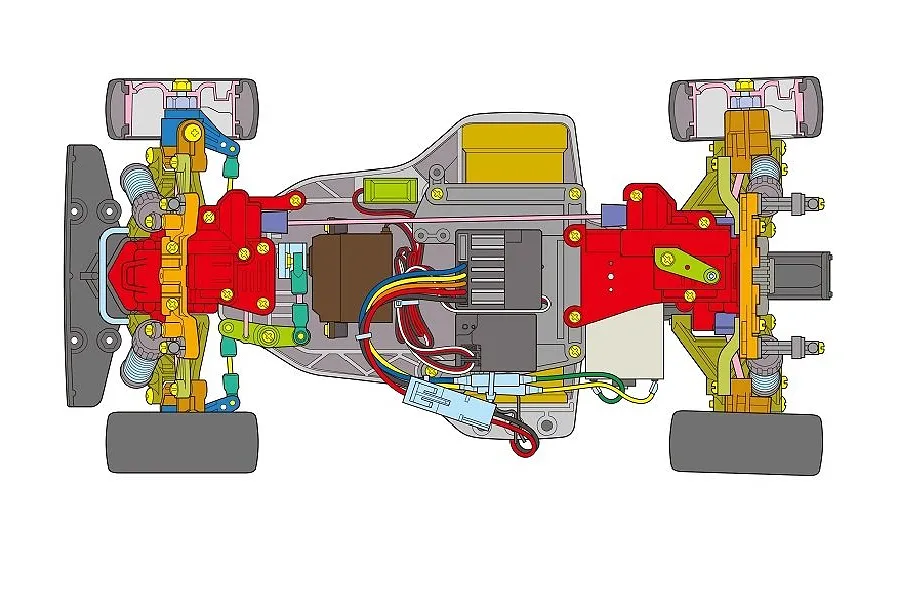

The TA02 bathtub chassis provides shaft-driven 4WD, 4-wheel double wishbone suspension, front and rear gear cases with built-in diff gears and rear ball diff.

Tamiya Opel Calibra V6 TA-02 — chassis/drivetrain detail
Tamiya Opel Calibra V6 TA-02 — chassis/drivetrain detail

Openable gearboxes house a front 3-bevel gear differential and rear ball differential; the TA02 features 4-wheel double wishbone suspension and CVA shock-dampers.

Features
  • Polycarbonate body, with separate parts recreating the side mirrors, wiper arms and rear wing
  • The model utilises the shaft-driven 4WD TA-02 chassis, which is based around a durable bathtub frame
  • Openable gearboxes house a front 3-bevel gear differential and rear ball differential
  • The TA-02 features 4-wheel double wishbone suspension and CVA shock-dampers for smooth, responsive handling
  • White mesh type wheels are paired with slick tires
  • Two big sticker sheets recreate the various sponsors and other markings, plus masking stickers for use in the paint process
  • Includes 540-brushed type motor
  • Includes ESC — compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over
Included Items
  • 1x 1/10 TA-02 Opel Calibra V6 4WD Electric On Road RC Car Kit
Required Items
  • 2Ch Radio System (Transmitter & Receiver) & Batteries
  • Compatible Battery Pack & Charger
  • Servo
Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Specifications
Adjustable Gear Ratio
Yes
Bearings
Plastic bushing
Body Material
Polycarbonate
Body Stickers
Included
Chassis Material
ABS Plastic
Chassis Type
TA-02
Construction Type
Assembly Kit
Differential Type
Gear
Drive Type
4WD
Electronic Speed Control (ESC)
Included
Motor
540-brushed type
Scale
1/10
Shock Damper
CVA Oil Filled
Suspension
4-wheel fully independent double wishbone
Terrain Use
On-Road

RC Car
Scale
1/10
Completion
Kit
Skill Level
Intermediate
Power Source
Electric Brushed
Chassis Type
Car
On/Off Road
On Road
Drivetrain
4WD
Factory Specs
