Name: Tamiya TT-02 1999 Subaru Impreza WRC Monte Carlo RC Rally Car Electric 4WD 1/10 Scale Kit (No ESC)
Brand: Tamiya
SKU: TAM-58631A
Price: 177.61 AUD
Availability: Discontinued
Rating: 5 (1 reviews)

Overview

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

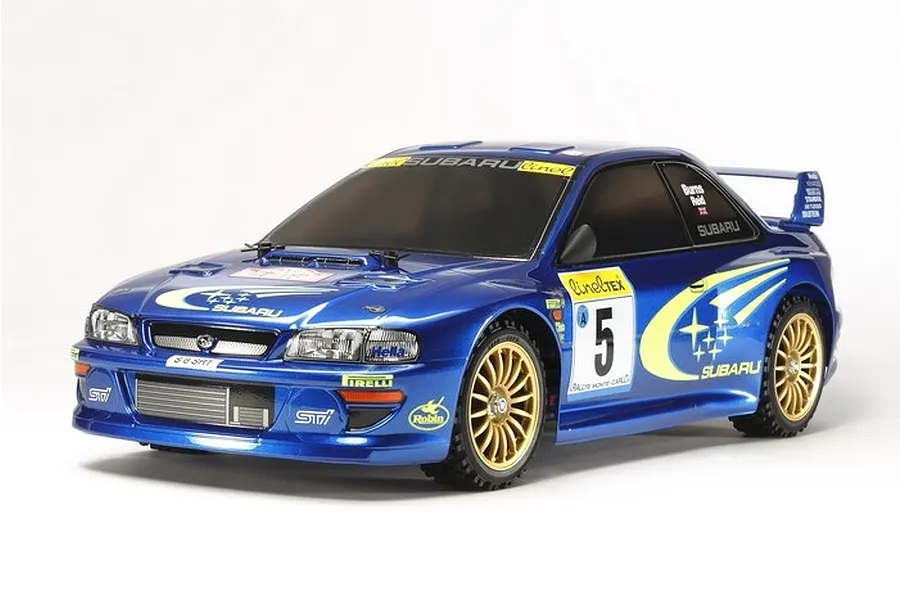

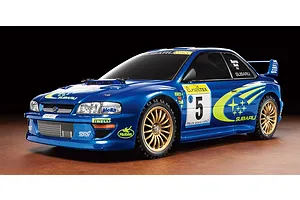

This R/C model assembly kit recreates the 1999 version of the two-door Subaru Impreza rally car as it appeared in the year's opening rally in Monte-Carlo. The form is faithfully depicted in durable polycarbonate, with separate parts used to recreate the rear wing and side mirrors. Stickers are included to recreate the multitude of team and sponsor logos. The model runs on the adaptable TT-02 chassis, which is equally at home on road and flat dirt surfaces.

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. It features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes, and offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. Gold colour fin-spoke wheels are paired with rally block tyres.

Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

Highly detailed 1/10 1999 Subaru Impreza WRC clear body
Super tough bathtub type chassis
Balanced longitudinal chassis layout
Adjustable wheelbase
Shaft-driven 4WD system
Front/rear 4-bevel resin differentials
3-piece steering tie-rod system for superior handling
4-wheel double wishbone suspension
Front/rear friction dampers
Powerful brushed 540 motor

In the box

1x 1/10 1999 Subaru Impreza Monte-Carlo 4WD Rally TT-02 Kit
1x Set of Decals
1x Product Manual

You'll need

7.2V NiMH Battery & Compatible Charger
Standard Sized Servo
Electronic Speed Controller (ESC)
2Ch Transmitter & Receiver
Tamiya PS Paint

Highlights

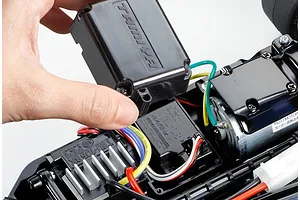

Dust and dirt-proof receiver case

To make sure the receiver keeps free of dust and dirt, the TT-02 is equipped with a cover that keeps it all out and ensures your receiver lasts longer.

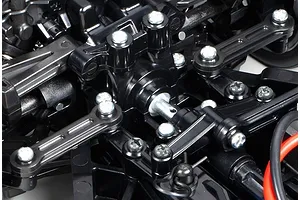

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

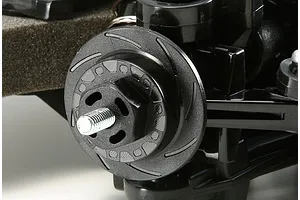

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

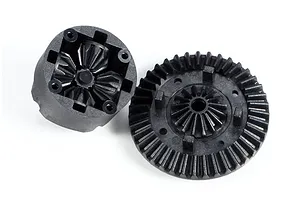

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

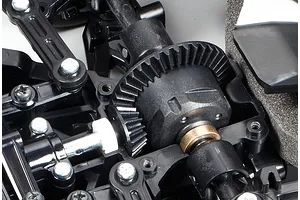

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Tamiya TT-02 Subaru Impreza WRC chassis/feature detail

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability.

Included Team Sponsor Stickers

Stickers are included to recreate the multitude of team and sponsor logos.

Tamiya TT-02 Subaru Impreza WRC chassis detail

The gearbox cover can be removed by simply loosening screws on the frame.

Tamiya TT-02 Subaru Impreza WRC body shell detail

Separate parts are used to recreate the rear wing and side mirrors.

Tamiya TT-02 Subaru Impreza WRC wheel hub detail

The wheel hubs are designed to look like brake discs.

Tamiya TT-02 Subaru Impreza WRC assembly/parts detail

Gold colour fin-spoke wheels are paired with rally block tyres.

Specifications

Scale	1/10
Length	442mm (17.4")
Width	186mm (7.32")
Height	140mm (5.51")
Wheelbase	257mm (10.1")
Body Shell	Clear Polycarbonate
Chassis Type	TT-02
Construction Type	Kit
Motor	540-Brushed Type
Electronic Speed Control (ESC)	Not Included
Wheel Drive	4WD
Gear Ratio	9.58:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Shocks	Friction Front & Rear
Suspension	Fully independent double wishbone
Terrain Use	On & Off Road
