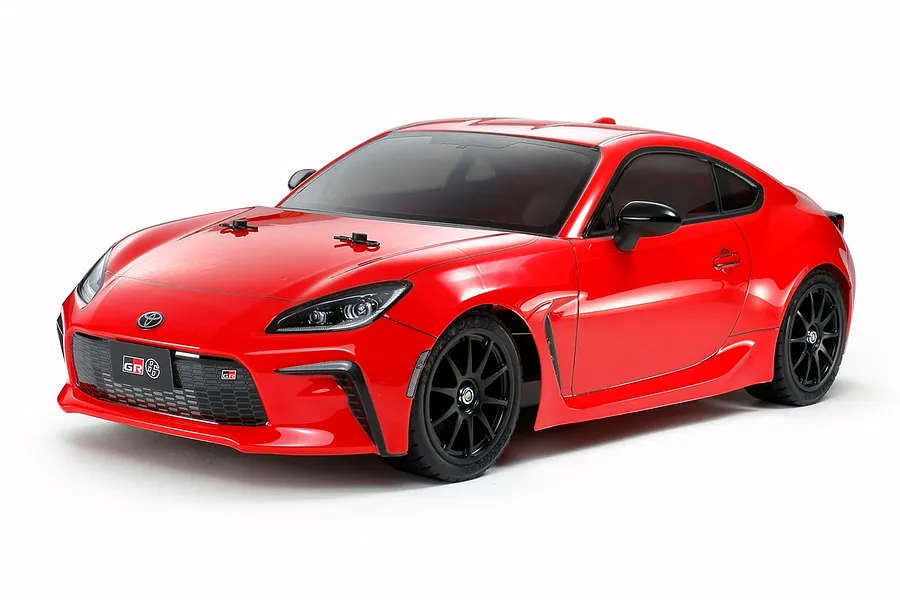

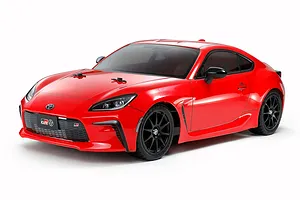

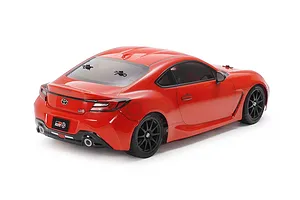

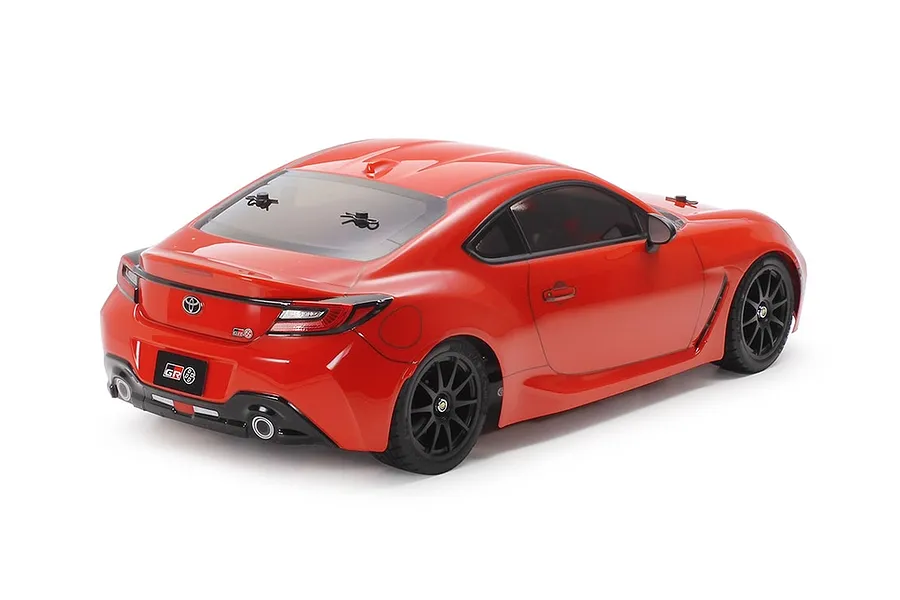

Tamiya TT-02 Toyota GR 86 RC Car Electric 4WD 1/10 Scale Kit (No ESC)

Tamiya TT-02 Toyota GR 86 RC Car Electric 4WD 1/10 Scale Kit (No ESC)

Tamiya TT-02 Toyota GR 86 RC Car Electric 4WD 1/10 Scale Kit (No ESC)

Brand: Tamiya | MPN: 58694A
discontinued
Description
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

The Toyota GR86 is a modern-day embodiment of the classic affordable sports car formula. It boasts a lightweight chassis, rear-wheel drive, and a naturally aspirated boxer engine, prioritising a pure and engaging driving experience above raw power figures. With its sharp handling, playful character, and a price tag that won't break the bank, the GR86 offers a true back-to-basics approach to driving fun, making it a favourite among enthusiasts.

Note: This kit comes without an ESC, Servo, Battery, Charger, or Transmitter, and includes an unpainted polycarbonate shell that may require cutting, painting, and drilling.

Dust and dirt-proof receiver case
Dust and dirt-proof receiver case

To make sure the receiver keeps free of dust and dirt, the TT-02 is equipped with a cover that keeps it all out and ensures your receiver lasts longer.

Smooth Precision Steering Linkages
Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

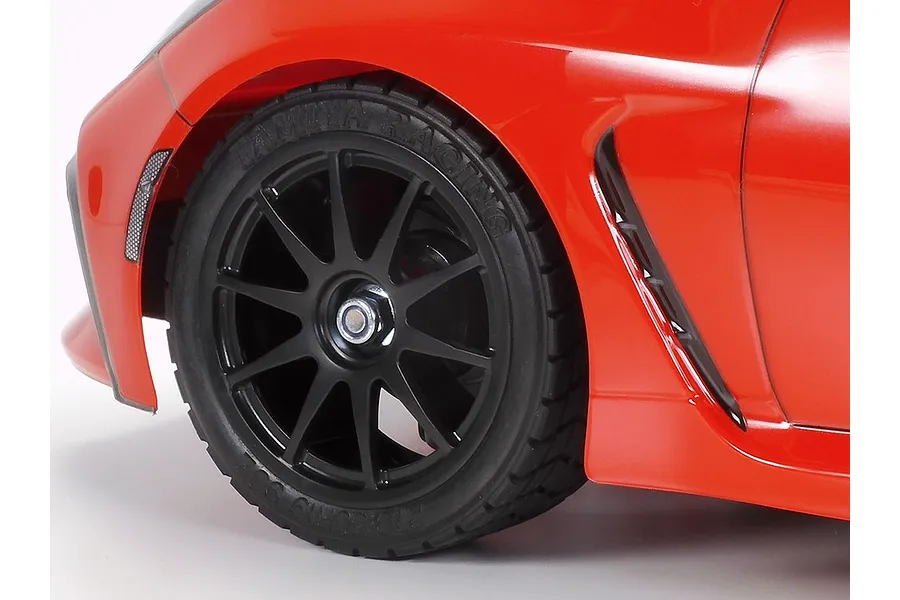

Stylish Brake Disc Wheel Hubs
Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

Efficient Motor Cooling Cover
Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

Rear Double-Wishbone Suspension
Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Smooth Planetary Gear Diffs
Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Designed for Easy Maintenance
Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Features
  • Easy-to-remove gearbox cover — simply loosen the screws on the frame to access the gearbox
  • Smooth and stable differential gears — 4-bevel gears moulded for optimal performance and cornering
  • Flexible and comfortable steering linkage — resin ball links allow for smooth motion and easy adjustment
  • Realistic and stylish wheel hubs designed to resemble brake discs
  • Controllable and adjustable suspension — 4-wheel double wishbone suspension with friction dampers
  • Dust-proof and dirt-proof receiver case keeps the receiver clean and safe
  • Removable and optional cooling duct on motor cover
  • 540 sized brushed motor included
  • Genuine Tamiya Product
Included Items
  • 1x Tamiya 1/10 TT-02 Toyota GR 86 Electric RC Car Kit
  • 1x Tamiya Brushed 540 Sized Motor
Required Items
  • 7.2V NiMH Battery & Compatible Charger
  • 4 x AA Batteries
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2-Channel Transmitter & Receiver
  • Tamiya PS Paint
Specifications
Length
428 mm (16.85 in)
Width
188 mm (7.4 in)
Height
131 mm (5.16 in)
Wheelbase
257 mm (10.12 in)
Tyre Diameter/Width F/R
67 mm (2.64 in)
Chassis
On Road
Drivetrain
4WD
Gears
8.27:1
Suspension
Coil Over Shock Absorbers
Motor
Tamiya 540 Sized Brushed Motor
ESC
Not Included

RC Car
Scale
1/10
Max LiPo Power
3S (11.1v)
Completion
Kit
Skill Level
Beginner
Power Source
Electric
Chassis Type
Car
On/Off Road
On Road
Drivetrain
4WD
RC Kit
Suited Motor/ESC Type
Electric
Factory Specs
Max LiPo Power
3S (11.1v)
Pinion Gear
22T
Spur Gear
70T
Wheel Hex Size
12mm
