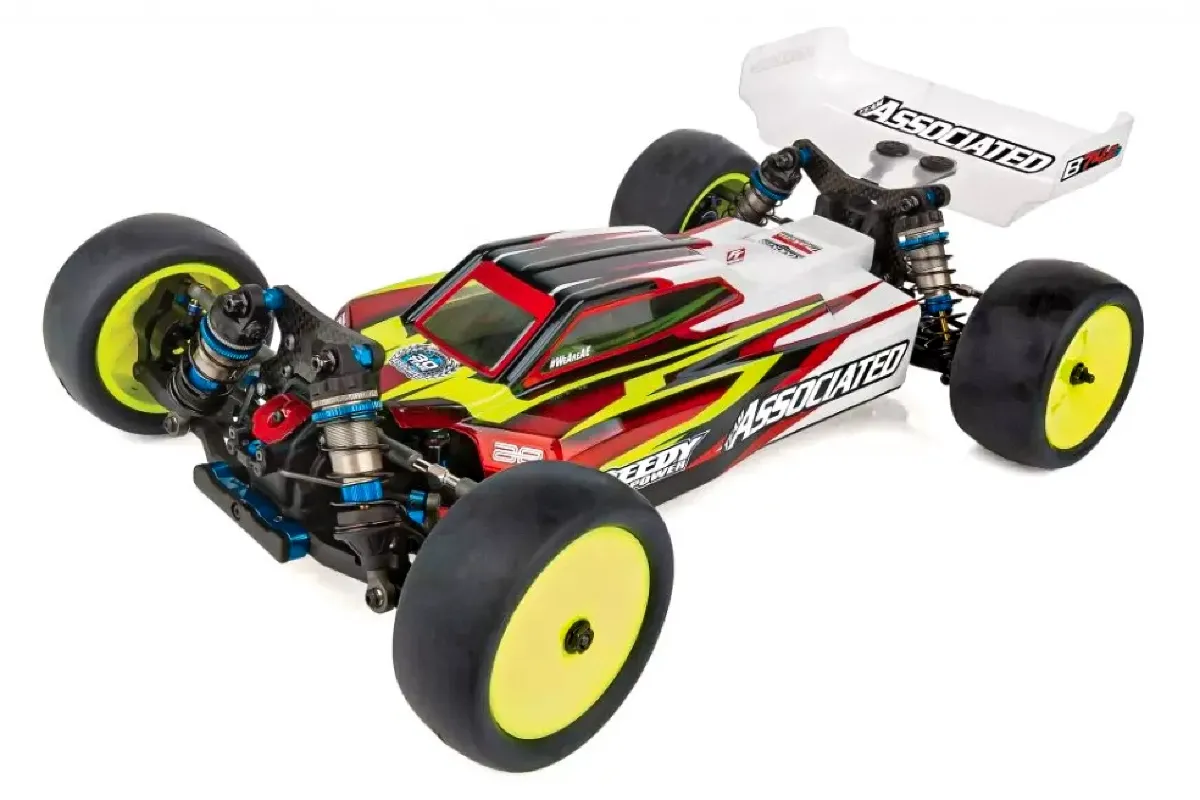

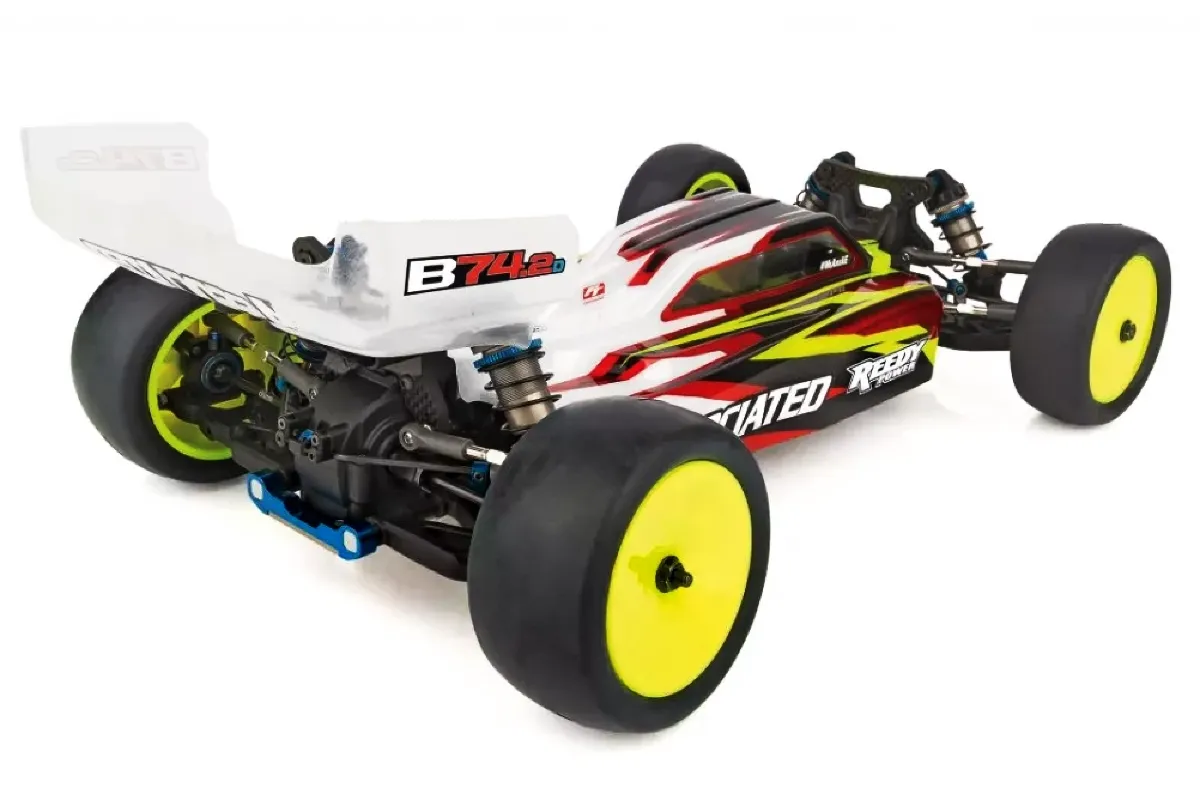

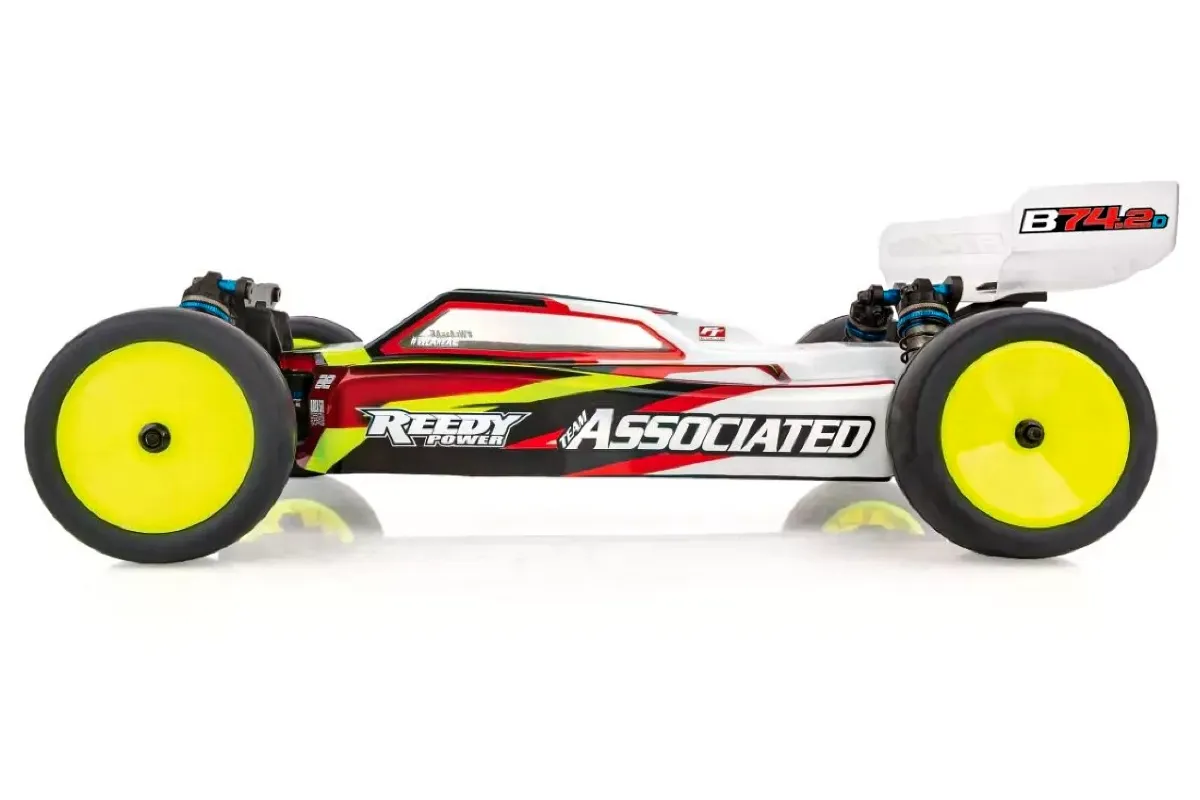

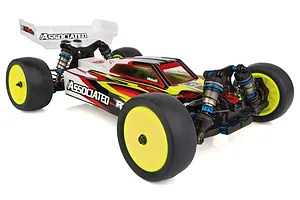

Team Associated RC10B74.2D Team Kit RC Buggy Electric 4WD 1/10 Scale Kit

Team Associated RC10B74.2D Team Kit RC Buggy Electric 4WD 1/10 Scale Kit

Team Associated RC10B74.2D Team Kit RC Buggy Electric 4WD 1/10 Scale Kit

Brand: Team Associated | SKU: 90037
discontinued
This product has been replaced by the product below.
Shop replacement & upgrade parts for this model
Shop Parts
Description

This kit comes without an ESC, Servo, Battery, Charger, Motor, Wheels, Pinion Gear or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.

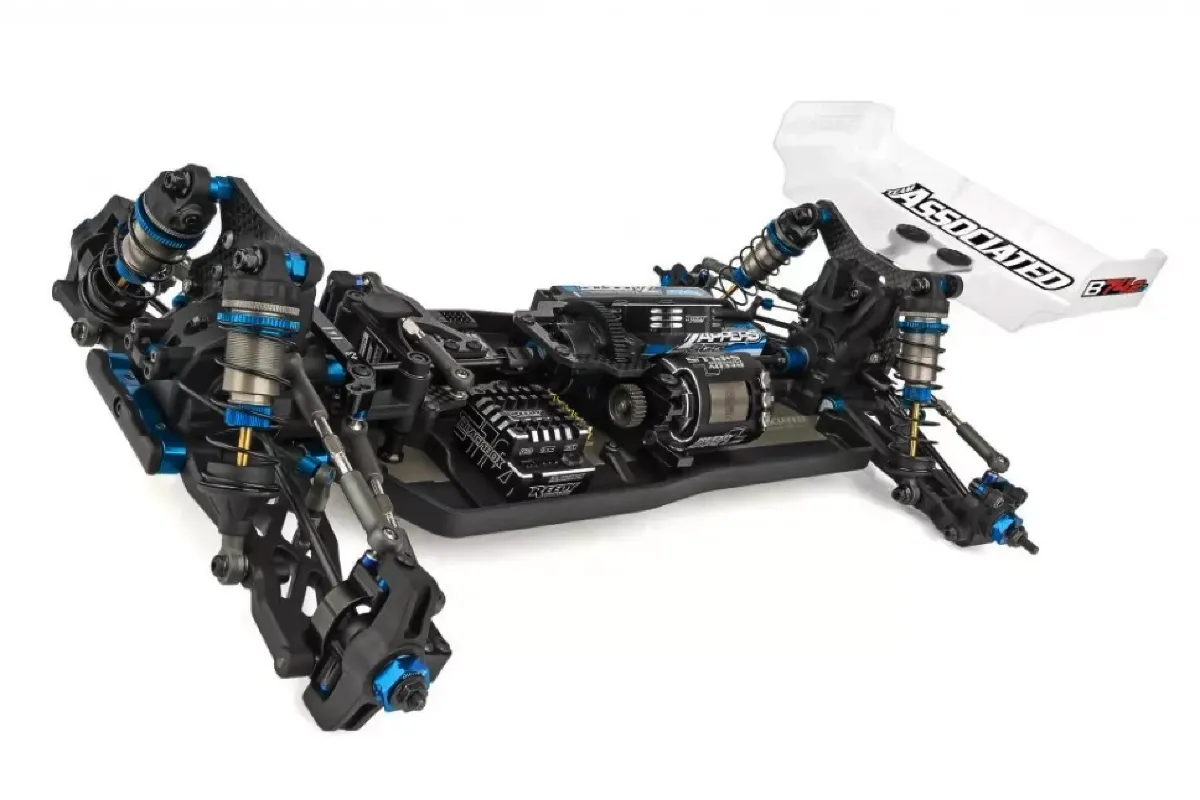

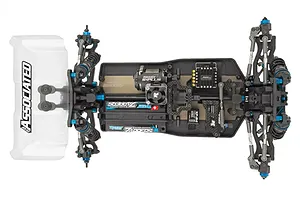

The Team Associated RC10B74.2D Team Kit is a high-performance 4WD buggy designed for experienced racers seeking ultimate control and precision. The inclusion of lightweight moulded gearboxes lowers the centre of gravity, significantly improving stability and cornering speed. The 13mm big-bore threaded aluminium shocks and gull wing front suspension arms ensure exceptional handling across diverse track conditions. The standout feature of the RC10B74.2D is its centre differential, equipped with 72T and 78T spur gears and 200,000 CST silicone diff fluid, offering advanced control and adaptability. This kit is tailored for those who demand the highest level of performance on high-grip surfaces.

This kit emphasises adaptability and fine-tuning, allowing drivers to optimise their setup for peak performance. The updated battery hold-down system, larger turnbuckles, and optimised steering rack contribute to the buggy's overall durability and handling characteristics. The centre bulkhead fan mount ensures efficient motor cooling, crucial for maintaining consistent performance during intense races. Designed for competitive racing, the RC10B74.2D represents the pinnacle of 1:10 scale 4WD buggy technology, providing a platform for drivers to achieve their best results.

Features
  • Lightweight moulded gearboxes front and rear

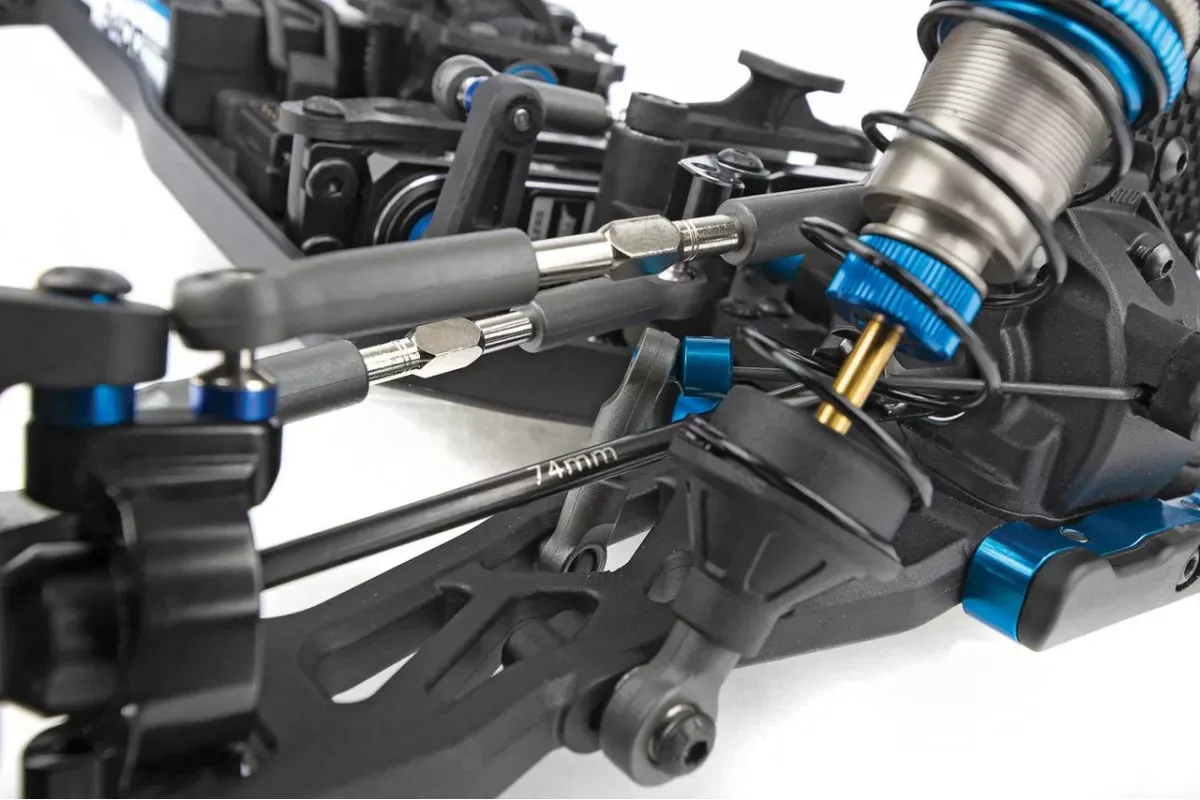

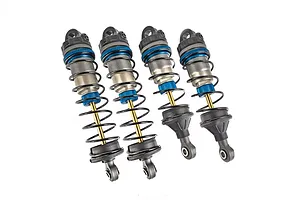

  • 13mm big-bore threaded aluminium shocks and springs

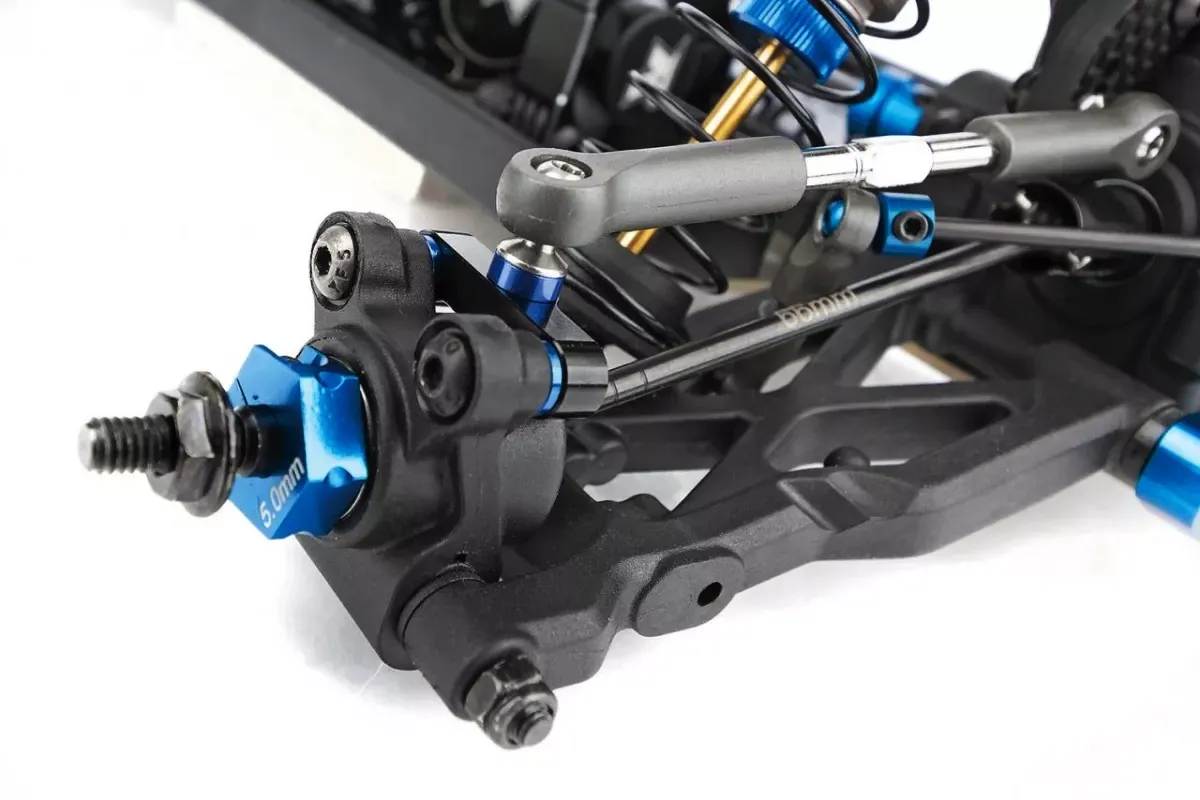

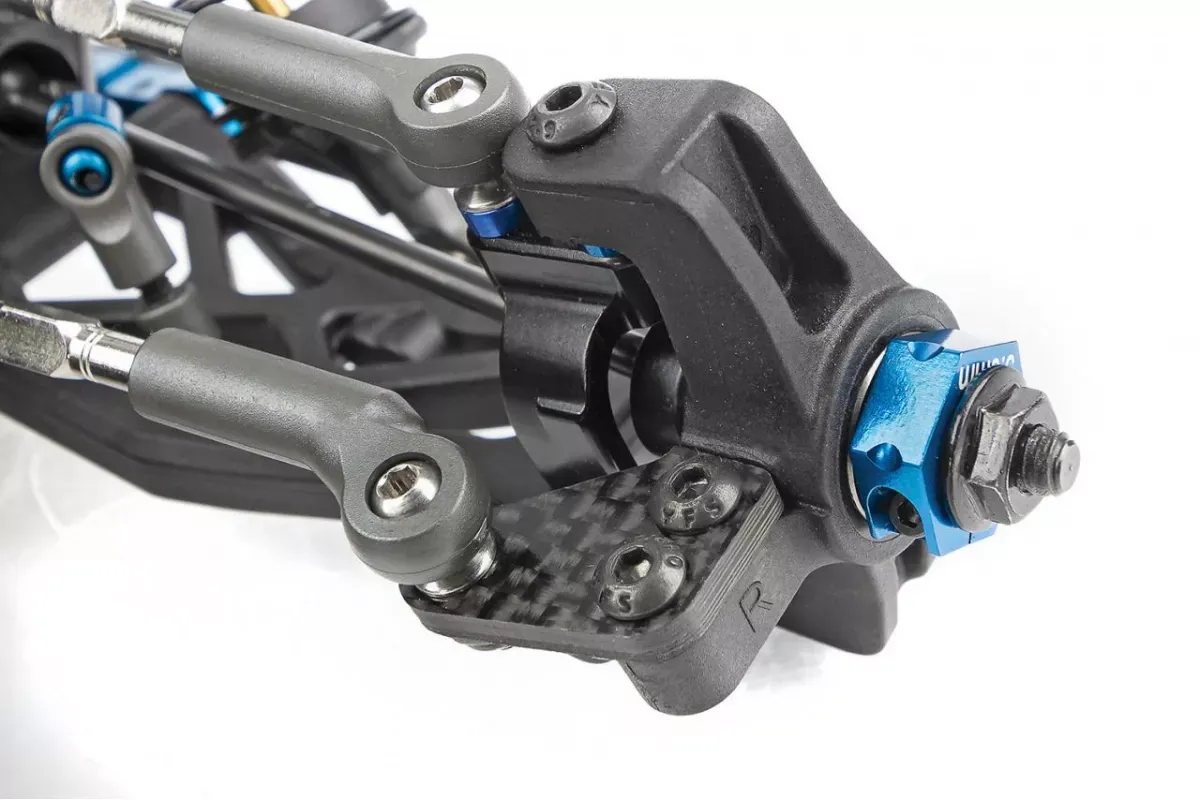

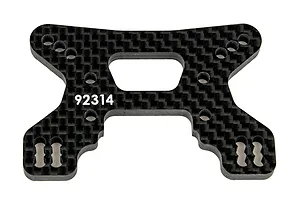

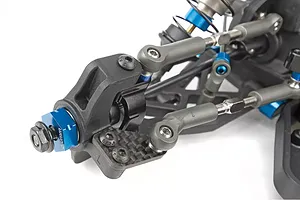

  • Gull wing front suspension arms and mating shock tower

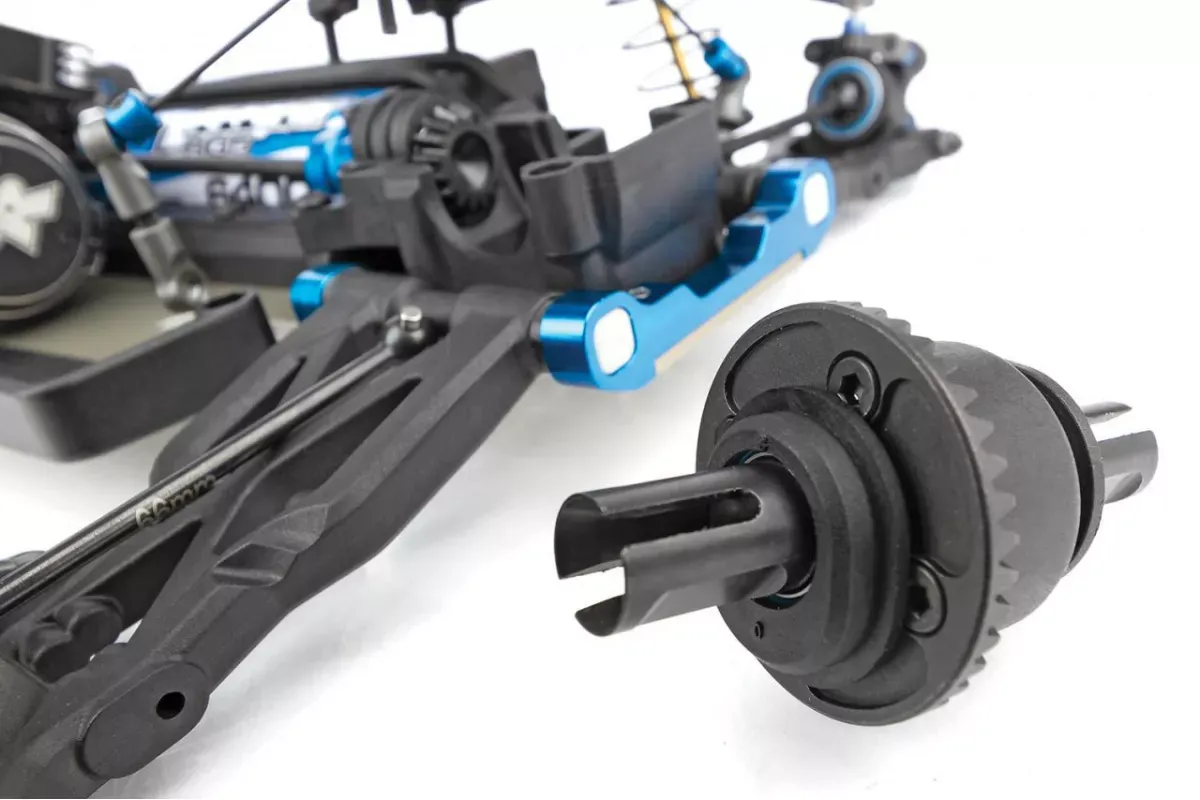

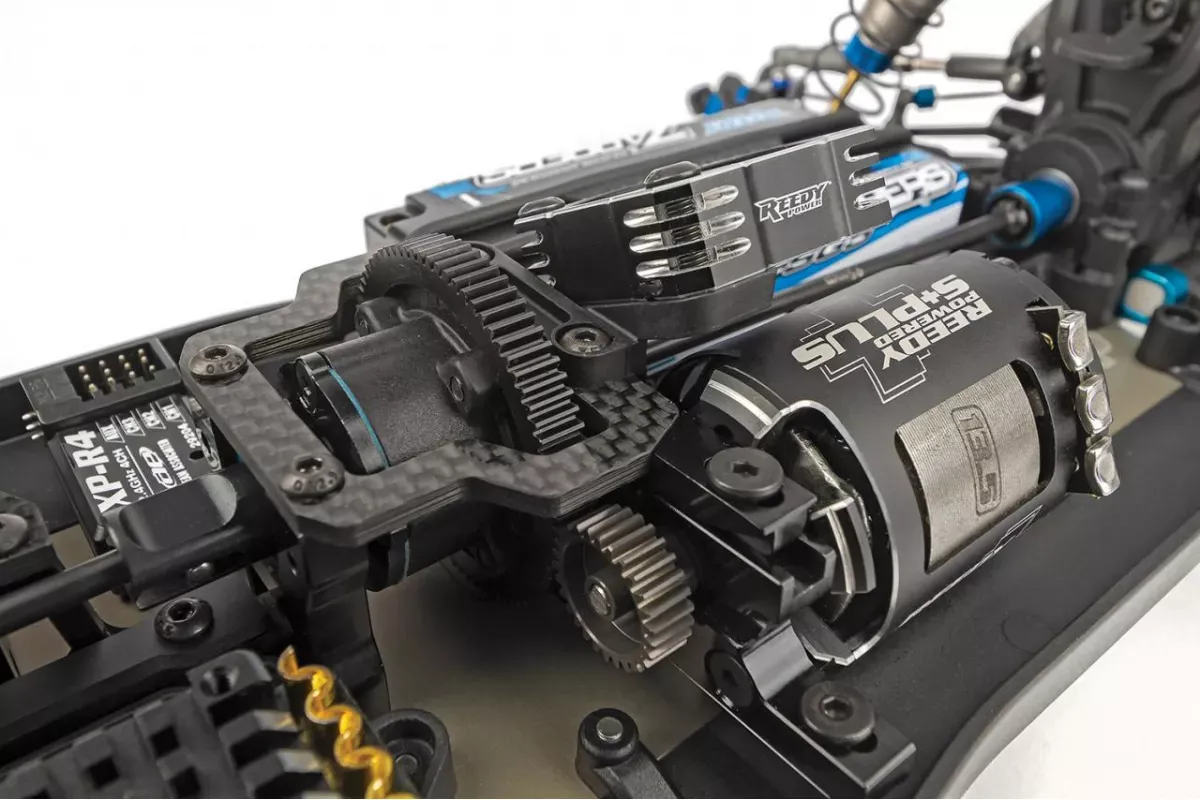

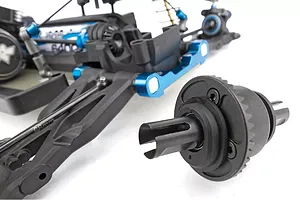

  • Centre differential with 72T/78T spur gears and 200,000 CST silicone fluid

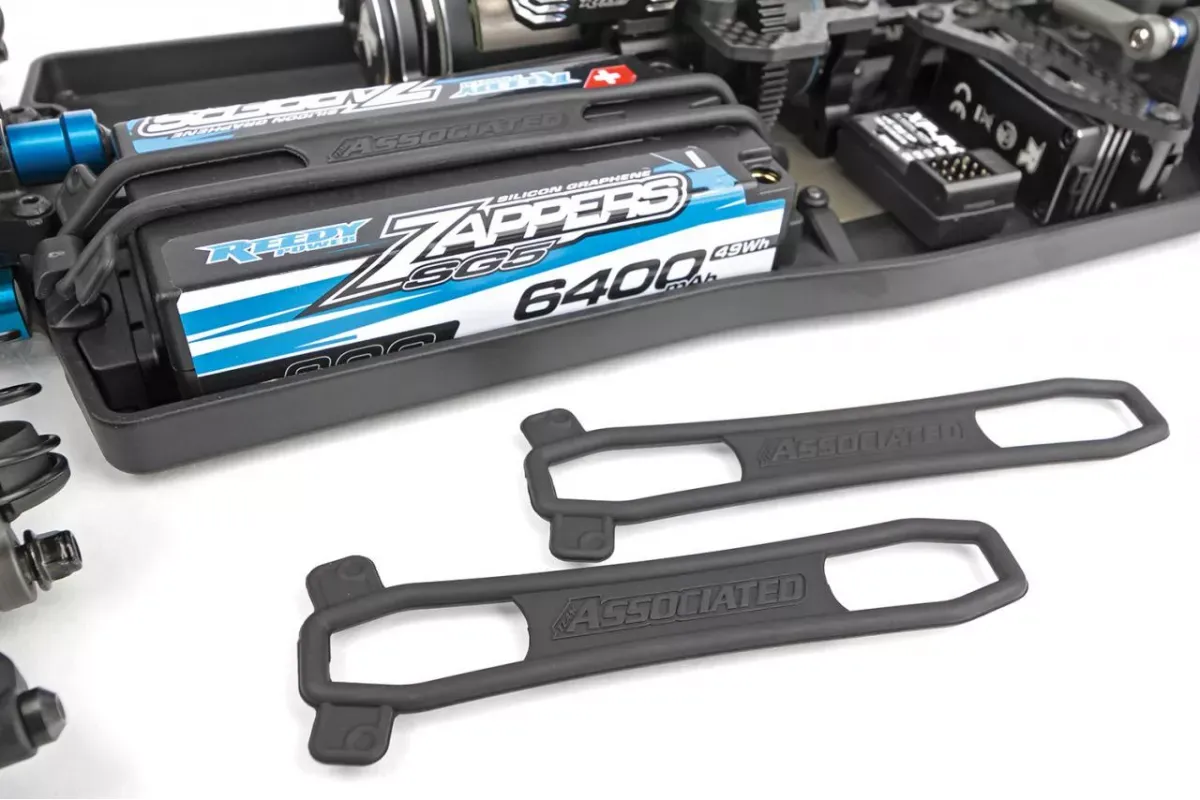

  • New battery hold-down system with adjustable weight bias

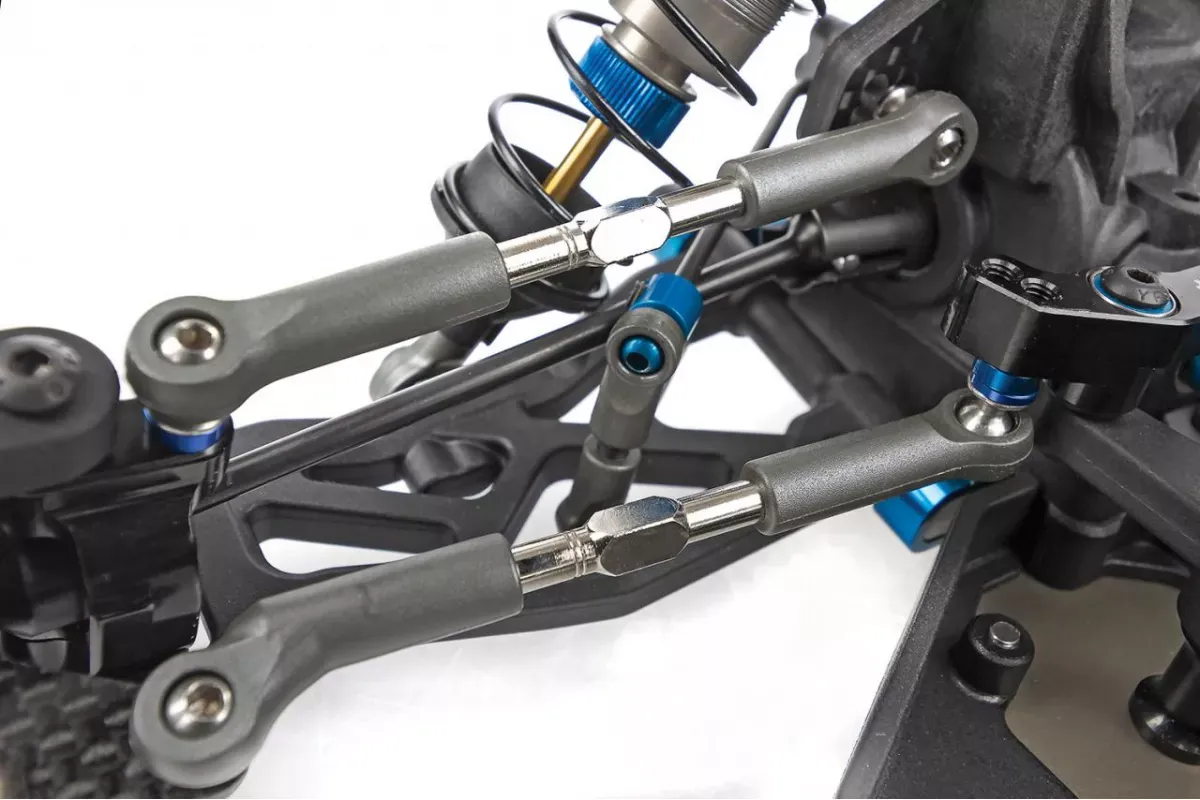

  • Larger 3.5mm turnbuckles with updated rod end ballcups

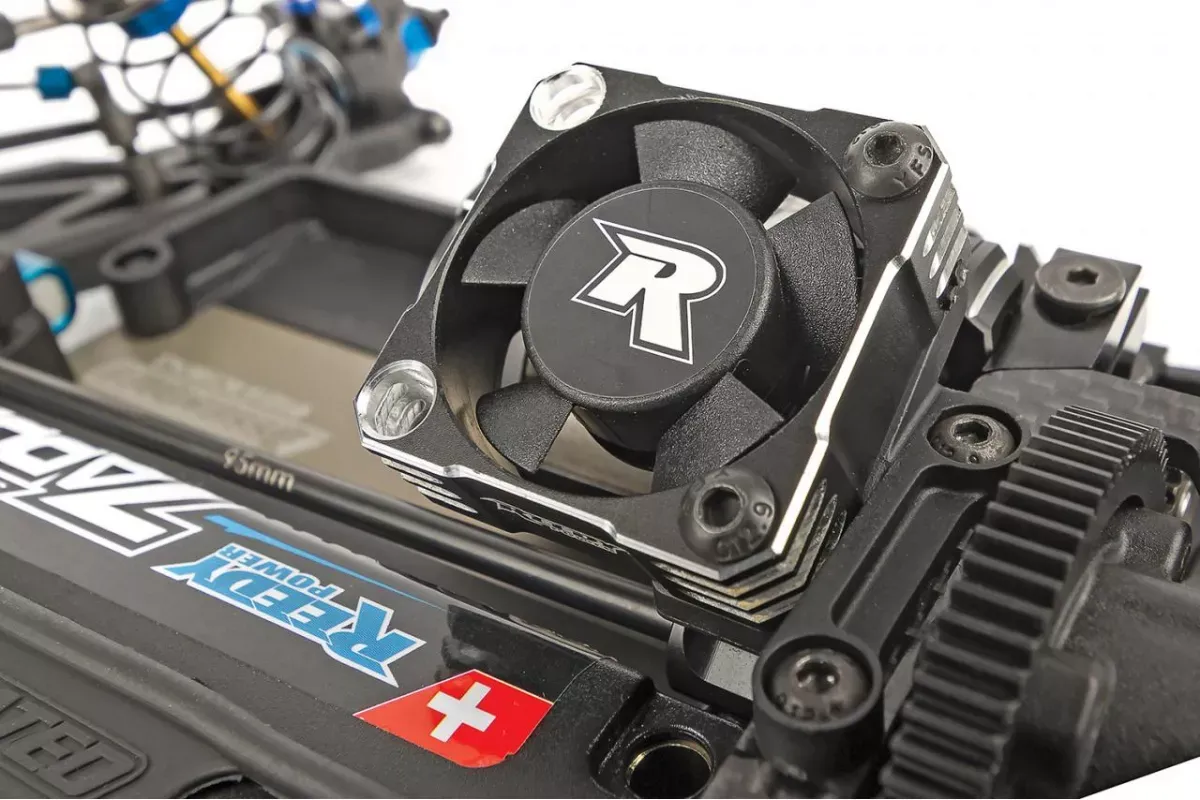

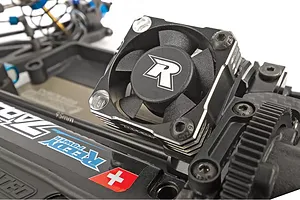

  • New centre bulkhead fan mount

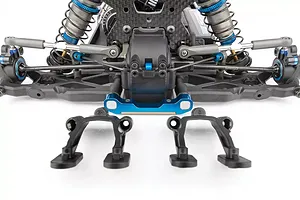

  • -2mm wing mounts for low-profile carpet tyres

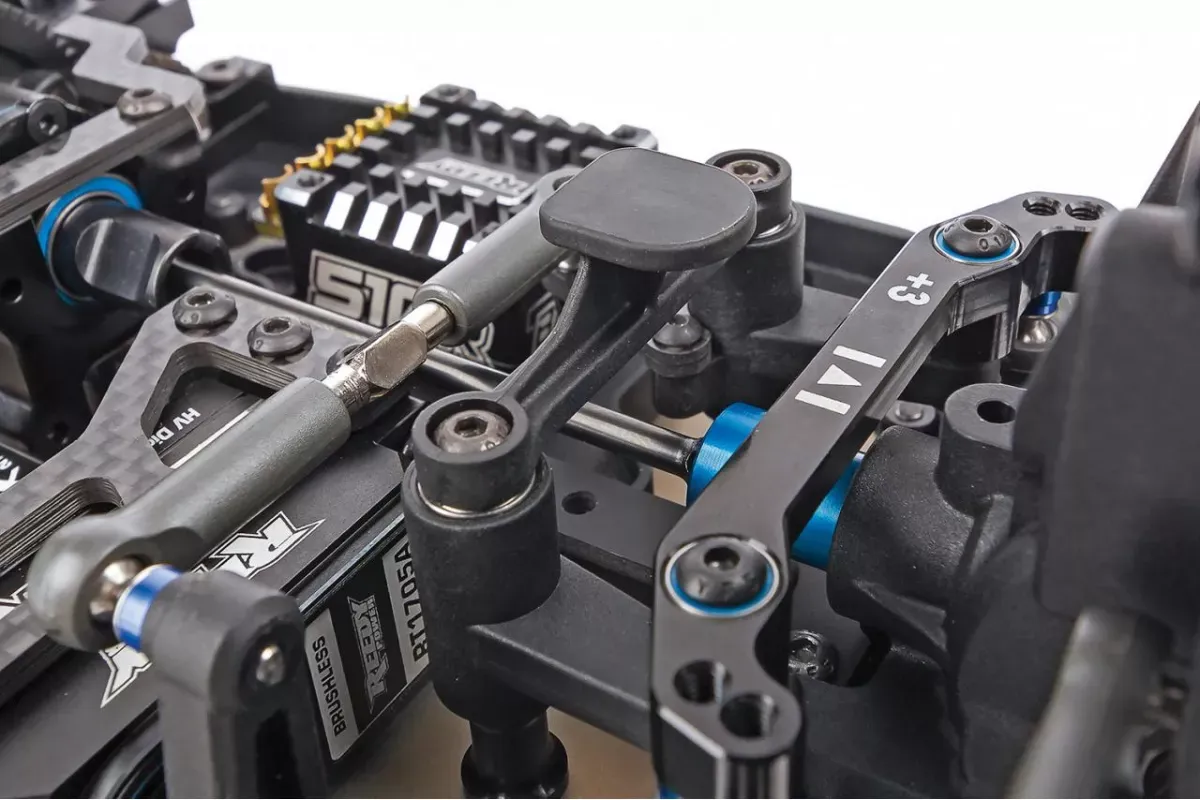

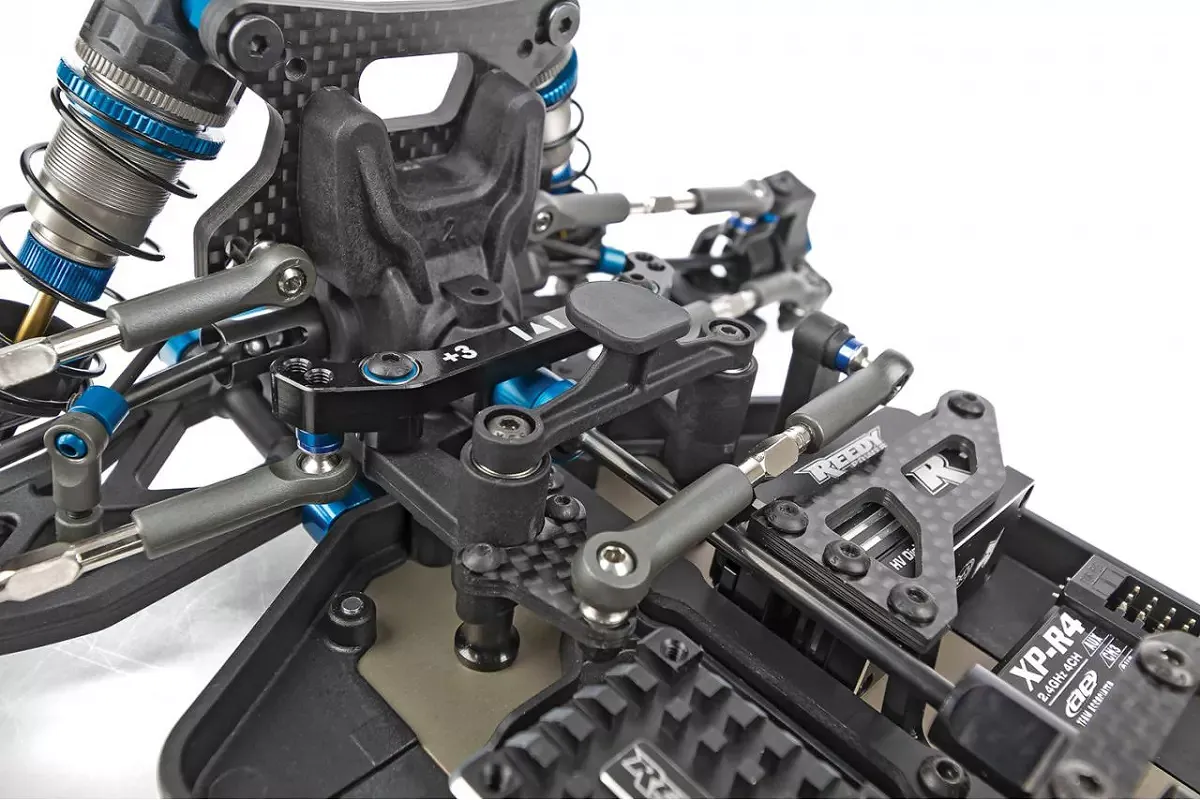

  • +3mm aluminium steering rack
  • 66mm Rear CVA drive shafts and axles
  • Two fixed height front gearboxes
  • One rear gearbox with RC10B6-style inserts
  • Machined shock pistons

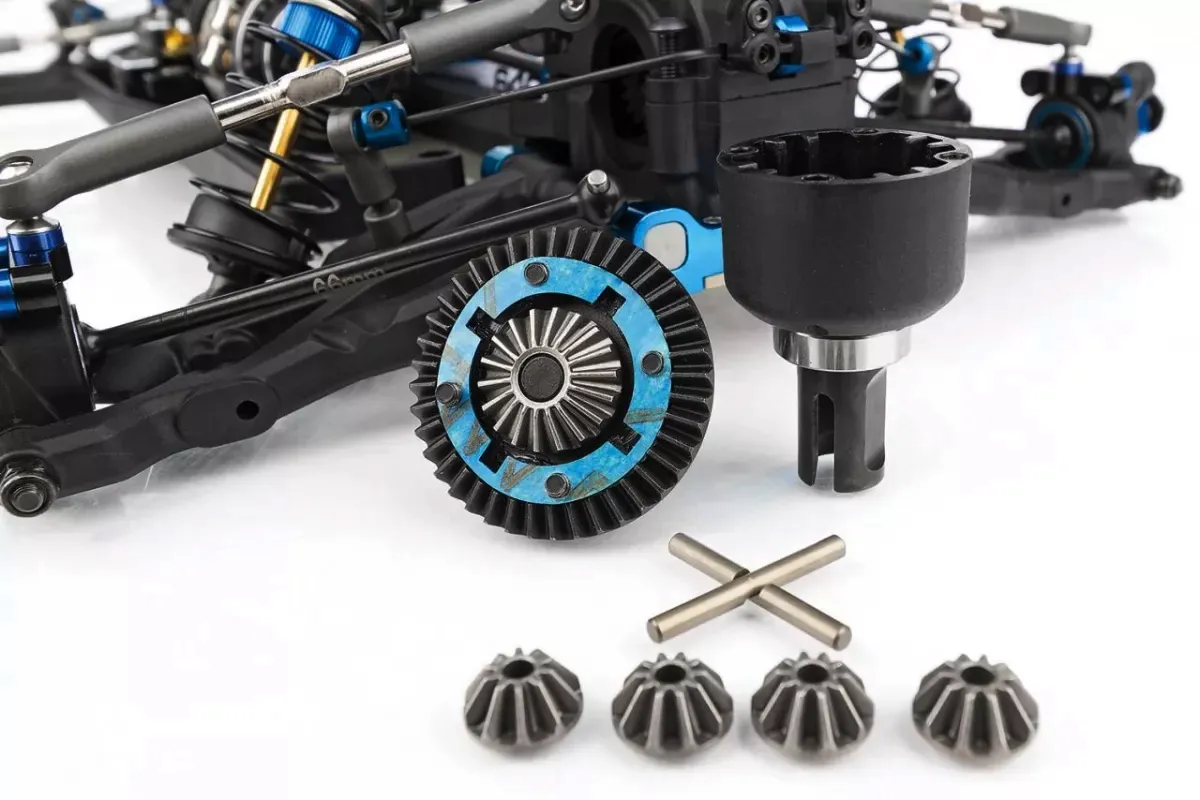

  • LTC differential gear sets included
  • Genuine Team Associated Product
Specifications
  • Power Source: Electric
  • Terrain: Off-Road
  • Body Style: Buggy
  • Scale Size: 1:10 Scale
  • Assembly Level: Kit*
  • Length: 395mm (15.55in)
  • Width: varies
  • Wheelbase: varies
  • Weight: varies
  • Internal Gear Ratio: 2.50:1
  • Drive: 4WD
Included Items
  • 1x Team Associated RC10B74.2D Team Kit RC Buggy Electric 4WD 1/10 Scale Kit
Required Items
  • 1x 1:10 Scale Electric Motor
  • 1x Electronic Speed Control (ESC)
  • 1x 7.4V-7.6V 2S LiPo "Shorty" Battery
  • 1x LiPo Battery Charger
  • 1x 2-Channel Surface Transmitter
  • 1x 2-Channel Receiver
  • 1x Steering Servo
  • 1x Lexan Spray Paint
  • 1x 1:10 Scale Off-Road Wheels and Tyres
  • 4x AA Batteries (for Transmitter)
Note
  • Assembly is required. This is a kit, not a ready-to-run vehicle. Performance depends on the components chosen by the user. Photos may not match the final kit. Consult the manual for detailed setup and maintenance instructions.
Specifications
Factory Specs
Max LiPo Power
2S (7.4v)
Centre Differential Oil
200000cSt
Spur Gear
78T 48dp/0.5Mod, 72T 48dp/0.5Mod
Rear Shock Oil
35w
Wheel Hex Size
12mm
Battery Connector
Front Shock Oil
RC Car
Max LiPo Power
2S (7.4v)
Completion
Kit
Drivetrain
4WD
On/Off Road
Off Road
Chassis Type
Buggy
Skill Level
Intermediate
Scale
1/10
