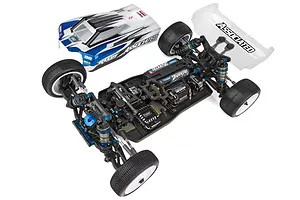

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72456

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72457

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72458

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72459

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72460

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72461

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72462

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72463

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72464

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit image 72465

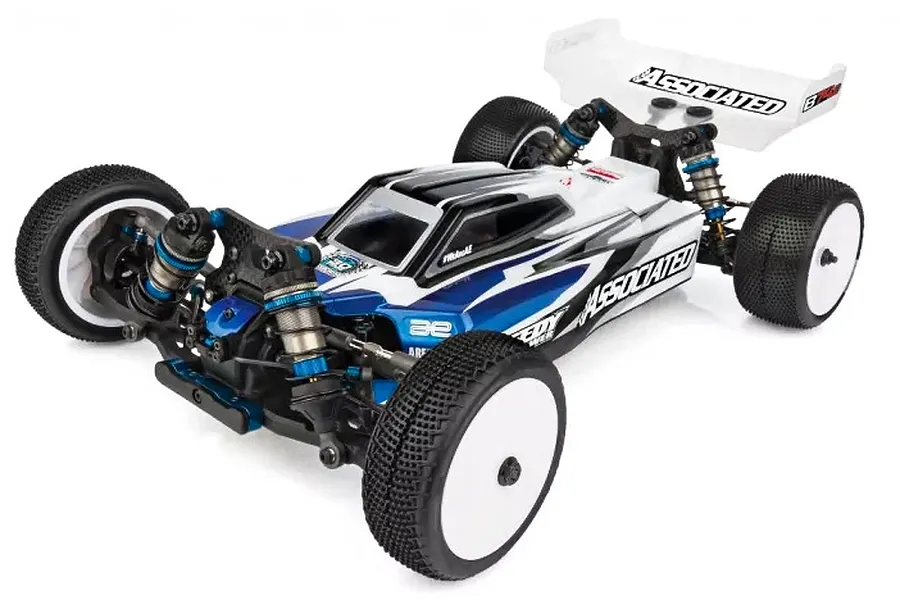

Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit

Brand: Team Associated | SKU: 90036

discontinued

write a review

This product has been replaced by the product below.

Team Associated RC10 B74.2 CE RC Buggy Electric 4WD 1/10 Scale Kit 90044

Team Associated RC10 B74.2 CE RC Buggy Electric 4WD 1/10 Scale Kit

$797.73

sold out

Shop replacement & upgrade parts for this model

Shop Parts

Recommended Products

Power HD Silver Storm S15 Low Profile HV Brushless 16.5kg 8.4v Metal Geared Servo

0 reviews

$180.37

Alternatives

Gens Ace 2S Redline 6000mAh 7.6V 130C Shorty Hard case HV LiPo Battery (5.0mm Bullet)

0 reviews

$134.13

Alternatives

sold out

Hobbywing Justock XR10 G2.1 10.5T Sensored Brushless Motor & 60A ESC Combo

0 reviews

$195.38

View

discontinued

Description

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

The Team Associated RC10B74.2 Team Kit is the result of meticulous engineering aimed at extracting peak performance from a 4WD buggy platform. The introduction of lightweight moulded gearboxes significantly lowers the centre of gravity, enhancing stability and cornering speed. The inclusion of 13mm big-bore threaded aluminium shocks and gull wing front suspension arms ensures exceptional handling across various track conditions. The LTC differential gear sets further refine the driving experience by reducing binding and providing smoother power delivery. The RC10B74.2 is tailored for competitive racers seeking a highly tunable and responsive platform.

This kit emphasises precision and adaptability, allowing drivers to fine-tune their setup for optimal performance on high-grip surfaces. The updated battery hold-down system, larger turnbuckles, and optimised steering rack contribute to the buggy's overall durability and handling characteristics. The inclusion of a centre bulkhead fan mount ensures efficient motor cooling, crucial for maintaining consistent performance during intense races. Designed for experienced racers, the RC10B74.2 represents the pinnacle of 1:10 scale 4WD buggy technology.

Features

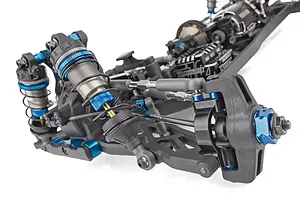

Lightweight moulded gearboxes front and rear

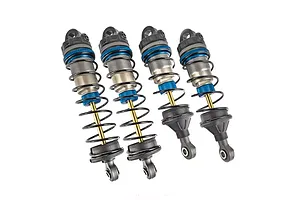

13mm big-bore threaded aluminium shocks and springs

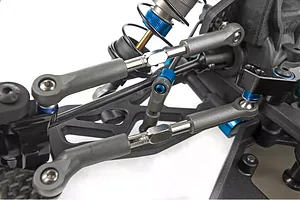

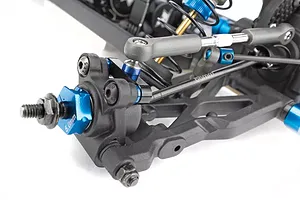

Gull wing front suspension arms and mating shock tower

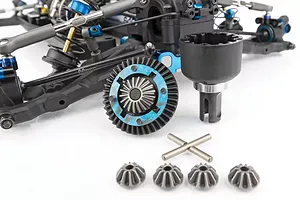

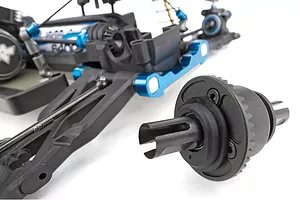

LTC differential gear sets included

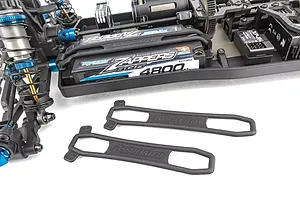

New battery hold-down system with adjustable weight bias
Larger 3.5mm turnbuckles with updated rod end ballcups

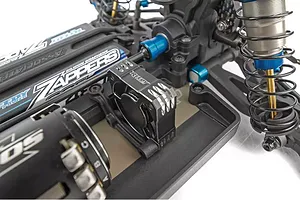

New centre bulkhead fan mount

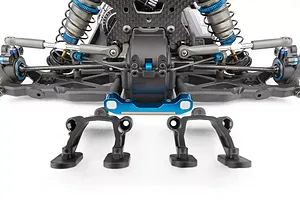

-2mm wing mounts for low-profile carpet tyres

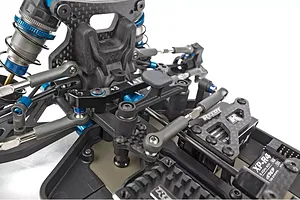

+3mm aluminium steering rack
66mm Rear CVA drive shafts and axles

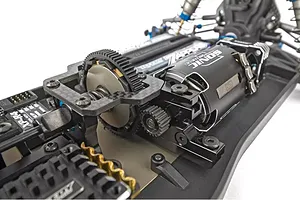

2-pad high-load, high-capacity centre slipper clutch with LCF pad material
Two fixed height front gearboxes
One rear gearbox with RC10B6-style inserts
Machined shock pistons
Genuine Team Associated Product

Specifications

Length: 395mm (15.55in)
Width: Varies
Wheelbase: Varies
Weight: Varies
Chassis: Moulded
Suspension: 13mm Big-Bore Threaded Aluminium Shocks
Drivetrain: 4WD
Motor: N/A
ESC: N/A

Included Items

1x Team Associated RC10B74.2 Team Kit RC Buggy Electric 4WD 1/10 Scale Kit

Required Items

1x 1:10 Scale Electric Motor
1x Electronic Speed Control (ESC)
1x 7.4V-7.6V 2S LiPo "Shorty" Battery
1x LiPo Battery Charger
1x 2-Channel Surface Transmitter
1x 2-Channel Receiver
1x Steering Servo
1x Lexan Spray Paint
1x 1:10 Scale Off-Road Wheels and Tyres
4x AA Batteries (for Transmitter)

Specifications

Factory Specs

Centre Differential Oil: 200000cSt
Spur Gear: 78T 48dp/0.5Mod, 72T 48dp/0.5Mod
Rear Shock Oil: 35w
Wheel Hex Size: 12mm

RC Car

Max LiPo Power: 2S (7.4v)
Completion: Kit
Drivetrain: 4WD
On/Off Road: Off Road
Chassis Type: Buggy
Skill Level: Expert
Scale: 1/10

Parts

Standard

Same as the original part from the manufacturer.

Team Associated 3x10mm Fine Thread Button Head Screws 10Pcs

0 reviews

$13.33

Alternatives

Standard

Same as the original part from the manufacturer.

Team Associated 3x8mm Fine Thread Button Head Screws 10Pcs

0 reviews

$9.27

Alternatives

Standard

Same as the original part from the manufacturer.

Team Associated Wing - Clear

0 reviews

$17.58

Standard

Same as the original part from the manufacturer.

Factory Team 10x15x4mm Rubber Shielded Ball Bearings 4Pcs

0 reviews

$20.38

Alternatives

Standard

Same as the original part from the manufacturer.

Team Associated 3x12mm Fine Thread Button Head Screws 10Pcs

0 reviews

$10.16

Alternatives

Standard

Same as the original part from the manufacturer.

Team Associated 3x8mm Fine Thread Countersunk Head Screws 10Pcs

0 reviews

$14.80

Alternatives

Standard

Same as the original part from the manufacturer.

Team Associated CVD Driveshaft Rebuild Kit

1 review

$15.65

Shop parts

Standard

Same as the original part from the manufacturer.

Team Associated 2.5x6mm Fine Thread Button Head Screws 10Pcs

0 reviews

$9.50

Standard

Same as the original part from the manufacturer.

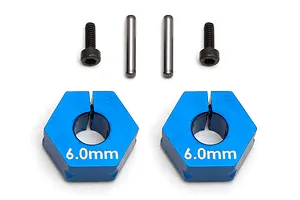

Factory Team Aluminium 12mm Clamping Wheel Hexes 2Pcs - Blue
