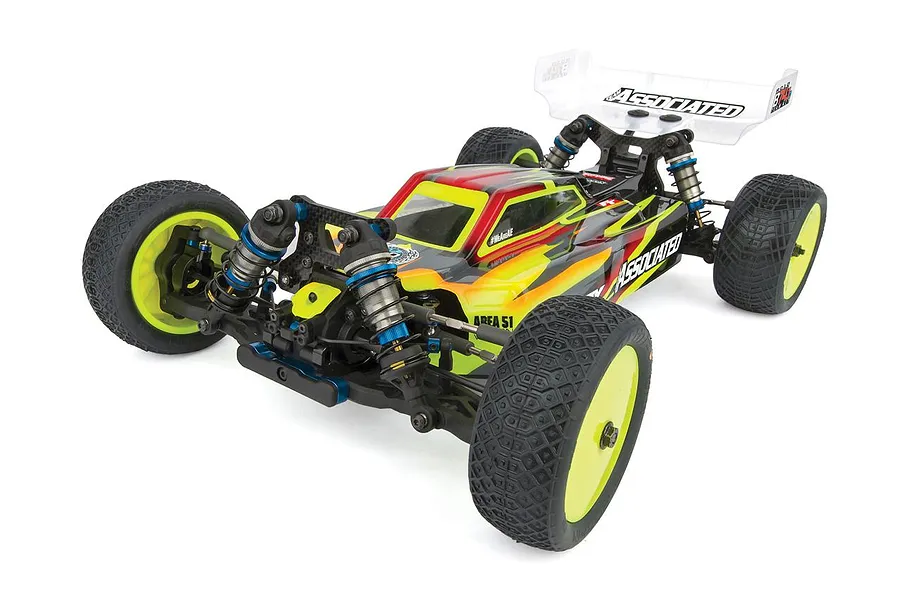

Name: Team Associated RC10B74.1D Team Kit RC Buggy Electric 4WD 1/10 Scale Kit
Brand: Team Associated
SKU: ASS-90028
Price: 769.13 AUD
Availability: Discontinued

Overview

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

The off-road RC car racing scene has changed over the past few years, with turf and carpet racing becoming more popular and grip levels at an all-time high. The engineers inside Team Associated's Area 51 were quick to answer the 4WD class with the RC10B74 Team Kit, a completely new chassis configuration equipped with a long list of features designed to give you the winning edge.

The engineering continues. The B74.1 platform introduces the use of two separate chassis configurations. The B74.1 will be the buggy of choice for high grip carpet or turf track surfaces with its next-generation Octalock 2-Pad high-load, high-capacity, centre slipper clutch and optimised carpet kit setup. The B74.1D is the buggy to choose for clay and dirt track surfaces with an included centre differential with 200,000 CST silicone fluid and an optimised dirt kit setup.

Both kits utilise redesigned, low-profile shock towers with shorter shock shafts and bodies to lower the centre of gravity, providing more predictable handling. Also included in both kits are new low roll centre (LRC) C and D arm mounts, 66mm CVA bones and axles, and 2.0mm G10 fibreglass chassis brace supports. Setups and tuning parts are interchangeable between the B74.1 and B74.1D.

Note

The included body shell comes completely unpainted and may require body post holes to be drilled. Only use a polycarbonate style paint (such as Tamiya PS series); standard paints will not adhere and/or may cause damage to the body shell's surface.

Features

Centre differential with 72T and 78T spur gears and 200,000 cSt silicone fluid
Includes 1.2mm and 1.3mm anti-roll bars front and rear for dirt

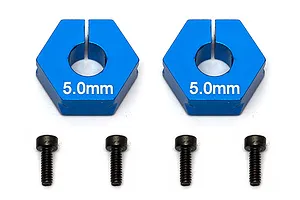

5.0mm rear hex adapters for wide stance with dirt tyres
Updated kit setup with V2 spring package: Yellow front and Blue rear springs
Shorter 23mm front and 27.5mm V2 Big Bore threaded aluminium shocks with 12mm machined pistons and X-rings for lower CG, reduced weight, and improved performance
New 4mm graphite front shock tower lowered by 2mm with an additional row of tuning holes
New 4mm graphite rear shock tower lowered by 5.5mm for maximum stability and predictability
+3mm aluminium steering rack for optimised bump steer at low ride heights
66mm rear CVA driveshafts and axles for more on-power traction and a more predictable driving feel
New moulded ESC tray for quick electronics removal for cleaning
New moulded 30mm fan mount and hardware (fan not included)
Updated aluminium LRC C and D suspension mounts for more rear traction and better cornering balance
Increased flex with 2.0mm G10 chassis brace supports for more predictable rear traction and better bump handling
New simplified design 2.5mm graphite battery strap with indexed battery locations and easy height setup; accommodates both standard and low-profile shorty batteries
New low-profile moulded plastic battery posts included in addition to standard posts
New 16mm differential outdrives with a more durable, lightweight design
Updated rear wing with optional low carpet racing trim line for reduced drag in high traction
Updated symmetric rear arms with new shock mounting position (farther inside) for increased rear traction on dirt
Updated plastic rear hub for more durability on the upper link mount
Updated 2.5mm graphite steering arms for increased durability
Updated plastic steering blocks with 5x12mm outer ball bearing with steel bearing tubes for improved durability
Updated V2 2mm hard-anodised 7075-T6 aluminium chassis with spur gear clearance and updated mount holes for ESC tray
7075-T6 aluminium bulkheads with quick-change 0mm–3mm adjustable differential height
Car design allows use of centre differential or slipper clutch without changing centre driveshafts
Easy access to differentials for worry-free maintenance and adjustment
7075-T6 aluminium arm mounts use inserts for fine tuning anti-squat, kick-up, and toe adjustments
Front and rear anti-roll bars use a common shape for minimal spare part count
7075-T6 aluminium sliding motor mount and centre bulkhead with increased rigidity for more accurate gear mesh
7075-T6 aluminium 9-degree caster blocks
Floating servo mount with 7075-T6 aluminium mount and 2.5mm graphite brace
Lightweight clear body and wing included

In the box

1x RC10B74.1D Team Kit

You'll need

Motor, battery, ESC, servo, receiver, wheels, tyres, fan, and pinion gear
Assembly and painting required

Specifications

Power Source	Electric
Terrain	Off-Road
Body Style	Buggy
Scale Size	1:10 Scale
Assembly Level	Kit
Length	395mm (15.55")
Width	Varies
Wheelbase	Varies
Weight	Varies
Drive	4WD
