XRAY

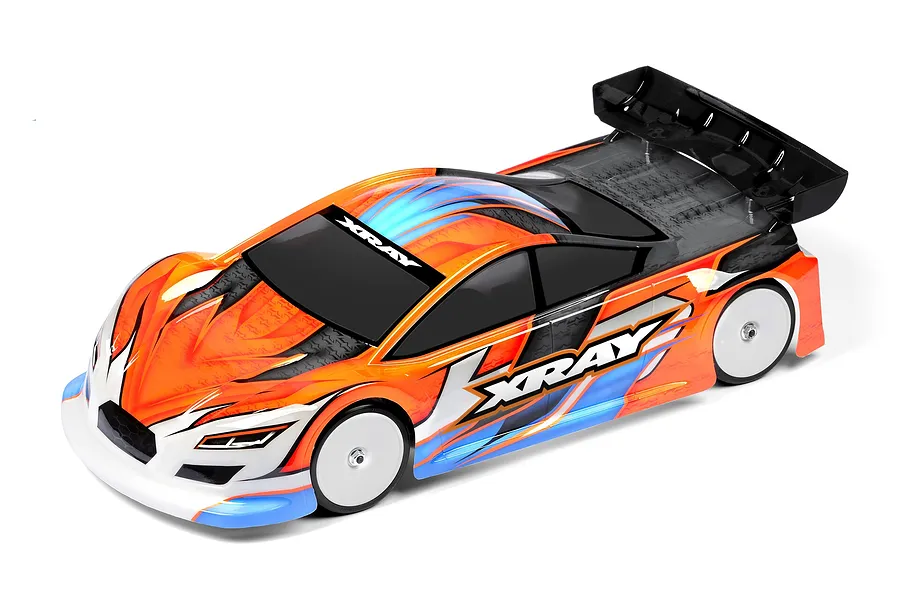

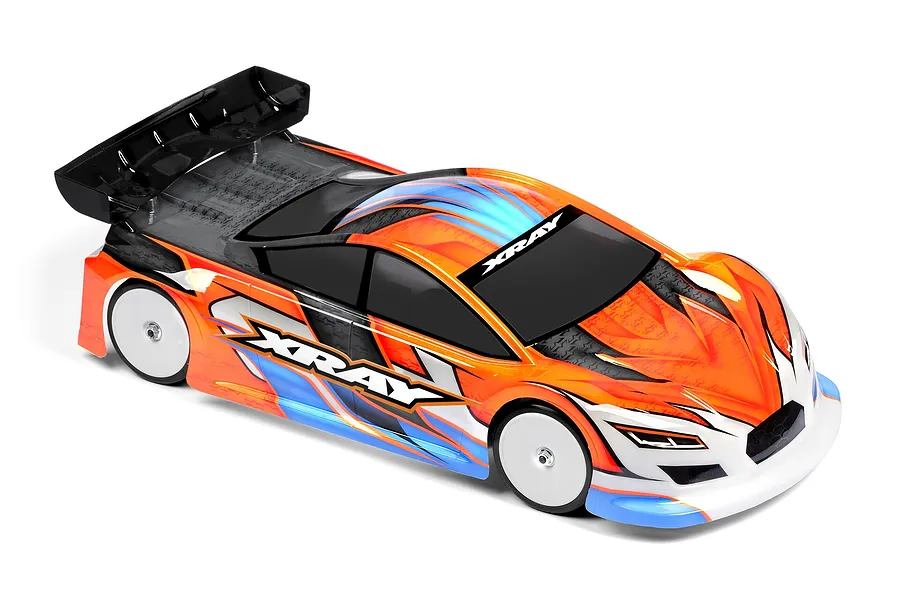

XRAY X4'24 Graphite Edition RC Touring Car Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit

Part no. 300038

DiscontinuedNo reviews yet
1 / 7
1 / 7

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Part Support

Replacement & upgrade parts that fit this model

Spare partsUpgradesAll parts

Overview

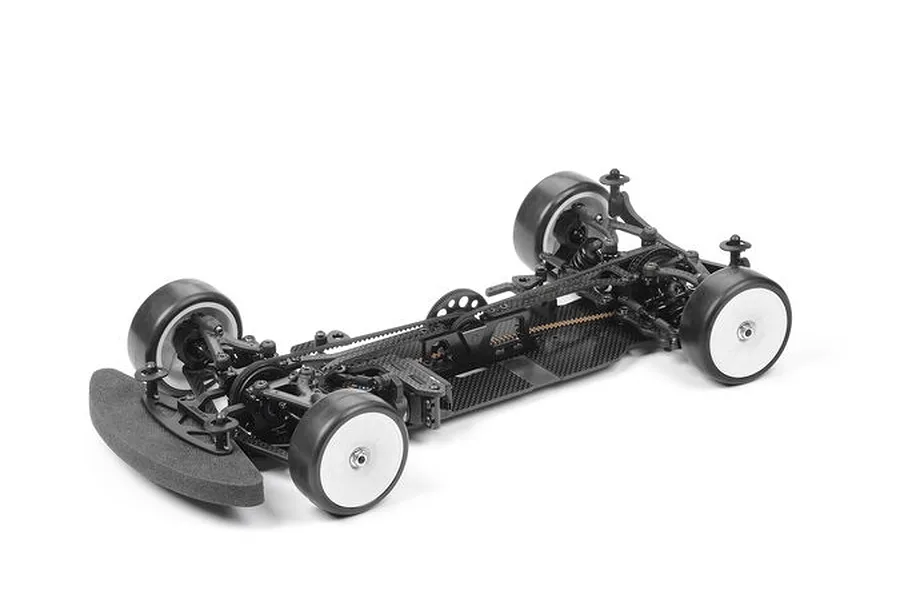

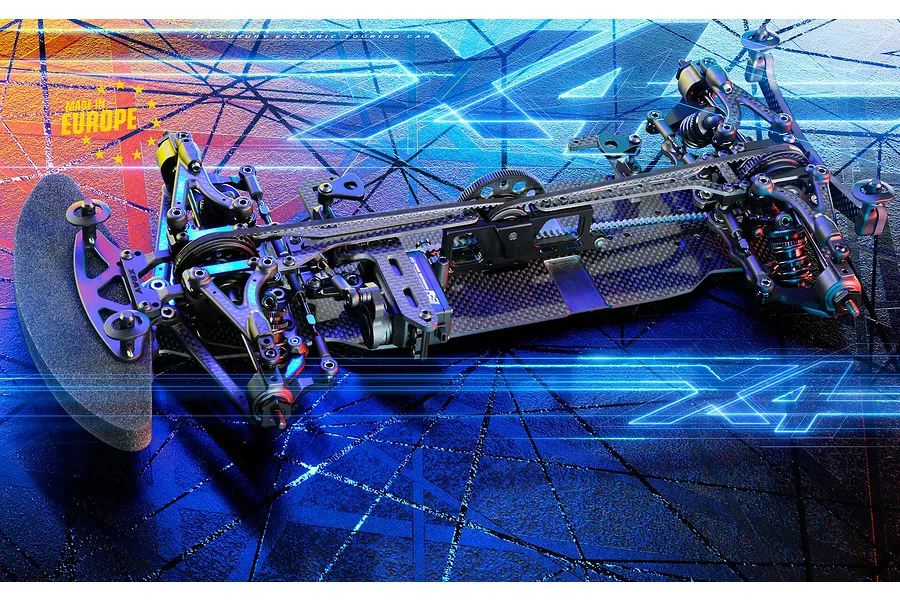

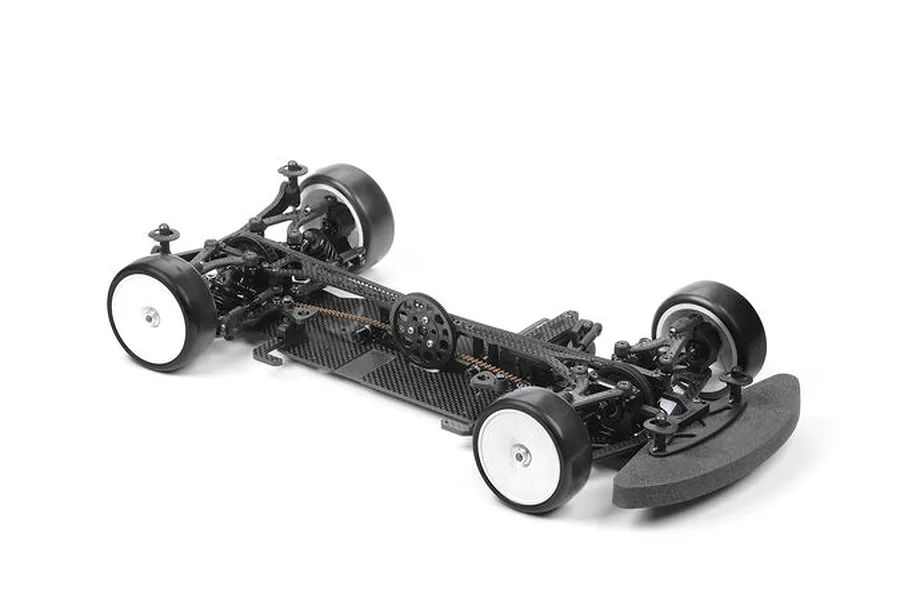

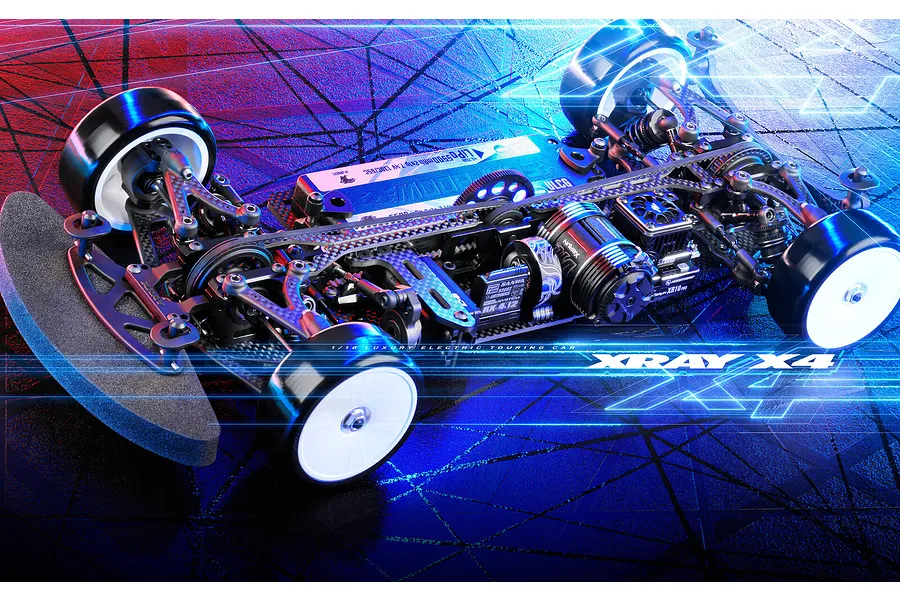

The XRAY X4'24 Graphite Edition is a championship-winning 1/10 scale 4WD electric RC touring car kit. Crafted entirely in-house at XRAY's state-of-the-art facility in Slovakia using premium German and Swiss machinery, this kit represents the pinnacle of precision engineering with extensive worldwide racing success backing its design.

Note

This kit does not include ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell, or Transmitter.

Features

  • New suspension arms with relocated shock positions improve lower arm flex and reduce twist under load
  • Inner shock locations improve weight distribution with shocks closer to vehicle midline
  • Lower arms use under-arm anti-roll bar mounting; shock height reduced by 4.5mm for ultra-low CG
  • Upper arms shaped for clearance around new shock position while maintaining proper suspension geometry and rigidity
  • Front and rear shock holders use shims to adjust shock positions in finer increments
  • Three different shock holder mounting options provide chassis flex alternatives to tune responsiveness and grip
  • Active or fixed rear shock holder configurations provide two dampening alternatives in one mount
  • Simplified shock absorber installation uses fixed set screw to secure threaded shock mount stud
  • Front steering plates with improved Ackerman positions integrate with new arms and shock positions
  • Rear ARS plates move the link forward for improved rotation
  • Improved ESC drive shaft case uses C-clip to secure new aluminium sleeve that captures coupler pins without set screws for improved reliability
  • Narrower chassis design reduces cornering drag
  • Additional material in central motor area enhances durability
  • Increased motor mount clearance for ESC wiring and lower bulkhead anti-roll bar locations

In the box

  • 1x XRAY 1/10 X4'24 Graphite Edition 4WD Electric RC Touring Car Kit

You'll need

  • 7.2V NiMH Battery & Compatible Charger
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2Ch Transmitter & Receiver

Specifications

Scale1/10
TypeElectric 4WD Touring Car Kit
Drivetrain4WD
ChassisCarbon Fibre
MotorNot Included

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelExperienced
Power SourceElectric
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD

Parts

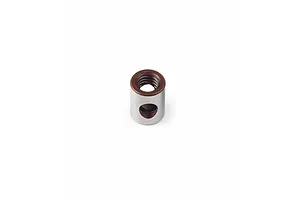

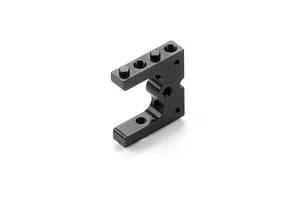

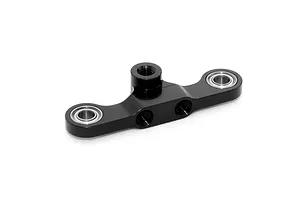

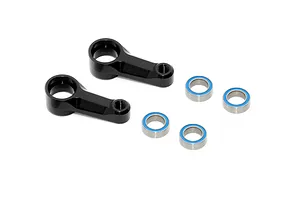

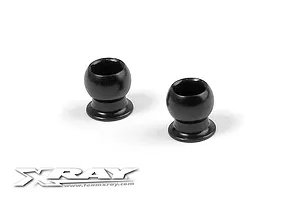

Top parts for this XRAY X4'24 Graphite Edition RC Touring Car Electric 4WD 1/10 Scale Kit
