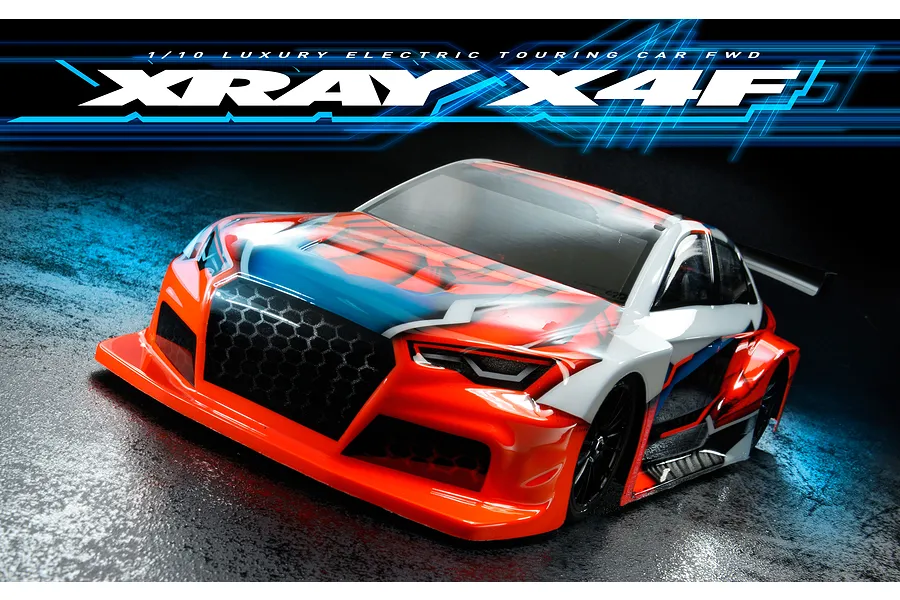

XRAY X4F Graphite Edition RC Touring Car Electric FWD 1/10 Scale Kit
XRAY X4F Graphite Edition RC Touring Car Electric FWD 1/10 Scale Kit
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$132.25
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$220.24
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$157.66
2023 All-new Features.
Brand new 1/10 Front Wheel Drive on-road graphite edition luxury touring car.
- Next generation X4F front wheel touring car moves to the X4 platform with advanced upper/lower arm suspension mounted to a new mid-motor chassis layout for improved balance and handling
- Unique CFF™ - Carbon Fiber Fusion upper and lower suspension arms for outstanding handling & durability
- All suspension components mount directly to the CFF™ arms without any additional brackets, inserts or bushings for accuracy and reliability
- ARS suspension with highly adjustable geometry settings including roll center, caster and an active toe adjustment
- Precision Hudy Spring Steel™ pivot balls in all suspension pivots for smooth suspension movement
- All-new hubs are universal front and rear to reduce the number of spares for easier maintenance
- New anti-roll bar shapes match the updated mounting points on the CFF™ suspension arms
- All-new aluminum shock towers with multiple shock mounting positions for maximum adjustability
- All-new upper bulkheads with caster inserts for quick setup changes feature centering pins for precise installation and improved reliability
- Lower bulkheads updated with raised diff height option for improved cornering speed
- Bulkheads and motor mount feature centering pins for easy assembly and consistent geometry setting
- All-new super-strong one-piece motor mount for better reliability and has special countersunk holes for purpose-made tweak-free top deck screws
- Motor mount with top access to the motor for easier gear mesh adjustment
- Perfectly symmetrical chassis designed to work with the all-new CFF™ suspensions, motor mount and bulkheads
- All-new top deck with a narrow shape for easier installation & improved handling
- Various Multi-Flex settings out of the box
- Rear body mounting system is connected directly to the chassis for improved downforce and traction
- Adjustable front body up-stop system incorporated into the front upper arm allows for lower front body positioning to improve high speed steering & stability
- Updated gear diff for the centered belt position that improves consistency & forward traction
- Redesigned aluminum layshaft is secured by a new battery backstop washer
- New super narrow, lightweight & perfectly balanced wheel hubs
- New longer driveshafts for better stability and drivetrain efficiency
- Improved steering system with a more efficient geometry and lower height for reduced play and more consistency & adjustability
- All-new aluminum steering arms included in the kit with improved geometry
- All-new steering bridge with adjustable steering backstop to control steering angle
- Electronic layout moves the servo to the battery side for better weight balance when using a low-profile shorty battery
- Motor moved forward to place more mass over the front axles for improved balance for the FWD class
- All-new 100g weight in the front bumper for optimized weight balance out of the box
- All-new foam bumper from stronger material for improved durability and weight balance
| Description | QTY |
|---|---|
| 1/10 X4F Car Kit | 1 |
Kit does NOT include tyres, body, or any electrics
- 7.4V LiPo Battery & Compatible Charger
- Standard Sized Servo
- Electronic Speed Controller (ESC)
- 2Ch Transmitter & Receiver
Manual
-
Front Shock Oil
-
Max LiPo Power
-
Battery Connector
-
Completion
- Kit
-
Drivetrain
- FWD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- On Road
-
Chassis Type
- Car
-
Power Source
- Electric Brushless
-
Skill Level
- Expert
-
Scale
- 1/10
