Kyosho Mini-Z Toyota 4Runner Hilux Surf 4x4 RC Rock Crawler Electric 4WD RTR - Dark Grey Metallic

  • 4WD
  • RTR
  • Brushed

Part no. 32540GM

Sold outNo reviews yet
1 / 8
1 / 8

Videos

$378.93

or 4 fortnightly payments of $94.73 with afterpay or PayPal, or zip

Kyosho Mini-Z 4x4 Toyota 4Runner RC Rock Crawler: A highly detailed scale crawler with exceptional performance and realistic features.

  • 3.3-6.6km/h (2.1-4.1mph) Top Speed
  • Over 60 minutes run time with only 8x AAA batteries
  • Highly detailed Body with Scale Roof Rack, LED-capable roof lights, and snorkel
  • 3-link rigid axle suspension and high-torque steering servo for maximum articulation
  • Perfect for both beginners and experienced RC enthusiasts

Videos

Overview

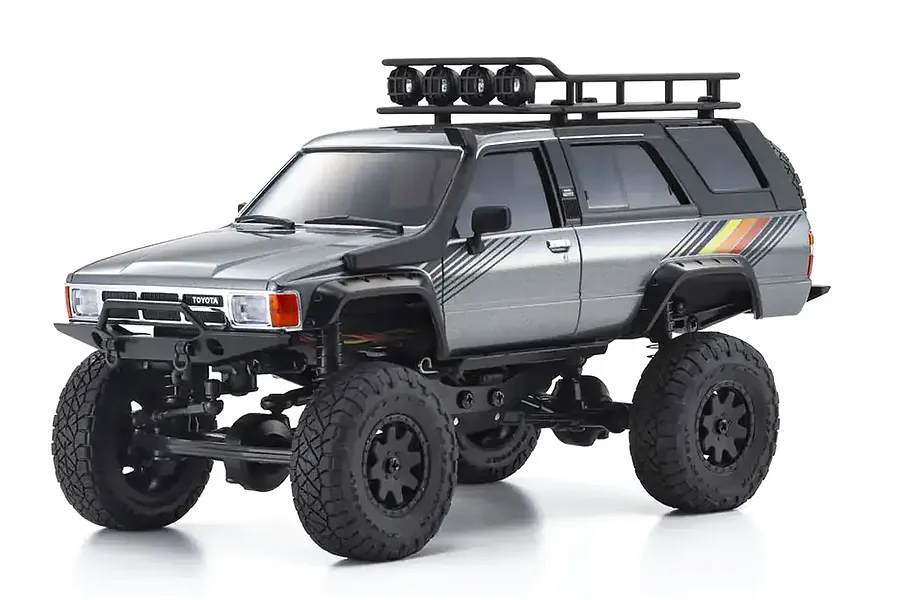

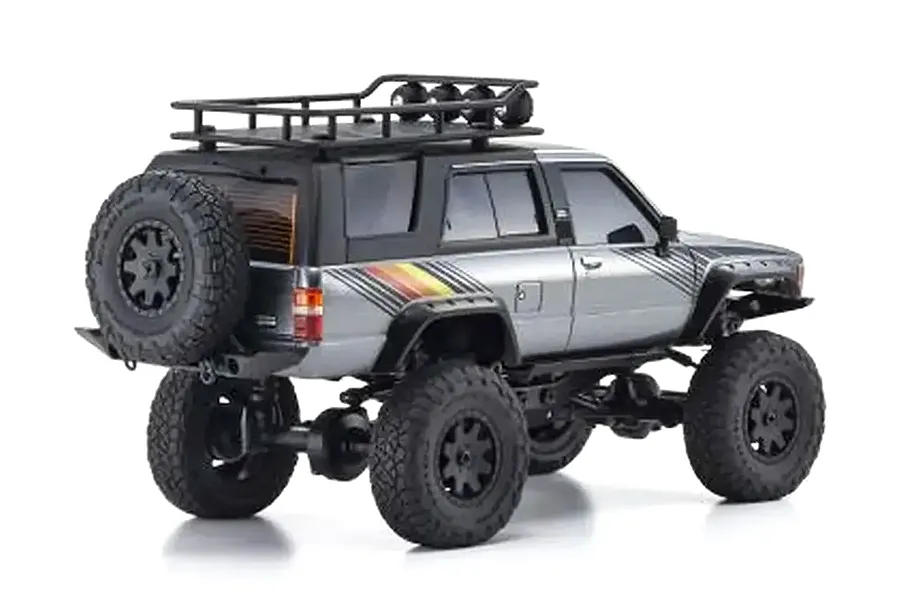

The Kyosho Mini-Z 4x4 Toyota 4Runner is a meticulously crafted scale RC crawler that sets a new standard for mini off-roaders. Combining exceptional detail with outstanding performance, this ready-to-run crawler is perfect for tackling challenging terrain. The highly detailed body features a scale roof rack, LED-capable roof lights, and a snorkel, adding to the realism and visual appeal.

Built on a robust MX-01 chassis, the Mini-Z 4x4 boasts a 3-link rigid axle suspension and a high-torque steering servo, allowing for impressive articulation and manoeuvrability. The 130-size motor provides ample power for conquering obstacles, while the adjustable gear ratio allows you to fine-tune the performance to your liking. With its user-friendly design and impressive capabilities, the Kyosho Mini-Z 4x4 Toyota 4Runner is an excellent choice for both novice and experienced RC enthusiasts.

Note

Refer to the vehicle's manual for the manufacturer's waterproof specifications and guidelines.

Features

  • Mini-Z scale ready-to-run electric 4WD rock crawler
  • Highly detailed injection-moulded Toyota 4Runner body
  • Scale roof rack, LED-capable roof lights, and snorkel
  • Durable MX-01 chassis with ladder frame design
  • 3-link rigid axle suspension for maximum articulation
  • High-torque steering servo for precise control
  • Powerful 130-size motor for excellent climbing ability
  • Adjustable gear ratio (55.44:1 to 27.72:1)
  • Slipper clutch protects the drivetrain from shocks
  • Coil-over shocks with 360-degree spring retainers
  • Solid front and rear axles with metal ring and pinion gears
  • Interco Super Swamper "Bigger" LTB tyres for superior grip

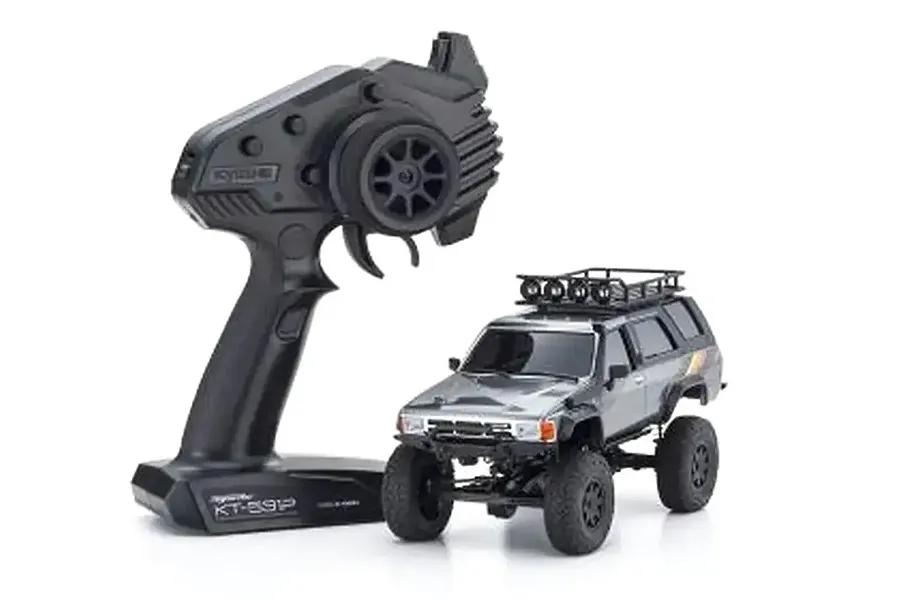

  • 2.4GHz KT-531P transmitter for reliable control
  • Genuine Kyosho Product

In the box

  • 1x Kyosho Mini-Z 4x4 Toyota 4Runner
  • 1x KT-531P 2.4GHz Transmitter
  • 1x Pinion Gear Set (10T, 12T, 14T, 16T, 18T, 20T)
  • 1x Pinion Gear Spacer Set
  • 1x Instruction Manual

You'll need

  • 8x AAA Batteries for Vehicle and Transmitter

Highlights

LED Capable Roof Rack Lights

LED Capable Roof Rack Lights

The scale detail includes a roof-mounted rack with LED-capable roof lights (sold separately), adding an extra layer of authenticity to your off-road adventures.

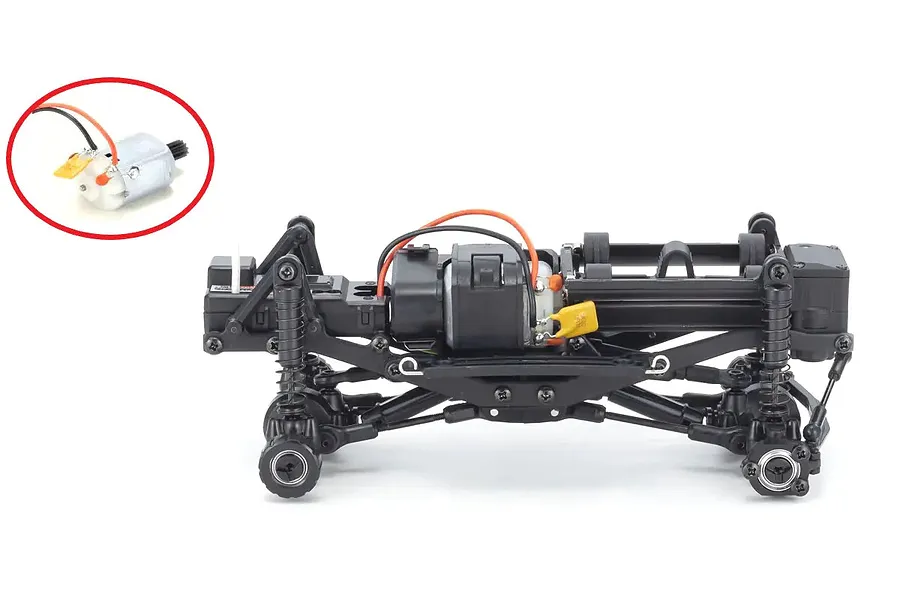

130 Size High Torque Motor

130 Size High Torque Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.

Adjustable Wheelbase

Adjustable Wheelbase

Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.

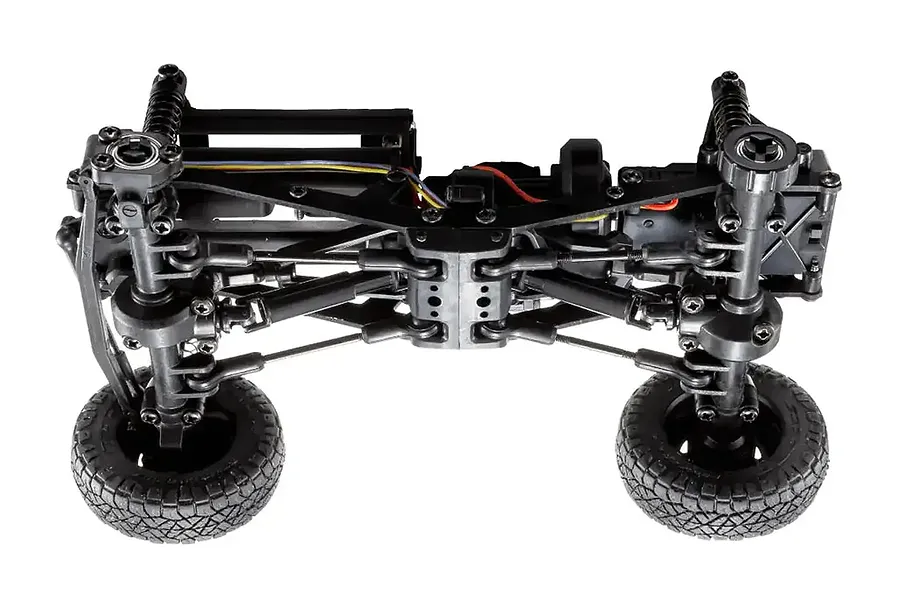

Ladder Rail Chassis

Ladder Rail Chassis

The Mini-Z 4x4 employs a ladder frame design featuring sturdy steel vertical plates, striking the perfect balance between rigidity and flexibility. This design enhances overall performance and ensures exceptional durability for unrivalled crawling performance.

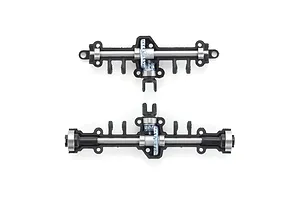

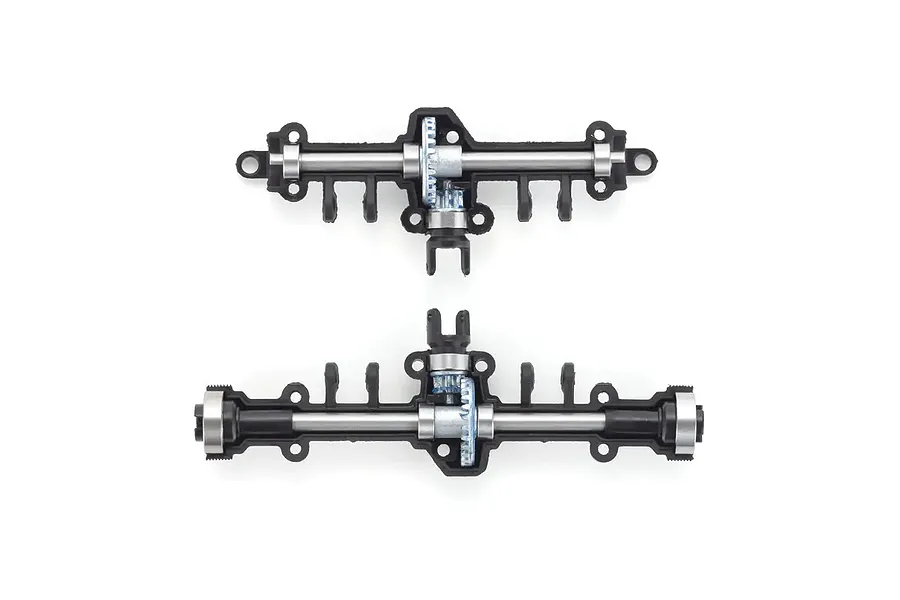

Solid Axles

Solid Axles

The solid front and rear axles feature durable steel links and captured rod ends for maximum strength. Metal ring and pinion gears, along with other key drivetrain components, ensure exceptional durability under heavy loads and the toughest driving conditions.

Tunable Gearbox for Optimal Performance

Tunable Gearbox for Optimal Performance

The Mini-Z 4x4 gearbox features moulded covers for a clean look and houses smooth-spinning ball bearings for efficient operation. Six included pinion gears provide a wide range of gear ratio options, allowing you to fine-tune your setup for different terrains and driving styles. Easily adjust the gear mesh with the provided spacers for optimal performance.

Secure & Reliable Coil-Over Shocks

Secure & Reliable Coil-Over Shocks

Experience smooth and consistent performance with coil-over shocks that feature a 360-degree spring retainer. This innovative design ensures the springs stay securely in place, even during extreme articulation and challenging off-road driving. No more worries about losing parts on the trail, just reliable suspension performance every time.

Steel Link & Ball End

Steel Link & Ball End

Experience exceptional strength and smooth articulation with Kyosho's suspension system. The upper A-arms and lower links connecting the axles to the chassis feature robust steel links and captured ball ends. This design ensures maximum range of motion and reliable performance even in challenging terrain.

Metal Drivetrain

Metal Drivetrain

The Mini-Z 4x4 chassis features tough solid axles with metal ring and pinion gears for exceptional durability and consistent performance. This robust drivetrain ensures reliable power transfer and long-lasting operation, even under challenging conditions.

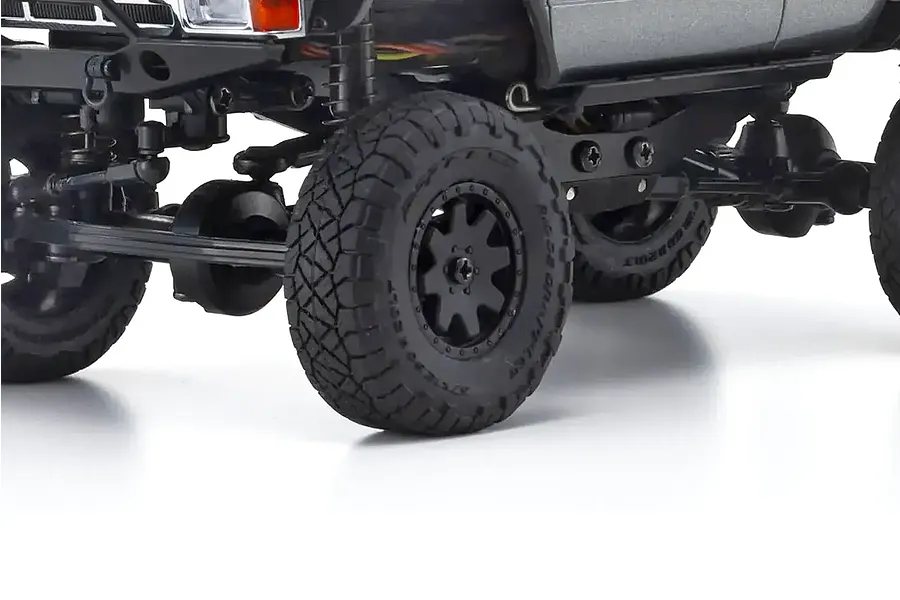

Scale Wheels

Scale Wheels

Tyres and wheels that are specific to each model are a major focus of the Mini-Z 4x4. This model features a scale reproduction of the Toyo Tyre's export brand "Nitto Ridge Grappler" tyres mounted on custom wheels.

Specifications

Length200.5mm (7.9")
Width87mm (3.4")
Height104mm (4.1")
Wheelbase110mm (4.3")
Weight238g (8.4oz)
ChassisMX-01 (Rock Crawler)
Suspension360 Degree Coil Over Shock Absorbers
Drivetrain4WD
Motor130 Sized Brushed Motor
ESCBuilt-in

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorAAA
Pinion Gear12, 14, 16, 18, 20, 10
Wheel Hex Size7mm
