Tamiya DT-04 Fighter NXGEN RC Buggy Electric 2WD 1/10 Scale Kit
Tamiya DT-04 Fighter NXGEN RC Buggy Electric 2WD 1/10 Scale Kit
- New Chassis from Tamiya
- Compatible with brushed or brushless electronicsÂ
- Brushed motor and ESC includedÂ
- Kit build design allows you to better customise the vehicle to your chosen spec
This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

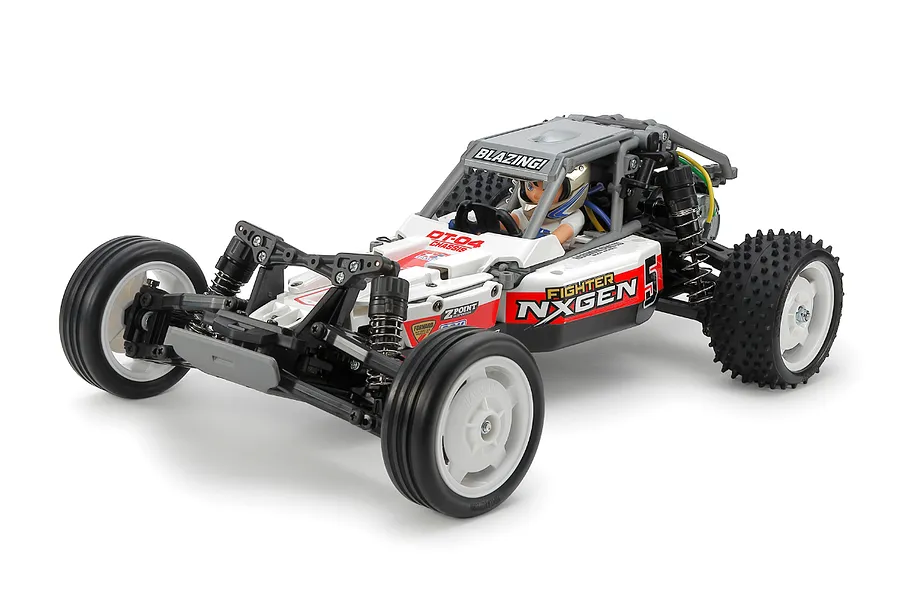

The Tamiya Fighter Buggy NXGEN (DT-04) is a 1/10 scale R/C model assembly kit inspired by full-size single-seater racing buggies. This exciting new buggy features the DT-04 chassis, a 2WD rear-wheel-drive platform designed for lively performance and ease of assembly. The "NXGEN" (Next Generation) name reflects the improved off-road performance and wealth of setup options this chassis offers.
The Fighter Buggy NXGEN boasts a distinctive body with multiple body panels connected to pipe frames, a design inspired by full-size racing buggies. The lightweight and durable bathtub frame chassis features an inline battery pack position and a rear-mounted motor for optimal traction. The sealed gearbox with a built-in gear differential ensures smooth cornering and protects the internals from dust and dirt.
The 4-wheel independent double wishbone suspension with long arms and CVA oil dampers provides exceptional handling and control over rough terrain. With its combination of unique design, versatile features, and compatibility with DT-02 and DT-03 option parts, the Tamiya Fighter Buggy NXGEN (DT-04) is the perfect choice for off-road enthusiasts of all levels.
- 1/10 scale R/C model assembly kit inspired by American single-seater racing buggies Â
- Two wheelbases (265mm or 280mm) can be selected by reassembling the front section Â
- Distinctive body with multiple body panels connected to pipe frames Â
- Lightweight and durable bathtub frame chassis with a rear-mounted motor for increased traction Â
- Sealed gearbox with built-in gear differential for smooth cornering and protection from dirt Â
- Side pontoons house the ESC and receiver for easy access Â
- 4-wheel independent double wishbone suspension with long arms and CVA oil dampers Â
- Front suspension arms with a 22.5-degree skid angle for improved off-road handling Â
- 3-piece steering tie-rod for precise steering control Â
- Easy access to the battery pack from the car top by removing the roof and sliding the driver figure forward Â
- Ribbed front tyres and grippy square spike rear tyres for optimal traction Â
- Hex hubs on the front allow for using different wheels Â
- Adjustable rear damper attachment positions and rear upper arms for customisation
- Comes with two marking options and a driver figure (can be painted with Tamiya Colour paints)Â Â
- Compatible with many separately sold DT-02/DT-03 parts for a wide range of tuning options
- Genuine Tamiya Product
- Length: 395mm (15.55")Â
- Width: 248mm (9.76")
- Height: 120mm (4.72")
- Wheelbase: 265mm (10.43")Â
- Weight: Varies
- Chassis: Bathtub Frame (Buggy)
- Drivetrain: 2WDÂ
- Suspension: Oil Filled Coil Over Shock AbsorbersÂ
- Motor: Tamiya 540 Sized Brushed MotorÂ
- ESC: Tamiya Brushed ESCÂ
- 1x Tamiya DT-04 Fighter NXGEN RC Buggy Electric 2WD 1/10 Scale Kit
- 1x 540 Sized Brushed MotorÂ
- 1x Tamiya Brushed ESC
- 1x Compatible 7.4V LiPo or 7.2V NiMH BatteryÂ
- 1x Compatible Charger
- 1x Compatible 1/10 Scale ESC
- 1x Compatible 1/10 Scale Servo
- 1x 2+ Channel Transmitter & Receiver
- Polycarbonate Compatible Paint
- AA Batteries For Transmitter
-
Pinion Gear
-
Spur Gear
-
Rear Differential Oil
-
Wheel Hex Size
- 12mm
-
Front Shock Oil
-
Rear Shock Oil
-
Max LiPo Power
- 2S (7.4v)
-
Battery Connector
- Tamiya
-
Completion
- Kit
-
Skill Level
- Beginner
-
Drivetrain
- 2WD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- Off Road
-
Chassis Type
- Buggy
-
Power Source
- Electric Brushed
-
Scale
- 1/10
-
Suited Motor/ESC Type
- Electric
