Name: Tamiya MF-01X Fiat 131 Abarth Olio RC Rally Car Electric 4WD 1/10 Scale Kit (No ESC)
Brand: Tamiya
SKU: TAM-58723A
Price: 243.45 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

Tamiya has produced the iconic Fiat 131 Abarth Rally Olio Fiat on the user-friendly MF-01X rally chassis, designed for easy assembly and an enjoyable driving experience.

The Fiat 131 Abarth Rally originated from the Fiat 131 Mirafiori, which debuted in 1976 and achieved global rally championship victories in 1977 and 1978. This kit faithfully replicates the livery of the Olio Fiat version.

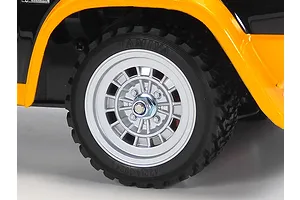

The MF-01X is a compact 4WD system suitable for various terrains, with a rugged monocoque frame, rear-mounted motor, gear-driven rear wheels, propeller shaft to the front, and 4-wheel independent double wishbone suspension with friction dampers. The kit includes off-road capable M-05Ra chassis uprights and hub carriers, and spoke wheels with rally block tyres.

Note

This kit comes without an Electronic Speed Control. The polycarbonate body shell is completely unpainted and may require body post holes to be drilled. Only use polycarbonate-safe paint such as the Tamiya PS series — standard paints will not adhere and may damage the body shell.

Features

Durable monocoque frame with integrated gearboxes
Rear-mounted motor, gear-driven rear wheels, and propeller shaft for both flat dirt surfaces and roads
Front and rear gearboxes with differential gears
Centrally located battery pack for excellent balance
4-wheel independent double wishbone suspension with friction dampers and off-road capable M-05Ra chassis uprights and hub carriers
Lightweight polycarbonate body
Separately moulded plastic components recreate light cases, bumper, and side mirrors
MF-01X chassis is at home on-road or off
Stickers included to recreate body details
Polycarbonate light cases compatible with separately sold 5mm LEDs
Genuine Tamiya Product

In the box

1x Tamiya 1/10 MF-01X Fiat 131 Abarth Rally Olio 4WD Electric RC Rally Car Kit (without ESC)
1x 540 Sized Torque Tuned Brushed Motor

You'll need

1x 7.2V NiMH Battery & Compatible Charger
1x Standard Sized Servo
1x Electronic Speed Controller (ESC)
1x 2-Channel Transmitter & Receiver
Tamiya PS Paint

Highlights

Adjustable Wheelbase

The versatile monocoque frame allows you to adjust the wheelbase to suit your driving preferences. By changing the central spacer block and installing a separately sold prop shaft, you can choose between short (210mm), medium (225mm), or long (239mm) wheelbase configurations.

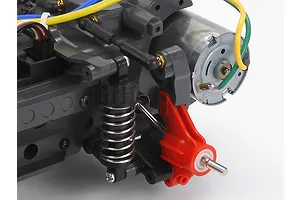

4 Wheel Independent Double Wishbone Suspension

The double wishbone suspension, both front and rear, delivers fantastic handling and off-road performance. The tough uprights and hub carriers on the front ensure durability, while friction shock absorbers on the rear provide effective damping action.

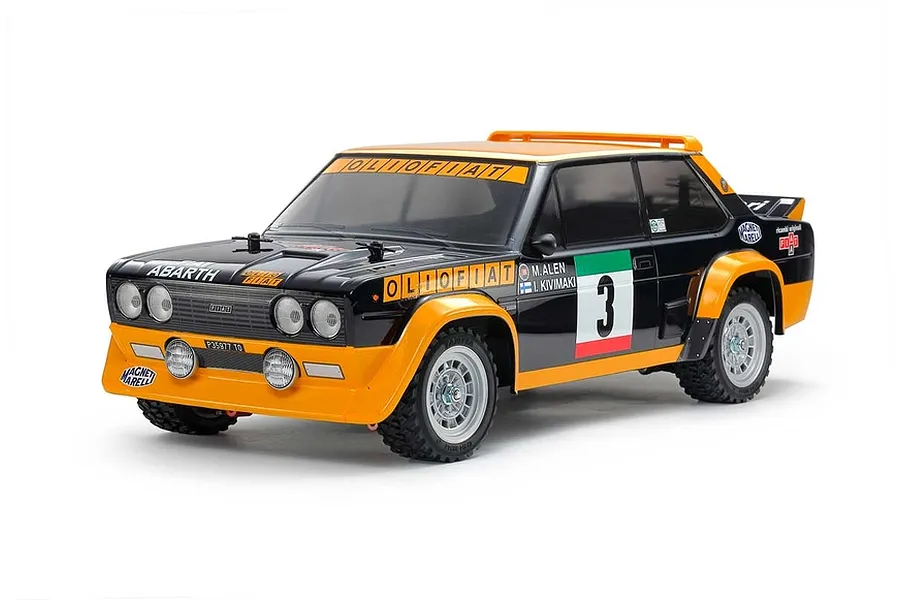

Incredible Scale Detail

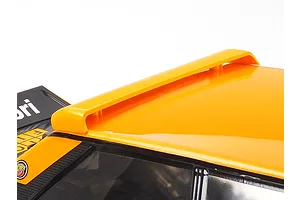

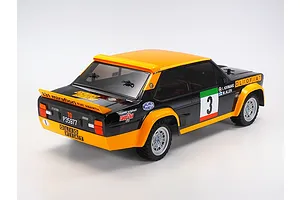

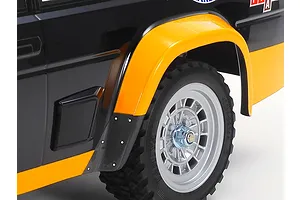

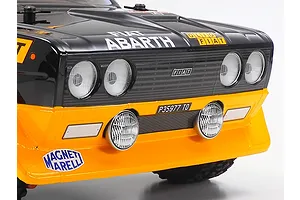

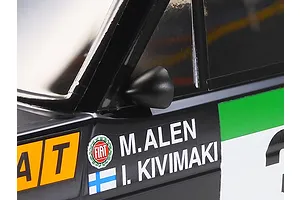

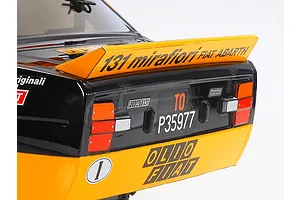

This MF-01X sports a sleek 2-door sedan form and the distinctive dark blue and yellow livery of the "OLIO FIAT" sponsored Rally car. Meticulous details, like the integrated air dam skirt, separate fog lamps, and round door mirrors with driver names, complete the highly realistic look. The smooth tail, separate rear spoiler, and bold overfenders complete the agressive rally look.

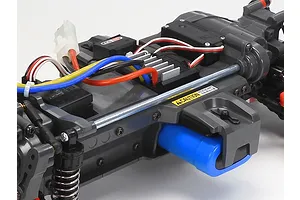

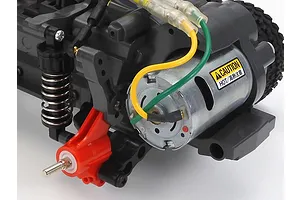

Rear Mounted Motor

The motor is strategically mounted at the rear of the monocoque frame, providing direct power to the rear wheels via gears. A propeller shaft extends to the front wheels, creating an efficient 4WD system for better traction and control.

Specifications

Length	400mm (15.75")
Width	180mm (7.09")
Height	132mm (5.20")
Wheelbase	S 210mm / M 225mm / L 239mm (9.41" shown on L)
Weight	Varies
Chassis	Monocoque Frame (MF-01X)
Drivetrain	4WD
Suspension	Friction Dampers
Motor	540 Sized Torque Tuned Brushed Motor
ESC	Not Included
