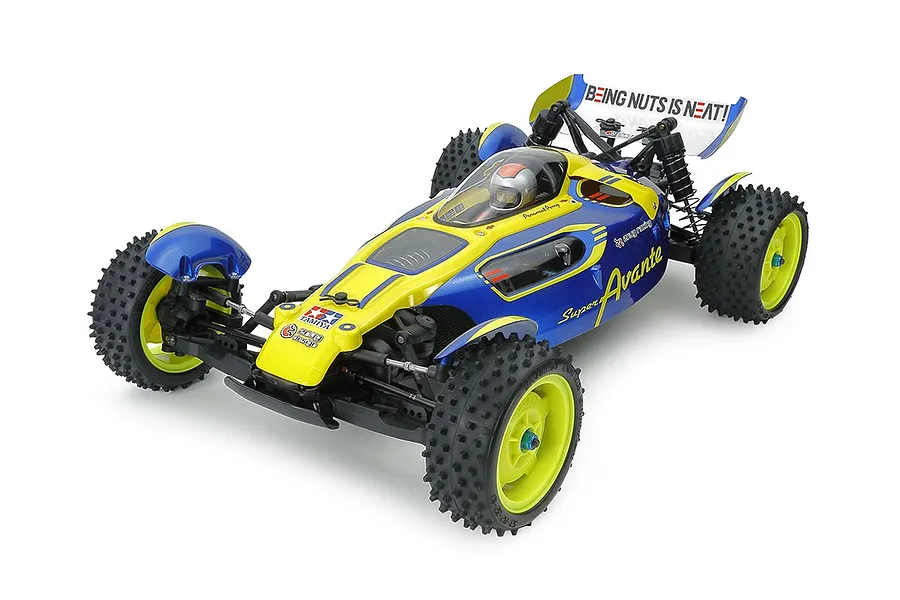

Tamiya TD-4 Super Avante 2021 1/10 scale 4WD assembly kit with shaft-driven chassis, ball differentials, and Kota Nezu-designed polycarbonate body.
- Shaft-driven 4WD with full ball bearings and ball differentials front and rear
- Front inboard suspension for slim, low-profile chassis form
- Polycarbonate body designed by Kota Nezu, inspired by the classic Avante
- Four-wheel independent double wishbone suspension with CVA oil dampers
- Adjustable camber via turnbuckle shafts; choice of high/low wing stays for downforce adjustment
This body shell comes completely UNPAINTED. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies as standard paints will not adhere and/or cause damage to the body shells surface. To view the entire range of polycarbonate safe paints CLICK HERE?
Tamiya's designers have crafted the TD-4 Super Avante, a fun-to-drive 4WD off-road buggy. The body is a re-imagined Avante, designed by Kota Nezu, and even shares the fun rear wing moniker "Being Nuts is Neat!" The front of the all-new TD-4 chassis shares a front horizontal damper layout design similar to the original Avante, with the front dampers positioned underneath the body.

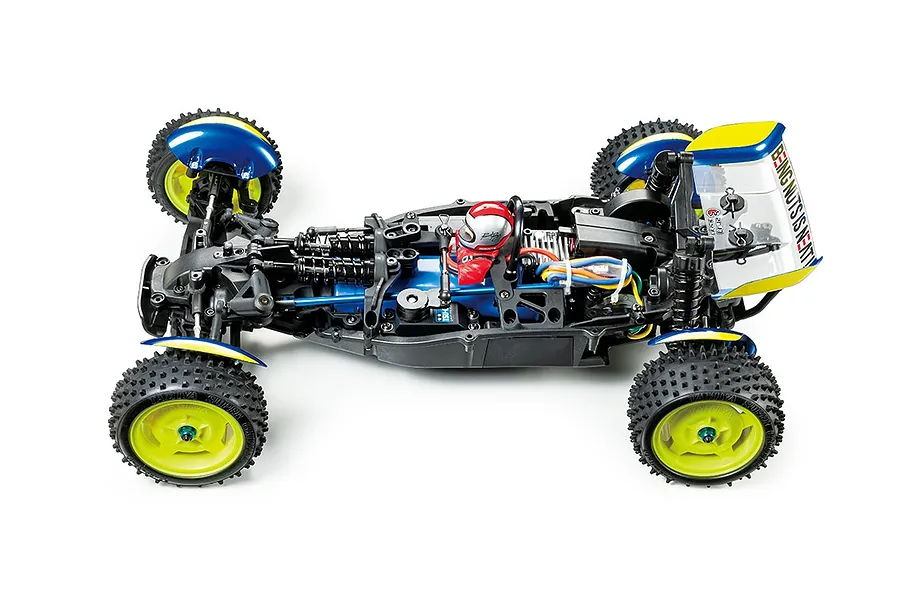

The TD-4 is a shaft-driven 4WD buggy chassis which employs front inboard suspension for a slim, low-profile form. It features a longitudinal battery pack position in the center and a midship transverse motor for optimum balance and improved performance. The drivetrain uses full bearings, and sealed front/rear gearboxes have built-in ball differentials. Two link rods and a crank arm transmit movement of the left-side servo to the three-piece steering arm setup. Four-wheel independent double wishbone suspension utilises CVA oil dampers. Turnbuckle shaft upper arms facilitate camber angle adjustment. Two types (high/low) of wing stays are included and star dish wheels are paired with square spike tires which offer superlative grip off-road.

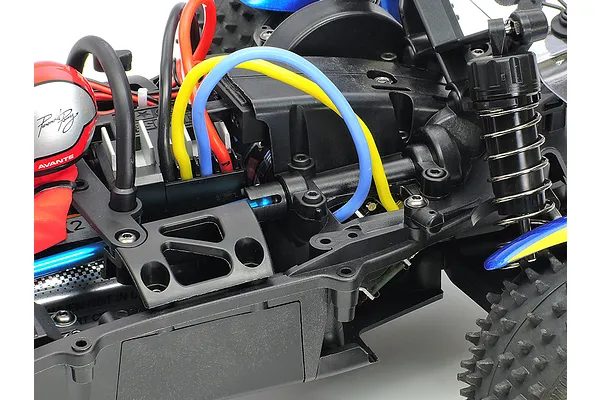

The TD-4 Avante features a unique midship motor layout, placing the motor horizontally for optimal weight distribution and balance. This configuration, combined with a low-profile shaft-driven 4WD chassis, delivers exceptional handling and stability on any track.

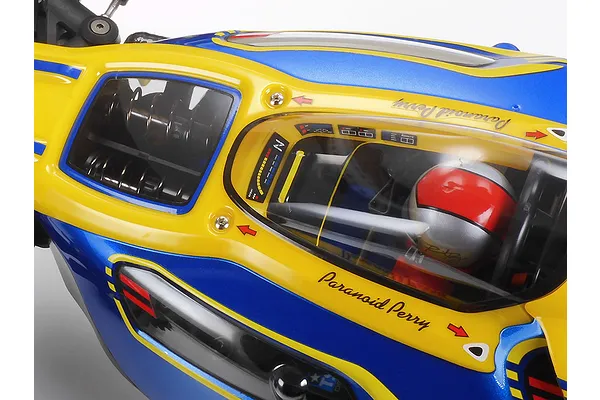

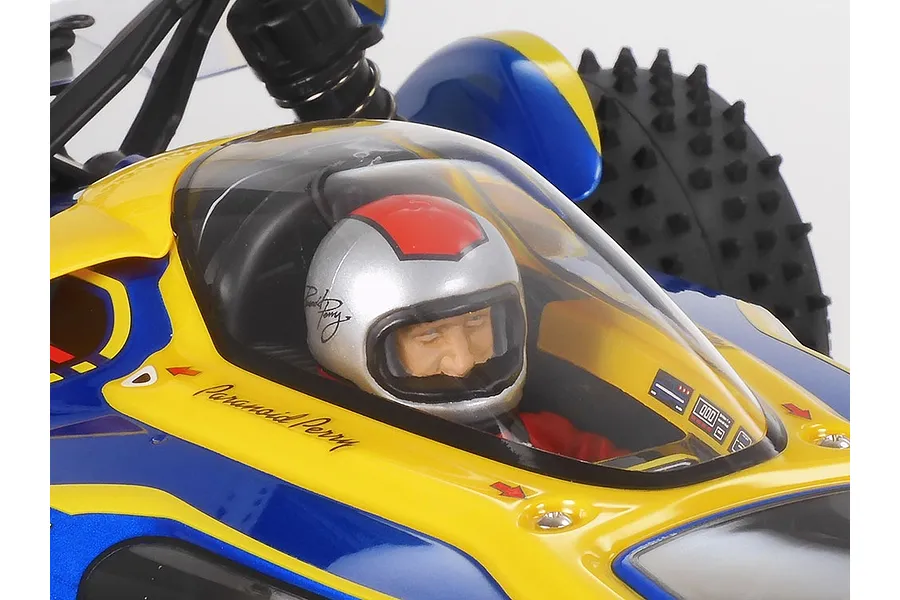

The TD-4 Avante's cockpit features a driver figure for an even more engaging driving experience. Realistic details like a digital meter and various displays are recreated with stickers, while transparent parts add a mechanical touch, enhancing the overall realism and visual appeal.

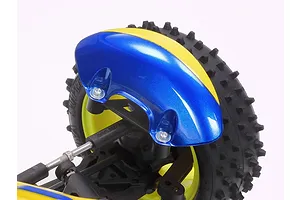

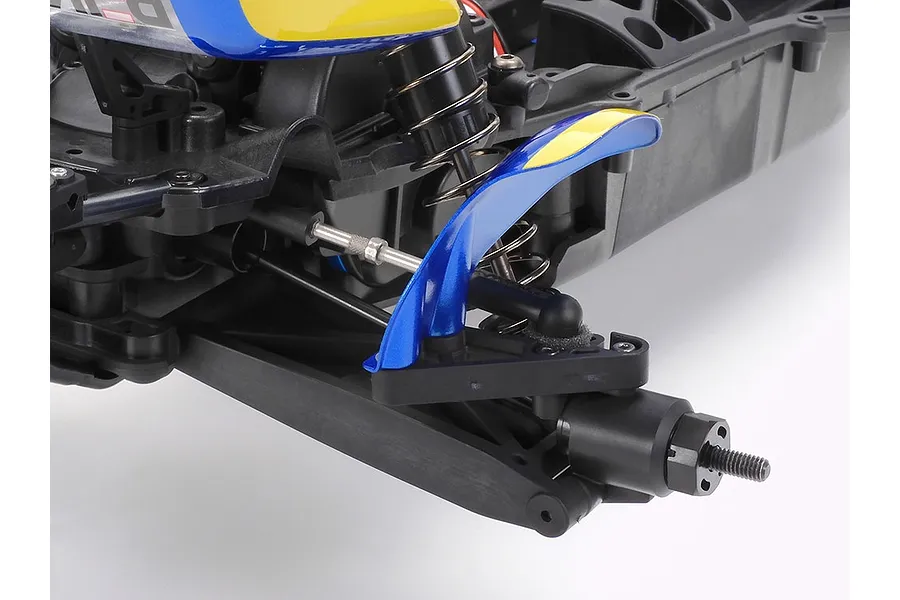

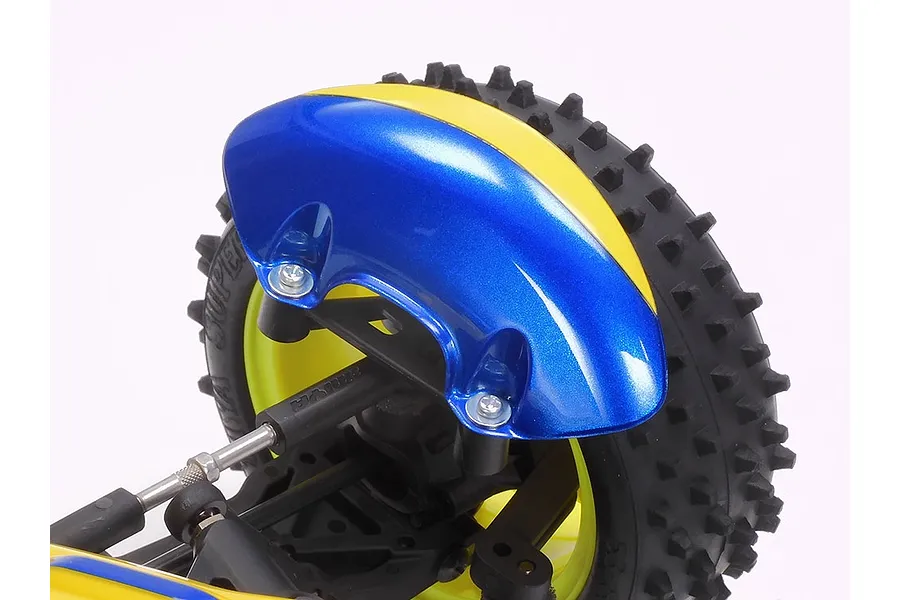

The TD-4 Avante is equipped with small polycarbonate fenders on the front and rear to protect the chassis from flying debris. High-grip square spike tyres, mounted on vibrant yellow wheels, provide excellent traction and a distinctive look.

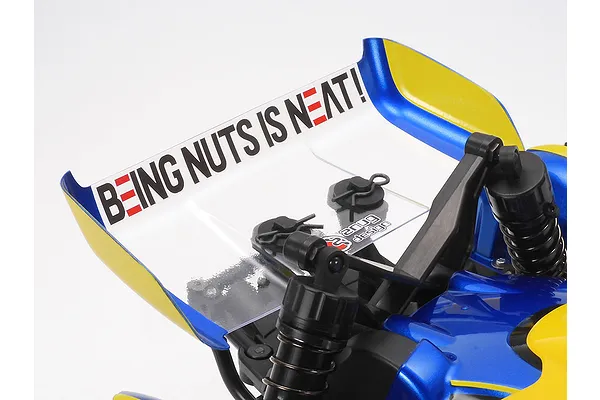

Enhance aerodynamic performance with the distinctive buttresses, inspired by real-world supercars. These polycarbonate components are separate parts, allowing for customisation and fine-tuning. Choose between high and low wing stays to adjust downforce and optimise handling on different surfaces. (The photo shows the low downforce specification.)

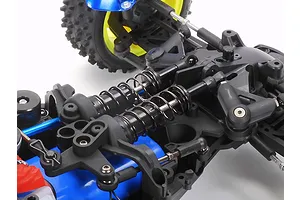

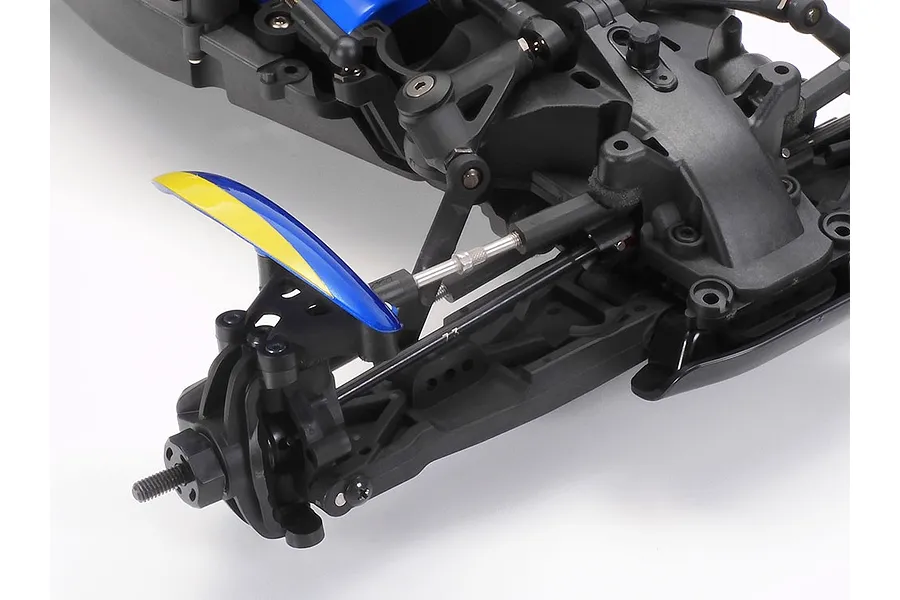

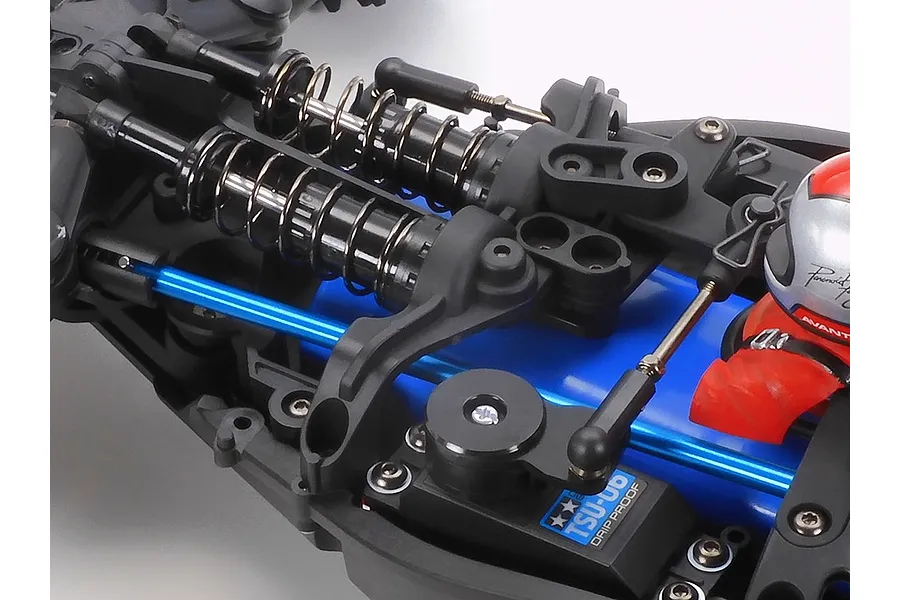

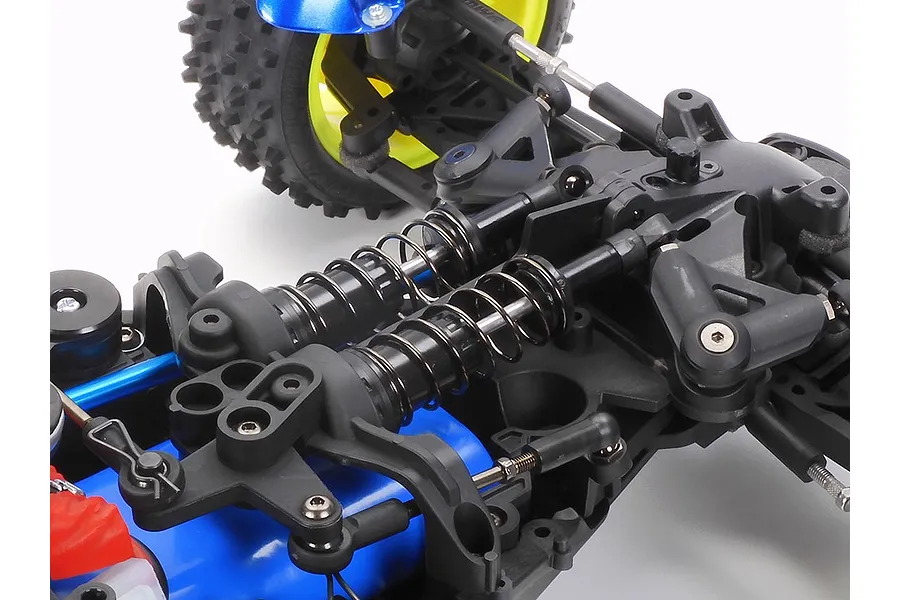

The TD-4 Avante features a sophisticated double wishbone front suspension system with upper I-arm and lower H-arm configuration. This design allows for precise tuning, with a turnbuckle on the upper arm enabling camber angle adjustments. The inboard-mounted CVA oil-filled shocks, tilted at approximately 10 degrees, are actuated by a push rod and rocker arm, providing responsive and controlled damping for optimal handling.

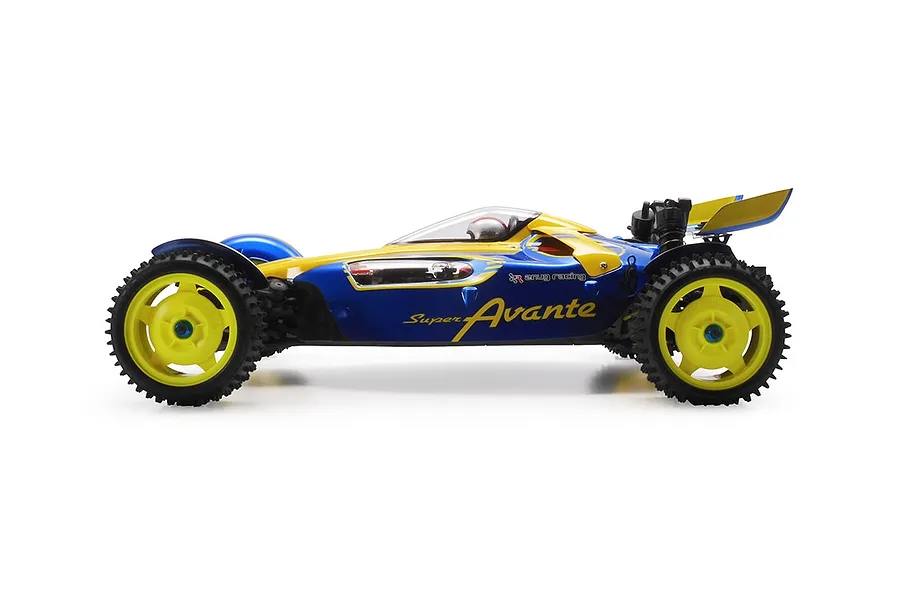

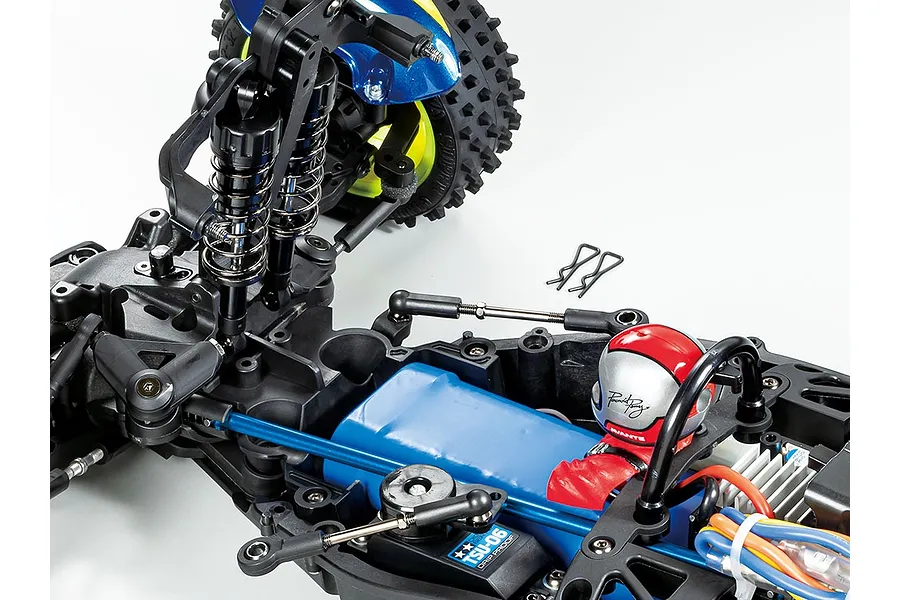

The TD-4 Avante's body features a streamlined design with a low profile for enhanced aerodynamics. Accessing the battery is quick and easy – simply raise the front shocks to gain access. This clever design contributes to the vehicle's sleek appearance and efficient performance.
- Polycarbonate body (inspired by the Tamiya classic Avante) designed by Japanese designer Kota Nezu of Znug Design
- Newly designed shaft-driven 4WD chassis based on a one-piece monocoque frame with ball differentials front and rear, longitudinal battery pack in the center, and midship transverse motor for optimum balance and improved performance
- Front inboard suspension layout eliminates the need for a front damper stay and offers slim, low-profile form
- Four-wheel double wishbone suspension with CVA oil dampers
- Full ball bearings
- Two link rods and crank arm transmit movement of the left-side servo to the three-piece steering arm setup
- Turnbuckle shafts for use with upper arms facilitate camber angle adjustment
- Star dish wheels paired with square spike tires for good grip off-road
- Choose between high and low type wing stays to adjust downforce depending on road surface
- Comes with a driver figure for extra realism, and high-torque servo saver
- Adjustable Gear Ratio: Yes
- Bearings: Full ball bearings included
- Body Material: Polycarbonate
- Body Stickers: Included
- Chassis Material: FRP Fiberglass Reinforced Plastic
- Chassis Type: TD-4
- Construction Type: Assembly Kit
- Differential Type: Ball Pressure Plate
- Drive Type: 4WD
- Electronic Speed Control (ESC): Not Included
- Motor: Not Included
- Scale: 1/10
- Shock Damper: CVA Oil Filled
- Suspension: Fully Independent Double Wishbone
- Terrain Use: Off-Road
- Length: 338mm (13.3")
- Height: 124mm (4.88")
- Width: 246mm (9.68")
- Wheelbase: 283mm (11.1")
- 1x Tamiya TD-4 Super Avante 2021 4WD Buggy Kit
- Body stickers
- Driver figure
- Two types of wing stays (high/low)
- Instruction manual
- 2Ch Radio System
- Steering Servo
- 540-Size Motor
- 7.2–7.4v Battery & Compatible Charger
- Tamiya PS Paint (polycarbonate-safe; standard paints will not adhere and may damage the body shell)
This body shell comes completely unpainted. Only use polycarbonate-safe paints such as the Tamiya PS series. Standard paints will not adhere and/or may cause damage to the body shell surface.
-
Scale
- 1/10
-
Completion
- Kit
-
Skill Level
- Beginner
-
Power Source
- Electric Brushed
-
Chassis Type
- Buggy
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
