Name: Tamiya TT-01E Team Hahn Racing Man TGS RC Touring Truck Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58632
Price: 247.10 AUD
Availability: Discontinued

Recommended products

FlySky FS-GT2 2.4Ghz 2ch Radio w/ Receiver
9 reviews
$57.39
Power HD Standard LF-13MG 13kg Metal Geared Servo
9 reviews
$39.99
G.T. Power N802 NiMH/NiCad Charger
8 reviews
$31.52
Sold out
Gens Ace 7.2v 3000Mah NiMH Battery
$54.16

Overview

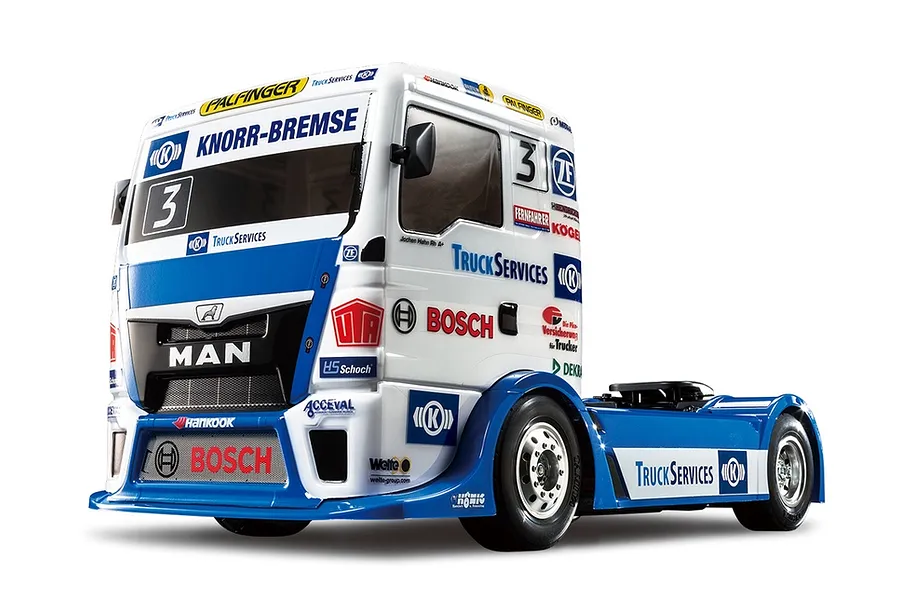

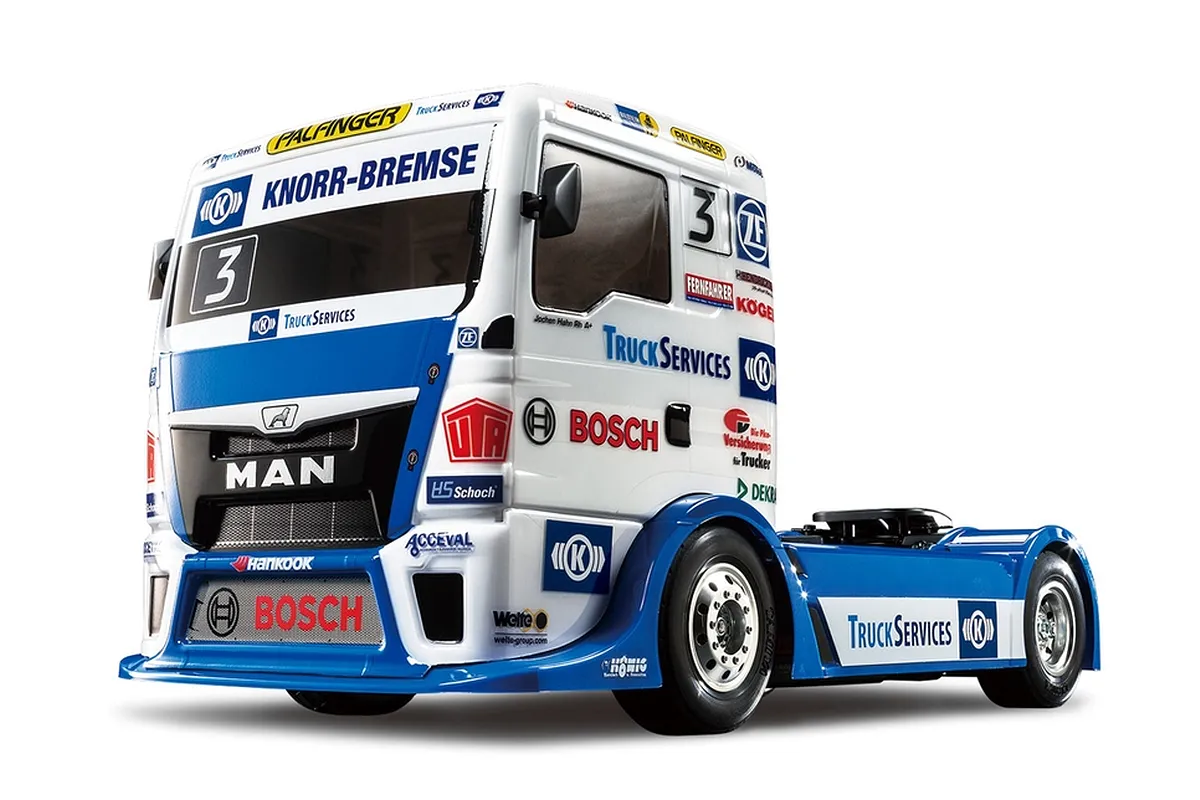

This R/C model assembly kit recreates the Team Hahn Racing MAN TGS truck which stars on the truck racing circuit in Europe. The realistic body is a 4-piece set made from lightweight and durable polycarbonate, with separately moulded plastic side mirrors, coupler and rear bumper parts. The TT-01 Type-E chassis is a proven performer, fitted with dedicated new wheels and tyres for the model.

The bathtub frame of the shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower centre of gravity and optimum balance. A fibreglass-reinforced nylon upper deck and gear covers improve rigidity, and a 3-piece tie rod provides smoother steering action. 4-wheel double wishbone suspension and front and rear differential gears produce excellent operating ability. 70mm-diameter radial tyres are paired with metal-plated wheels; the high sidewalls make for forgiving turns.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

1/14 scale R/C model assembly kit of the MAN TGS racing truck
4-piece polycarbonate body accurately captures the truck's form, including engine, turbocharger and frame details
Separately moulded parts recreate side mirror, coupler and rear bumper
Marking stickers recreate the sponsor livery of the #3 Team Hahn Racing truck for the 2016 season
Special wheels and 70mm diameter radial tyres designed for racing truck models
Moulded parts make the model compatible with LEDs in the separately sold Tamiya LED Light Unit
TT-01 Type-E chassis with shaft-driven 4WD, easy handling and great customisability
Wide range of option parts available to tune the TT-01 Type-E chassis
Includes Tamiya TBLE-02S ESC — capable of running sensor brushless and brushed motors (21.5T BL limit / 23T brushed limit)

In the box

1x 1/14 TT-01E Team Hahn Racing MAN TGS Electric On Road RC Truck Kit

You'll need

7.2V NiMH Battery & Compatible Charger
Standard Sized Servo
2-Channel Transmitter & Receiver
Tamiya PS Polycarbonate Paint

Highlights

Team Hahn MAN TGS product photo 6 — body overview

The form of the tractor head is artfully depicted using a 4-piece polycarbonate body with multiple stickers included to recreate markings.

Team Hahn MAN TGS product photo 7 — engine and detail parts

Engine, turbocharger and frame are succinctly depicted; side mirrors, coupler, etc. are separately moulded.

Team Hahn MAN TGS product photo 8 — wheels and tyres

Beautifully detailed plated wheels and 70mm-diameter tyres were designed just for this model.

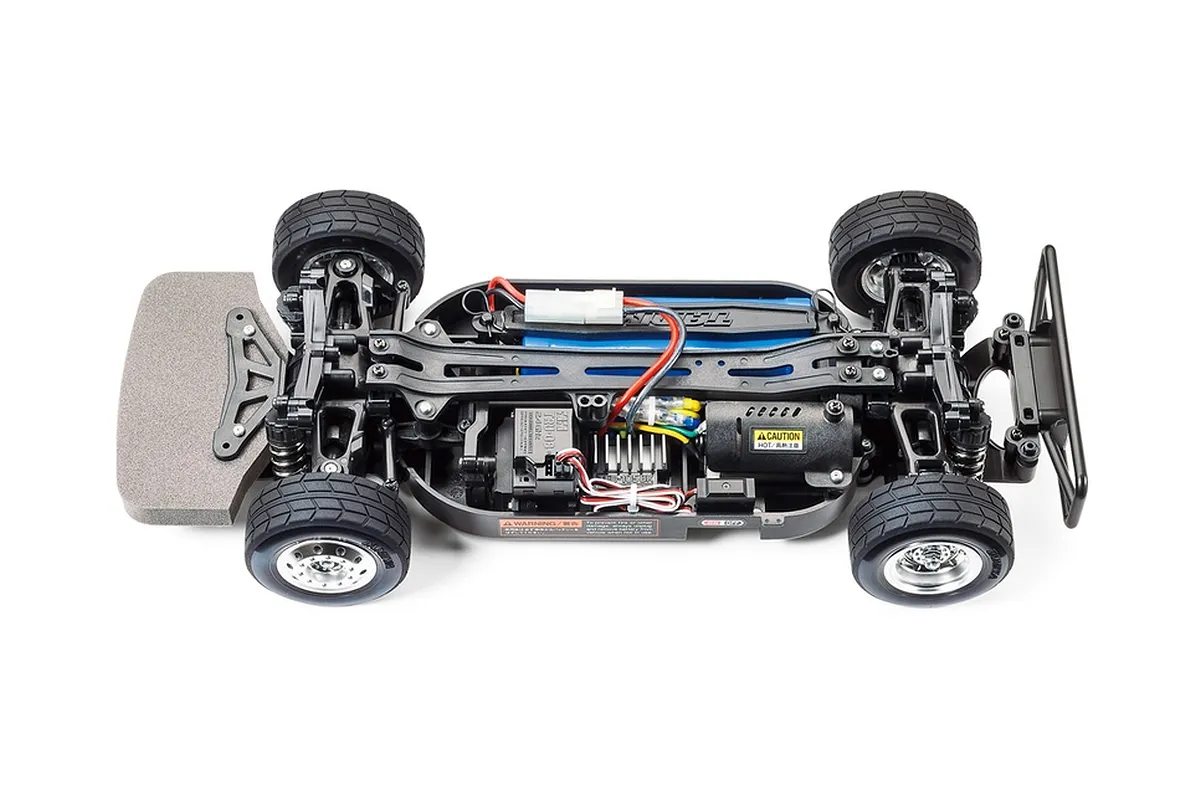

Team Hahn MAN TGS product photo 9 — TT-01E chassis

The TT-01 Type-E chassis is a tried and tested unit that offers controllable shaft-driven 4WD with plenty of Hop-Up option parts available.

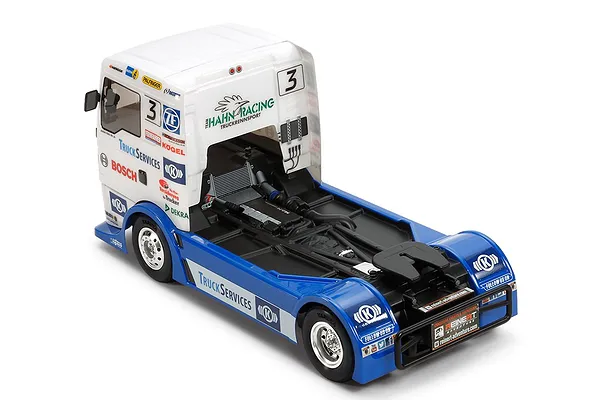

Team Hahn MAN TGS product photo 10 — front and headlight detail

Light cases for headlights are provided and can be lit up with the aid of separately sold LEDs.

Specifications

Length	438mm (17.2") / Width: 190mm (7.48") / Height: 207mm (8.14")
Wheelbase	257mm (10.1")
Tyre Width/Diameter	28/70mm (Front & Rear)
Differentials	Front/Rear 3-Bevel Resin
Steering	3-Piece Steering Tie-Rod
Gear Ratio	8.35:1 (9 further ratios from 11.38:1 to 7.28:1 possible with separately-sold pinion)
Adjustable Gear Ratio	Yes
Bearings	Plastic bushing
Body Material	Polycarbonate
Body Stickers	Included
Chassis Type	TT-01E
Construction Type	Assembly Kit
Differential Type	Gear
Drive Type	4WD
Electronic Speed Control (ESC)	Tamiya TBLE-02S
Motor	Brushed 540 Type
Scale	1/14
Shock Damper	Friction type
Suspension	4-wheel fully independent double wishbone
Terrain Use	On-Road
