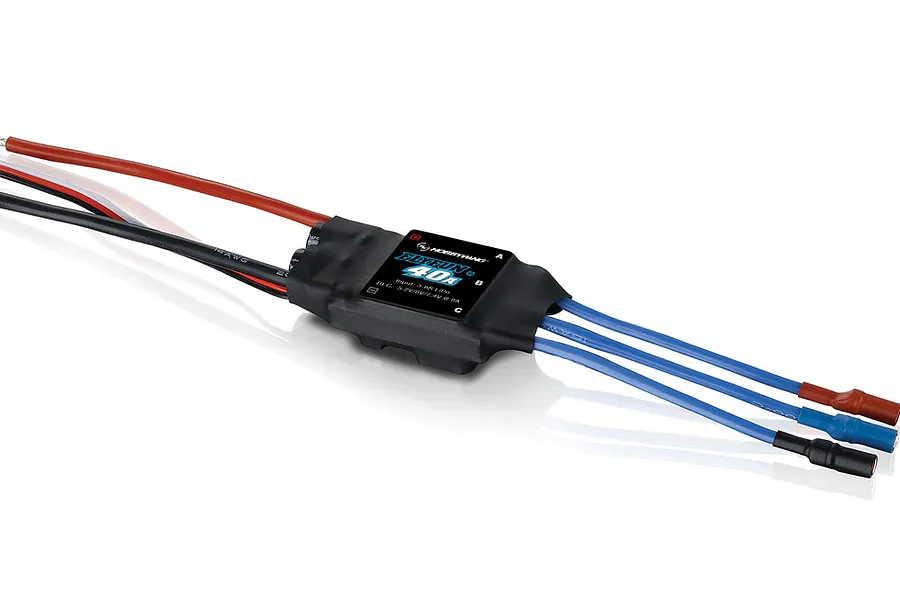

Hobbywing FlyFun 40A V5 Series Brushless ESC

Brand: Hobbywing | SKU: 30214002
Hobbywing
1 in stock
$70.47
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

With 40A continuous current and bursts up to 60A for 10 seconds, 3-6S LiPo compatibility and a selectable 5.2/6/7.4V BEC 8A current rating this is one of the most feature-rich ESC's on the market. Active Freewheeling technology is included, providing superior throttle control, stability and flexibility.

NOTE Alternating Shortcodes
Snow Forest Mountains
DEO Technology / Active Freewheeling

The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:

  • Rapid and smoother throttle response, better stability and flexibility during flight.
  • Higher driving efficiency, longer flight time.
  • Lower ESC temperature, more reliable operation.
High-Power BEC

High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.

Multiple Protections

Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail-Safe), and abnormal input voltage, effectively prolongs the service life of the ESC.

HW HW
New Design & Great Performance

The new design brings exquisite look with excellent heat-dissipating performance. Imported components, the high-performance 32-bit microprocessor, and the PCB (printed circuit board) with extremely low impedance adopted by the ESC guarantee great current endurance, excellent performance and high reliability. The ESC is available in high-voltage/regular version with different Amps.

Snow
Multiple Programmable Parameters

Multiple programmable parameters for setups of different fixed-wing aircraft are adjustable via transmitter or Hobbywing LED program box.

Features
  • Start-Up Protection
  • ESC Thermal Protection
  • Over-Current Protection
  • Over-Load Protection
  • Capacitor Thermal Protection
  • Throttle Signal Loss Protection
  • Abnormal Input Voltage Protection
Specifications
  • Cont/Peak Current: 40A/60A
  • Input: 3-6S LiPo
  • BEC Output: Switch Mode: 5.2V/6V/7.4V, 8A/20A
Type
  • Type: Brushless
  • High Voltage/Regular: Regular
Wires & Connectors
  • Input Wires: Red 14AWG-100mm, Black 14AWG-100mm.
  • Output Wires: 3x Blue 16AWG-75mm
  • Input Connectors: No
  • Output Connectors: 3.5 Gold Connectors (Female)
ESC Programming Via
  • Transmitter: Supported
  • LED Program Card: Not Supported
  • LED Program Box: Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
  • Program Port: Separate Program Wire
Firmware
  • Firmware Upgrade: Not Supported
Size & Weight
  • Size: 47x28x14mm
  • Weight: 44g
Included items
Description QTY
FlyFun 40A V5 Brushless ESC 1
Specifications
ESC (Electronic Speed Controller)
For Motor Type: Brushless
Max Voltage: 22.2v
Waterproof Design: Yes
Continuous Amps: 40
Motor Connectors: 3.5mm Bullet
Battery Connector: Bare Wire
LVC: Yes
Programmable: Yes
Cooling Method: Air
BEC Voltage: Programmable
Dual Motor: Yes
