Kyosho Mad Wagon RC Monster Truck Electric 4WD 1/10 Scale Kit
Kyosho Mad Wagon 1/10 4WD Monster Truck Kit — 30% pre-assembled with upgrade-spec aluminium shocks, slipper clutch and ultra-scale 80s station wagon body.
- 30% pre-assembled with front, centre, and rear gearboxes factory built
- Standard-equipped aluminium oil shocks, HD motor mount, and aluminium slipper clutch — all previously optional upgrades
- Iconic 1980s ultra-scale station wagon body with pre-plated bumpers and grille
- Shaft-driven 4WD with double wishbone suspension for exceptional performance
- Machined steel bevel and ring gear differentials built for serious power
$485.72
This kit comes as an approximately 30% pre-assembled kit and will require some assembly at home. The Mag Wagon also comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.
For those craving something more from their monster truck, the legendary 1/10 scale EP Mad Wagon now arrives as a thrilling partially assembled kit. It's not just a stripped-down version of the RTR Mad Wagon — this version unlocks a new level of excitement and control.
This kit has been roughly 30% completed with front, centre, and rear gearboxes factory assembled, allowing you to focus on the less complex parts of the build. Parts previously hidden in optional upgrade packs are now standard, offering a tuned-up beast out of the box. Equip the Mad Wagon with an entry-level or competition-grade R/C system and battery to match your ambition.

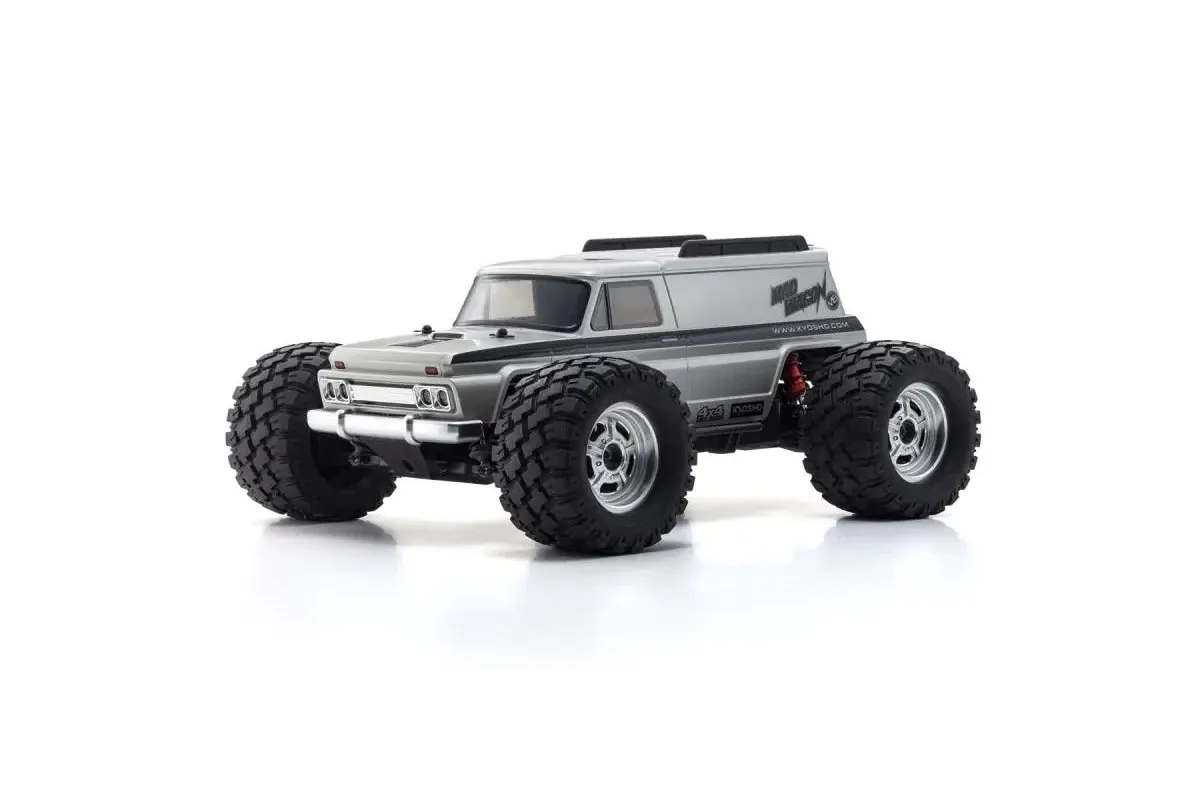

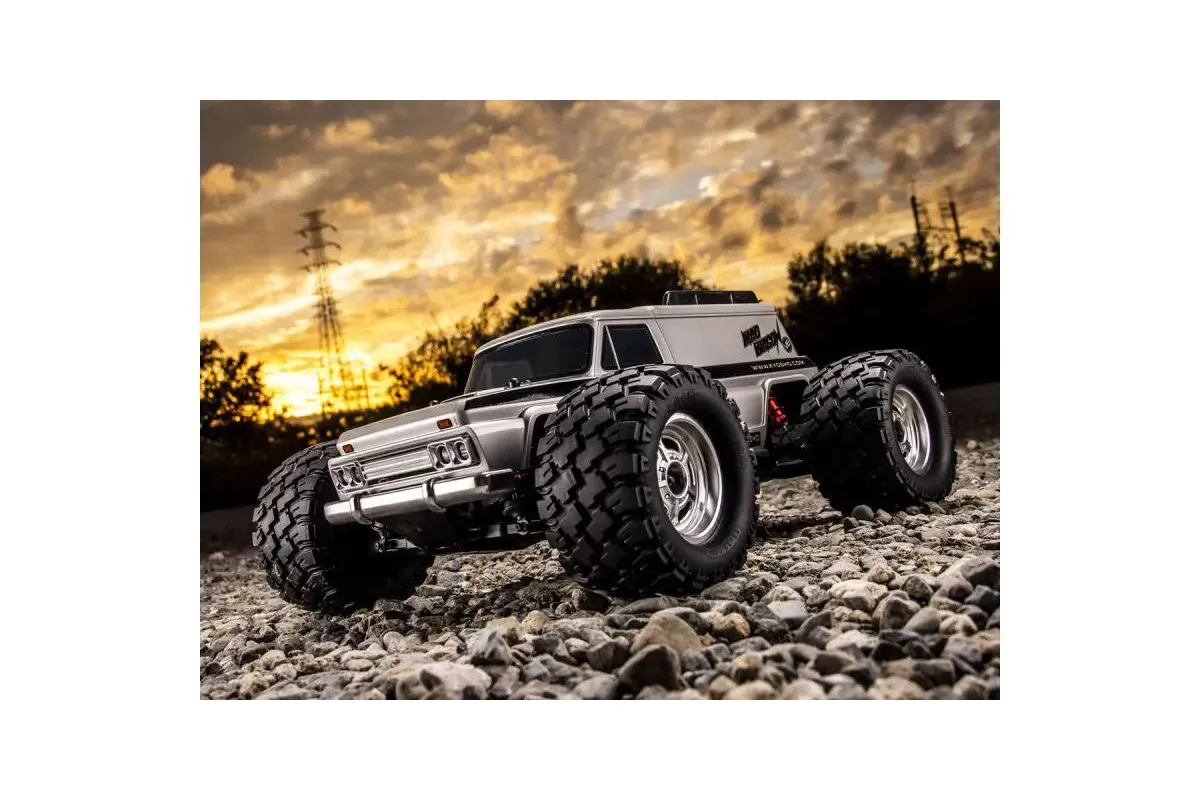

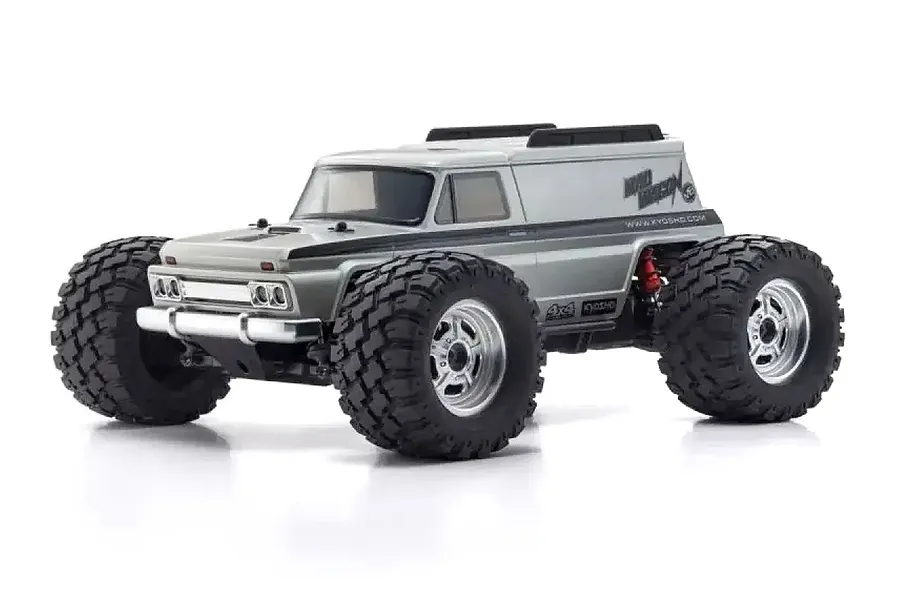

The iconic 1980s station wagon body style takes centre stage, with intricate details begging for your creative touch. Unpainted and ultra-scale, it features pre-plated bumpers and grille to save you time. Stick with the included decals for instant scale realism, or craft your own custom colour scheme.

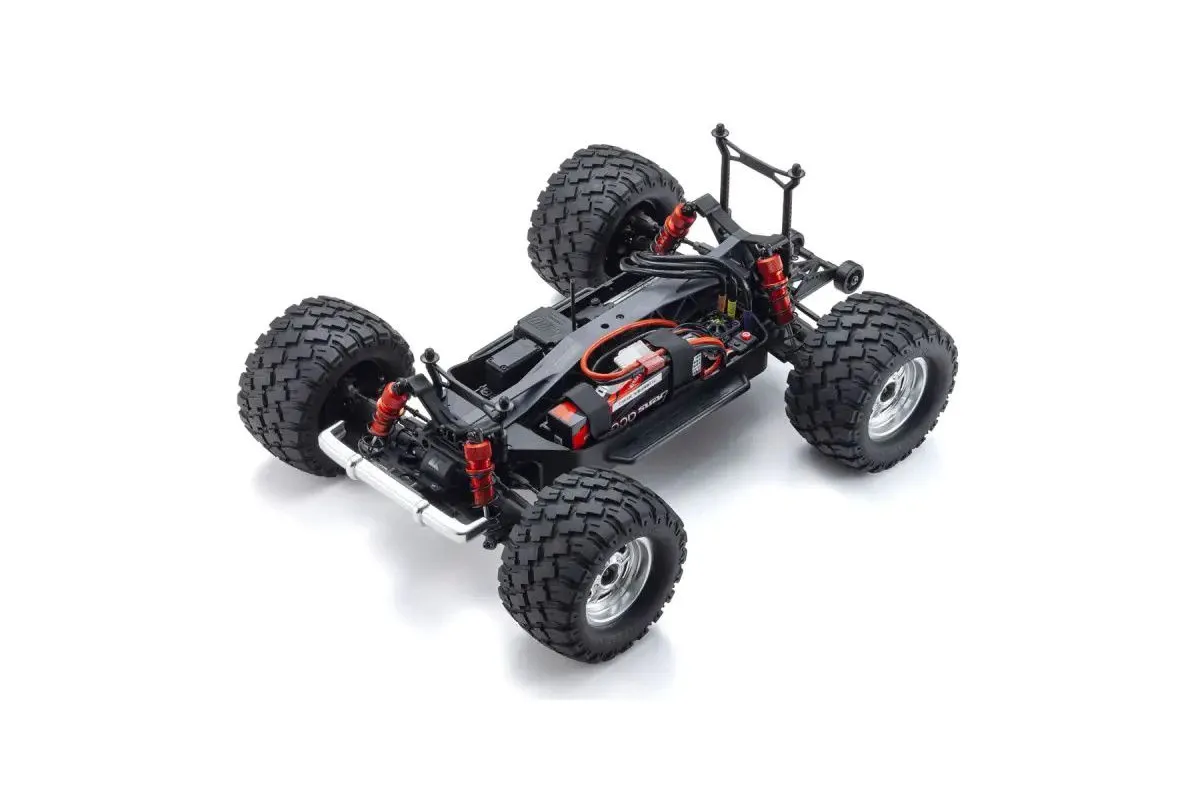

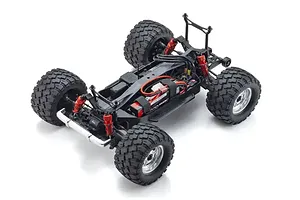

The Mad Wagon kit features a robust aluminium main chassis with a resin subframe, similar to the Readyset version, but with enhanced performance due to the inclusion of various optional parts as standard. This upgraded chassis provides a strong and stable foundation for off-road driving.

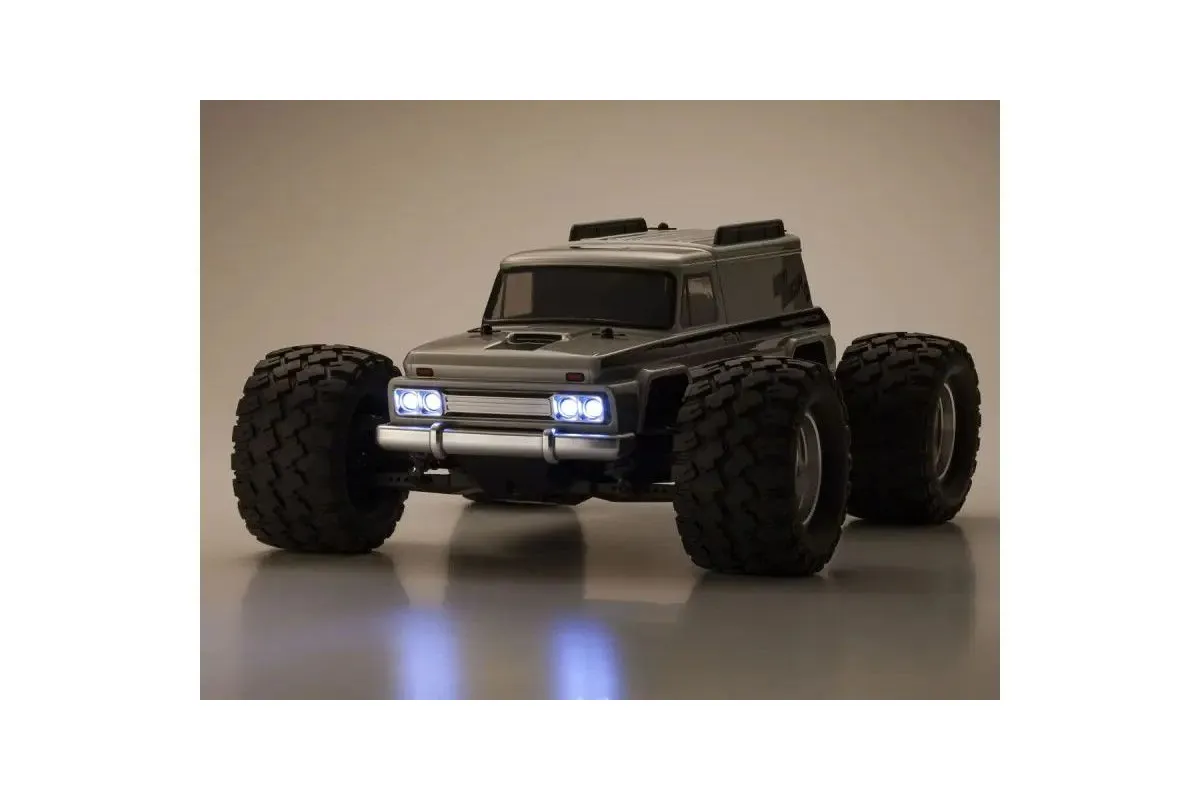

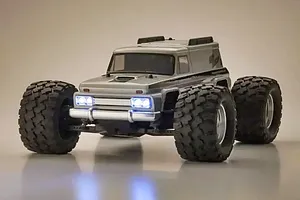

The kit includes a 1.2mm thick polycarbonate body with chrome-plated headlights, grille, and bumper, along with a special decal sheet for customisation. Personalise your Mad Wagon and create a unique look that reflects your style.
The chassis comes partially pre-assembled, with the front and rear gearboxes, centre gearbox, and driveshaft already installed. This streamlined design saves time and effort during the build process. The differentials are filled with #10000 grease but can be tuned with different oil viscosities (sold separately) to fine-tune handling.
Upgrade your suspension with included aluminium oil shocks, typically offered as optional parts. These high-precision shocks offer consistent damping performance, even under extreme conditions, and feature a convenient dial-type ride height adjustment.
The kit includes turnbuckle upper arms with positive and reverse threads on both ends, replacing the fixed-length arms found in the Readyset version. This upgrade allows for easy camber angle adjustments, expanding the range of tuning options.
The front and rear differentials are equipped with machined steel bevel and ring gears for increased strength and durability. These upgraded gears can handle the power of brushless motors, ensuring reliable performance and longevity.
The included aluminium HD motor mount offers improved heat dissipation compared to the standard plastic version, reducing power loss and preventing damage to the pinion and spur gears.
The slipper clutch, designed to protect the drivetrain, is now made of lightweight aluminium, reducing rotating mass for sharper acceleration and improved performance. The finned design also enhances heat dissipation.
The kit includes an aluminium HD servo mount that provides high rigidity and precise steering response. Anodised in Kyosho's signature red colour, this upgraded servo mount enhances both performance and aesthetics.
- 30% pre-assembled so you can get straight into the easier parts of the build
- Includes an unpainted ultra-scale Mad Wagon body ready for your personal touch

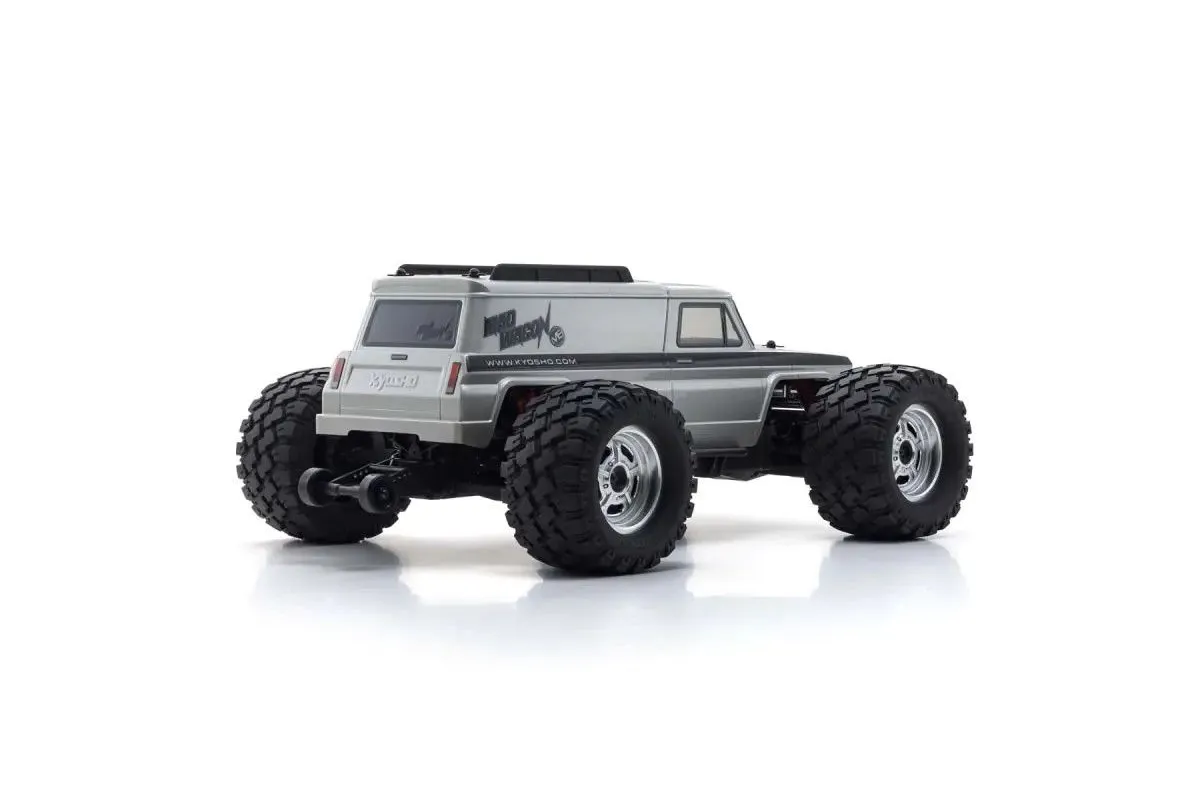

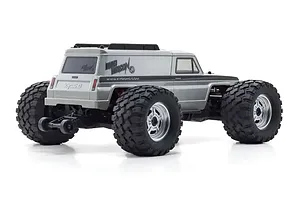

- Equipped with a wheelie bar at the rear that prevents flipping under hard acceleration
- Shaft-type 4WD chassis with proven double wishbone suspension delivers exceptional driving performance
- Full ball bearing drive line delivers minimal rolling resistance
- Telescoping resin universal shaft reduces drive loss and prevents shafts from coming loose on contact
- Equipped with high-grip 2.8-inch tyres and wheels; general-purpose 2.8-inch tyres and wheels for 1/10 scale can also be installed
- Aluminium oil shocks as standard (previously an upgrade)
- Turnbuckle upper arms for camber angle adjustment
- Machined steel bevel and ring gear differentials for unmatched strength
- Aluminium HD motor mount with superior heat dissipation
- Aluminium slipper clutch with heat diffusion fins
- Aluminium HD wheel hubs replace standard plastic versions
- Genuine Kyosho Product
- Length: 472 mm (18.58 in)
- Width: 350 mm (13.78 in)
- Height: 198 mm (7.79 in)
- Wheelbase: 295 mm (11.61 in)
- Weight: 3610 g (7.96 lbs)
- Tyre Diameter/Width (Front/Rear): 128/70 mm (5.04/2.76 in)
- Chassis: Off Road Monster Truck
- Drivetrain: 4WD
- Gears: 15.22:1
- Suspension: Aluminium Oil Filled Coil Over Shock Absorbers
- Motor: Not Included
- ESC: Not Included
- 1x Kyosho 1/10 Mad Wagon 4WD Electric RC Monster Truck Kit
- 1x Unpainted Polycarbonate Body
- 3x Wrench Set
- 1x Decal Sheet
- 1x 4, 5, 5.5, 7, 10 mm Integrated Spanner
- Compatible 7.4V LiPo Battery or 11.1V LiPo
- Compatible Charger
- Compatible 1/10 Scale ESC
- Compatible 1/10 Scale Motor
- Compatible 1/10 Scale Servo
- 2+ Channel Transmitter & Receiver
- PS Series Polycarbonate Safe Paint
- AA Batteries for Transmitter
This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.
-
Scale
- 1/10
-
Max LiPo Power
- 4S (14.8v)
-
Completion
- Kit
-
Skill Level
- Experienced
-
Power Source
- Electric
-
Chassis Type
- Monster Truck
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Max LiPo Power
- 4S (14.8v)
-
Battery Connector
- Deans
-
Front Shock Oil
- 400cSt
-
Rear Shock Oil
- 400cSt
-
Front Differential Oil
- 10000cSt
-
Rear Differential Oil
- 10000cSt
-
Pinion Gear
- 13T
-
Spur Gear
- 46T
-
Wheel Hex Size
- 12mm
