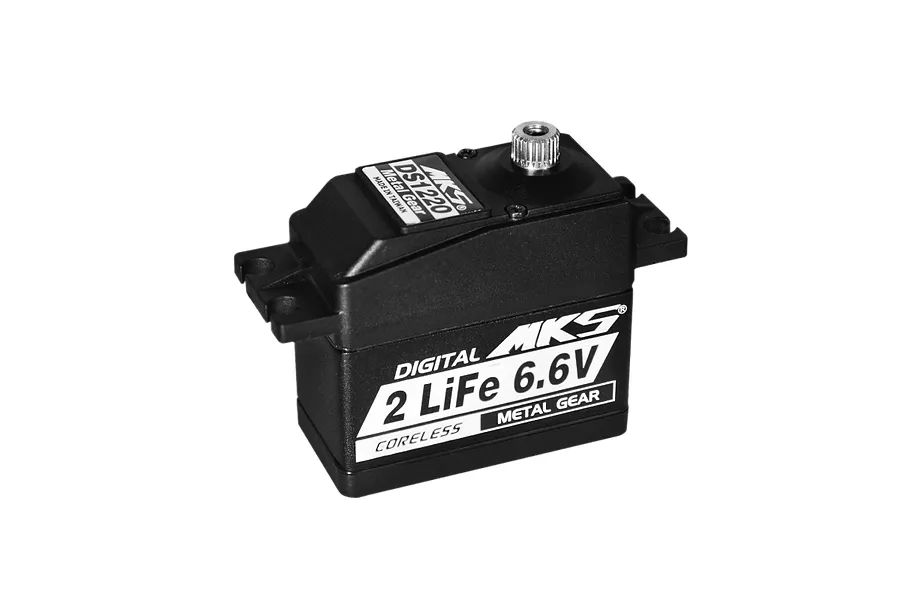

MKS Black Aluminium DS1220 Standard 30.4kg 6.8V Coreless Metal Geared Servo
Videos
MKS Black Aluminium DS1220 Standard 30.4kg 6.8V Coreless Metal Geared Servo
Brand:
MKS
|
MPN: S0023001
Now $123.99
or 4 fortnightly payments of $31.00 with
Pay later with
We'll send it today
When ordered within the next
hms
What does Next Dispatch mean?
Pay before 1:00pm Melbourne time on a dispatch day and your order ships the same day.
This is dispatch time, not delivery time — couriers still take their usual transit days.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
The MKS Black Aluminium DS1220 is a high-performance standard-size servo designed for demanding applications where both exceptional torque and lightning-fast speed are essential. Its robust construction with metal gears and coreless motor ensure durability and reliable performance, even under heavy loads.
Features
- Powerful torque for demanding applications (30.4kg-cm @ 6.8V)
- High-speed response for precise control
- Durable metal gears for extended lifespan
- Coreless motor for efficiency and smooth operation
- Aluminium middle case for efficient heat dissipation and protection
- Genuine MKS quality and reliability
Included Items
- 1x MKS Black Aluminium DS1220 Standard 30.4kg 6.8V Coreless Metal Geared Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Videos
Specifications
-
Torque (6.0V)
- 24.9 kg-cm / 345.8 oz-in
-
Torque (6.8V)
- 30.4 kg-cm / 422.18 oz-in
-
Speed
- 0.159 s (6.0V) / 0.140 s (6.8V)
-
Weight
- 57.44 g (2.02 oz)
-
Operating Voltage
- 3.8 - 6.8V
-
Bearing Type
- Dual Ball Bearing
-
Motor Type
- Coreless
-
Operating Temperature
- N/A
-
Refresh Rate
- 333Hz
-
Total Height (A)
- 42.15 mm
-
Body Width (B)
- 40 mm
-
Below Mount (C)
- 25.3 mm
-
Above Mount (D)
- 16.85 mm
-
Total Length (E)
- 50 mm
-
Total Width (F)
- 20 mm
Servo
-
Height (A)
- 42.15mm
-
Body Length (B)
- 40mm
-
Bottom to Under Mount (C)
- 25.3mm
-
Top to Under Mount (D)
- 16.85mm
-
Length (E)
- 50mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 6.8V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 24.9
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.159
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Aluminium/Plastic
-
Rotational Degrees
- 120° (Normal)
