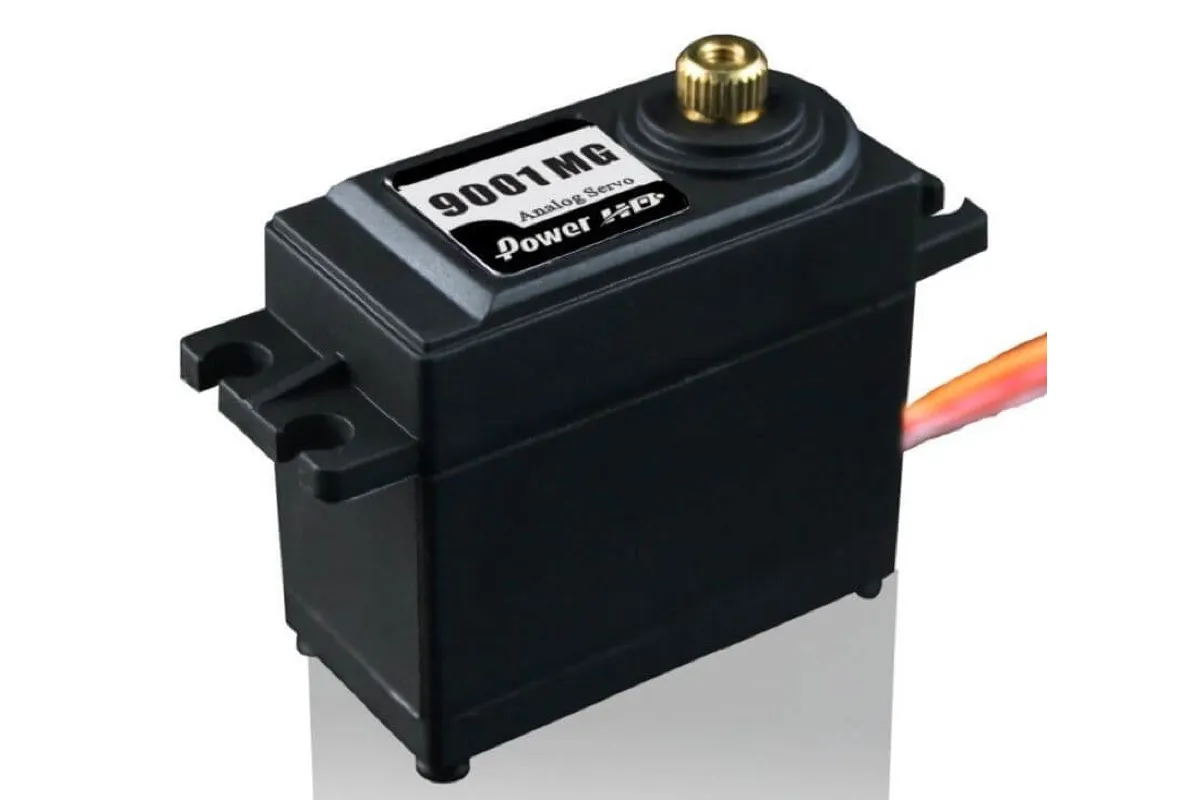

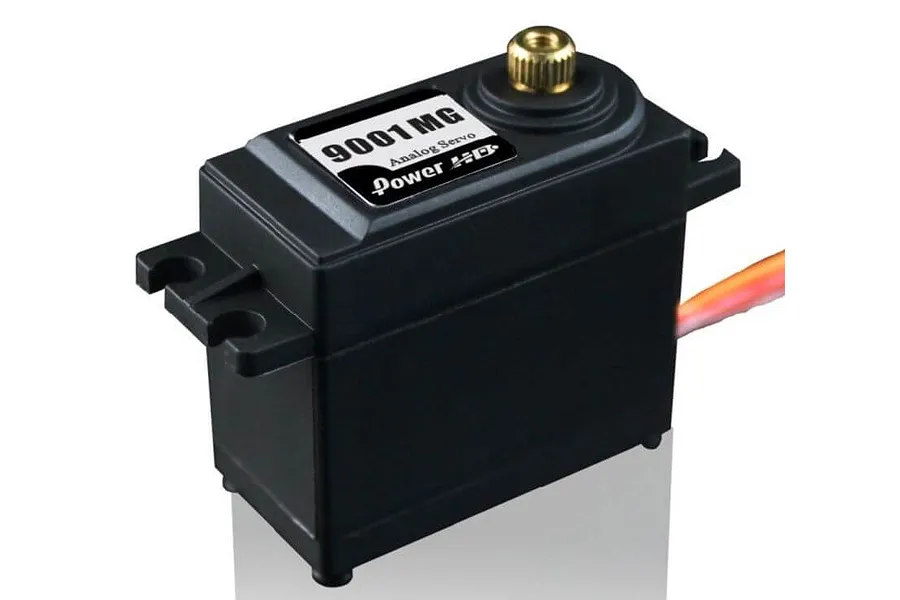

Power HD Standard 9.8kg 6V Copper Geared Analog Servo
Brand: Power HD
|
SKU: 9001MG
Description
Power HD 9.8kg Analog Servo.
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Power HD 9001MG Servo Dimensions
- Total Height (A) = 37.5mm
- Body Width (B) = 40.5mm
- Below Mount (C) = 26.5mm
- Above Mount (D) = 11.0mm
- Total Length (E) = 18.7mm
- Total Width (F) = 54.20mm
Specifications
- Torque(4.8V): 8.6 kg-cm (119.4 oz/in)
- Torque(6.0V): 9.8 kg-cm (136.1 oz/in)
- Speed: 0.16 sec (4.8V) ? 0.14 sec (6V)
- Operating Voltage?4.8 ~ 6.0 DC Volts
- Weight: 56g (1.98oz)
- Bearing Type?2 x Ball Bearing
- Gear Type?Copper
- Motor Type: DC Motor
- Operating Temperature?-20?~60?
- Working frequence?1520?s / 333hz
- Size 40.7 x 20.5 x 39.5 mm (1.60 x 0.81 x 1.56 in)
Included items
Description | QTY |
---|---|
Power HD 9.8kg 6V Copper Geared Analogue Servo | 1 |
Servo Horns | 4 |
Specifications
Servo | |
---|---|
Servo Size: | Standard |
Drive Motor Type: | Brushed |
Gear Material: | Copper |
Case Material: | Metal |
Waterproof Casing: | No |
Rotational Degrees: | 120o (Normal) |
Servo Spline Count: | 25 |
Signal Type: | Analog |
6.0V Torque kg/cm: | 9.8 |
6.0V Sec/60 Degrees: | 0.14 |
"A" Measurement: | 37.5 |
"B" Measurement: | 40.5 |
"C" Measurement: | 26.5 |
"D" Measurement: | 11 |
"E" Measurement: | 18.7 |
"F" Measurement: | 54.28 |
