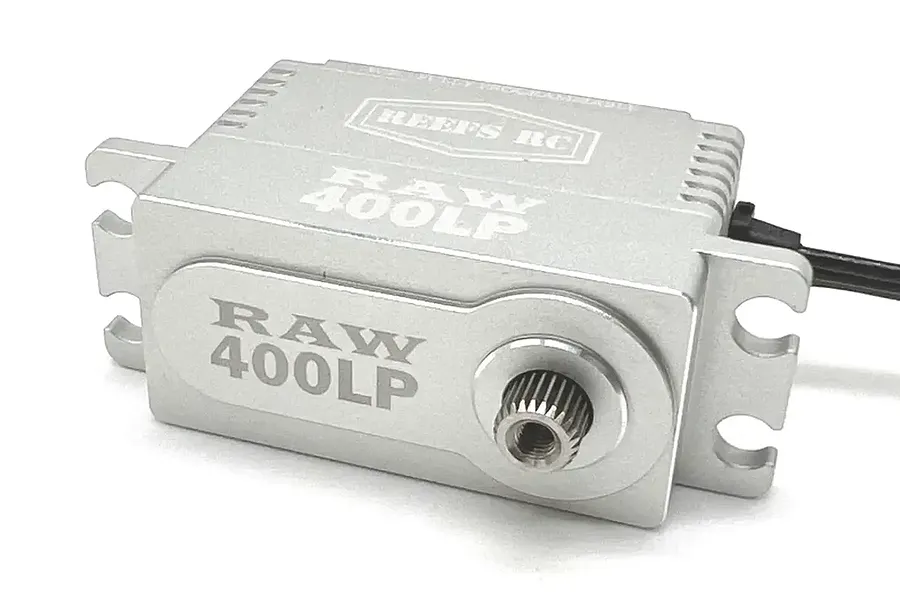

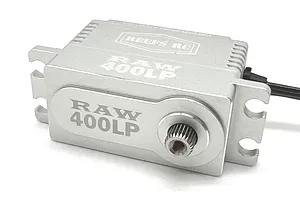

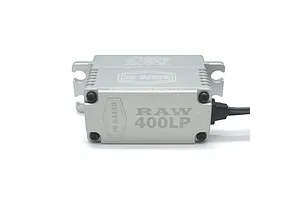

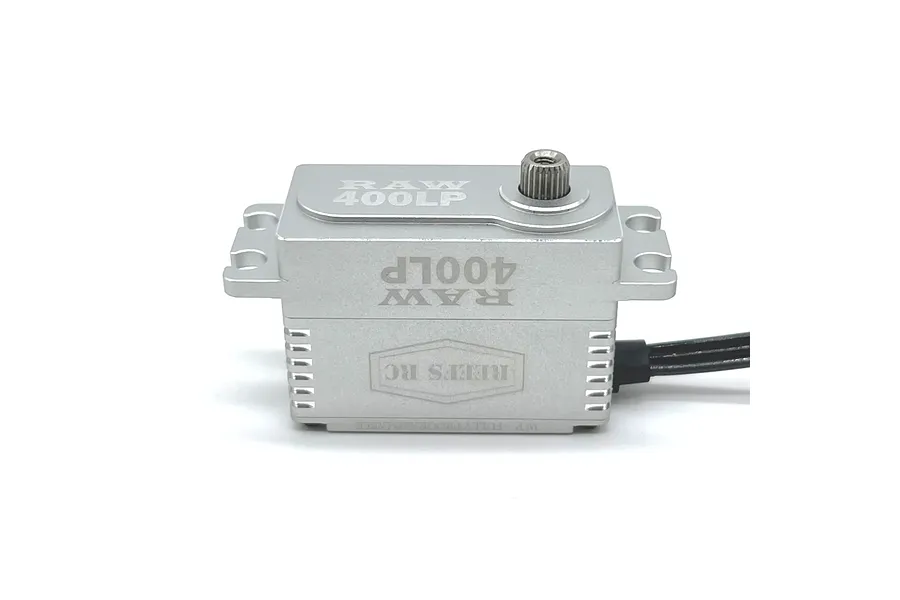

Reefs RC Raw 400LP 33kg 8.4V Waterproof Metal Geared Servo - Silver

Part no. REEFS136

1 in stockNo reviews yet
1 / 4
1 / 4

$234.99

or 4 fortnightly payments of $58.75 with afterpay or PayPal, or zip

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Ships Thursday · order by Thursday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Specifications

Servo

Servo
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingYes
Case MaterialAluminium
Height (A)29.5mm
Length (E)41mm
Width (F)20mm
Drive Motor TypeBrushed
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline25
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.09
7.4V Torque kg/cm30
7.4V Sec/60 Degrees0.08
8.4V Torque kg/cm33
8.4V Sec/60 Degrees0.065
Signal TypeDigital
