Name: Tamiya CC-02 Mercedes Benz G 500 RC Rock Crawler Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58675
Price: 405.22 AUD
Availability: Discontinued

Overview

The Tamiya CC-02 (Cross Country 2) chassis platform brings R/C enthusiasts the next generation of Tamiya trail driving with a completely revamped machine designed for a wide range of off-road scenes including rocky terrain.

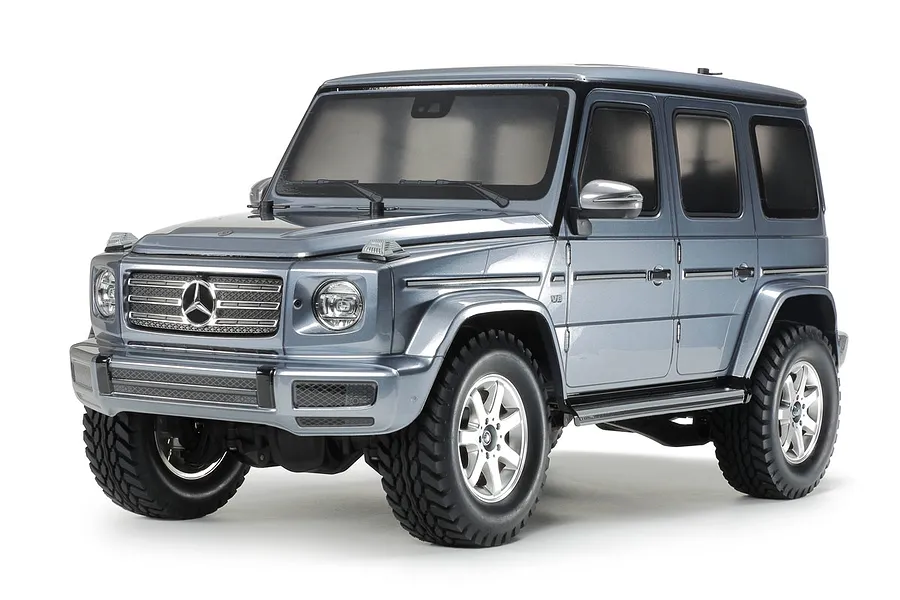

The first body to grace the capable new chassis is a highly-detailed polycarbonate recreation of the Mercedes-Benz G 500, which first appeared in the Mercedes SUV lineup in 2018. The CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections.

Note

This body shell comes completely unpainted and may require body post holes to be drilled. Only use a polycarbonate-compatible paint such as the Tamiya PS series; standard paints will not adhere and may damage the body shell surface.

Features

1/10 scale R/C model assembly kit

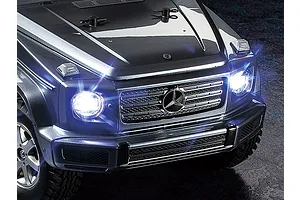

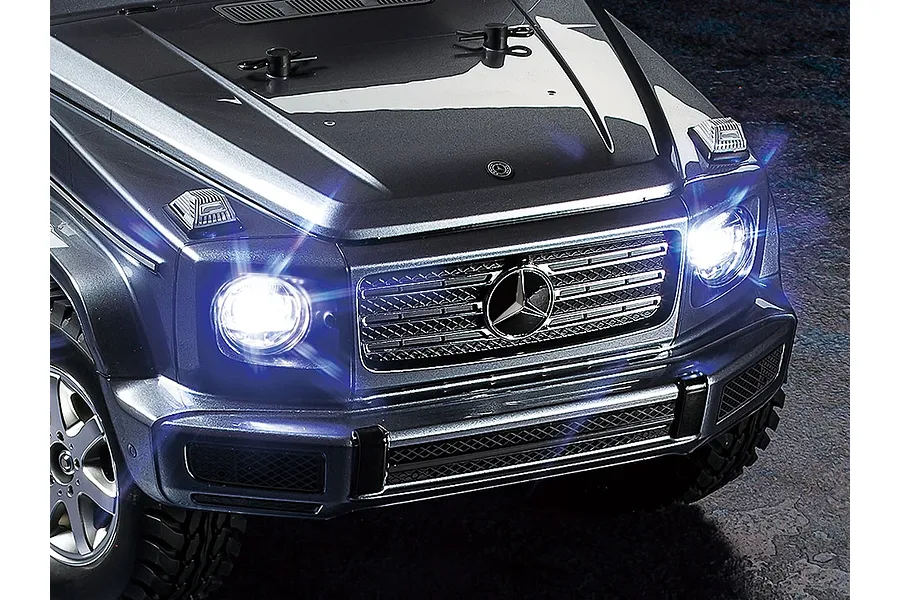

TLU-01 LED Light Unit and LEDs included

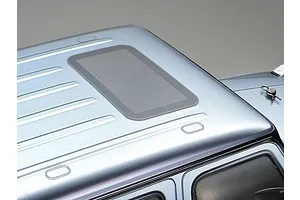

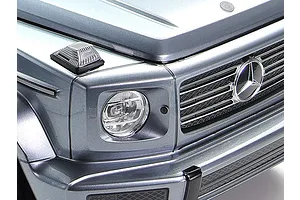

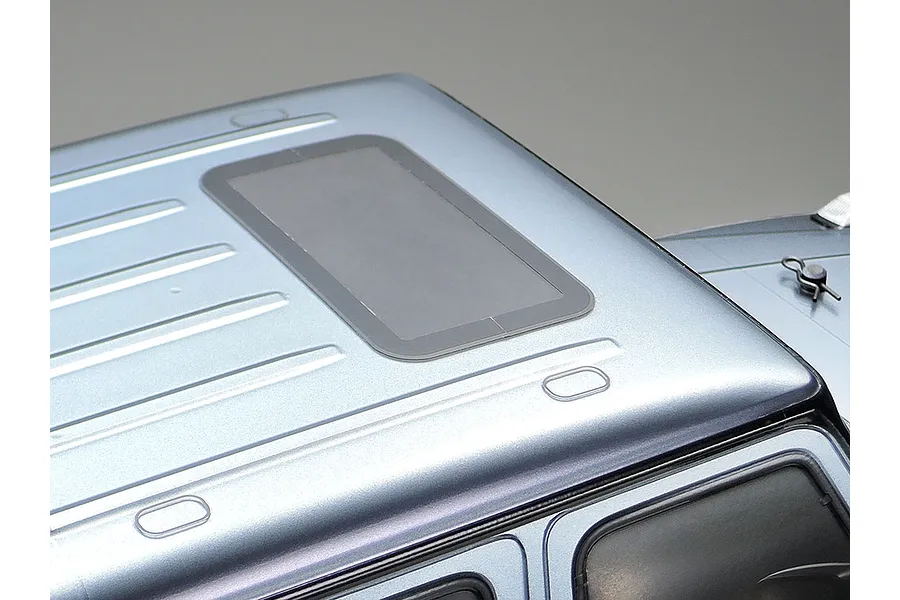

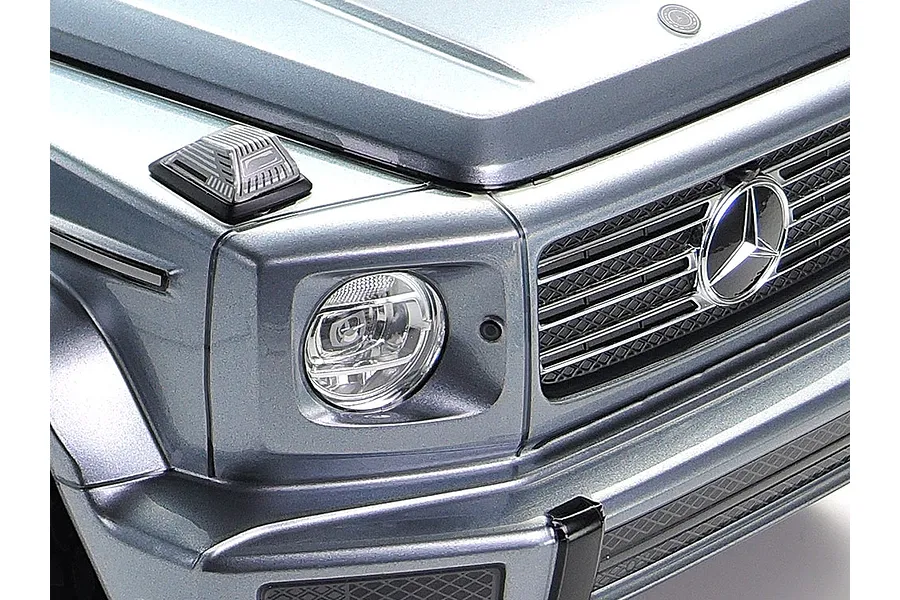

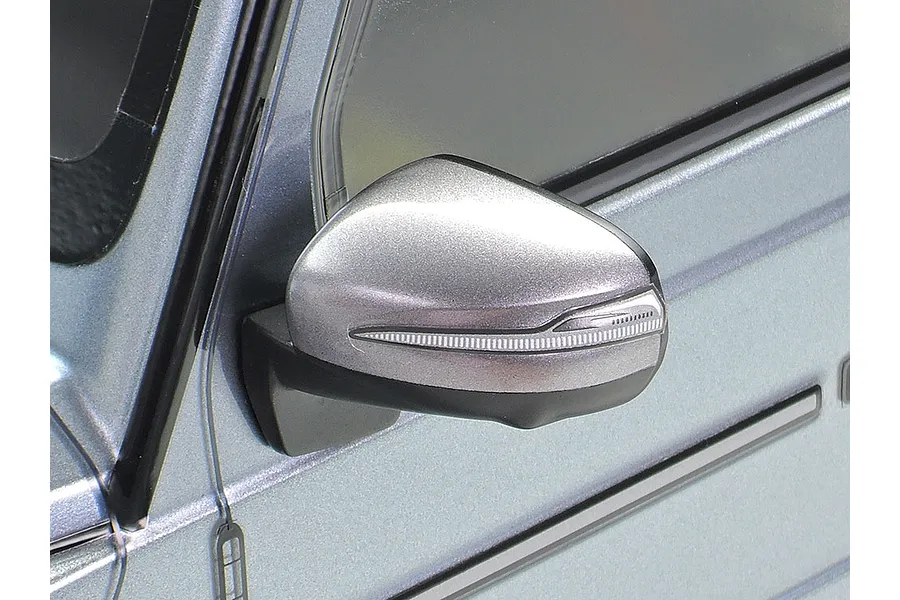

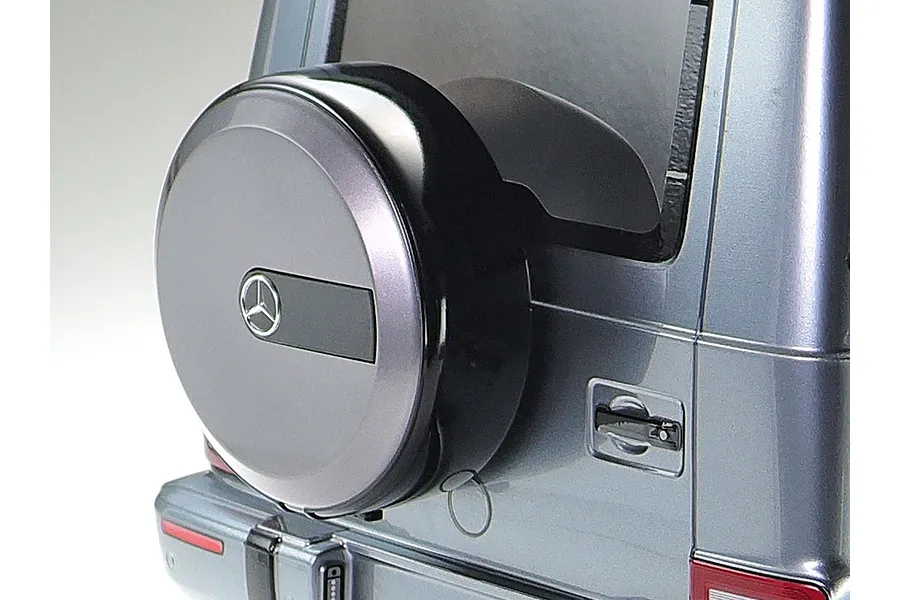

G 500 body recreated accurately in polycarbonate; separately molded parts for front grille, side mirrors, and spare tire cover

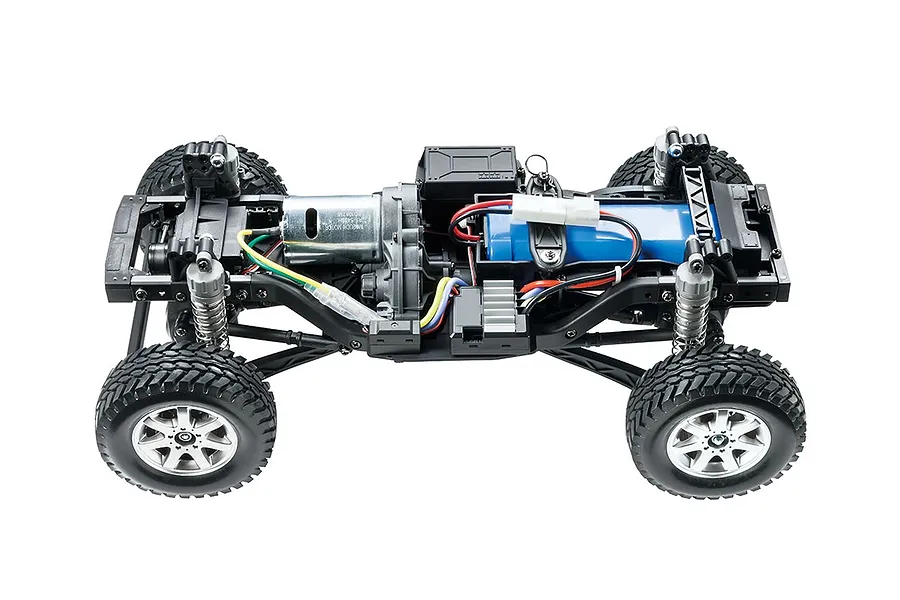

CC-02 chassis ladder frame inspired by full-size vehicles for superior durability

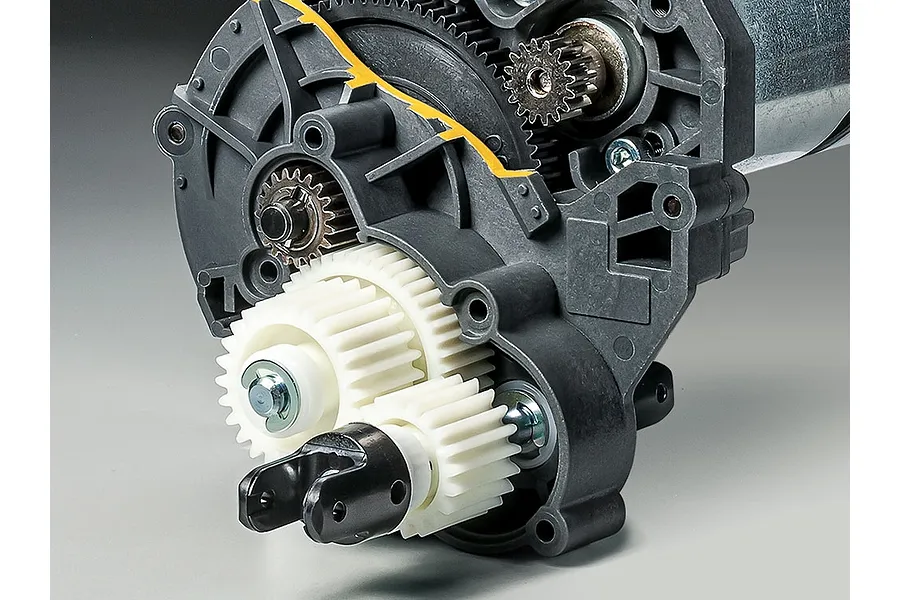

4WD setup: motor longitudinally behind the front axle with separated gearbox and transfer case; propeller shafts transmit power to front and rear differential gears
Twenty gear ratios between 11.09:1 and 29.28:1 possible using separately sold pinion gears

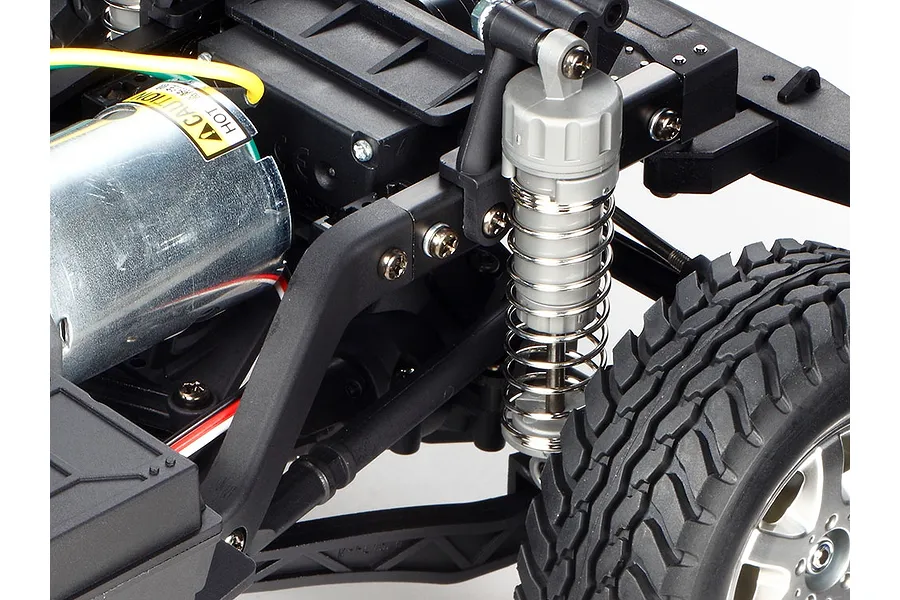

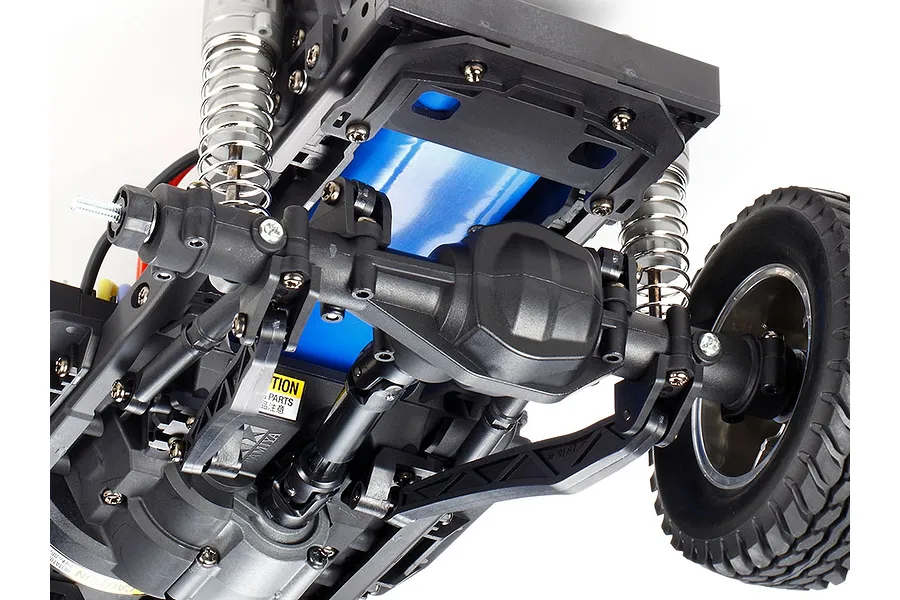

4-link rigid suspension front and rear with CVA oil dampers
3-bevel differential gears — can be locked (with reassembly) for driving on poor surfaces
Axle housings enclose a central differential gear and axle shafts; if one wheel rises, the other is pushed downward to aid traction
Includes Tamiya TBLE-02S ESC — capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit / 23 Turn brushed motor limit)

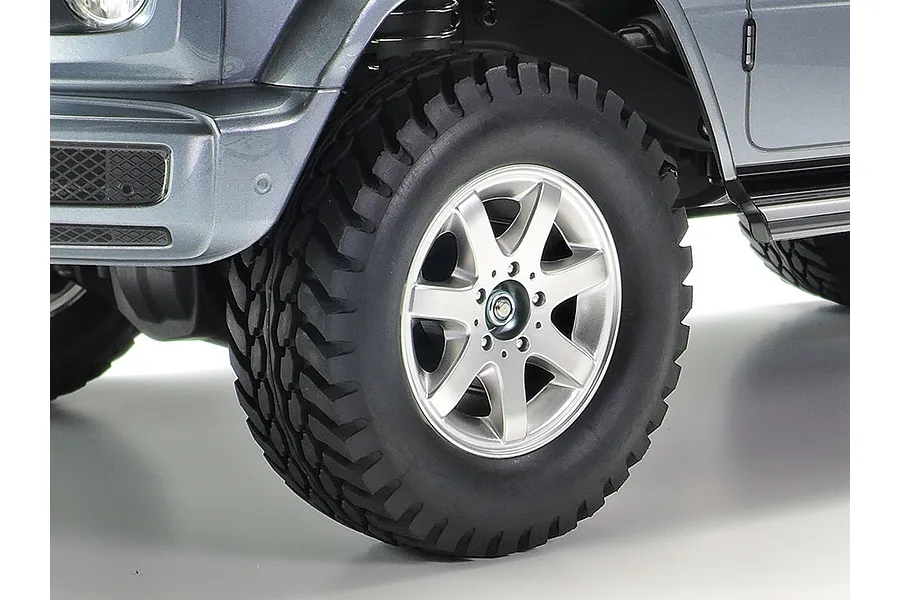

Matte plated seven-spoke wheels with grippy block-pattern tires

In the box

1x Tamiya CC-02 Chassis Kit
1x Tamiya TBLE-02S Brushed ESC
1x TLU-01 LED Light Unit and LEDs
1x Mercedes-Benz G 500 Unpainted Polycarbonate Body Shell

You'll need

Steering servo
Remote controller
Battery and charger
Tamiya PS polycarbonate paint
Tools

Specifications

Length	455mm
Width	196mm
Height	207mm
Wheelbase	267mm
Weight	Coming Soon
Ground Clearance	Coming Soon
Drivetrain	4WD
ESC	Tamiya TBLE-02S

RC Car

Scale	1/10
Max LiPo Power	2S (7.4v)
Completion	Kit
Skill Level	Intermediate
Power Source	Electric Brushed
Chassis Type	Rock Crawler
On/Off Road	Off Road
Drivetrain	4WD
