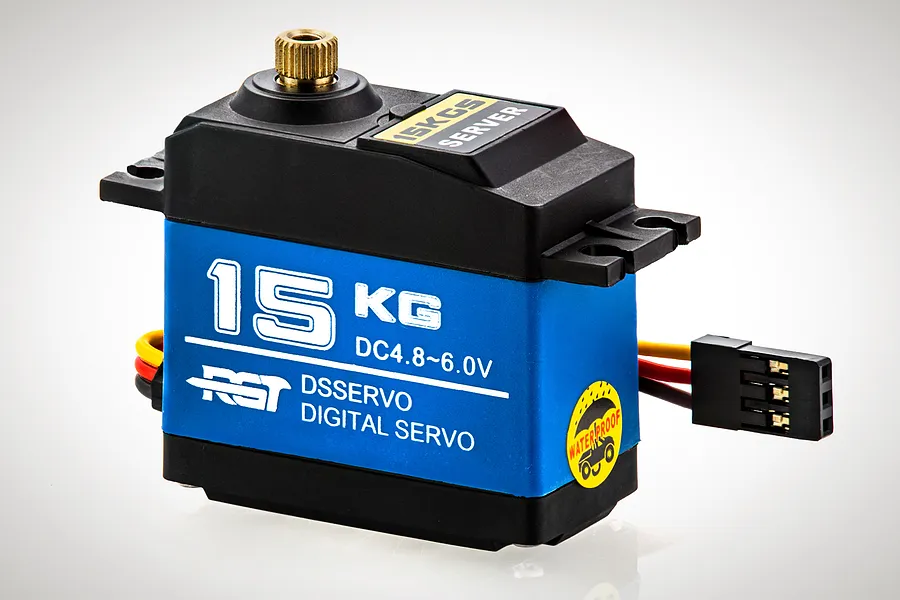

HSP Standard Metal Geared Waterproof Servo 15Kg

Videos

HSP Standard Metal Geared Waterproof Servo 15Kg

Brand: HSP | SKU: R86076

3+ in stock

5.0

3 reviews

$32.45

Pay later with

Loading compatibility information...

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

HSP-R86076 Servo Specifications

Total Height (A) = 45.5mm
Body Width (B) = 40mm
Below Mount (C) = 27mm
Above Mount (D) = 18.5mm
Total Length (E) = 53.5mm
Total Width (F) = 20mm

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Specifications

Servo

Total Width: 20mm
Servo Spline Count: 25Tooth
Top to Under Mount: 18.5mm
Total Length: 53.5mm
Body Length: 40mm
Bottom to Under Mount: 27mm
Rotational Degrees: 120° (Normal)
Total Height: 45.5mm
Case Material: Metal
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 15
Gear Material: Metal
Waterproof Casing: Yes
Size Conventionally sized servo names: Standard
