Name: Kyosho Mini-Z Suzuki Jimny Sierra RC Rock Crawler Electric 4x4 RTR - Medium Grey (Team Undercoat)
Brand: Kyosho
SKU: KYO-32523G
Price: 360.83 AUD
Availability: Discontinued

Overview

The Kyosho Mini-Z 4x4 series delivers an all-new driving experience combining highly-detailed body construction with a completely new 4x4 chassis design, opening new levels of performance beyond anything RC enthusiasts have seen from a mini crawler. The MINI-Z 4x4 features a ladder-style frame design, a 3-link rigid axle suspension combining two upper links into a single upper A-arm for maximum suspension movement, a high-torque steering servo for excellent performance in challenging rock-crawler conditions, and a high-torque 130-size motor specially geared for low to medium speed ranges common in crawling. The injection-moulded body is made with thicker material to better resist crash damage from operation in rough terrain. All the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

Features

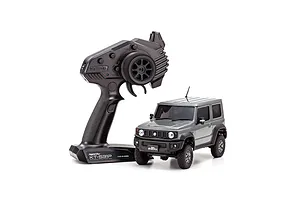

KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions
Servo uses an independent receiver/ESC connection and is protected with its own casing
Includes LED light set
Full ball bearings (18 total)
Slipper clutch protects the drivetrain from excess loads
Multiple pinion gear setup to customise speed
Gearbox and gears come with moulded covers
BFGoodrich Mud-Terrain T/A KM3 tyres mounted on Suzuki factory-replica wheels with an aluminium-like silver finish
Wheelbase can be adjusted using included spacers

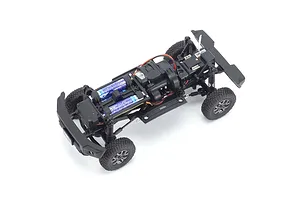

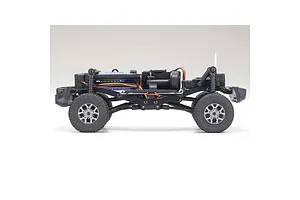

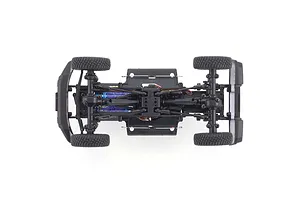

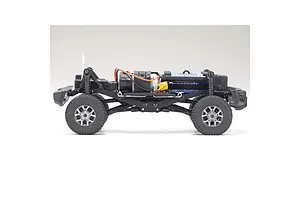

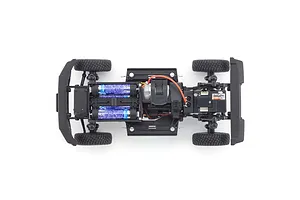

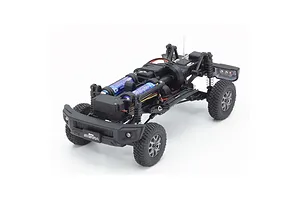

Incorporates a ladder frame design to offer superior balance and durability
Newly designed one-touch body mount

In the box

1x Complete chassis with built-in electronics
1x Factory-painted body complete with many fine details
1x KT-531P 2.4GHz transmitter
1x Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
1x 3 types of pinion gear spacers

You'll need

4 x AAA Batteries for Transmitter
4 x AAA Batteries for Chassis

Highlights

Solid Axles

The solid front and rear axles feature durable steel links and captured rod ends for maximum strength. Metal ring and pinion gears, along with other key drivetrain components, ensure exceptional durability under heavy loads and the toughest driving conditions.

Steel Link & Ball End

Experience exceptional strength and smooth articulation with Kyosho's suspension system. The upper A-arms and lower links connecting the axles to the chassis feature robust steel links and captured ball ends. This design ensures maximum range of motion and reliable performance even in challenging terrain.

Adjustable Wheelbase

Tailor your Kyosho vehicle's performance to different terrains with an adjustable wheelbase. Simply change the spacer on the upper A-link to switch between 110mm and 120mm wheelbase settings. For instance, the Jimny model comes pre-set to 120mm for optimal off-road capability.

130 Size High Torque Motor

The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.

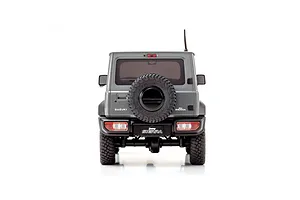

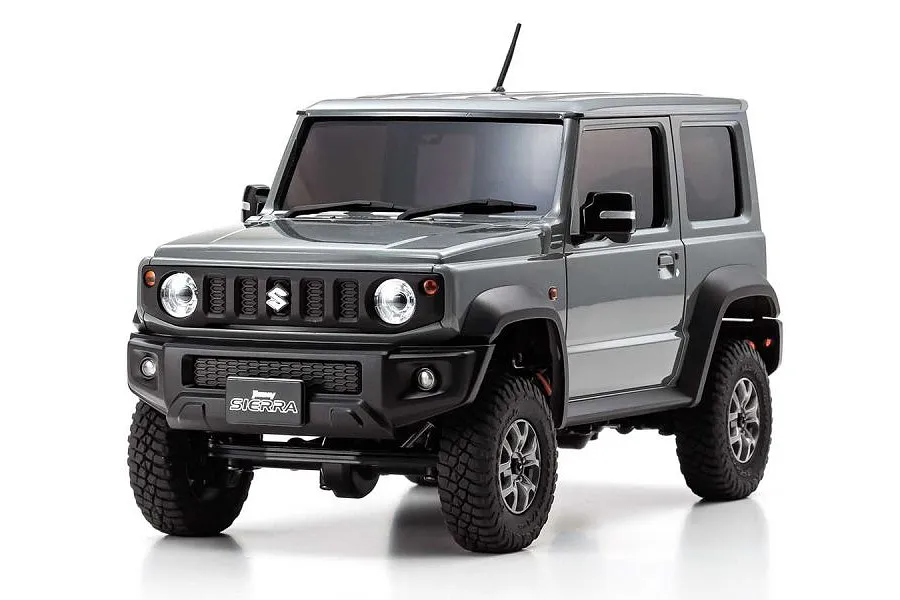

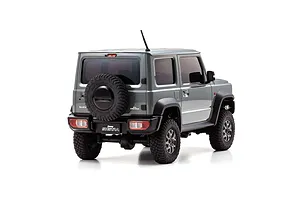

Iconic Jimny Styling

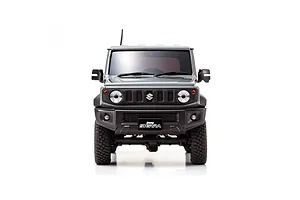

Kyosho captures the unique charm of the Jimny with meticulous attention to detail. The signature five-slot front grille, round headlights fitted with LEDs, and precisely replicated turn signal and driving lights elevate the scale realism of this already impressive model.

Specifications

Length	193mm (7.59")
Width	84mm (3.30")
Height	90mm (3.54")
Wheelbase	120mm (4.72")
Tread F/R	72.7mm (2.86")
Weight	242g (excl. battery)
Chassis	MX-01
Motor	130 Class
Gear Ratio	55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
Front Tyre Diameter	37mm (1.45")
Rear Tyre Diameter	37mm (1.45")
Front Tyre Width	12mm (0.472")
Rear Tyre Width	12mm (0.472")
Transmitter	Syncro KT-531P
Speed	3.3 km/h – 6.6 km/h (10T – 20T pinion) approx.
Running Time	60 mins approx.
