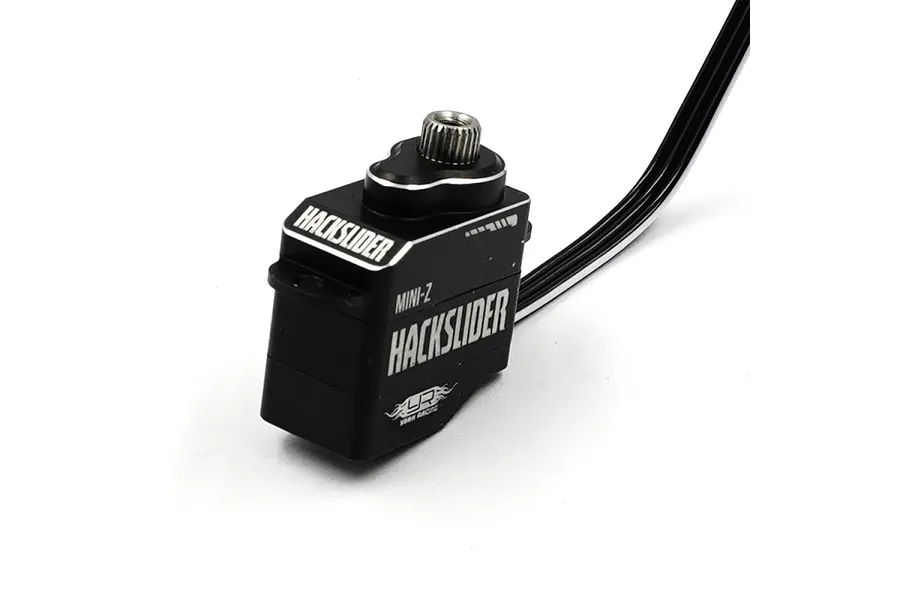

Yeah Racing Hackslider 1/24 & 1/27 Mini-Z Aluminium Metal Gear Servo
Yeah Racing Hackslider 1/24 & 1/27 Mini-Z Aluminium Metal Gear Servo
Brand:
Yeah Racing
|
MPN: YE-0042BK
This product has been replaced by the product below.
Videos
Related Products
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC. Aluminium Case servo which aids in dissipating heat and a more secure install when compared to plastic servos which may warp during installation.
Features
- Dimensions: 20mm * 11.3mm * 22.1mm
- Weight: 11.5g
- Servo Operating Angle: 360°
- Signal Wire: JR Plug 260mm (L)
- Servo Spline: 25T
- Gears: Metal
- Voltage Input: 4.8V / 6.0V
- Speed: 0.05 0.035
- Torque: 1.4 1.8
Videos
Specifications
-
Material
- Aluminium
-
Gear
- Steel
-
Max Angle
- 360°
-
Voltage
- 4.8V–6.0V
-
Connector Wire Length
- JR 260mm
-
Servo Spline
- 25T
-
Dimension
- 20mm * 11.3mm * 22.1mm
-
Weight
- 11.5g
-
Total Height (A)
- 26mm
-
Body Width (B)
- 20mm
-
Below Mount (C)
- 12.8mm
-
Above Mount (D)
- 10.5mm
-
Total Length (E)
- 28mm
-
Total Width (F)
- 11mm
Servo
-
SizeConventionally sized servo names
- Sub Micro
-
Gear Material
- Steel
-
Servo Spline Count
- 25Tooth
-
Waterproof Casing
- Yes
-
Case Material
- Aluminium
-
Height (A)
- 26mm
-
Body Length (B)
- 20mm
-
Bottom to Under Mount (C)
- 12.8mm
-
Top to Under Mount (D)
- 10.5mm
-
Length (E)
- 28mm
-
Width (F)
- 11mm
-
Drive Motor Type
- Brushless
-
Rotational Degrees
- 360°
-
Signal Type
- Digital
