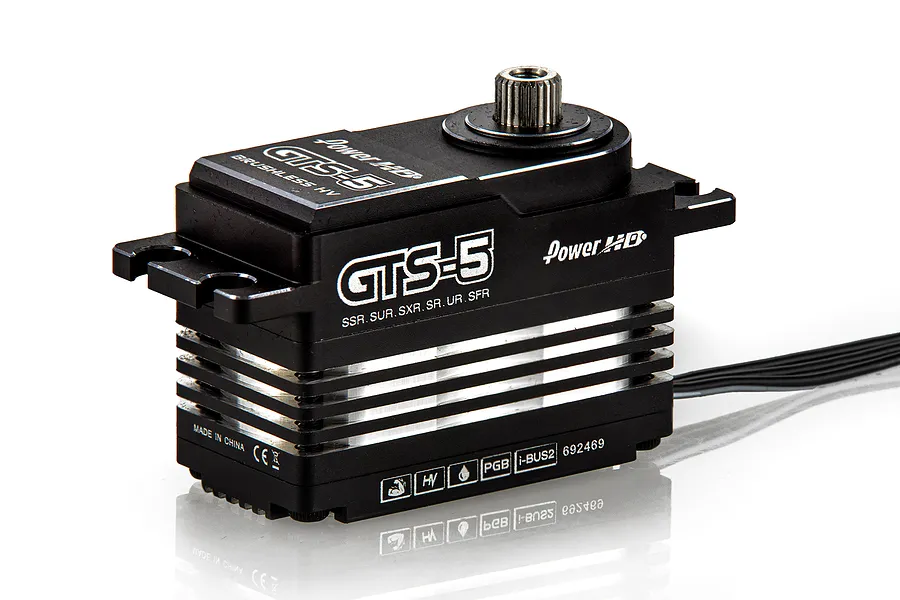

Power HD Black Aluminium GTS-5 Standard 50kg 8.4V HV Waterproof Brushless Metal Geared Servo

Name: Hobbies Direct
Address: Unit 5 80-84 Tucker St, Breakwater, VIC, 3219, AU
Telephone: +61352921101
Price range: $$$

Brand: Power HD | SKU: GTS-5

3 in stock

write a review

$222.61

Pay later with

Recommended Products

Power HD Black Aluminium 25T Servo Horn

4 reviews

$8.62

Description

No description

Specifications

Servo

Height (A): 44mm
Body Length (B): 41mm
Bottom to Under Mount (C): 19.7mm
Top to Under Mount (D): 9.3mm
Length (E): 54.4mm
Width (F): 12mm
Size Conventionally sized servo names: Standard
Gear Material: Aluminium & Steel
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
Input Voltage Range: 6VV, 7.4VV, 8.4VV
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 36
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.11
7.4V Torque kg/cm: 42
7.4V Sec/60 Degrees: 0.09
8.4V Torque kg/cm: 50
8.4V Sec/60 Degrees: 0.08
Signal Type: Digital
Drive Motor Type: Brushless
Case Material: Aluminium
Rotational Degrees: 180°
