HSP

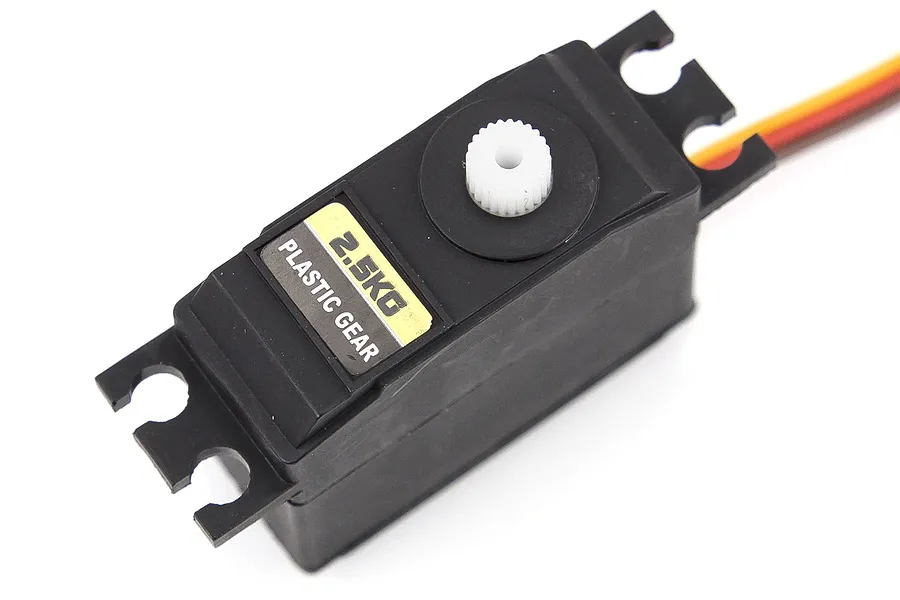

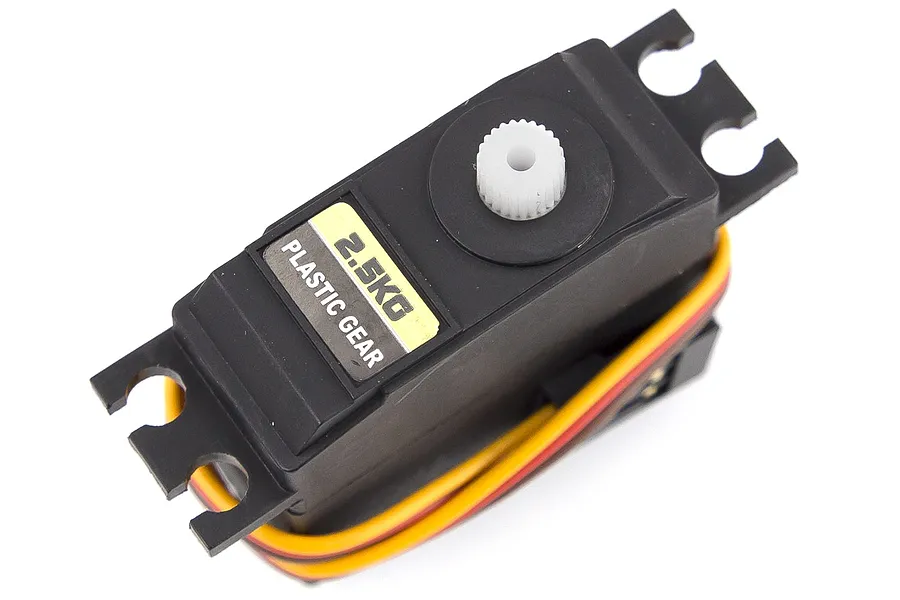

HSP Mini 2.5kg Servo

Part no. SP2501

Sold out5.0
1 review
1 / 2
1 / 2

$24.04

or 4 fortnightly payments of $6.01 with afterpay or PayPal, or zip

In stock now: similar

Will it fit?

Check fit: add your vehicle to My GarageFits 2 vehicles

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

Servo

Servo
SizeConventionally sized servo namesMini
Gear MaterialPlastic
Servo Spline Count25Tooth
Waterproof CasingNo
Case MaterialPlastic
Height (A)32.5mm
Body Length (B)36mm
Bottom to Under Mount (C)20mm
Top to Under Mount (D)12.8mm
Length (E)49mm
Width (F)15mm
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline2.5

Compatibility

Reviews (1)

5.0

Based on 1 review

  • 5 stars1
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star0

  • Kevin P

    Verified buyer

    3 Mar 2025

    Nice little lightweight servo plenty of torque
