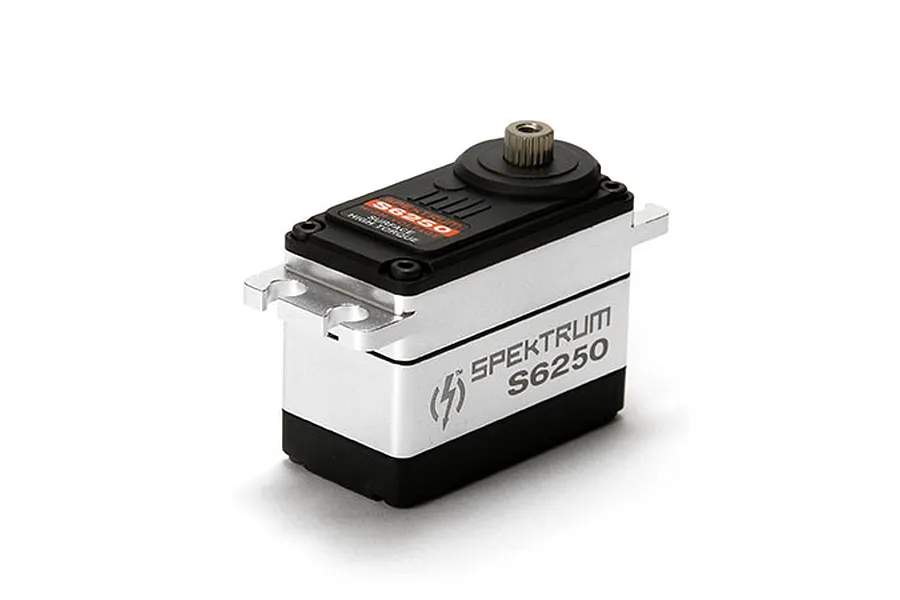

Spektrum S6280 Standard 27.5kg 8.4v Metal Geared Waterproof Servo

Brand: Spektrum | SKU: SPMSS6250
Videos
1 in stock

$243.83

Fits 36 Vehicles

Login to My Garage to check compatibility.

Description

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof
  • 1-Year Limited Warranty
Spektrum S6250 Servo Specifications
  • Total Height (A) = 41.2mm
  • Body Width (B) = 41mm
  • Below Mount (C) = 26.5mm
  • Above Mount (D) = 14.7mm
  • Total Length (E) = 54.4mm
  • Total Width (F) = 20.9mm
RC Hobby Servo Specifications

?

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Specifications
Servo
Size: Standard
6.0v Speed: 0.13s
6.0v Torque: 27.5kg
Servo Spline Count: 23tooth
Gear Material: Steel
Waterproof Casing: Yes
Signal Type: Digital
Drive Motor Type: Coreless
Case Material: Aluminium
Rotational Degrees: 120° (Normal)
Total Height: 41.2mm
Body Length: 41mm
Bottom to Under Mount: 26.5mm
Top to Under Mount: 14.7mm
Total Length: 54.4mm
Total Width: 20.9mm
