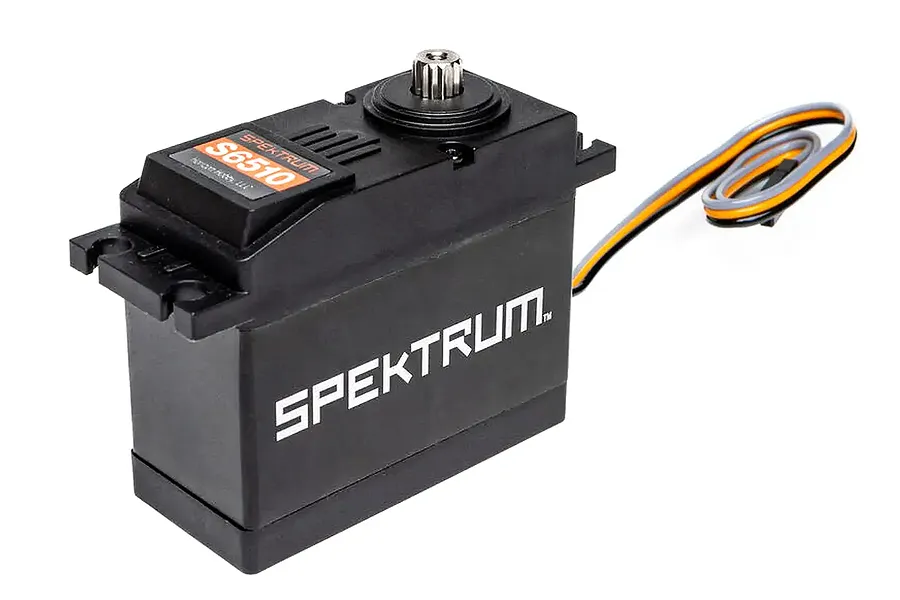

Spektrum S6510 1/5 59kg 8.4V Metal Geared Servo

  • 1/5

Part no. SPMSS6510

Expected 11 NovWrite a review
1 / 2
1 / 2

Videos

$239.18

or 4 fortnightly payments of $59.80 with afterpay

Check fit: add your vehicle to My Garage

Spektrum S6510 high-torque servo delivering 59kg @ 8.4V — ideal 1/5th scale upgrade from S905/S906 servos, with metal gears and wide 6V–8.4V voltage range.

  • 59kg torque @ 8.4V (820oz-in) — purpose-built for 1/5th scale vehicles
  • Wide operating voltage of 6.0V–8.4V for flexible power options
  • Direct upgrade from Spektrum S905 or S906 on compatible RTR vehicles
  • Strong metal gears with dual ball bearing for smooth, durable operation
  • 15-Tooth Spline for secure servo horn fitment

In stock now: similar

Fits 6 vehiclesSee which

Videos

Overview

Pushing the limits of a 1/5 scale vehicle through rough and tumble environments requires top performance from the vehicle's servos. The S6510 is designed to give 1/5th scale enthusiasts huge torque (59kg @ 8.4V) to power through the toughest terrains.

The S6510 is a perfect upgrade servo from RTR vehicles that include the S905 or S906 servos, such as the ARRMA 1/5 Kraton 4WD BLX Monster Truck, Losi 1/6 Super Baja Rey, Axial 1/6 SCX6 crawlers and more.

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver, smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Note

The Losi Super Baja Rey (LOS05021) and Losi Super Rock Rey (LOS05016V2) surface vehicles will need to use LOS351010 Aluminium Steering Servo Mount: Super Baja Rey / Super Rock Rey to properly mount the SPMSS6510 servo.

Features

  • High Torque 59kg @ 8.4V (820oz-in @ 8.4V)
  • Ideal servo for 1/5th scale vehicles
  • Perfect upgrade from the Spektrum S905 or S906 Servos
  • Wide operating voltage (6.0V - 8.4V)
  • Dual Ball Bearing for smooth operation
  • Strong metal gear ensures durability
  • 15-Tooth Spline

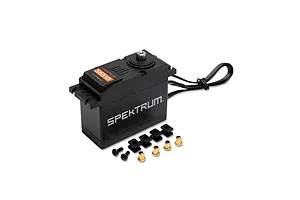

In the box

  • 1x S6510 1/5 Scale High Torque Servo
  • 4x Mounting Hardware
  • 1x Servo Arm

Specifications

Torque (6.0V)46.1 kg-cm (640 oz-in)
Torque (7.4V)54.7 kg-cm (760 oz-in)
Torque (8.4V)59 kg-cm (820 oz-in)
Speed0.02 sec (6.0V) | 0.16 sec (7.4V) | 0.14 sec (8.4V)
Operating Voltage6V - 8.4V
Weight240g (7.2 oz)
Bearing TypeBall Bearing
Size66mm x 30mm x 57.7mm (2.6in x 1.18in x 2.27in)

Servo

SizeConventionally sized servo names1/5
Gear MaterialMetal
Servo Spline Count15Tooth
Input Voltage Range6V, 7.4V, 8.4V
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline46.1
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.02
7.4V Torque kg/cm54.7
7.4V Sec/60 Degrees0.16
8.4V Torque kg/cm59
8.4V Sec/60 Degrees0.14
Signal TypeDigital
