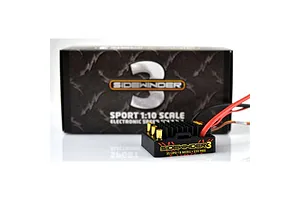

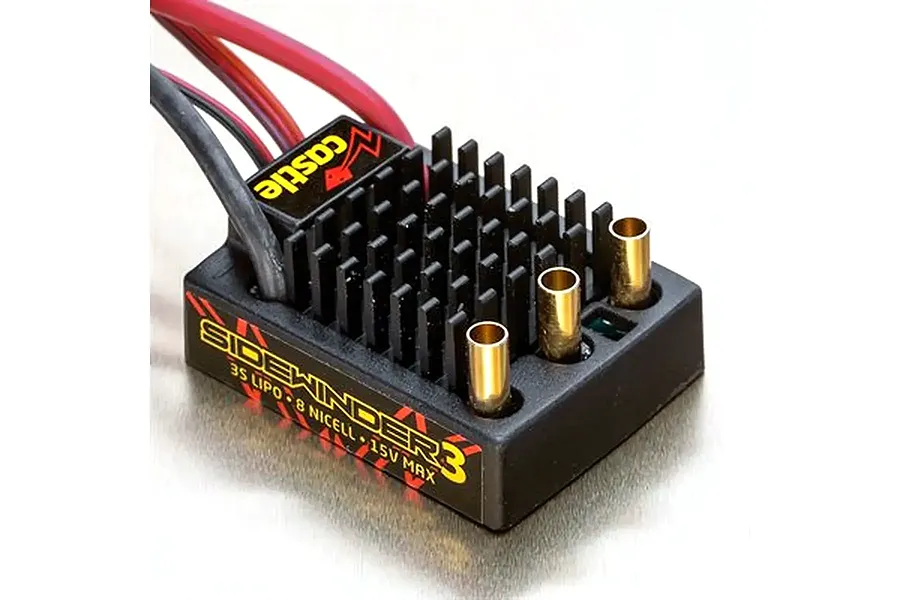

Castle Creations Sidewinder 3 Waterproof Brushless ESC
Brand: Castle Creations
|
SKU: 010-0115-00
Description
WARRANTY INFO: Your Castle ESC is warranted for one (1) year from date of purchase to be free from manufacturing and component defects. This warranty does not cover damages caused to your motor or controller from abuse. Abuse includes, but is not limited to, incorrect wiring, over-voltage, overloading, improper gearing, improper motor selection, incorrect controller settings, insufficient batteries, or inadequate connectors.
Always monitor your ESC and motor temperatures during the first run after modifying your system to ensure they stay within the safe operating limits.
WARNING: Drag and speed run setups are inherently abusive and exceedingly hard on all electronic components. Every component in the configuration can be strained, weakened or worse without extreme caution, an understanding of electric theory and advanced knowledge of all aspects of the RC hobby. High speed runs and drag racing are the most aggressive and volatile applications in the RC car hobby. Improper setup or use of this product can result in catastrophic failures of the motor, ESC and/or batteries. For this reason, Castle does NOT warranty products used in these abusive applications.
Sidewinder 3 is the perfect waterproof sport brushless ESC for 1:10 scale off-road, on-road, and rock crawlers running up to 3S LiPo!
Features
- 2s - 3s LiPo; 6 - 8 cell NiMH use in vehicles up 5 lbs with battery, ready-to-run.
- Sensorless brushless (540 or 36mm) and/or brushed (down to a 19T) motor operation.

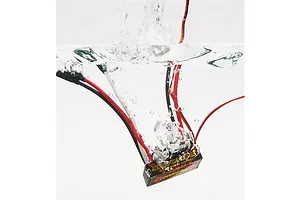

- Waterproof design ESC
- 5.0 volts fixed, 2 amps Peak BEC
- Convenient transmitter programming for six common adjustable settings
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately), a Field Link Card (sold separately) or the Castle Link iOS App and a B-LINK Bluetooth Adapter (sold separately)
Included items
| Description | QTY |
|---|---|
| Sidewinder 3 Waterproof Brushless ESC | |
| User Guide and Quick Start Guide | 1 |
| Gearing Chart for Castle Motors | 1 |
| Castle decals | 1 |
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Max Voltage: | 12.6v |
| Waterproof Design: | Yes |
| Motor Connectors: | 4.0mm Bullet |
| Battery Connector: | Bare Wire |
| LVC: | Yes |
| Programmable: | Yes |
| Cooling Method: | Air |
| BEC Voltage: | 5 |
| Dual Motor: | No |
